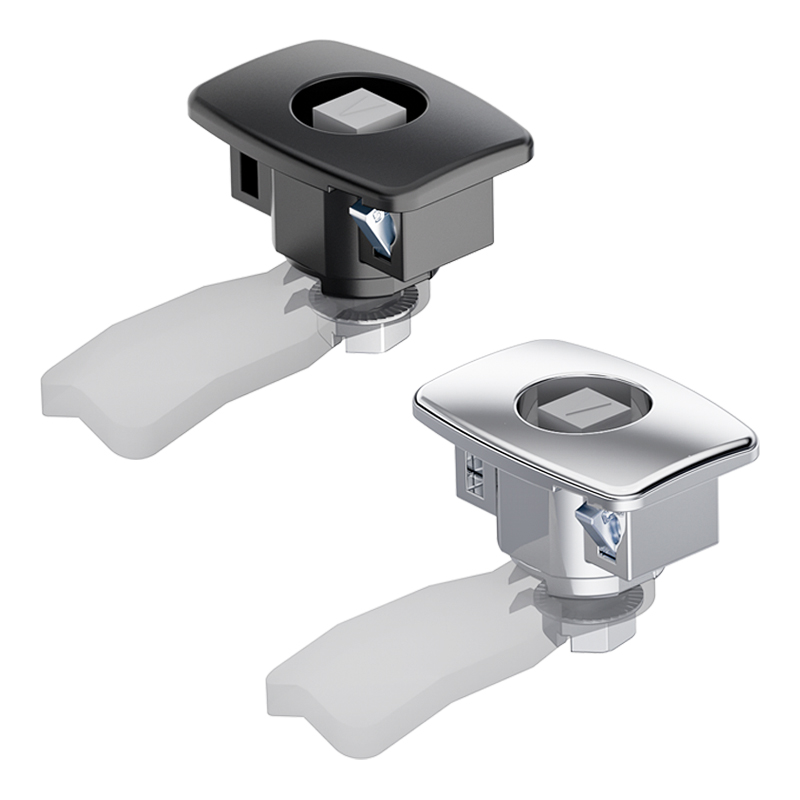

[1-083DST]
DST Quarter-Turn Pr32x20 L18
Advantages
- Flush quarter-turn for cutout 32x20mm.
- Rectangular cutout guarantees a perfect alignment.
- IP65 according to DIN EN 60529 (O-Ring for housing is included). O-Ring 200-1001.00-00000, for insert, please order separately.
- RH / LH application by rotatable bottom part.
- Grounding by grounding clip (optional)..
- On request parts can be pre-assembled
- The quarter-turn can be snapped-in as a completely pre-assembled unit.
- Installation tool-less and vibration-proof.
- Blind installation in closed profiles.
Material
- Housing: PA, black or zinc die, chrome plated
- Snap wedges: sintered steel
- O-ring: NBR, black
Remarks

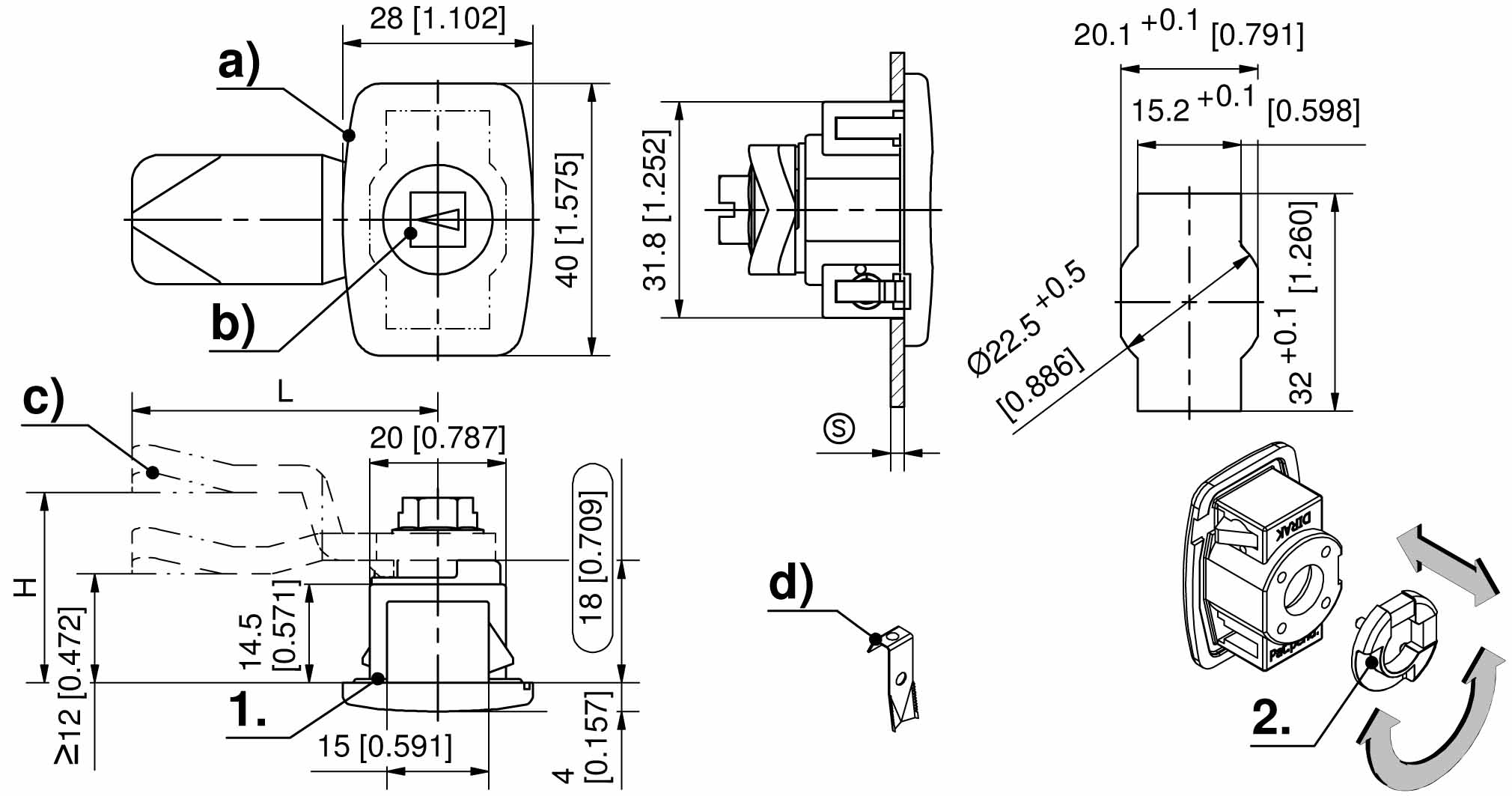

Attention: H-dimension of the cam not less than 12mm!Please configure the quarter-turn with insert and cam.
1. o-ring
2. rotatable bottom for RH/LH
Selected version
| Product number | 406-9005.00-00016 |
| Surface: | black |
| Delivery Unit: | 10 pcs. |
| Material: | PA |
| Clamping range (S): | 1.3 mm - 2 mm |
Related Products
Function extension
Article no.
Name
200-1001.00-00000
O-ring 12 x 2.0mm
d)
200-1101.04-00000
Grounding clip
Details
Name:
Grounding clip
Material:
stainless steel
Surface:
Version:
for product system 1-083DST
Delivery Unit:
10 pcs.
Assembly options
Article no.
Name
200-0066.00-00000
Assembling without o-ring, RH version
200-0067.00-00000
Assembling with o-ring, RH version
200-0068.00-00000
Assembling without o-ring, LH version
200-0069.00-00000
Assembling with o-ring, LH version
Accessories
Article no.
Name
b)
200-9101.00-00000
square 6mm, zinc die, chrome plated
b)
200-9102.00-00000
square 7mm, zinc die, chrome plated
b)
200-9103.00-00000
square 8mm, zinc die, chrome plated
b)
200-9111.00-00000
square 8mm slotted, zinc die, chrome plated
b)
200-9106.00-00000
triangular 6,5mm CNOMO Type 1, zinc die, chrome plated
Details
Insert:
Triangular 6,5mm CNOMO Type 1
Indicator:
Delivery Unit:
10 pcs.
b)
200-9104.00-00000
triangular 7mm, zinc die, chrome plated
b)
200-9105.00-00000
triangular 8mm, zinc die, chrome plated
b)
200-9147.00-00000
triangular 9mm EDF, zinc die, chrome plated
b)
100-9166.00-00000
triangular 9mm, zinc die, chrome plated
b)
200-9107.00-00000
double bit 3mm pin, zinc die, chrome plated
b)
200-9108.00-00000
double bit 5mm pin, zinc die, chrome plated
b)
200-9171.00-00000
hexagon SW 7/16", zinc die, chrome plated
b)
200-9185.00-00000
hexagon SW 10mm, zinc die, chrome plated
b)
200-9142.00-00000
socket hex. SW 6mm, zinc die, chrome plated
b)
200-9196.00-00000
socket hex. SW 8mm, zink die, chrome plated
b)
200-9112.00-00000
socket hex. SW 10mm, zinc die, chrome plated
b)
200-9172.00-00000
socket hex. 5/16" pin 3mm, zinc die, chrome plated
b)
200-9166.00-00000
socket square 6mm, zinc die, chrome plated
b)
200-9167.00-00000
socket square 7mm, zinc die, chrome plated
b)
200-9168.00-00000
socket square 8mm, zinc die, chrome plated
b)
200-9109.00-00000
Daimler Benz pin, zinc die, chrome plated
b)
200-9113.00-00000
slotted 2x4mm, zinc die, chrome plated
b)
200-9110.00-00000
crown type, zinc die, chrome plated
b)
200-9164.00-00000
slotted recessed coinproof, zinc die, chrome plated
Details
Insert:
Slotted recessed coinproof
Indicator:
Delivery Unit:
10 pcs.
b)
200-9154.00-00000
half-round Czech, zinc die, chrome plated
b)
200-9170.00-00000
FIAT, zinc die, chrome plated
b)
200-9141.00-00000
GDF 10 x 5mm France, zinc die, chrome plated
b)
200-9102.40-00000
square 7mm, zinc die, matt chrome plated
b)
200-9128.40-00000
square 8mm, zinc die, matt chrome plated
b)
200-9105.40-00000
triangular 8mm, zinc die, matt chrome plated
b)
200-9131.40-00000
double bit 3mm, zinc die, matt chrome plated
b)
200-9132.40-00000
double bit 5mm, zinc die, matt chrome plated
b)
200-9127.00-00000
square 6mm, zinc die, black
b)
200-9116.00-00000
square 7mm, zinc die, black
b)
200-9128.00-00000
square 8mm, zinc die, black
b)
200-9129.00-00000
triangular 7mm, zinc die, black
b)
200-9130.00-00000
triangular 8mm, zinc die, black
b)
200-9148.00-00000
triangular 9mm EDF, zinc die, black
b)
100-9167.00-00000
triangular 9mm, zinc die, black
b)
200-9131.00-00000
double bit 3mm pin, zinc die, black
b)
200-9132.00-00000
double bit 5mm pin, zinc die, black
b)
100-9127.00-00000
hexagon SW 7/16", zinc die, black
b)
200-9197.00-00000
socket hex. SW 8mm, zink die, black
b)
200-9178.00-00000
socket hex. 5/16" pin 3mm, zinc die, black
b)
200-9133.00-00000
Daimler Benz pin, zinc die, black
b)
200-9143.00-00000
slotted 2x4mm, zinc die, black
b)
200-9169.00-00000
slotted recessed coinproof, zinc die, black
Details
Insert:
Slotted recessed coinproof
Indicator:
Delivery Unit:
10 pcs.
b)
100-9115.00-00000
wing knob (only for housings Ø28 / head height max. 4mm), zinc die, black
Details
Insert:
Wing knob (only for housings Ø28)
Indicator:
Delivery Unit:
10 pcs.
b)
200-9117.00-00000
double bit 3mm pin, PA / zinc die comb., black
b)
200-9118.00-00000
double bit 5mm pin, PA / zinc die comb., black
b)
200-9126.00-00000
slotted 2x4mm, PA / zinc die comb., black
b)
200-9114.00-00000
star knob, PA / zinc die comb., black
b)
200-9115.00-00000
wing knob, PA / zinc die comb., black
b)
200-9155.00-00000
square 7mm, PA black
b)
200-9156.00-00000
square 8mm, PA black
b)
200-9158.00-00000
triangular 8mm, PA black
b)
200-9159.00-00000
double bit 3mm pin, PA black
b)
200-9160.00-00000
double bit 5mm pin, PA black
b)
200-9161.00-00000
slotted 2x4mm, PA black
b)
200-9186.00-00000
slotted recessed coinproof, PA black
b)
200-9184.00-00000
half-round Czech, PA black
b)
200-9173.00-00000
wing knob, PA black
c)
200-0402.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
2 mm
H-dimension Gl20:
4 mm
H-dimension Gl22:
6 mm
H-dimension Gl30:
14 mm
H-dimension Gl32:
16 mm
H-dimension Gl36:
20 mm
H-dimension Gl40:
24 mm
H-dimension Gl42:
26 mm
H-dimension Gl46:
30 mm
H-dimension Gl50:
34 mm
H-dimension Gl56:
40 mm
H-dimension Gl60:
44 mm
H-dimension Gl66:
50 mm
Delivery Unit:
10 pcs.
c)
200-0404.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
10 pcs.
c)
200-0406.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
c)
200-0408.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
c)
200-0410.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
c)
200-0413.00-00000
Cam L45
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
c)
200-0414.00-00000
Cam L45
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
c)
200-0416.00-00000
Cam L45
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
c)
200-0418.00-00000
Cam L45
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
c)
200-0420.00-00000
Cam L45
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
c)
200-0422.00-00000
Cam L45
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
c)
200-0424.00-00000
Cam L45
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
c)
200-0425.00-00000
Cam L45
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
c)
200-0426.00-00000
Cam L45
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
c)
200-0428.00-00000
Cam L45
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
c)
200-0430.00-00000
Cam L45
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
c)
200-0432.00-00000
Cam L45
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
10 pcs.
c)
200-0434.00-00000
Cam L45
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
10 pcs.
c)
200-0435.00-00000
Cam L45
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
c)
200-0436.00-00000
Cam L45
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
10 pcs.
c)
200-0438.00-00000
Cam L45
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
c)
200-0440.00-00000
Cam L45
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
c)
200-0442.00-00000
Cam L45
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
c)
200-0444.00-00000
Cam L45
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
c)
200-0445.00-00000
Cam L45
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
10 pcs.
c)
200-0447.00-00000
Cam L45
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
10 pcs.
c)
200-0450.00-00000
Cam L45
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
10 pcs.
c)
200-0453.00-00000
Cam L45
Details
H-dimension Gl12:
47 mm
H-dimension Gl18:
53 mm
H-dimension Gl20:
55 mm
H-dimension Gl22:
57 mm
H-dimension Gl30:
65 mm
H-dimension Gl32:
67 mm
H-dimension Gl36:
71 mm
H-dimension Gl40:
75 mm
H-dimension Gl42:
77 mm
H-dimension Gl46:
81 mm
H-dimension Gl50:
85 mm
H-dimension Gl56:
91 mm
H-dimension Gl60:
95 mm
H-dimension Gl66:
101 mm
Delivery Unit:
10 pcs.
c)
200-0455.00-00000
Cam L45
Details
H-dimension Gl12:
49 mm
H-dimension Gl18:
55 mm
H-dimension Gl20:
57 mm
H-dimension Gl22:
59 mm
H-dimension Gl30:
67 mm
H-dimension Gl32:
69 mm
H-dimension Gl36:
73 mm
H-dimension Gl40:
77 mm
H-dimension Gl42:
79 mm
H-dimension Gl46:
83 mm
H-dimension Gl50:
87 mm
H-dimension Gl56:
93 mm
H-dimension Gl60:
97 mm
H-dimension Gl66:
103 mm
Delivery Unit:
10 pcs.
c)
200-0606.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
c)
200-0608.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
c)
200-0610.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
c)
200-0613.00-00000
Cam L35
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
c)
200-0614.00-00000
Cam L35
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
c)
200-0616.00-00000
Cam L35
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
c)
200-0618.00-00000
Cam L35
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
c)
200-0620.00-00000
Cam L35
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
c)
200-0622.00-00000
Cam L35
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
c)
200-0624.00-00000
Cam L35
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
c)
200-0625.00-00000
Cam L35
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
c)
200-0626.00-00000
Cam L35
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
c)
200-0628.00-00000
Cam L35
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
c)
200-0630.00-00000
Cam L35
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
c)
200-0635.00-00000
Cam L35
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
c)
200-0638.00-00000
Cam L35
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
c)
200-0640.00-00000
Cam L35
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
c)
200-0642.00-00000
Cam L35
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
c)
200-0644.00-00000
Cam L35
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
c)
200-9504.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
1 pc.
c)
200-9506.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
1 pc.
c)
200-9508.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
1 pc.
c)
200-9510.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
1 pc.
c)
200-9513.00-00000
3-point cam
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
1 pc.
c)
200-9514.00-00000
3-point cam
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
1 pc.
c)
200-9516.00-00000
3-point cam
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
1 pc.
c)
200-9518.00-00000
3-point cam
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
1 pc.
c)
200-9520.00-00000
3-point cam
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
1 pc.
c)
200-9522.00-00000
3-point cam
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
1 pc.
c)
200-9524.00-00000
3-point cam
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
1 pc.
c)
200-9525.00-00000
3-point cam
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
1 pc.
c)
200-9526.00-00000
3-point cam
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
1 pc.
c)
200-9528.00-00000
3-point cam
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
1 pc.
c)
200-9530.00-00000
3-point cam
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
1 pc.
c)
200-9532.00-00000
3-point cam
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
1 pc.
c)
200-9534.00-00000
3-point cam
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
1 pc.
c)
200-9535.00-00000
3-point cam
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
1 pc.
c)
200-9536.00-00000
3-point cam
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
1 pc.
c)
200-9538.00-00000
3-point cam
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
1 pc.
c)
200-9540.00-00000
3-point cam
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
1 pc.
c)
200-9542.00-00000
3-point cam
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
1 pc.
c)
200-9544.00-00000
3-point cam
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
1 pc.
c)
200-9545.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
1 pc.
c)
200-9547.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
1 pc.
c)
200-9550.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
1 pc.
c)
200-9599.00-00000
2-point cam
c)
200-44LL.00-Hxxmm
Cam, variable, with ramp
c)
200-54LL.00-Hxxmm
Cam, variable, without ramp
204-0107.00-00000
Key, double bit 3mm pin
204-0108.00-00000
Key, double bit 5mm pin
204-0102.00-00000
Wrench, square 7mm
204-0103.00-00000
Wrench, square 8mm
204-0104.00-00000
Wrench, triangular 7mm
204-0105.00-00000
Wrench, triangular 8mm
204-0106.00-00000
Wrench, triangular 6.5mm CNOMO
204-0109.00-00000
Wrench, Daimler Benz type
204-0110.00-00000
Wrench, crown type
204-0111.00-00000
Wrench, square 6mm
204-0112.00-00000
Wrench, triangular 6.5mm CNOMO
204-0113.00-00000
Wrench, triangular 9mm EDF
204-0116.00-00000
Wrench, half-round czech
204-0117.00-00000
Wrench, round mandrel with notch (DÜWAG)
Details
Insert:
Round mandrel with notch (DÜWAG)
D:
14,2 mm
Delivery Unit:
10 pcs.
204-0119.00-00000
Wrench, male key square 6mm
204-0120.00-00000
Wrench, male key square 7mm
204-0121.00-00000
Wrench, male key square 8mm
204-0133.30-00000
Wrench, male key hex. 8mm (5/16")
204-0134.30-00000
Wrench, hex. 7/16"
204-0139.00-00000
Wrench, hex. SW10
204-0501.00-00000
Wrench, square 6mm
204-0502.00-00000
Wrench, triangular 6.5mm
204-0407.03-00000
Key, double bit 3mm pin
204-0408.03-00000
Key, double bit 5mm pin
204-0401.03-00000
Hollow key, (logo both sides), square 6mm
204-0402.03-00000
Hollow key, (logo both sides), square 7mm
204-0403.03-00000
Hollow key, (logo both sides), square 8mm
204-0404.03-00000
Hollow key, (logo both sides), triangular 6.5mm
204-0405.03-00000
Hollow key, (logo both sides), triangular 7mm
204-0406.03-00000
Hollow key, (logo both sides), triangular 8mm
204-0409.03-00000
Hollow key, (logo both sides), blade 10 x1.4
204-0301.00-00000
PZ building key
204-0701.07-07500
Universal key for Inserts
Product Configuration
Selected version
| Product number | 406-9005.00-00016 |
| Surface: | black |
| Delivery Unit: | 10 pcs. |
| Material: | PA |
| Clamping range (S): | 1.3 mm - 2 mm |
Selected additional products
| [none] |
