Slam-Cams
Advantages

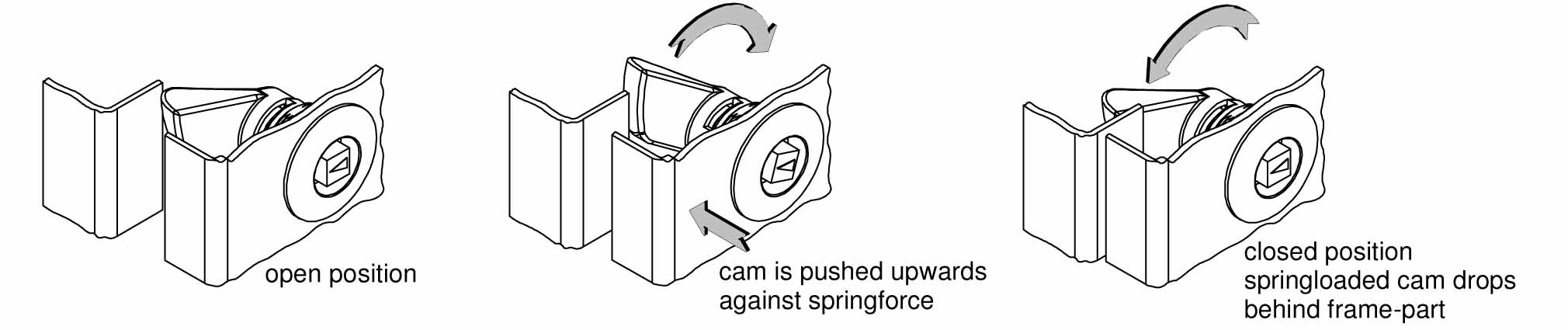

- Slam-cam for slam doors. Locking without key or tool.
- To a): the teflon washer replaces the wave washer underneath the insert.
- For use in combination with quarter-turns and inserts.
- To b): slam-cam with free-stroke for applications with cylinder locks and handles. For enclosure height 18mm.
Material
- Slam-cam: zinc die, chrome plated
- Spring: steel, zinc plated
- Spacer: POM
Remarks
Please order quarter-turn completely pre-assembled by DIRAK.For quarter turn with longer housings, please contact DIRAK.
Selected version
| Product number | 200-9606.00-00000 |
| Delivery Unit: | 10 pcs. |
| Version: | LH |
| Type: | for insert |
Related Products
Accessories
Article no.
Name
200-9001.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9002.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9062.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9048.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9049.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9063.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9004.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
PA
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9045.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9046.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9054.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9055.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9005.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9006.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9050.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9051.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9007.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
PA
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9008.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
PA
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9009.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9010.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9052.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9053.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
235-9209.00-00000
Quarter-Turn blind housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9101.00-00000
square 6mm, zinc die, chrome plated
200-9102.00-00000
square 7mm, zinc die, chrome plated
200-9103.00-00000
square 8mm, zinc die, chrome plated
200-9111.00-00000
square 8mm slotted, zinc die, chrome plated
200-9106.00-00000
triangular 6,5mm CNOMO Type 1, zinc die, chrome plated
Details
Insert:
Triangular 6,5mm CNOMO Type 1
Indicator:
Delivery Unit:
10 pcs.
200-9104.00-00000
triangular 7mm, zinc die, chrome plated
200-9105.00-00000
triangular 8mm, zinc die, chrome plated
200-9147.00-00000
triangular 9mm EDF, zinc die, chrome plated
100-9166.00-00000
triangular 9mm, zinc die, chrome plated
200-9107.00-00000
double bit 3mm pin, zinc die, chrome plated
200-9108.00-00000
double bit 5mm pin, zinc die, chrome plated
200-9171.00-00000
hexagon SW 7/16", zinc die, chrome plated
200-9185.00-00000
hexagon SW 10mm, zinc die, chrome plated
200-9142.00-00000
socket hex. SW 6mm, zinc die, chrome plated
200-9196.00-00000
socket hex. SW 8mm, zink die, chrome plated
200-9112.00-00000
socket hex. SW 10mm, zinc die, chrome plated
200-9172.00-00000
socket hex. 5/16" pin 3mm, zinc die, chrome plated
200-9166.00-00000
socket square 6mm, zinc die, chrome plated
200-9167.00-00000
socket square 7mm, zinc die, chrome plated
200-9168.00-00000
socket square 8mm, zinc die, chrome plated
200-9109.00-00000
Daimler Benz pin, zinc die, chrome plated
200-9113.00-00000
slotted 2x4mm, zinc die, chrome plated
200-9110.00-00000
crown type, zinc die, chrome plated
200-9164.00-00000
slotted recessed coinproof, zinc die, chrome plated
Details
Insert:
Slotted recessed coinproof
Indicator:
Delivery Unit:
10 pcs.
200-9154.00-00000
half-round Czech, zinc die, chrome plated
200-9170.00-00000
FIAT, zinc die, chrome plated
200-9141.00-00000
GDF 10 x 5mm France, zinc die, chrome plated
200-9102.40-00000
square 7mm, zinc die, matt chrome plated
200-9128.40-00000
square 8mm, zinc die, matt chrome plated
200-9105.40-00000
triangular 8mm, zinc die, matt chrome plated
200-9131.40-00000
double bit 3mm, zinc die, matt chrome plated
200-9132.40-00000
double bit 5mm, zinc die, matt chrome plated
200-9127.00-00000
square 6mm, zinc die, black
200-9116.00-00000
square 7mm, zinc die, black
200-9128.00-00000
square 8mm, zinc die, black
200-9129.00-00000
triangular 7mm, zinc die, black
200-9130.00-00000
triangular 8mm, zinc die, black
200-9148.00-00000
triangular 9mm EDF, zinc die, black
100-9167.00-00000
triangular 9mm, zinc die, black
200-9131.00-00000
double bit 3mm pin, zinc die, black
200-9132.00-00000
double bit 5mm pin, zinc die, black
100-9127.00-00000
hexagon SW 7/16", zinc die, black
200-9197.00-00000
socket hex. SW 8mm, zink die, black
200-9178.00-00000
socket hex. 5/16" pin 3mm, zinc die, black
200-9133.00-00000
Daimler Benz pin, zinc die, black
200-9143.00-00000
slotted 2x4mm, zinc die, black
200-9169.00-00000
slotted recessed coinproof, zinc die, black
Details
Insert:
Slotted recessed coinproof
Indicator:
Delivery Unit:
10 pcs.
100-9115.00-00000
wing knob (only for housings Ø28 / head height max. 4mm), zinc die, black
Details
Insert:
Wing knob (only for housings Ø28)
Indicator:
Delivery Unit:
10 pcs.
200-9117.00-00000
double bit 3mm pin, PA / zinc die comb., black
200-9118.00-00000
double bit 5mm pin, PA / zinc die comb., black
200-9126.00-00000
slotted 2x4mm, PA / zinc die comb., black
200-9114.00-00000
star knob, PA / zinc die comb., black
200-9115.00-00000
wing knob, PA / zinc die comb., black
200-9155.00-00000
square 7mm, PA black
200-9156.00-00000
square 8mm, PA black
200-9158.00-00000
triangular 8mm, PA black
200-9159.00-00000
double bit 3mm pin, PA black
200-9160.00-00000
double bit 5mm pin, PA black
200-9161.00-00000
slotted 2x4mm, PA black
200-9186.00-00000
slotted recessed coinproof, PA black
200-9184.00-00000
half-round Czech, PA black
200-9173.00-00000
wing knob, PA black
200-9201.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø28
Latching type:
keyed alike DIRAK 1333
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
500-9201.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø28
Latching type:
keyed alike DS200
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9203.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø28
Latching type:
keyed different
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9202.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø28
Latching type:
keyed alike DIRAK 1333
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
500-9202.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø28
Latching type:
keyed alike DS200
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9204.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø28
Latching type:
keyed different
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9205.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø32
Latching type:
keyed alike DIRAK 1333
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
500-9205.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø32
Latching type:
keyed alike DS200
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9207.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø32
Latching type:
keyed different
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9206.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø32
Latching type:
keyed alike DIRAK 1333
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
500-9206.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø32
Latching type:
keyed alike DS200
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9208.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø32
Latching type:
keyed different
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9081.00-10030
Cylinder quarter-turn
Details
Housing length:
30 mm
Latching type:
keyed alike DIRAK 1333
Door-thickness (S):
0 mm - 20 mm
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9081.00-10050
Cylinder quarter-turn
Details
Housing length:
50 mm
Latching type:
keyed alike DIRAK 1333
Door-thickness (S):
0 mm - 40 mm
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9081.00-20030
Cylinder quarter-turn
Details
Housing length:
30 mm
Latching type:
keyed alike DIRAK 1333
Door-thickness (S):
0 mm - 20 mm
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9081.00-20050
Cylinder quarter-turn
Details
Housing length:
50 mm
Latching type:
keyed alike DIRAK 1333
Door-thickness (S):
0 mm - 40 mm
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9082.00-10030
Cylinder quarter-turn
Details
Housing length:
30 mm
Latching type:
keyed different
Door-thickness (S):
0 mm - 20 mm
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9082.00-10050
Cylinder quarter-turn
Details
Housing length:
50 mm
Latching type:
keyed different
Door-thickness (S):
0 mm - 40 mm
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9082.00-20030
Cylinder quarter-turn
Details
Housing length:
30 mm
Latching type:
keyed different
Door-thickness (S):
0 mm - 20 mm
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9082.00-20050
Cylinder quarter-turn
Details
Housing length:
50 mm
Latching type:
keyed different
Door-thickness (S):
0 mm - 40 mm
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9083.00-10030
Cylinder quarter-turn
Details
Housing length:
30 mm
Latching type:
keyed alike DS200
Door-thickness (S):
0 mm - 20 mm
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9083.00-10050
Cylinder quarter-turn
Details
Housing length:
50 mm
Latching type:
keyed alike DS200
Door-thickness (S):
0 mm - 40 mm
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9083.00-20030
Cylinder quarter-turn
Details
Housing length:
30 mm
Latching type:
keyed alike DS200
Door-thickness (S):
0 mm - 20 mm
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
100-9083.00-20050
Cylinder quarter-turn
Details
Housing length:
50 mm
Latching type:
keyed alike DS200
Door-thickness (S):
0 mm - 40 mm
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9463.00-00000
Quarter-Turn
Details
Surface:
chrome plated
Version:
glossy
Housing length:
18 mm
Door-thickness (S):
0 mm - 8 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9464.00-00000
Quarter-Turn
Details
Surface:
black
Version:
Smooth coating
Housing length:
18 mm
Door-thickness (S):
0 mm - 8 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9464.TX-00000
Quarter-Turn
Details
Surface:
black
Version:
Textured coating
Housing length:
18 mm
Door-thickness (S):
0 mm - 8 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9491.00-00000
Quarter-Turn
Details
Surface:
chrome plated
Version:
glossy
Housing length:
40 mm
Door-thickness (S):
0 mm - 30 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9492.00-00000
Quarter-Turn
Details
Surface:
black
Version:
Smooth coating
Housing length:
40 mm
Door-thickness (S):
0 mm - 30 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9492.TX-00000
Quarter-Turn
Details
Surface:
black
Version:
Textured coating
Housing length:
40 mm
Door-thickness (S):
0 mm - 30 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
200-9065.00-00000
Housing
Details
Surface:
chrome plated
Housing length:
18 mm
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9086.00-00000
Housing
Details
Surface:
black
Housing length:
18 mm
Installation type:
screw-on
Delivery Unit:
10 pcs.
200-9138.00-00000
Insert conical square 9mm
Details
Insert:
Conical square 9mm
Material:
zinc die
Surface:
chrome plated
Delivery Unit:
10 pcs.
200-9175.00-00000
Insert conical square 9mm
Details
Insert:
Conical square 9mm
Material:
steel
Surface:
zinc plated
Delivery Unit:
10 pcs.
200-9183.00-00000
Quarter-Turn with Conical Square Insert Pr20.1 L18
Details
Insert:
Conical square 9mm
Material:
steel
Surface:
chrome plated
Delivery Unit:
10 pcs.
Product Configuration
Selected version
| Product number | 200-9606.00-00000 |
| Delivery Unit: | 10 pcs. |
| Version: | LH |
| Type: | for insert |
Selected additional products
| [none] |
