[1-087]

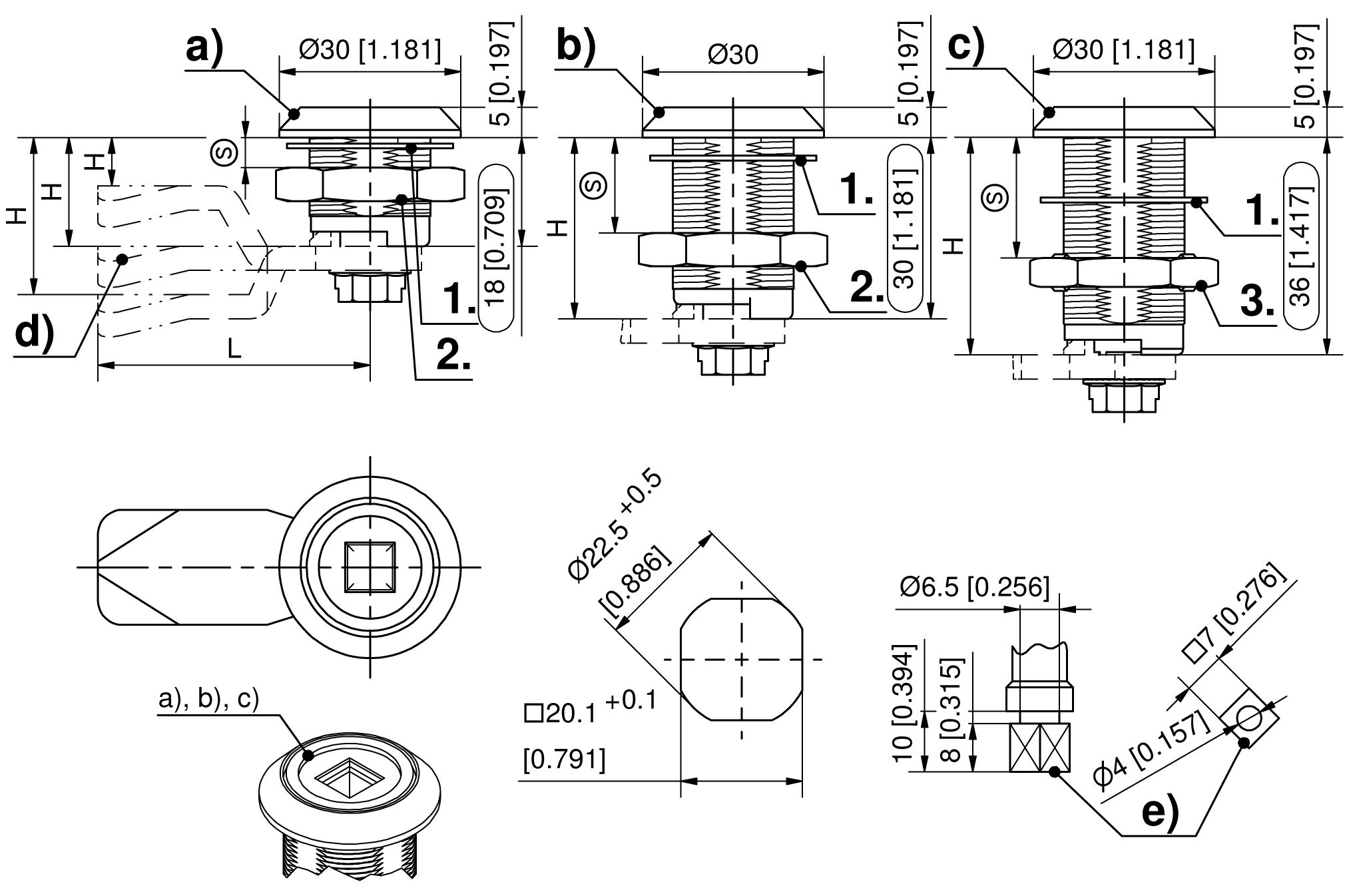

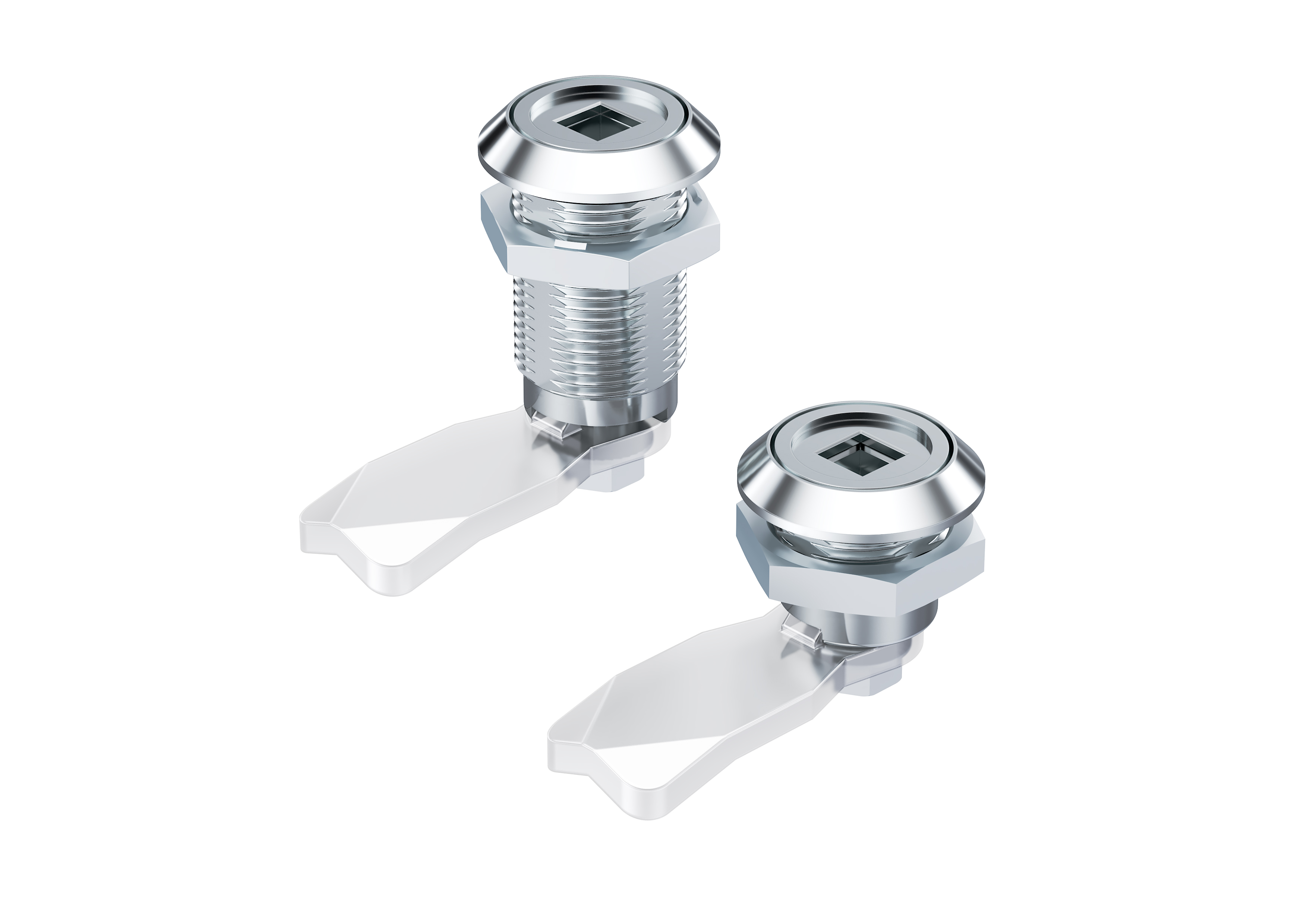

Quarter-Turn with Mask Pr20.1 L18/L30/L36
Advantages
- For cutout Pr20.1.
- The quarter-turn can only beoperated with a special matching male key (sub e).
- The operation of this quarter-turn with standard male square keys without a special groove is not possible.
- IP65 according to DIN EN 60529.
- RH / LH application.
- The quarter-turn can be screwed into the cutout with the pre-assembled cam.
Material
a) and b)- Housing, insert and mask: zinc die, chrome plated
- Nut: steel, zinc plated
- Housing and insert: steel, chrome plated
- Mask: zinc die, chrome plated
- Grounding nut: zinc die, untreated
- Wave washer and serrated screw: steel, zinc plated
- O-ring and flat external seal: NBR
Remarks
Completely pre-assembled without cam.Negatively bent cams can not be installed pre-assembled.
1. flat external seal
2. nut
3. grounding nut
Selected version
Product number | 255-8008.00-00000 |
Installation type: | screw-on |
Grounding type: | Grounding nut |
Delivery Unit: | 10 pcs. |
Housing length: | 30 mm |
Door-thickness (S): | 0 mm - 20 mm |
Related Products
Assembly options
Article no.
Name
200-0001.00-00000
Assembling cam without o-ring
Accessories
Article no.
Name
e)
204-0126.00-00000
Wrenches and Keys
Details
Name:
Wrenches and Keys
Insert:
Socket square 7.6mm
Delivery Unit:
10 pcs.
e)
204-0702.80-00000
Railway key
d)
200-0402.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
2 mm
H-dimension Gl20:
4 mm
H-dimension Gl22:
6 mm
H-dimension Gl30:
14 mm
H-dimension Gl32:
16 mm
H-dimension Gl36:
20 mm
H-dimension Gl40:
24 mm
H-dimension Gl42:
26 mm
H-dimension Gl46:
30 mm
H-dimension Gl50:
34 mm
H-dimension Gl56:
40 mm
H-dimension Gl60:
44 mm
H-dimension Gl66:
50 mm
Delivery Unit:
10 pcs.
d)
200-0404.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
10 pcs.
d)
200-0406.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
d)
200-0408.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
d)
200-0410.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
d)
200-0413.00-00000
Cam L45
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
d)
200-0414.00-00000
Cam L45
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
d)
200-0416.00-00000
Cam L45
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
d)
200-0418.00-00000
Cam L45
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
d)
200-0420.00-00000
Cam L45
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
d)
200-0422.00-00000
Cam L45
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
d)
200-0424.00-00000
Cam L45
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
d)
200-0425.00-00000
Cam L45
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
d)
200-0426.00-00000
Cam L45
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
d)
200-0428.00-00000
Cam L45
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
d)
200-0430.00-00000
Cam L45
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
d)
200-0432.00-00000
Cam L45
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
10 pcs.
d)
200-0434.00-00000
Cam L45
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
10 pcs.
d)
200-0435.00-00000
Cam L45
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
d)
200-0436.00-00000
Cam L45
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
10 pcs.
d)
200-0438.00-00000
Cam L45
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
d)
200-0440.00-00000
Cam L45
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
d)
200-0442.00-00000
Cam L45
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
d)
200-0444.00-00000
Cam L45
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
d)
200-0445.00-00000
Cam L45
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
10 pcs.
d)
200-0447.00-00000
Cam L45
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
10 pcs.
d)
200-0450.00-00000
Cam L45
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
10 pcs.
d)
200-0453.00-00000
Cam L45
Details
H-dimension Gl12:
47 mm
H-dimension Gl18:
53 mm
H-dimension Gl20:
55 mm
H-dimension Gl22:
57 mm
H-dimension Gl30:
65 mm
H-dimension Gl32:
67 mm
H-dimension Gl36:
71 mm
H-dimension Gl40:
75 mm
H-dimension Gl42:
77 mm
H-dimension Gl46:
81 mm
H-dimension Gl50:
85 mm
H-dimension Gl56:
91 mm
H-dimension Gl60:
95 mm
H-dimension Gl66:
101 mm
Delivery Unit:
10 pcs.
d)
200-0455.00-00000
Cam L45
Details
H-dimension Gl12:
49 mm
H-dimension Gl18:
55 mm
H-dimension Gl20:
57 mm
H-dimension Gl22:
59 mm
H-dimension Gl30:
67 mm
H-dimension Gl32:
69 mm
H-dimension Gl36:
73 mm
H-dimension Gl40:
77 mm
H-dimension Gl42:
79 mm
H-dimension Gl46:
83 mm
H-dimension Gl50:
87 mm
H-dimension Gl56:
93 mm
H-dimension Gl60:
97 mm
H-dimension Gl66:
103 mm
Delivery Unit:
10 pcs.
d)
200-0606.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
d)
200-0608.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
d)
200-0610.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
d)
200-0613.00-00000
Cam L35
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
d)
200-0614.00-00000
Cam L35
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
d)
200-0616.00-00000
Cam L35
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
d)
200-0618.00-00000
Cam L35
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
d)
200-0620.00-00000
Cam L35
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
d)
200-0622.00-00000
Cam L35
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
d)
200-0624.00-00000
Cam L35
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
d)
200-0625.00-00000
Cam L35
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
d)
200-0626.00-00000
Cam L35
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
d)
200-0628.00-00000
Cam L35
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
d)
200-0630.00-00000
Cam L35
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
d)
200-0635.00-00000
Cam L35
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
d)
200-0638.00-00000
Cam L35
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
d)
200-0640.00-00000
Cam L35
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
d)
200-0642.00-00000
Cam L35
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
d)
200-0644.00-00000
Cam L35
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
d)
200-9504.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
1 pc.
d)
200-9506.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
1 pc.
d)
200-9508.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
1 pc.
d)
200-9510.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
1 pc.
d)
200-9513.00-00000
3-point cam
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
1 pc.
d)
200-9514.00-00000
3-point cam
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
1 pc.
d)
200-9516.00-00000
3-point cam
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
1 pc.
d)
200-9518.00-00000
3-point cam
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
1 pc.
d)
200-9520.00-00000
3-point cam
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
1 pc.
d)
200-9522.00-00000
3-point cam
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
1 pc.
d)
200-9524.00-00000
3-point cam
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
1 pc.
d)
200-9525.00-00000
3-point cam
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
1 pc.
d)
200-9526.00-00000
3-point cam
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
1 pc.
d)
200-9528.00-00000
3-point cam
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
1 pc.
d)
200-9530.00-00000
3-point cam
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
1 pc.
d)
200-9532.00-00000
3-point cam
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
1 pc.
d)
200-9534.00-00000
3-point cam
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
1 pc.
d)
200-9535.00-00000
3-point cam
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
1 pc.
d)
200-9536.00-00000
3-point cam
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
1 pc.
d)
200-9538.00-00000
3-point cam
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
1 pc.
d)
200-9540.00-00000
3-point cam
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
1 pc.
d)
200-9542.00-00000
3-point cam
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
1 pc.
d)
200-9544.00-00000
3-point cam
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
1 pc.
d)
200-9545.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
1 pc.
d)
200-9547.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
1 pc.
d)
200-9550.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
1 pc.
d)
200-9599.00-00000
2-point cam
d)
200-1701.00-00000
Hooked Cam, huge, without stop
d)
200-8143.00-00000
Hooked Cam, huge, with stop, right
d)
200-8144.00-00000
Hooked Cam, huge, with stop, left
d)
200-1703.00-00000
Hooked Cam, small, without stop
d)
200-1702.00-00000
Hooked Cam, bended
d)
200-5118.00-00000
Cam with ramp
Details
H-dimension:
18 mm
Ramp:
3mm
Length:
25 mm
Stop:
Yes
Delivery Unit:
10 pcs.
d)
200-4018.00-00000
Cam with ramp
Details
H-dimension:
18 mm
Ramp:
6mm
Length:
45 mm
Stop:
Yes
Delivery Unit:
10 pcs.
d)
200-4022.00-00000
Cam with ramp
Details
H-dimension:
22 mm
Ramp:
6mm
Length:
45 mm
Stop:
Yes
Delivery Unit:
10 pcs.
d)
200-44LL.00-Hxxmm
Cam, variable, with ramp
d)
200-54LL.00-Hxxmm
Cam, variable, without ramp
d)
200-0506.00-00000
Cam L45
Details
H-dimension Gl18:
6 mm
H-dimension Gl30:
18 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl50:
38 mm
H-dimension Gl60:
48 mm
Delivery Unit:
1 pc.
d)
200-0508.00-00000
Cam L45
Details
H-dimension Gl18:
8 mm
H-dimension Gl30:
20 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl50:
40 mm
H-dimension Gl60:
50 mm
Delivery Unit:
1 pc.
d)
200-0510.00-00000
Cam L45
Details
H-dimension Gl18:
10 mm
H-dimension Gl30:
22 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl50:
42 mm
H-dimension Gl60:
52 mm
Delivery Unit:
1 pc.
d)
200-0514.00-00000
Cam L45
Details
H-dimension Gl18:
14 mm
H-dimension Gl30:
26 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl50:
46 mm
H-dimension Gl60:
56 mm
Delivery Unit:
1 pc.
d)
200-0516.00-00000
Cam L45
Details
H-dimension Gl18:
16 mm
H-dimension Gl30:
28 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl50:
48 mm
H-dimension Gl60:
58 mm
Delivery Unit:
1 pc.
d)
200-0518.00-00000
Cam L45
Details
H-dimension Gl18:
18 mm
H-dimension Gl30:
30 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl50:
50 mm
H-dimension Gl60:
60 mm
Delivery Unit:
1 pc.
d)
200-0520.00-00000
Cam L45
Details
H-dimension Gl18:
20 mm
H-dimension Gl30:
32 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl50:
52 mm
H-dimension Gl60:
62 mm
Delivery Unit:
1 pc.
d)
200-0522.00-00000
Cam L45
Details
H-dimension Gl18:
22 mm
H-dimension Gl30:
34 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl50:
54 mm
H-dimension Gl60:
64 mm
Delivery Unit:
1 pc.
d)
200-0524.00-00000
Cam L45
Details
H-dimension Gl18:
24 mm
H-dimension Gl30:
36 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl50:
56 mm
H-dimension Gl60:
66 mm
Delivery Unit:
1 pc.
d)
200-0526.00-00000
Cam L45
Details
H-dimension Gl18:
26 mm
H-dimension Gl30:
38 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl50:
58 mm
H-dimension Gl60:
68 mm
Delivery Unit:
1 pc.
d)
200-0528.00-00000
Cam L45
Details
H-dimension Gl18:
28 mm
H-dimension Gl30:
40 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl50:
60 mm
H-dimension Gl60:
70 mm
Delivery Unit:
1 pc.
d)
200-0532.00-00000
Cam L45
Details
H-dimension Gl18:
32 mm
H-dimension Gl30:
44 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl50:
64 mm
H-dimension Gl60:
74 mm
Delivery Unit:
1 pc.
d)
200-0540.00-00000
Cam L45
Details
H-dimension Gl18:
40 mm
H-dimension Gl30:
52 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl50:
72 mm
H-dimension Gl60:
82 mm
Delivery Unit:
1 pc.
d)
200-0542.00-00000
Cam L45
Details
H-dimension Gl18:
42 mm
H-dimension Gl30:
54 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl50:
74 mm
H-dimension Gl60:
84 mm
Delivery Unit:
1 pc.
d)
200-0550.00-00000
Cam L45
Details
H-dimension Gl18:
50 mm
H-dimension Gl30:
62 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl50:
82 mm
H-dimension Gl60:
92 mm
Delivery Unit:
1 pc.
d)
200-4535.00-00018
Cam L35
Details
H-dimension Gl18:
18 mm
H-dimension Gl30:
30 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl50:
50 mm
H-dimension Gl60:
60 mm
Delivery Unit:
1 pc.
d)
200-4535.00-00020
Cam L35
Details
H-dimension Gl18:
20 mm
H-dimension Gl30:
32 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl50:
52 mm
H-dimension Gl60:
62 mm
Delivery Unit:
1 pc.
d)
200-4535.00-00022
Cam L35
Details
H-dimension Gl18:
22 mm
H-dimension Gl30:
34 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl50:
54 mm
H-dimension Gl60:
64 mm
Delivery Unit:
1 pc.
d)
200-9845.00-00022
3-point cam
d)
200-9845.00-00028
3-point cam
Product Configuration
Selected version
Product number | 255-8008.00-00000 |
Installation type: | screw-on |
Grounding type: | Grounding nut |
Delivery Unit: | 10 pcs. |
Housing length: | 30 mm |
Door-thickness (S): | 0 mm - 20 mm |
Selected additional products
[none] |
