Pull and Lock Hook
Advantages
- Very suitable for applications on 19" racks and sliding doors.
- This device can be operated by all quarter-turns L18 with insert or handles.
- The extremely positive torque ratio allows for controlling this hook-latch by a cylinder latch.
- 90° stroke.
- Latching direction is always clockwise.
- Vibration-proof.
Material
- Pull and lock hook, locking bolt, line-up fork: steel, zinc plated
Remarks

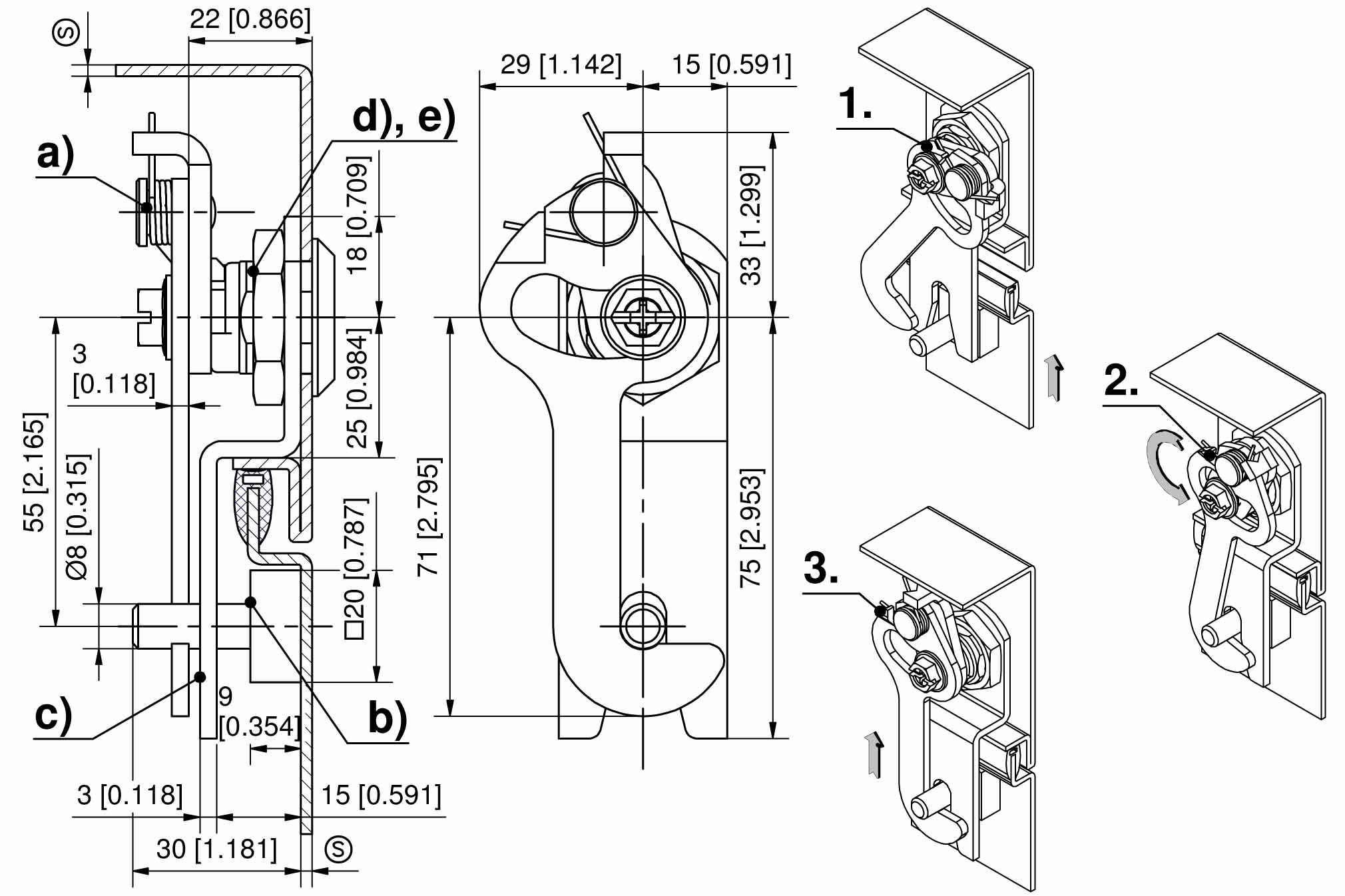

(S) Door-thickness 1.5 - 2.5mm1. open position.
2. hook catches behind the locking bolt and continuing the closing rotation, the hook is then being pulled automatically against the locking bolt. The pulling stroke is 5mm.
3. at the end of rotation process the hook has a vibration proof latch behind the locking bolt.
Selected version
| Product number | 200-3704.00-00000 |
| Installation type: | weld-on |
| Delivery Unit: | 10 pcs. |
| Vibration-proof: | No |
| Name: | Locking bolt for Pull and Lock Hook |
Related Products
Accessories
Article no.
Name
d)
200-9001.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9002.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9062.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9048.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9049.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9063.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9004.00-00000
Quarter-Turn housing Ø28x4 + nut
Details
Material:
PA
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9045.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9046.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9054.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9055.00-00000
Quarter-Turn housing Ø30x4 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9005.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9006.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9050.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9051.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9007.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
PA
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9008.00-00000
Quarter-Turn housing Ø32x6 + nut
Details
Material:
PA
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9009.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9010.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9052.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9053.00-00000
Quarter-Turn housing □30x6 + nut
Details
Material:
zinc die
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
235-9209.00-00000
Quarter-Turn blind housing Ø28x4 + nut
Details
Material:
zinc die
Surface:
black
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
100-9053.00-00000
Quarter-Turn
Details
Surface:
chrome plated
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
100-9054.00-00000
Quarter-Turn
Details
Surface:
chrome plated
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
100-9055.00-00000
Quarter-Turn
Details
Surface:
chrome plated
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
100-9056.00-00000
Quarter-Turn
Details
Surface:
black
Grounding type:
-
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
100-9057.00-00000
Quarter-Turn
Details
Surface:
black
Grounding type:
Grounding nut
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
100-9058.00-00000
Quarter-Turn
Details
Surface:
black
Grounding type:
Grounding clip
Installation type:
screw-on
Delivery Unit:
10 pcs.
d)
200-9201.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø28
Latching type:
keyed alike DIRAK 1333
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9201.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø28
Latching type:
keyed alike DS200
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9203.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø28
Latching type:
keyed different
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9202.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø28
Latching type:
keyed alike DIRAK 1333
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9202.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø28
Latching type:
keyed alike DS200
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9204.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø28
Latching type:
keyed different
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9205.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø32
Latching type:
keyed alike DIRAK 1333
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9205.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø32
Latching type:
keyed alike DS200
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9207.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø32
Latching type:
keyed different
Surface:
chrome plated
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9206.00-00000
Cylinder quarter-turn, keyed alike DIRAK 1333
Details
Head diameter:
Ø32
Latching type:
keyed alike DIRAK 1333
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9206.00-00000
Cylinder quarter-turn, keyed alike DS200
Details
Head diameter:
Ø32
Latching type:
keyed alike DS200
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9208.00-00000
Cylinder quarter-turn, keyed different
Details
Head diameter:
Ø32
Latching type:
keyed different
Surface:
black
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9307.00-00000
Quarter-Turn, without cylinder
Details
Latching type:
-
Material:
PA / zinc die core
Surface:
black
IP protection:
IP65
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9308.00-00000
Quarter-Turn, keyed alike DIRAK 1333
Details
Latching type:
keyed alike DIRAK 1333
Material:
PA / zinc die core
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9309.00-00000
Quarter-Turn, keyed different
Details
Latching type:
keyed different
Material:
PA / zinc die core
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9308.00-00000
Quarter-Turn, keyed alike DS200
Details
Latching type:
keyed alike DS200
Material:
PA / zinc die core
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9319.00-00000
Quarter-Turn, without cylinder
Details
Latching type:
-
Material:
zinc die
Surface:
chrome plated
IP protection:
IP65
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9320.00-00000
Quarter-Turn, keyed alike DIRAK 1333
Details
Latching type:
keyed alike DIRAK 1333
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9321.00-00000
Quarter-Turn, keyed different
Details
Latching type:
keyed different
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9331.00-00000
Quarter-Turn, without cylinder
Details
Latching type:
-
Material:
zinc die
Surface:
black
IP protection:
IP65
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9332.00-00000
Quarter-Turn, keyed alike DIRAK 1333
Details
Latching type:
keyed alike DIRAK 1333
Material:
zinc die
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9333.00-00000
Quarter-Turn, keyed different
Details
Latching type:
keyed different
Material:
zinc die
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9320.00-00000
Quarter-Turn, keyed alike DS200
Details
Latching type:
keyed alike DS200
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
500-9332.00-00000
Quarter-Turn, keyed alike DS200
Details
Latching type:
keyed alike DS200
Material:
zinc die
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
501-9320.00-00000
Quarter-Turn, PAGODA keyed alike
Details
Latching type:
PAGODA keyed alike
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
501-9321.00-00000
Quarter-Turn, PAGODA keyed different
Details
Latching type:
PAGODA keyed different
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
501-9332.00-00000
Quarter-Turn, PAGODA keyed alike
Details
Latching type:
PAGODA keyed alike
Material:
zinc die
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
501-9333.00-00000
Quarter-Turn, PAGODA keyed different
Details
Latching type:
PAGODA keyed different
Material:
zinc die
Surface:
black
IP protection:
IP54
Installation type:
screw-on
Delivery Unit:
1 pc.
d)
200-9401.00-00000
Quarter-Turn
Details
Latching type:
-
Material:
PA / zinc die core
Surface:
black
IP protection:
IP65
Delivery Unit:
1 pc.
d)
200-9402.00-00000
Quarter-Turn
Details
Latching type:
keyed alike DIRAK 1333
Material:
PA / zinc die core
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
500-9402.00-00000
Quarter-Turn
Details
Latching type:
keyed alike DS200
Material:
PA / zinc die core
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
200-9403.00-00000
Quarter-Turn
Details
Latching type:
keyed different
Material:
PA / zinc die core
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
200-9483.00-00000
Quarter-Turn
Details
Latching type:
Push button
Material:
PA / zinc die core
Surface:
black
IP protection:
IP65
Delivery Unit:
1 pc.
d)
200-9419.00-00000
Quarter-Turn
Details
Latching type:
-
Material:
zinc die
Surface:
chrome plated
IP protection:
IP65
Delivery Unit:
1 pc.
d)
200-9420.00-00000
Quarter-Turn
Details
Latching type:
keyed alike DIRAK 1333
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Delivery Unit:
1 pc.
d)
200-9427.00-00000
Quarter-Turn
Details
Latching type:
-
Material:
zinc die
Surface:
black
IP protection:
IP65
Delivery Unit:
1 pc.
d)
200-9428.00-00000
Quarter-Turn
Details
Latching type:
keyed alike DIRAK 1333
Material:
zinc die
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
200-9437.00-00000
Quarter-Turn
Details
Latching type:
keyed different
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Delivery Unit:
1 pc.
d)
200-9438.00-00000
Quarter-Turn
Details
Latching type:
keyed different
Material:
zinc die
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
500-9420.00-00000
Quarter-Turn
Details
Latching type:
keyed alike DS200
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Delivery Unit:
1 pc.
d)
500-9428.00-00000
Quarter-Turn
Details
Latching type:
keyed alike DS200
Material:
zinc die
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
501-9420.00-00000
Quarter-Turn
Details
Latching type:
PAGODA keyed alike
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Delivery Unit:
1 pc.
d)
501-9428.00-00000
Quarter-Turn
Details
Latching type:
PAGODA keyed alike
Material:
zinc die
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
d)
501-9437.00-00000
Quarter-Turn
Details
Latching type:
PAGODA keyed different
Material:
zinc die
Surface:
chrome plated
IP protection:
IP54
Delivery Unit:
1 pc.
d)
501-9438.00-00000
Quarter-Turn
Details
Latching type:
PAGODA keyed different
Material:
zinc die
Surface:
black
IP protection:
IP54
Delivery Unit:
1 pc.
e)
200-9101.00-00000
square 6mm, zinc die, chrome plated
e)
200-9102.00-00000
square 7mm, zinc die, chrome plated
e)
200-9103.00-00000
square 8mm, zinc die, chrome plated
e)
200-9111.00-00000
square 8mm slotted, zinc die, chrome plated
e)
200-9106.00-00000
triangular 6,5mm CNOMO Type 1, zinc die, chrome plated
Details
Insert:
Triangular 6,5mm CNOMO Type 1
Indicator:
Delivery Unit:
10 pcs.
e)
200-9104.00-00000
triangular 7mm, zinc die, chrome plated
e)
200-9105.00-00000
triangular 8mm, zinc die, chrome plated
e)
200-9147.00-00000
triangular 9mm EDF, zinc die, chrome plated
e)
100-9166.00-00000
triangular 9mm, zinc die, chrome plated
e)
200-9107.00-00000
double bit 3mm pin, zinc die, chrome plated
e)
200-9108.00-00000
double bit 5mm pin, zinc die, chrome plated
e)
200-9171.00-00000
hexagon SW 7/16", zinc die, chrome plated
e)
200-9185.00-00000
hexagon SW 10mm, zinc die, chrome plated
e)
200-9142.00-00000
socket hex. SW 6mm, zinc die, chrome plated
e)
200-9196.00-00000
socket hex. SW 8mm, zink die, chrome plated
e)
200-9112.00-00000
socket hex. SW 10mm, zinc die, chrome plated
e)
200-9172.00-00000
socket hex. 5/16" pin 3mm, zinc die, chrome plated
e)
200-9166.00-00000
socket square 6mm, zinc die, chrome plated
e)
200-9167.00-00000
socket square 7mm, zinc die, chrome plated
e)
200-9168.00-00000
socket square 8mm, zinc die, chrome plated
e)
200-9109.00-00000
Daimler Benz pin, zinc die, chrome plated
e)
200-9113.00-00000
slotted 2x4mm, zinc die, chrome plated
e)
200-9110.00-00000
crown type, zinc die, chrome plated
e)
200-9164.00-00000
slotted recessed coinproof, zinc die, chrome plated
Details
Insert:
Slotted recessed coinproof
Indicator:
Delivery Unit:
10 pcs.
e)
200-9154.00-00000
half-round Czech, zinc die, chrome plated
e)
200-9170.00-00000
FIAT, zinc die, chrome plated
e)
200-9141.00-00000
GDF 10 x 5mm France, zinc die, chrome plated
e)
200-9102.40-00000
square 7mm, zinc die, matt chrome plated
e)
200-9128.40-00000
square 8mm, zinc die, matt chrome plated
e)
200-9105.40-00000
triangular 8mm, zinc die, matt chrome plated
e)
200-9131.40-00000
double bit 3mm, zinc die, matt chrome plated
e)
200-9132.40-00000
double bit 5mm, zinc die, matt chrome plated
e)
200-9127.00-00000
square 6mm, zinc die, black
e)
200-9116.00-00000
square 7mm, zinc die, black
e)
200-9128.00-00000
square 8mm, zinc die, black
e)
200-9129.00-00000
triangular 7mm, zinc die, black
e)
200-9130.00-00000
triangular 8mm, zinc die, black
e)
200-9148.00-00000
triangular 9mm EDF, zinc die, black
e)
100-9167.00-00000
triangular 9mm, zinc die, black
e)
200-9131.00-00000
double bit 3mm pin, zinc die, black
e)
200-9132.00-00000
double bit 5mm pin, zinc die, black
e)
100-9127.00-00000
hexagon SW 7/16", zinc die, black
e)
200-9197.00-00000
socket hex. SW 8mm, zink die, black
e)
200-9178.00-00000
socket hex. 5/16" pin 3mm, zinc die, black
e)
200-9133.00-00000
Daimler Benz pin, zinc die, black
e)
200-9143.00-00000
slotted 2x4mm, zinc die, black
e)
200-9169.00-00000
slotted recessed coinproof, zinc die, black
Details
Insert:
Slotted recessed coinproof
Indicator:
Delivery Unit:
10 pcs.
e)
100-9115.00-00000
wing knob (only for housings Ø28 / head height max. 4mm), zinc die, black
Details
Insert:
Wing knob (only for housings Ø28)
Indicator:
Delivery Unit:
10 pcs.
e)
200-9117.00-00000
double bit 3mm pin, PA / zinc die comb., black
e)
200-9118.00-00000
double bit 5mm pin, PA / zinc die comb., black
e)
200-9126.00-00000
slotted 2x4mm, PA / zinc die comb., black
e)
200-9114.00-00000
star knob, PA / zinc die comb., black
e)
200-9115.00-00000
wing knob, PA / zinc die comb., black
e)
200-9155.00-00000
square 7mm, PA black
e)
200-9156.00-00000
square 8mm, PA black
e)
200-9158.00-00000
triangular 8mm, PA black
e)
200-9159.00-00000
double bit 3mm pin, PA black
e)
200-9160.00-00000
double bit 5mm pin, PA black
e)
200-9161.00-00000
slotted 2x4mm, PA black
e)
200-9186.00-00000
slotted recessed coinproof, PA black
e)
200-9184.00-00000
half-round Czech, PA black
e)
200-9173.00-00000
wing knob, PA black
Product Configuration
Selected version
| Product number | 200-3704.00-00000 |
| Installation type: | weld-on |
| Delivery Unit: | 10 pcs. |
| Vibration-proof: | No |
| Name: | Locking bolt for Pull and Lock Hook |
Selected additional products
| [none] |
