[3-101]

Escutcheons

ICON_ROHS
ICON_FLACHSTANGE
ICON_IP65
ICON_RUNDSTANGE
ICON_CUTOUT_PR_C
ICON_CUTOUT_PR_A
DIRAK_IP_ERGAENZUNG
3_101
E_3-101
3_101
E_3-101

Advantages

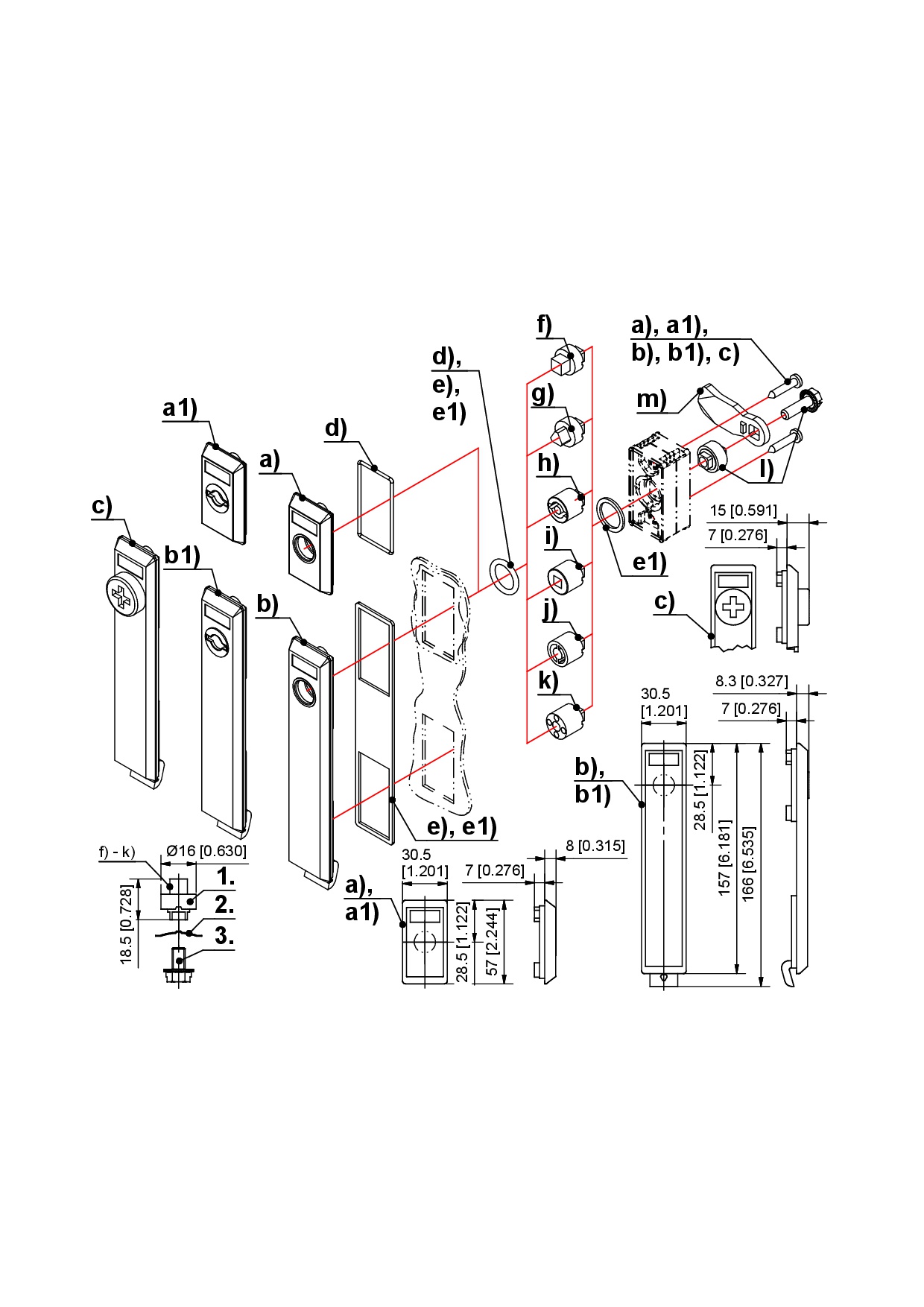

  • Compatible with rod latches for cutout A and C.
  • Cutout PrA: IP65 according to DIN EN 60529 with o-rings d).
  • Cutout PrC, for use outside the seal: version b), b1) and c) with hook for easy installation.
  • Variant a1) and b1): the double-bit key can only be removed in locked position.
  • Grounding by grounding clip (optional).
  • Recessed label field 8 x 20.
  • Escutcheons and rod latch affix together in the cutout.
  • Mounting screws are part of the delivery.

Material

  • Escutcheons: PA, black
  • Inserts: zinc die, chrome plated

Remarks

Door-thickness 2.0 - 2.5mm

Version a1) and b1) only for insert double bit h).
Version c) only for insert FIAT k).

1. insert
2. locking disc
3. serrated screw

Sealing kit for escutcheon PrA consisting of:
1 x d) = 209-9010.00-00000
Sealing kit for escutcheon PrC for 2mm door-thickness consisting of:
1 x e) = 209-9008.00-00000
Sealing kit for escutcheon PrC for 2.5mm door-thickness consisting of:
1 x e1) = 209-9009.00-00000

Two-part lock cover see 3-135 and 3-136.

Selected version

Product number 208-9503.00-00000
Delivery Unit: 1 pc.
Cutout: PrC
Installation type: screwed with hook
Name: Escutcheon, FIAT Type
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

zu a)
3-100
Rod Latch RS/FS PrA
Open overview in new tab
zu a)
208-9001.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9008.00-00000
Rod latch 180°, zinc die
Details
Pivoting range:
180°
Version:
for inserts
Stroke:
31,4 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9013.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts, without rod
Stroke:
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9014.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts, with one rod
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9051.00-00000
Rod latch 135°, PA
Details
Pivoting range:
135°
Version:
for inserts
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9058.00-00000
Rod latch 180°, PA
Details
Pivoting range:
180°
Version:
for inserts
Stroke:
31,4 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9063.00-00000
Rod latch
Details
Pivoting range:
135°
Version:
for inserts, without rod
Stroke:
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu a)
208-9064.00-00000
Rod latch 135°, PA
Details
Pivoting range:
135°
Version:
for inserts, with one rod
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
3-130
Rod Latch FS PrC
Open overview in new tab
zu b) + c)
208-9002.00-00000
Rod latch zinc die, c-clip
Details
Material:
zinc die
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
208-9052.00-00000
Rod latch PA, c-clip
Details
Material:
PA
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
208-9003.00-00000
Rod latch zinc die, quick-fit
Details
Material:
zinc die
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
208-9053.00-00000
Rod latch PA, quick-fit
Details
Material:
PA
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
3-170
Rod Latch for Multi-Point Locking FS PrC
Open overview in new tab
zu b) + c)
208-9101.00-00000
Rod latch, 1-part
Details
Name:
Rod latch, 1-part
Door height Th:
800 mm - 1200 mm
Locking points:
2
Dual rollers A:
300
Dual rollers B:
-
Total dimension extended:
750
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
208-9102.00-00000
Rod latch, 1-part
Details
Name:
Rod latch, 1-part
Door height Th:
1200 mm - 1600 mm
Locking points:
2
Dual rollers A:
450
Dual rollers B:
-
Total dimension extended:
1050
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
208-9107.00-00000
Rod latch, 3-parts
Details
Name:
Rod latch, 3-parts
Door height Th:
1600 mm - 1900 mm
Locking points:
4
Dual rollers A:
275
Dual rollers B:
700
Total dimension extended:
1550
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
zu b) + c)
208-9108.00-00000
Rod latch, 3-parts
Details
Name:
Rod latch, 3-parts
Door height Th:
1900 mm - 2200 mm
Locking points:
4
Dual rollers A:
275
Dual rollers B:
850
Total dimension extended:
1850
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
l)
3-163
Cam Adapter Zinc Die
Open overview in new tab
l)
208-9403.00-00000
Cam adapter with serrated screw M6x20
Details
Name:
Cam adapter with serrated screw M6x20
suitable for product system:
3-070/3-100/3-130/3-132.01/3-165
Delivery Unit:
1 pc.
Open product in new tab
l)
208-9409.00-00000
Cam adapter with serrated screw M5x20
Details
Name:
Cam adapter with serrated screw M5x20
suitable for product system:
3-400/3-400E
Delivery Unit:
1 pc.
Open product in new tab
m)
1-102
Cams L35/45 Steel
Open overview in new tab
m)
200-0402.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
2 mm
H-dimension Gl20:
4 mm
H-dimension Gl22:
6 mm
H-dimension Gl30:
14 mm
H-dimension Gl32:
16 mm
H-dimension Gl36:
20 mm
H-dimension Gl40:
24 mm
H-dimension Gl42:
26 mm
H-dimension Gl46:
30 mm
H-dimension Gl50:
34 mm
H-dimension Gl56:
40 mm
H-dimension Gl60:
44 mm
H-dimension Gl66:
50 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0404.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0406.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0408.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0410.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0413.00-00000
Cam L45
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0414.00-00000
Cam L45
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0416.00-00000
Cam L45
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0418.00-00000
Cam L45
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0420.00-00000
Cam L45
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0422.00-00000
Cam L45
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0424.00-00000
Cam L45
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0425.00-00000
Cam L45
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0426.00-00000
Cam L45
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0428.00-00000
Cam L45
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0430.00-00000
Cam L45
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0432.00-00000
Cam L45
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0434.00-00000
Cam L45
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0435.00-00000
Cam L45
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0436.00-00000
Cam L45
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0438.00-00000
Cam L45
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0440.00-00000
Cam L45
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0442.00-00000
Cam L45
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0444.00-00000
Cam L45
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0445.00-00000
Cam L45
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0447.00-00000
Cam L45
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0450.00-00000
Cam L45
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0453.00-00000
Cam L45
Details
H-dimension Gl12:
47 mm
H-dimension Gl18:
53 mm
H-dimension Gl20:
55 mm
H-dimension Gl22:
57 mm
H-dimension Gl30:
65 mm
H-dimension Gl32:
67 mm
H-dimension Gl36:
71 mm
H-dimension Gl40:
75 mm
H-dimension Gl42:
77 mm
H-dimension Gl46:
81 mm
H-dimension Gl50:
85 mm
H-dimension Gl56:
91 mm
H-dimension Gl60:
95 mm
H-dimension Gl66:
101 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0455.00-00000
Cam L45
Details
H-dimension Gl12:
49 mm
H-dimension Gl18:
55 mm
H-dimension Gl20:
57 mm
H-dimension Gl22:
59 mm
H-dimension Gl30:
67 mm
H-dimension Gl32:
69 mm
H-dimension Gl36:
73 mm
H-dimension Gl40:
77 mm
H-dimension Gl42:
79 mm
H-dimension Gl46:
83 mm
H-dimension Gl50:
87 mm
H-dimension Gl56:
93 mm
H-dimension Gl60:
97 mm
H-dimension Gl66:
103 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0606.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0608.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0610.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0613.00-00000
Cam L35
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0614.00-00000
Cam L35
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0616.00-00000
Cam L35
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0618.00-00000
Cam L35
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0620.00-00000
Cam L35
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0622.00-00000
Cam L35
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0624.00-00000
Cam L35
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0625.00-00000
Cam L35
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0626.00-00000
Cam L35
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0628.00-00000
Cam L35
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0630.00-00000
Cam L35
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0635.00-00000
Cam L35
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0638.00-00000
Cam L35
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0640.00-00000
Cam L35
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0642.00-00000
Cam L35
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-0644.00-00000
Cam L35
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
Open product in new tab
m)
200-9504.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9506.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9508.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9510.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9513.00-00000
3-point cam
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9514.00-00000
3-point cam
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9516.00-00000
3-point cam
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9518.00-00000
3-point cam
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9520.00-00000
3-point cam
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9522.00-00000
3-point cam
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9524.00-00000
3-point cam
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9525.00-00000
3-point cam
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9526.00-00000
3-point cam
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9528.00-00000
3-point cam
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9530.00-00000
3-point cam
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9532.00-00000
3-point cam
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9534.00-00000
3-point cam
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9535.00-00000
3-point cam
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9536.00-00000
3-point cam
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9538.00-00000
3-point cam
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9540.00-00000
3-point cam
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9542.00-00000
3-point cam
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9544.00-00000
3-point cam
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9545.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9547.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9550.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
1 pc.
Open product in new tab
m)
200-9599.00-00000
2-point cam
Details
Stop:
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
3-011
Grounding Clip Stainless Steel
Open overview in new tab
208-1206.93-00000
Grounding Clip Stainless Steel
Details
Delivery Unit:
1 pc.
Open product in new tab
6-100
Wrenches and Keys
Open overview in new tab
204-0107.00-00000
Key, double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
10 pcs.
Open product in new tab
204-0108.00-00000
Key, double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Delivery Unit:
10 pcs.
Open product in new tab
204-0102.00-00000
Wrench, square 7mm
Details
Insert:
Square 7mm
D:
14,2 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0103.00-00000
Wrench, square 8mm
Details
Insert:
Square 8mm
D:
14,2 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0104.00-00000
Wrench, triangular 7mm
Details
Insert:
Triangular 7mm
D:
14,2 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0105.00-00000
Wrench, triangular 8mm
Details
Insert:
Triangular 8mm
D:
14,2 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0106.00-00000
Wrench, triangular 6.5mm CNOMO
Details
Insert:
Triangular 6.5mm CNOMO
D:
14,2 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0109.00-00000
Wrench, Daimler Benz type
Details
Insert:
Daimler Benz type
D:
11,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0110.00-00000
Wrench, crown type
Details
Insert:
Crown type key
D:
15,9 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0111.00-00000
Wrench, square 6mm
Details
Insert:
Square 6mm
D:
11,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0112.00-00000
Wrench, triangular 6.5mm CNOMO
Details
Insert:
Triangular 6.5mm
D:
11,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0113.00-00000
Wrench, triangular 9mm EDF
Details
Insert:
Triangular 9mm EDF
D:
15,9 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0116.00-00000
Wrench, half-round czech
Details
Insert:
Half-round czech
D:
15,9 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0117.00-00000
Wrench, round mandrel with notch (DÜWAG)
Details
Insert:
Round mandrel with notch (DÜWAG)
D:
14,2 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0119.00-00000
Wrench, male key square 6mm
Details
Insert:
Male square 6mm
D:
11,8 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0120.00-00000
Wrench, male key square 7mm
Details
Insert:
Male square 7mm
D:
11,8 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0121.00-00000
Wrench, male key square 8mm
Details
Insert:
Male square 8mm
D:
11,8 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0133.30-00000
Wrench, male key hex. 8mm (5/16")
Details
Insert:
Male hex. 8mm (5/16")
D:
11,8 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0134.30-00000
Wrench, hex. 7/16"
Details
Insert:
Hex. 7/16"
D:
15,6 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0139.00-00000
Wrench, hex. SW10
Details
Insert:
Hex. SW10
D:
15,9 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0501.00-00000
Wrench, square 6mm
Details
Insert:
Square 6mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0502.00-00000
Wrench, triangular 6.5mm
Details
Insert:
Triangular 6.5mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0407.03-00000
Key, double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
10 pcs.
Open product in new tab
204-0408.03-00000
Key, double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Delivery Unit:
10 pcs.
Open product in new tab
204-0401.03-00000
Hollow key, (logo both sides), square 6mm
Details
Insert:
Square 6mm
D:
11,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0402.03-00000
Hollow key, (logo both sides), square 7mm
Details
Insert:
Square 7mm
D:
15,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0403.03-00000
Hollow key, (logo both sides), square 8mm
Details
Insert:
Square 8mm
D:
15,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0404.03-00000
Hollow key, (logo both sides), triangular 6.5mm
Details
Insert:
Triangular 6.5mm
D:
11,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0405.03-00000
Hollow key, (logo both sides), triangular 7mm
Details
Insert:
Triangular 7mm
D:
15,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0406.03-00000
Hollow key, (logo both sides), triangular 8mm
Details
Insert:
Triangular 8mm
D:
15,5 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0409.03-00000
Hollow key, (logo both sides), blade 10 x1.4
Details
Insert:
Blade 10 x 1,4
D:
17 mm
Delivery Unit:
10 pcs.
Open product in new tab
204-0302.42-00000
FIAT key
Details
Insert:
FIAT
Delivery Unit:
10 pcs.
Open product in new tab
204-0301.00-00000
PZ building key
Details
Name:
PZ building key
Delivery Unit:
10 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 208-9503.00-00000
Delivery Unit: 1 pc.
Cutout: PrC
Installation type: screwed with hook
Name: Escutcheon, FIAT Type

Selected additional products

[none]
Contact linkedin YouTube
This website uses cookies to ensure the best experience possible. More information...
