Cams L35/45 Steel

ICON_ROHS
ICON_RUNDSTANGE
1_102
E_1-102
1_102
E_1-102

Advantages

  • Cams with ramp and stop with 35mm and 45mm length for 1-point locking.
  • 3-Point cam for 3-point locking.
  • Rod control for 2-point locking.

Material


  • Cams: steel, zinc plated

Remarks

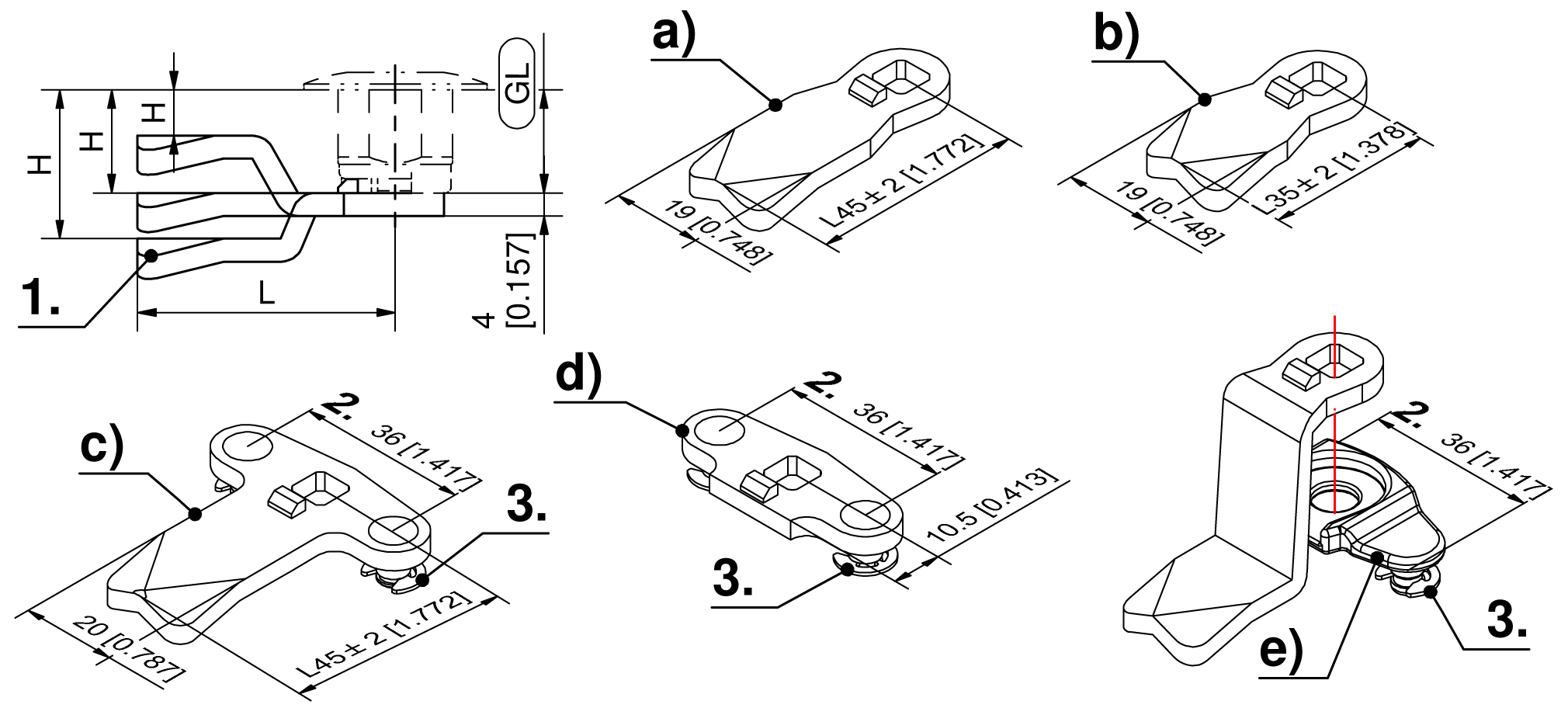

1. ramp 3mm
2. stroke 18mm at 90° rotation
3. c-clips (are included)

Cams L45 and 3-point cams with marking e) are supplied in 2 parts.
Slide shoe for cams 35 and 45mm, see product system 1-103.

Selected version

Product number 200-0618.00-00000
Delivery Unit: 10 pcs.
H-dimension Gl66: 66 mm
H-dimension Gl60: 60 mm
H-dimension Gl56: 56 mm
H-dimension Gl50: 50 mm
H-dimension Gl46: 46 mm
H-dimension Gl42: 42 mm
H-dimension Gl40: 40 mm
H-dimension Gl36: 36 mm
H-dimension Gl32: 32 mm
H-dimension Gl30: 30 mm
H-dimension Gl22: 22 mm
H-dimension Gl20: 20 mm
H-dimension Gl18: 18 mm
H-dimension Gl12: 12 mm
CAD model
Remove selection Product data sheet
