[2-126.05]

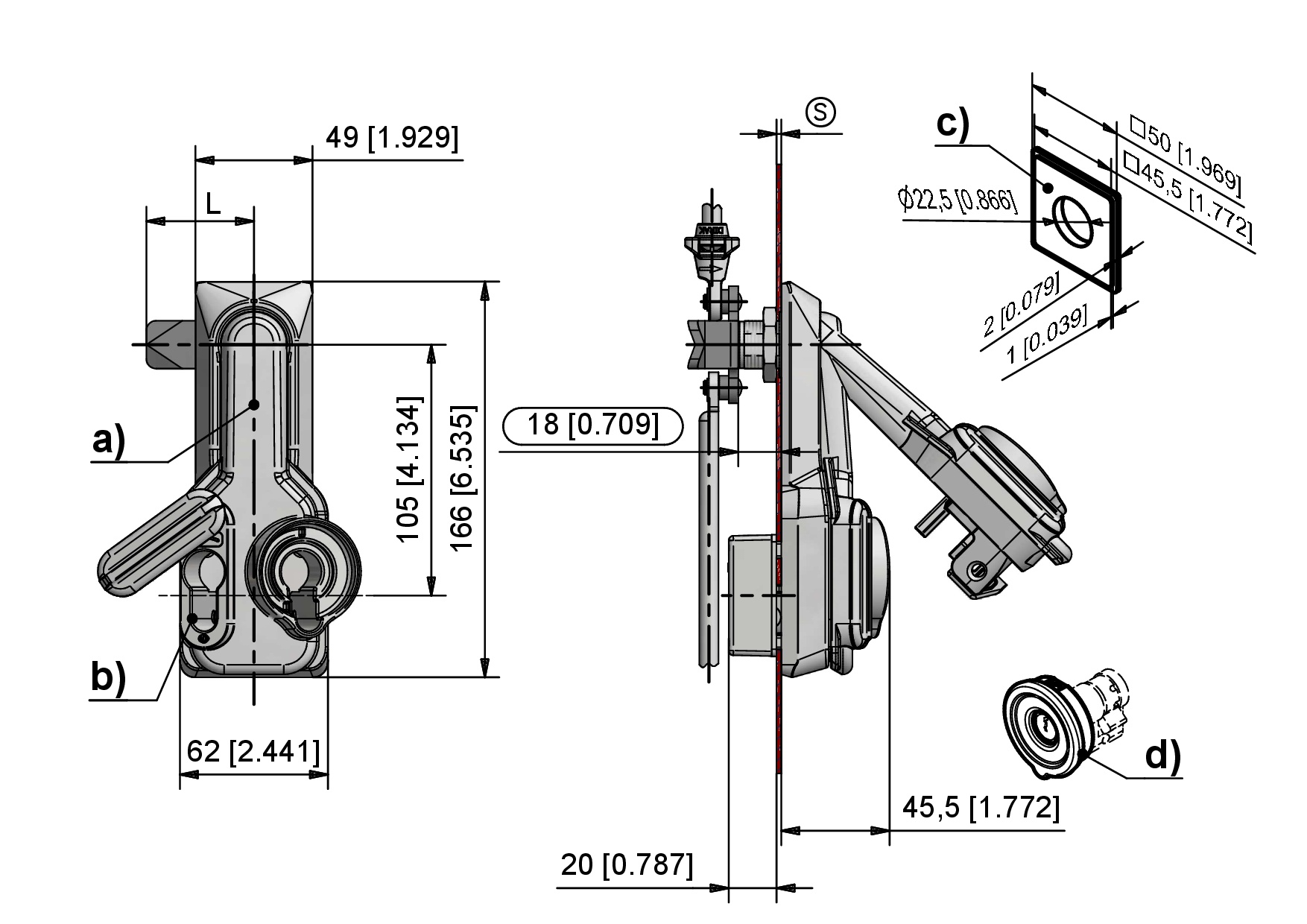

Dual -Key Cylinder Swinghandle RS 105 for iLOQ Cylinder D50S

Advantages

Dual-key cylinder swinghandle with pivotable operating lever.
Complies with security test according to DIN EN 1630 RC2.
Only in combination with profile cylinders according to DIN 18252.
Can be opened with either of the two key cylinders. Accepts 40mm and 45mm profile cylinders.
When using an escutcheon only a 45mm cylinder can be used.
The handle can be locked without using a key.
Seismic-proof according to GR-63-CORE, Issue 4.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.
Saw protection on request.
Suitable for iLOQ cylinder D50S.511.SD.
RH / LH application.

Material

Swinghandle, escutcheon, cylinder dustcover and dish: zinc die, black
Cap: zinc die, zinc plated

Other surfaces on request!

Remarks

(S) Door-thickness min. 3mm - max. 6mm

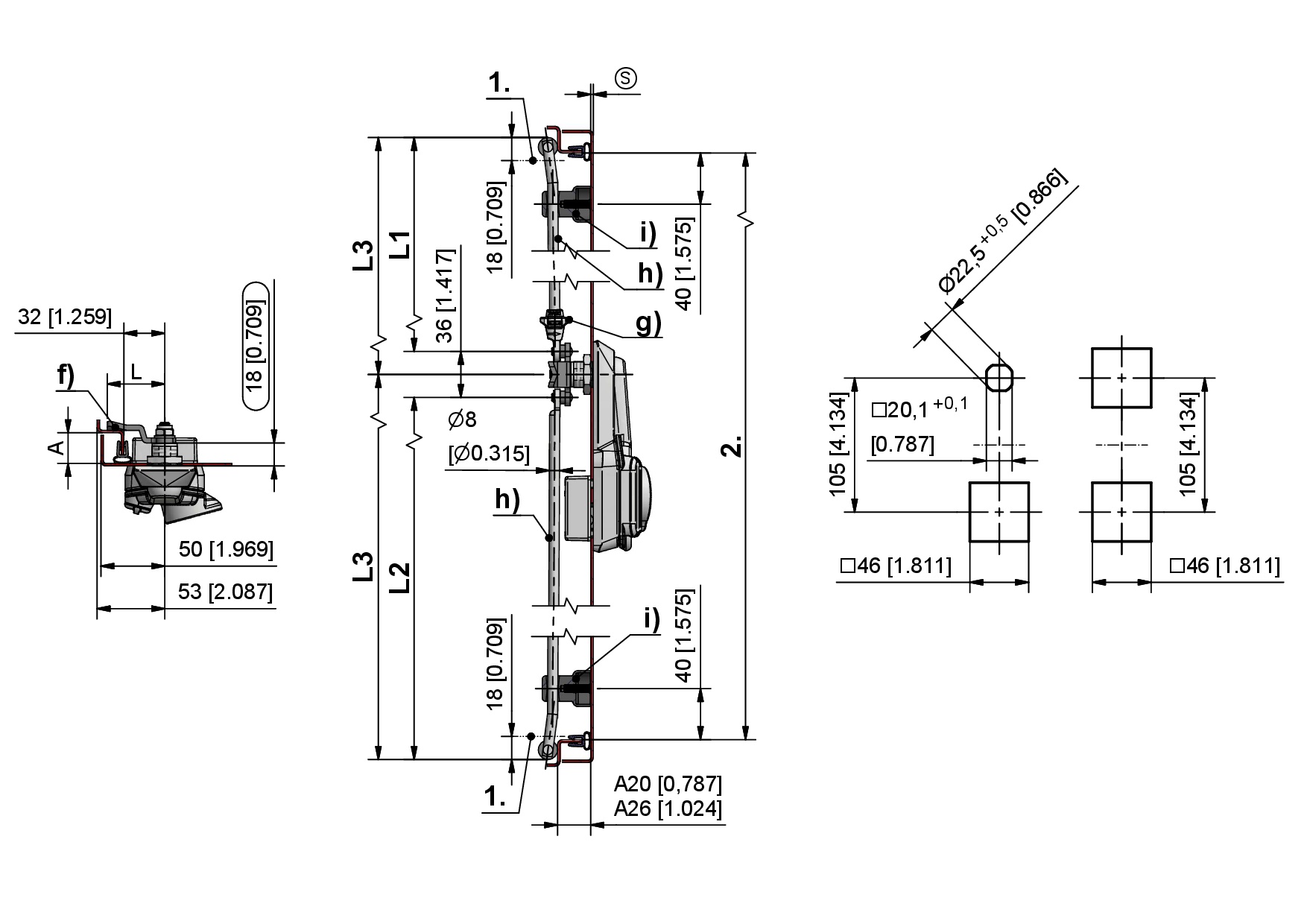

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

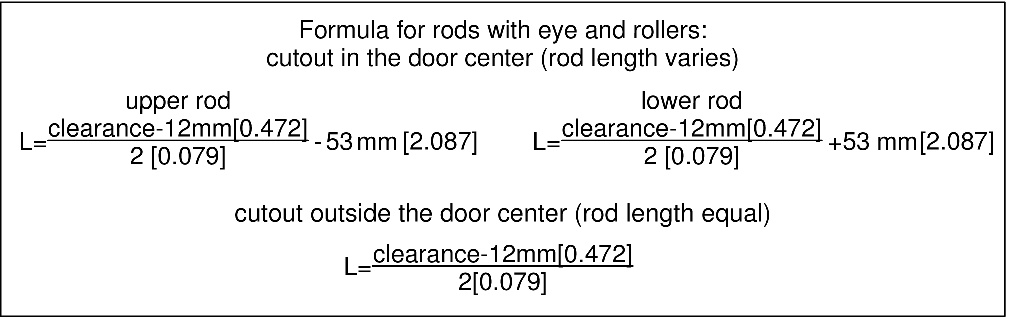

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

Profile half cylinders and their assembly must be ordered separately.
Cylinder iLOQ is not included in the scope of delivery. Available at www.iloq.com
