Dual-Key Cylinder Swinghandle RS 130 PA

ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_PZ_DIN_18252
2_126_04
E_2-126_04_1
E_2-126_04_2
E_2-000_130_1
E_2-000_130_2
2_126_04
E_2-126_04_1
E_2-126_04_2
E_2-000_130_1
E_2-000_130_2

Advantages

  • Dual-key cylinder swinghandle with pivotable operating lever.
  • Fully insulated for installation in plastic cabinets
  • Can be opened with either of the two key cylinders. Accepts 40mm and 45mm profile cylinders.
  • Latch bolt securely locked against unauthorized opening.
  • a) latch bolt with chamfer. Closing is possible if key is removed.
  • b) latch bolt with detent. Detent requires turning the key.
  • IP65 according to DIN EN 60529.
  • RH/LH application.

Material

  • Swinghandle and dish: PA, black

Remarks

(S) Door-thickness 3mm - max. 6mm

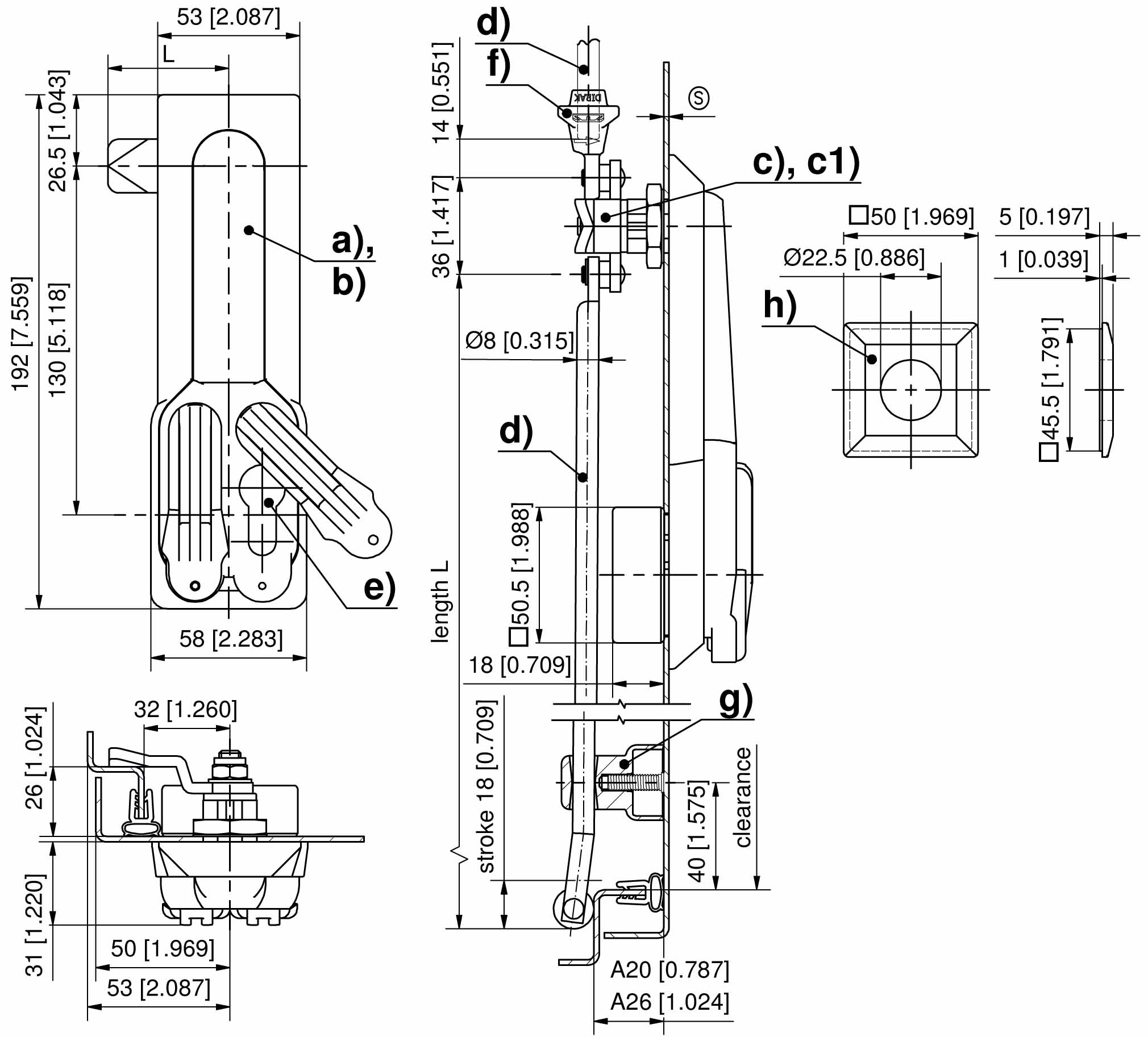

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

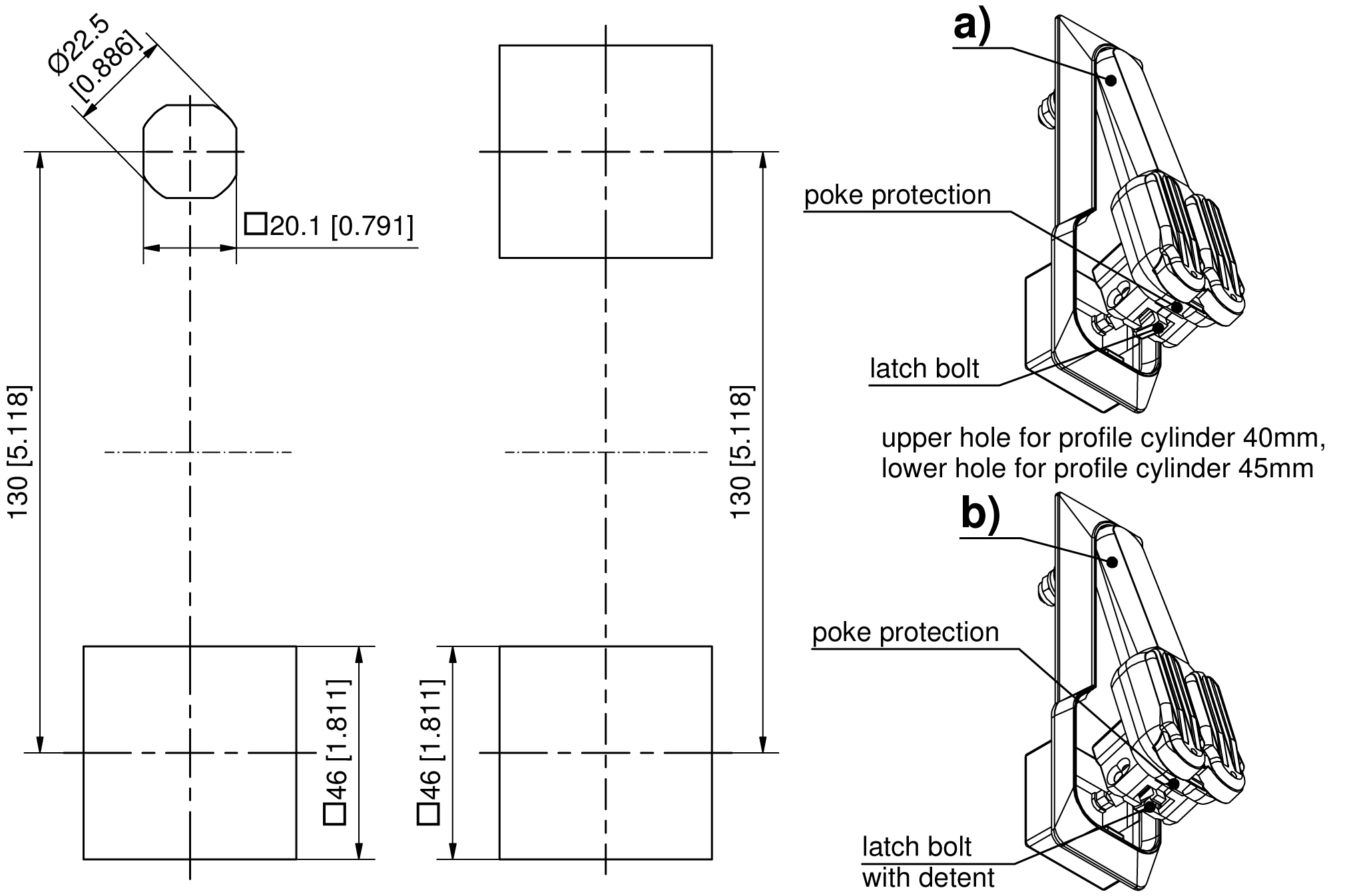

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

Upgrading with steel insert (saw protection) possible.

Profile half cylinders and their assembly must be ordered separately.
Please select version Product data sheet

Available versions

Dual-key cylinder swinghandle


Product number
Version
Internal cover
Reinforced dustcover
Securable
Installation type
Delivery Unit
a)
207-9417.00-00000
Latch bolt without detent
□46
Yes
Yes
screw-on
1 pc.
b)
207-9418.00-00000
Latch bolt with detent
□46
Yes
Yes
screw-on
1 pc.
