[2-126.02]

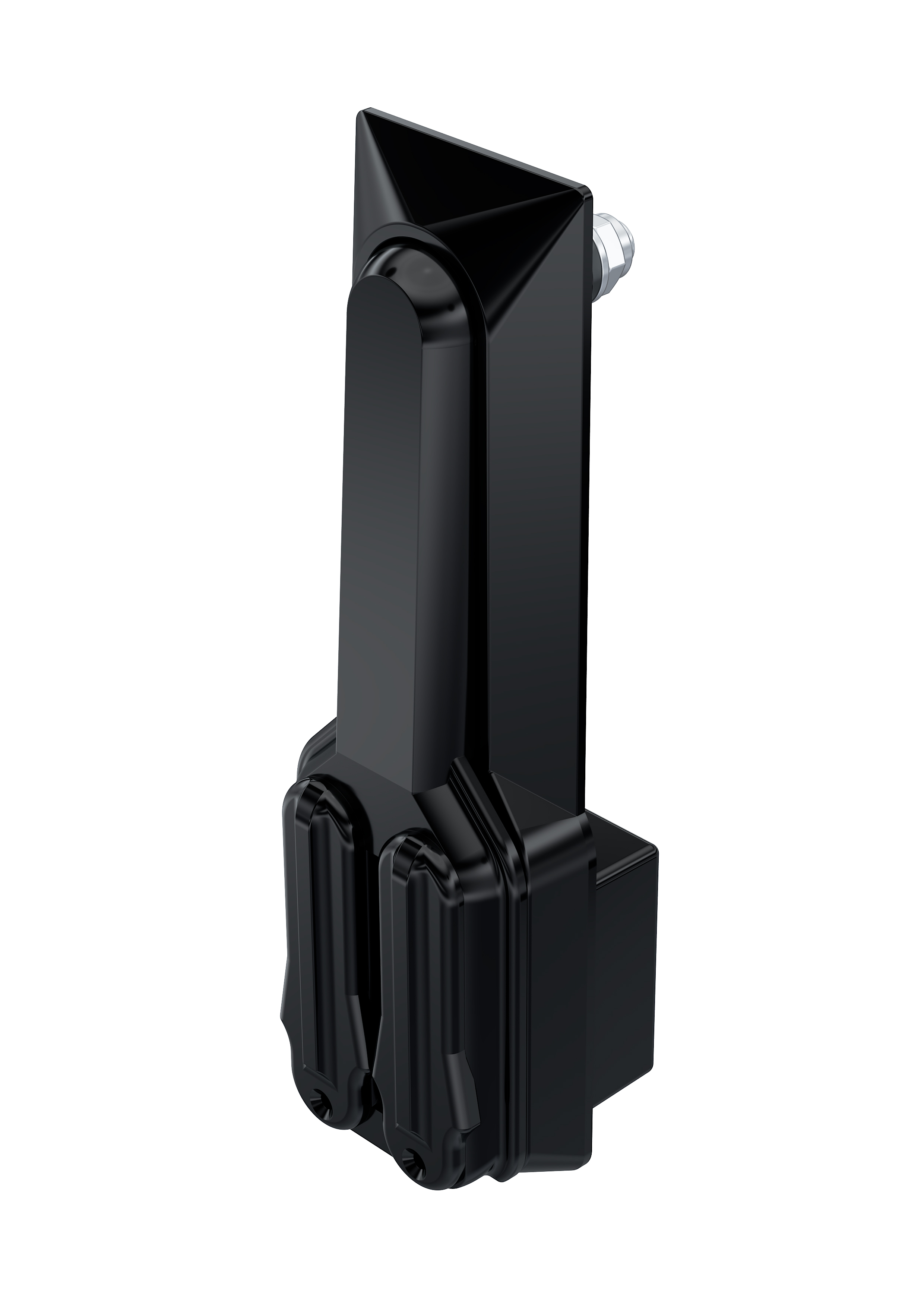

Dual-Key Cylinder Swinghandle RS 130, RC2

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_PZ_DIN_18252

Advantages

Dual-key cylinder swinghandle with pivotable operating lever.
Can be opened with either of the two key cylinders. Accepts 40 and 45mm profile cylinders.
The handle can be locked without using a key.
Complies with security test to DIN EN 1630 RC2.
Only in combination with profile cylinders according to DIN 18252.
IP65 according to DIN EN 60529.
Including steel insert (saw protection).
Logo (1.) on handle on request.
RH/LH application.

Material

Swinghandle and dish: zinc die, ZL 0430, black
Other surfaces on request!

Remarks

(S) Door-thickness 3mm - max. 6mm

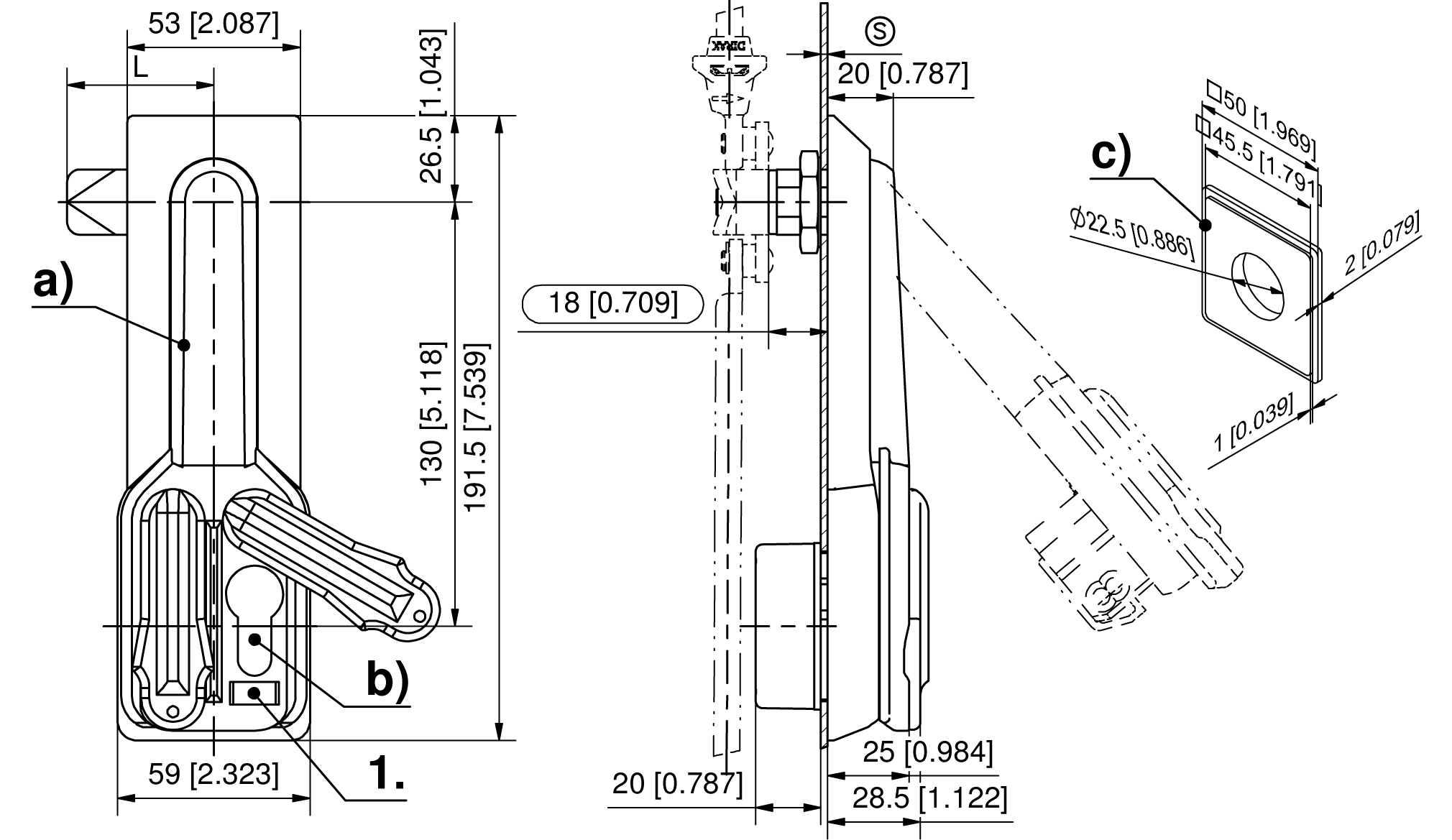

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

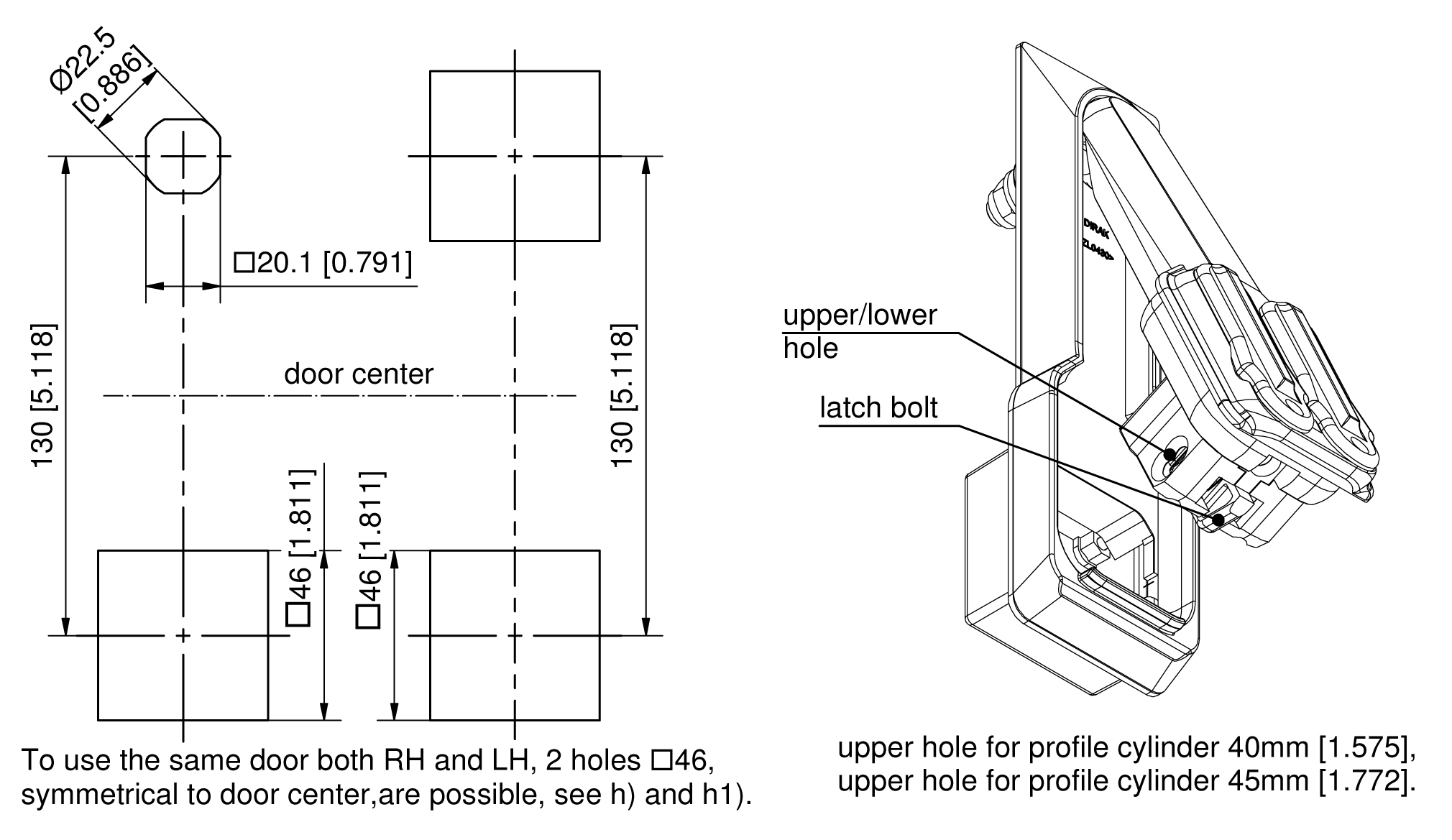

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

Profile half cylinders and their assembly must be ordered separately.

Available versions

Dual-key cylinder swinghandle, RC2 tested

Product number

Internal cover

Cylinder cover material

Securable

Installation type

Delivery Unit

207-9414.00-00000

Related Products

Accessories

i)

200-3623.51-00000 Rod guide, hight 32mm

i)

200-3625.51-00000 Rod guide, hight 38mm

204-0301.00-00000 PZ building key

c)

207-2701_03-00000

207-2702.03-00000 Adapter for cutout □46mm

f)

207-9595.00-00000 Adapter for 3-point cam without stop

f)

207-9596.00-00000 Adapter for 3-point cam without stop

1-103 Slide Shoe for Cams

h)

1-170 Round Rods with Eye

h)

1-180 Round Rods for Adapter

g)

1-181 Adapter for Round Rods Ø8mm PA

g)

1-181.01 Adapter for Round Rods Ø8mm / Ø10mm Zinc Die

b)

2-140 Profile-Cylinder DIN 18252

f)

2-150 3-Point Cam L45, Rod Control

MLA 1-103 MLA Door Contact

Assembly options

dirak_shop_montageoptionen_v1

207-0016.00-00000 Assembling of inserts / profile-cylinder
