[2-126.01]

Dual-Key Cylinder Swinghandle RS 105, RC2

ICON_IP65
ICON_ROHS
ICON_RC2
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_PZ_DIN_18252
2_126_01
E_2-126_01_1
E_2-126_01_2
E_2-000_105_1
E_2-000_105_2
2_126_01
E_2-126_01_1
E_2-126_01_2
E_2-000_105_1
E_2-000_105_2

Advantages

  • Dual-key cylinder swinghandle with pivotable operating lever.
  • Complies with security test to DIN EN 1630 RC2.
    Only in combination with profile cylinders according to DIN 18252.
  • Can be opened with either of the two key cylinders. Accepts 40mm and 45mm profile cylinders.
  • The handle can be locked without using a key.
  • Seismic-proof according to GR-63-CORE, Issue 4.
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • Including steel insert (saw protection).
  • Logo (1.) on handle on request.

Material

  • Swinghandle and dish: zinc die, ZL 0430, black
  • Other surfaces on request!

Remarks

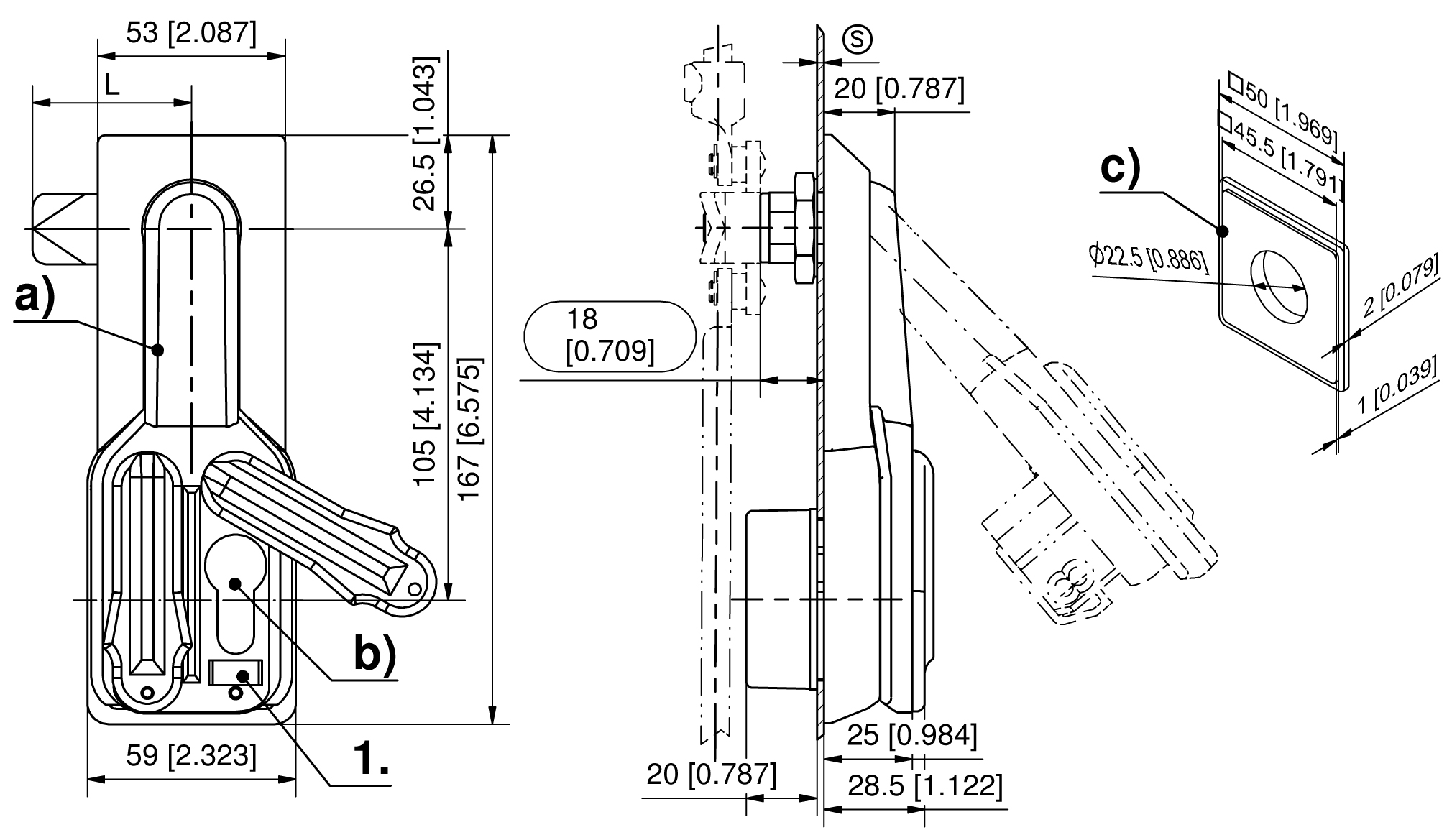

(S) Door-thickness 3mm - max. 6mm

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

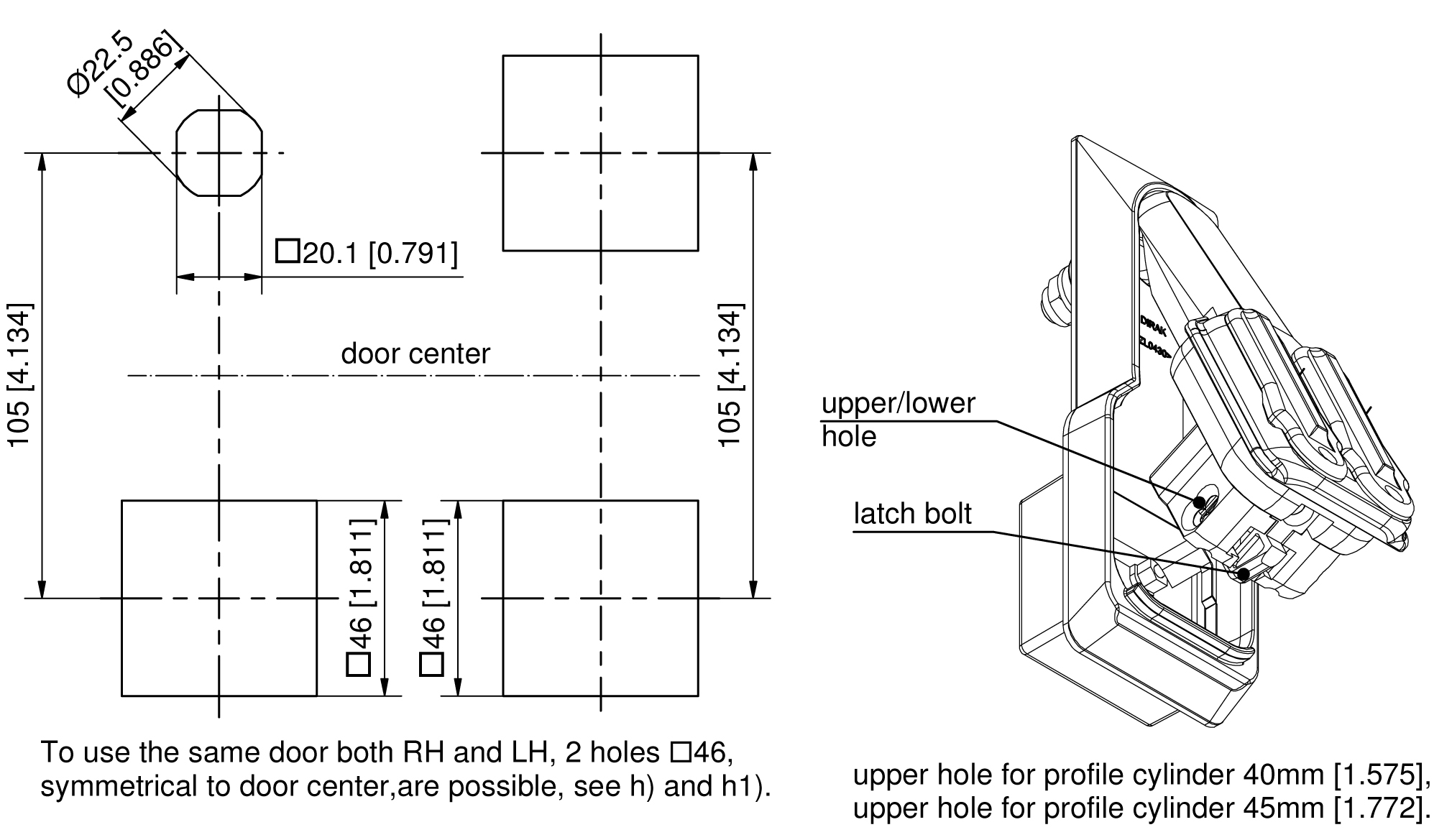

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

Profile half cylinders and their assembly must be ordered separately.
Please select version Product data sheet

Available versions

Dual-key cylinder swinghandle, RC2 tested


Product number
Internal cover
Cylinder cover material
Securable
Installation type
Delivery Unit
a)
207-9614.00-00000
□46
zinc die
Yes
screw-on
1 pc.
