Swinghandle RS 105 for PHZ, RC2

ICON_DIRAK_FOAMED_SEAL
ICON_IP65
ICON_ROHS
ICON_RC2
ICON_TUERANSCHLAG_LR
ICON_PZ_DIN_18252
ICON_RUNDSTANGE
ICON_FLACHSTANGE
ICON_CUTOUT_PR_C
2_104
E_2-000_105_1
E_2-000_105_2
E_2-104
2_104
E_2-000_105_1
E_2-000_105_2
E_2-104

Advantages

  • Swinghandle with liftable operating lever.
  • 90° Closing rotation.
  • For profile-cylinders with length of 40 and 45mm.
  • Protected against unauthorized access by a bolt.
  • Tested according to security class RC2 DIN EN 1630.
    Only in combination with profile cylinders according to DIN 18252.
  • IP65 according to DIN EN 60529 by PUR sealing at dish and dust cover.
  • RH / LH application.
  • To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

Material

  • Swinghandle, dish: zinc die, grey
  • Bolt: zinc die, untreated
  • Cap: zinc die, zinc plated
  • Dust cover: PA, grey
  • Adapter: PA, black

Remarks

(S) Door-thickness max. 3mm

1. adapter included in scope of delivery

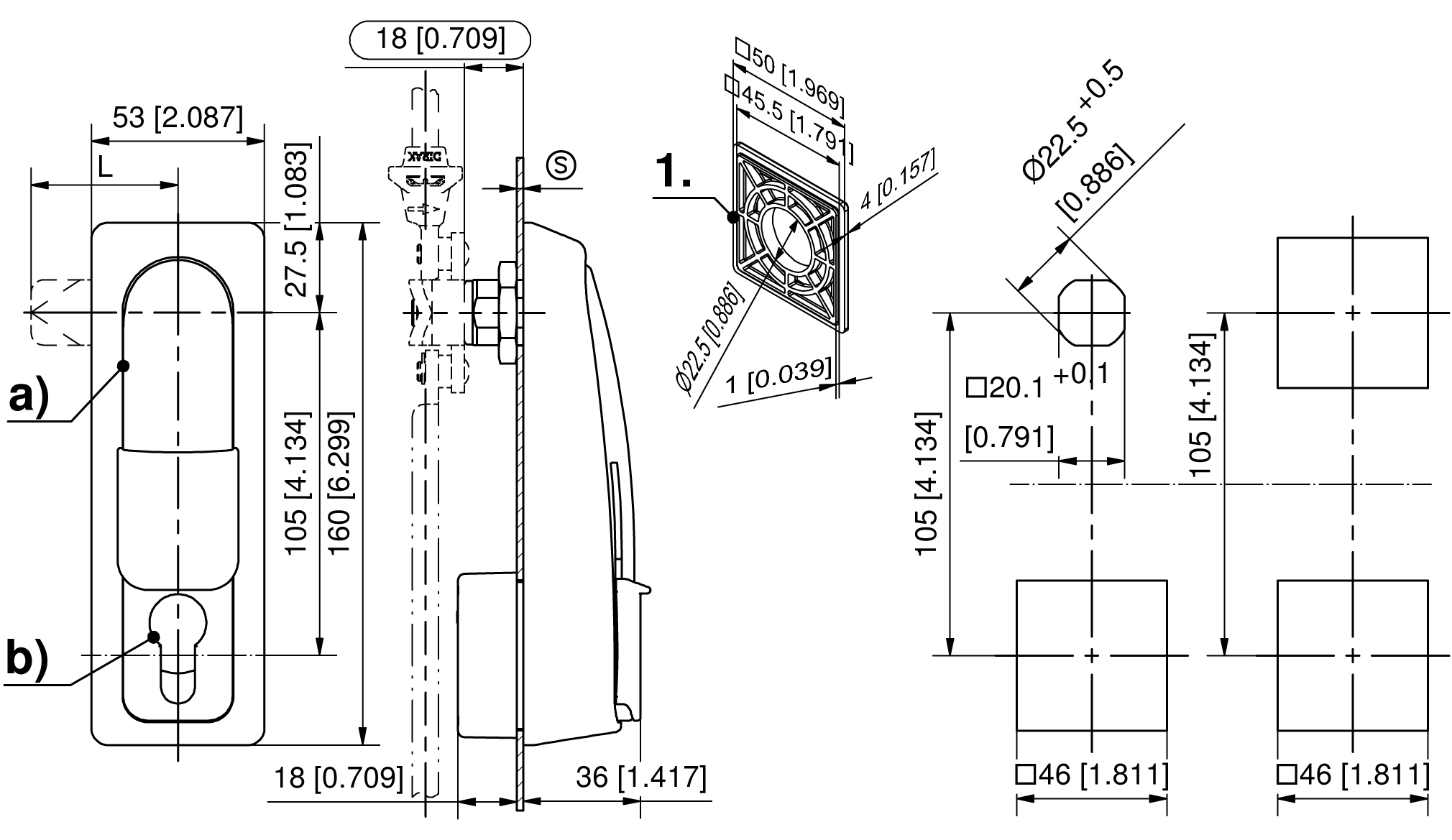

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

Profile half cylinders and their assembly must be ordered separately.
Please select version Product data sheet

Available versions

Swinghandle


Product number
Internal cover
Cylinder cover material
Installation type
Delivery Unit
a)
207-9136.00-07038
□46
PA
screw-on
1 pc.
