Swinghandle Zinc Die RS 105 for PHZ, RC2

ICON_IP65
ICON_ROHS
ICON_RC2
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_PZ_DIN_18252
2_103
E_2-103_1
E_2-103_2
E_2-000_105_1
E_2-000_105_2
2_103
E_2-103_1
E_2-103_2
E_2-000_105_1
E_2-000_105_2

Advantages

  • Spring loaded, leap up handle.
  • 90° Closing rotation.
  • For profile-cylinders with length of 40 and 45mm.
  • Cylinder cover magnetically secured.
  • Protected against unauthorized access by a bolt.
  • Tested according to security class RC2 DIN EN 1630.
    Only in combination with profile cylinders according to DIN 18252.
  • Seismic-proof according to GR-63-CORE, Issue 4.
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • RH / LH application.

Material

  • Swinghandle, dish, dust cover and cap: zinc die, black

Remarks

(S) Door-thickness max. 3mm

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

Profile half cylinders and their assembly must be ordered separately.
Please select version Product data sheet

Available versions

Swinghandle


Product number
Internal cover
Cylinder cover material
Installation type
Delivery Unit
a)
207-9130.00-00000
□46
zinc die
screw-on
1 pc.
b)
207-9131.00-00000
□46
zinc die, screwable
screw-on
1 pc.

Related Products

Assembly options

dirak_shop_montageoptionen_v1
207-0016.00-00000 Assembling of inserts / profile-cylinder

Accessories

c)
2_140
211-9003.00-00000 DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike
c)
2_140
211-9004.00-00000 DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different
j)

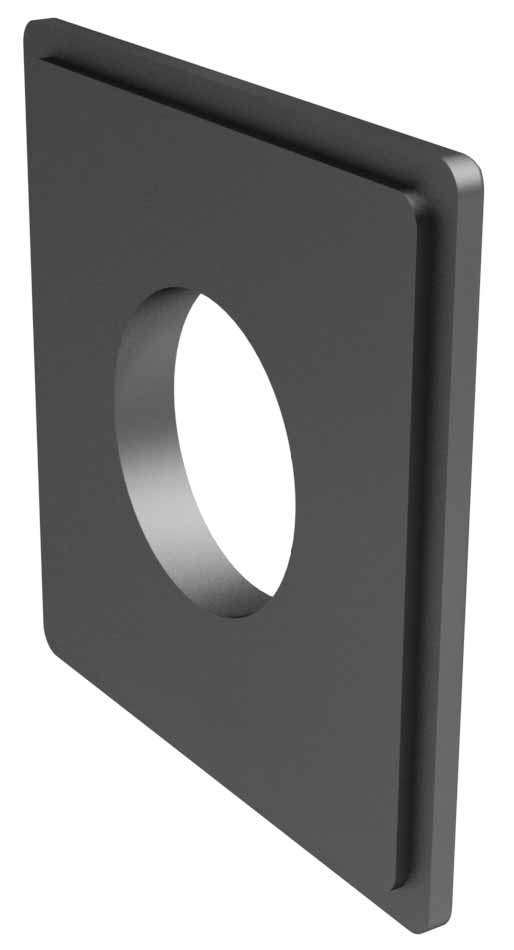

207-2702_03-00000
602-0016.35-00000 Square adapter
j)

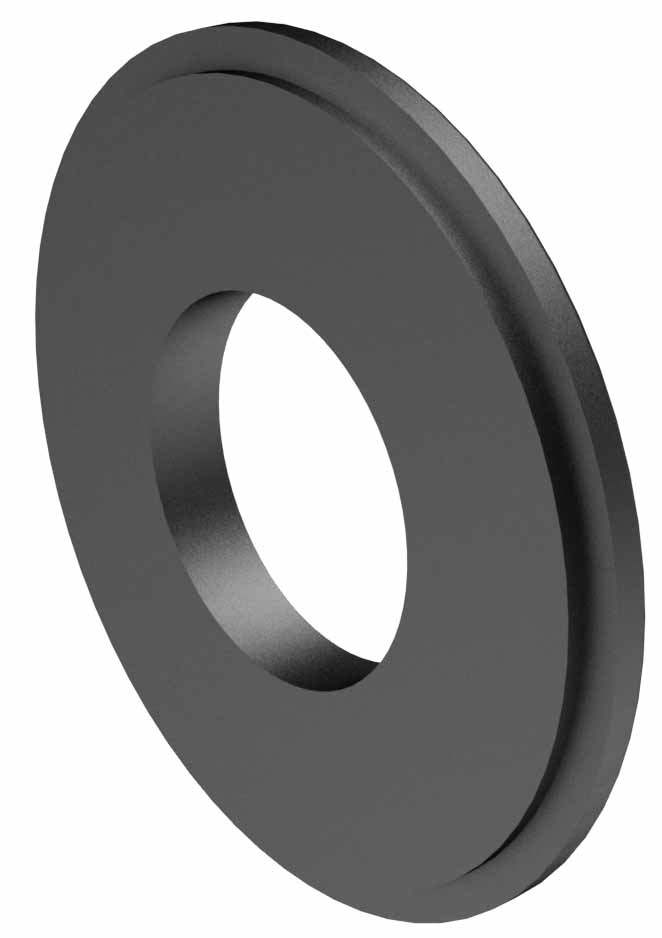

207-2701_03-00000
207-2803.00-00000 Gasket for adapter □46mm
f1)

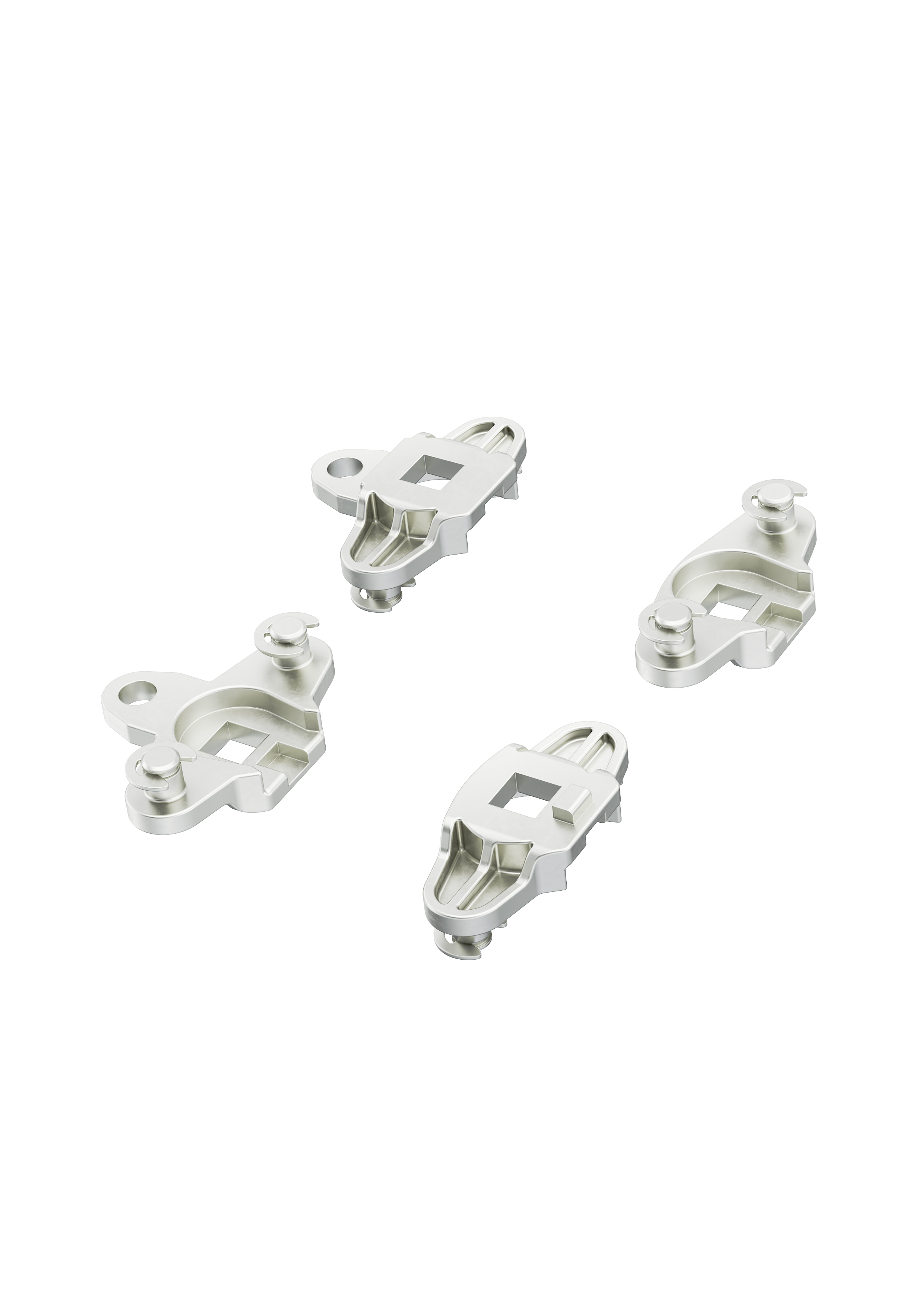

2_151
207-9595.00-00000 Adapter for 3-point cam without stop
f1)
2_151
207-9596.00-00000 Adapter for 3-point cam without stop
1_103
1-103 Slide Shoe for Cams
h)
1_170
1-170 Round Rods with Eye
h)
1_180
1-180 Round Rods for Adapter
g)
1_181
1-181 Adapter for Round Rods Ø8mm PA
g)
1_181_01
1-181.01 Adapter for Round Rods Ø8mm / Ø10mm Zinc Die
i)
1_190
1-190 Rod Guides RS
i)
1_191
1-191 Height-adjustable Rod Guide RS
i)
1_192
1-192 Rod Guides RS
i)
1_193
1-193 Rod Guide RS
f)
2_150
2-150 3-Point Cam L45, Rod Control
MLA_1_103
MLA 1-103 MLA Door Contact
