[2-078DST]

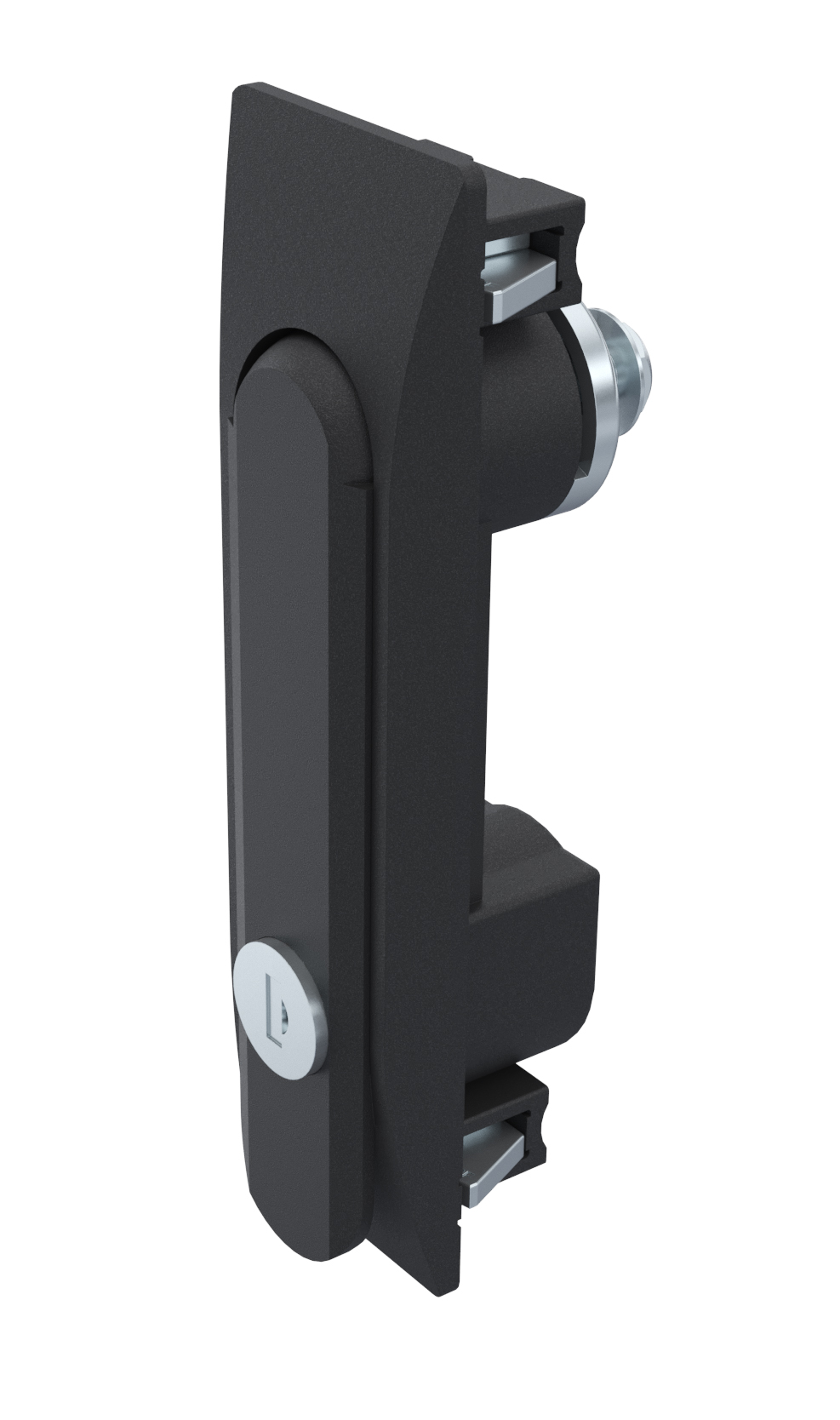

DST Swinghandle RS 110

ICON_DIRAK_FOAMED_SEAL

ICON_TUERANSCHLAG_LR

ICON_WERKZEUGLOS

ICON_RUNDSTANGE

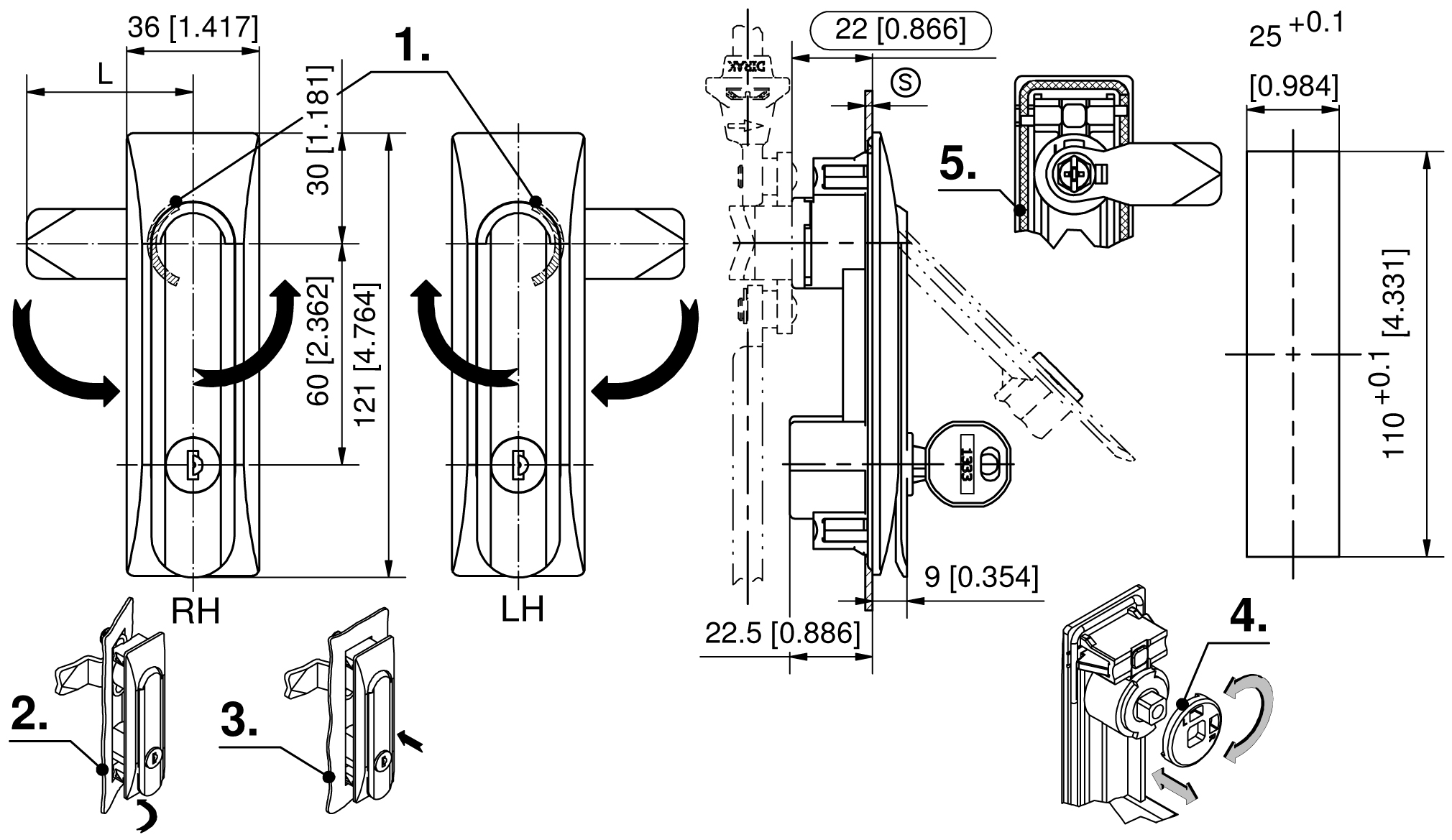

Advantages

Low profile design.
The pre-assembled swinghandle (single or 3-point cam) can simply be snapped into the cutout. (2./3.)
90° closing rotation. (1.)
Key Cylinder DIRAK 1333 with stainless steel dust cap and 1 key with synthetic coated grip.
IP65 according to DIN EN 60529 by captive sealing. (5.)
RH / LH application is achieved by an adjustable cam stop. (4.)

Material

Swinghandle: zinc die, black
Dish: PA, black
Seal: TPE
Stop: zinc die, zinc plated

Remarks

H-dimension of cam ≥10mm

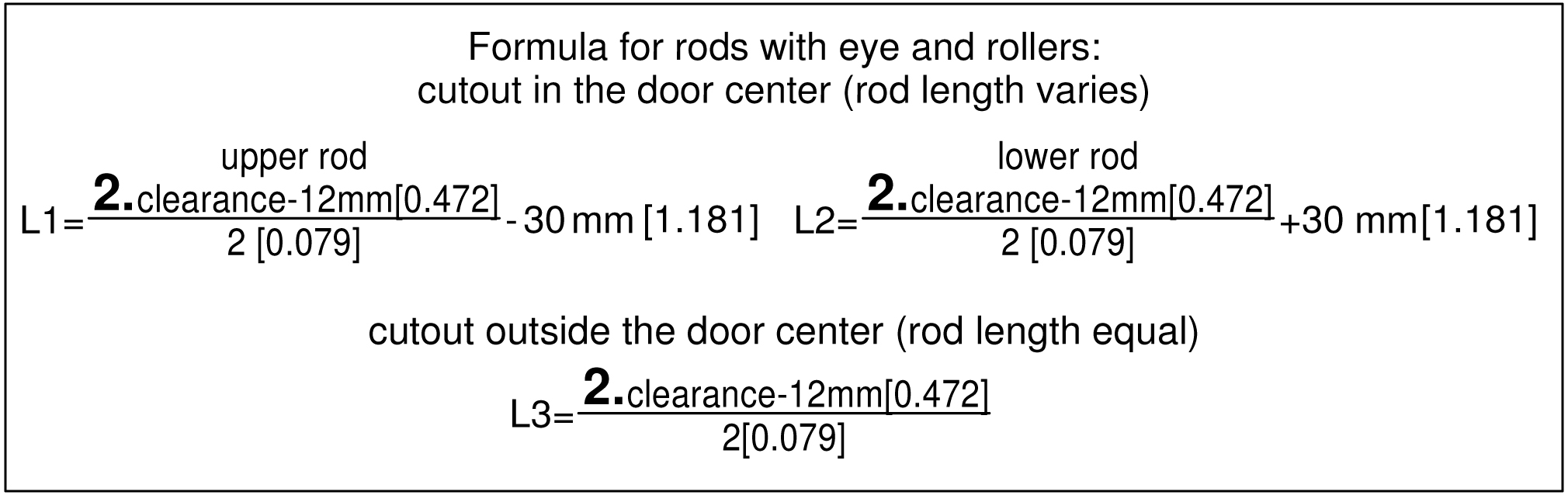

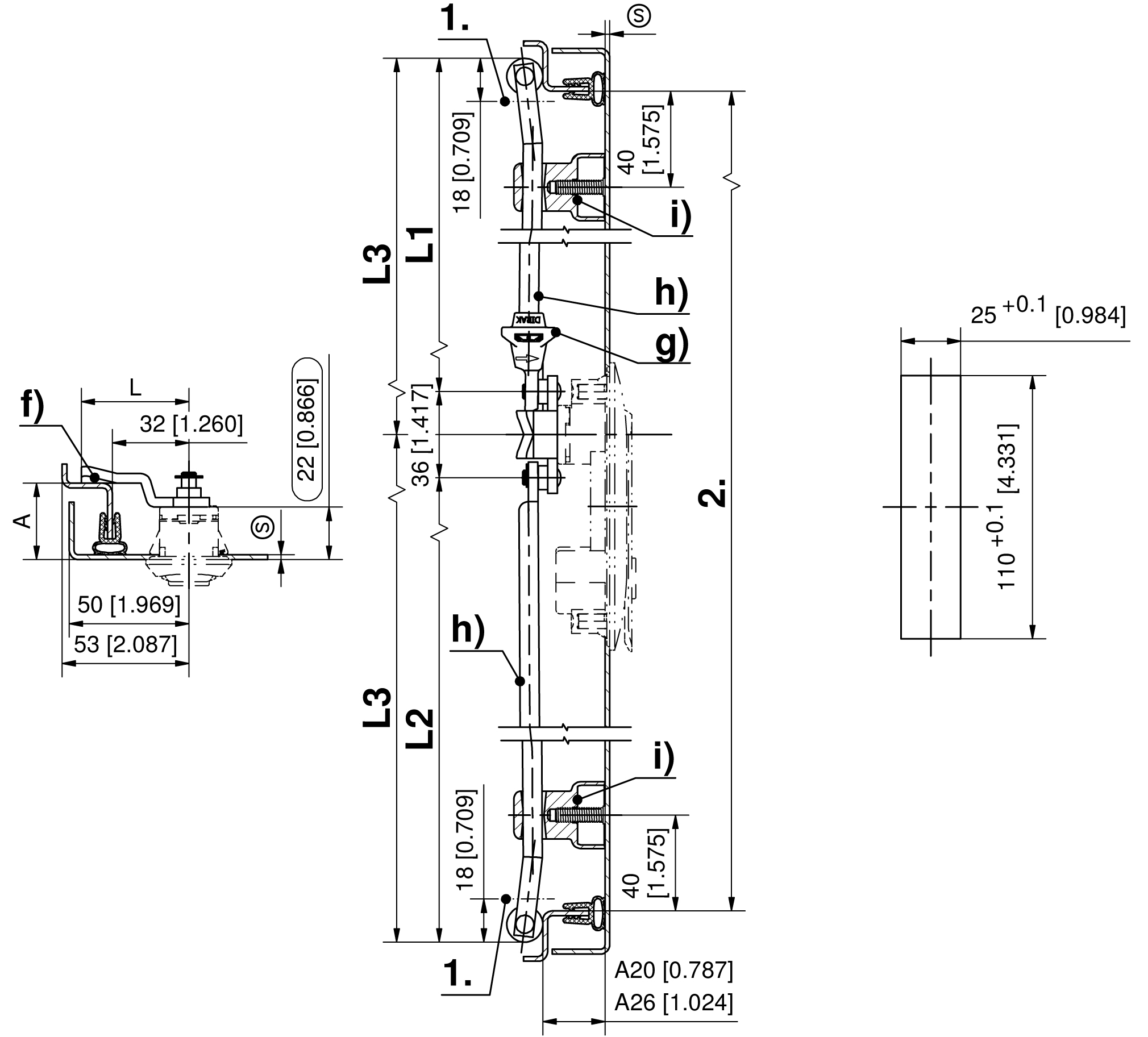

Drawings for rod calculation:
1. stroke 18mm
2. clearance

Available versions

Swinghandle with key cylinder

Product number

Clamping range (S)

Latching type

Installation type

Delivery Unit

407-9602.00-00015

1.2 mm - 1.7 mm

keyed alike DIRAK 1333

407-9602.00-00020

1.7 mm - 2.2 mm

keyed alike DIRAK 1333

407-9602.00-00025

2.2 mm - 2.7 mm

keyed alike DIRAK 1333
