[7-104]

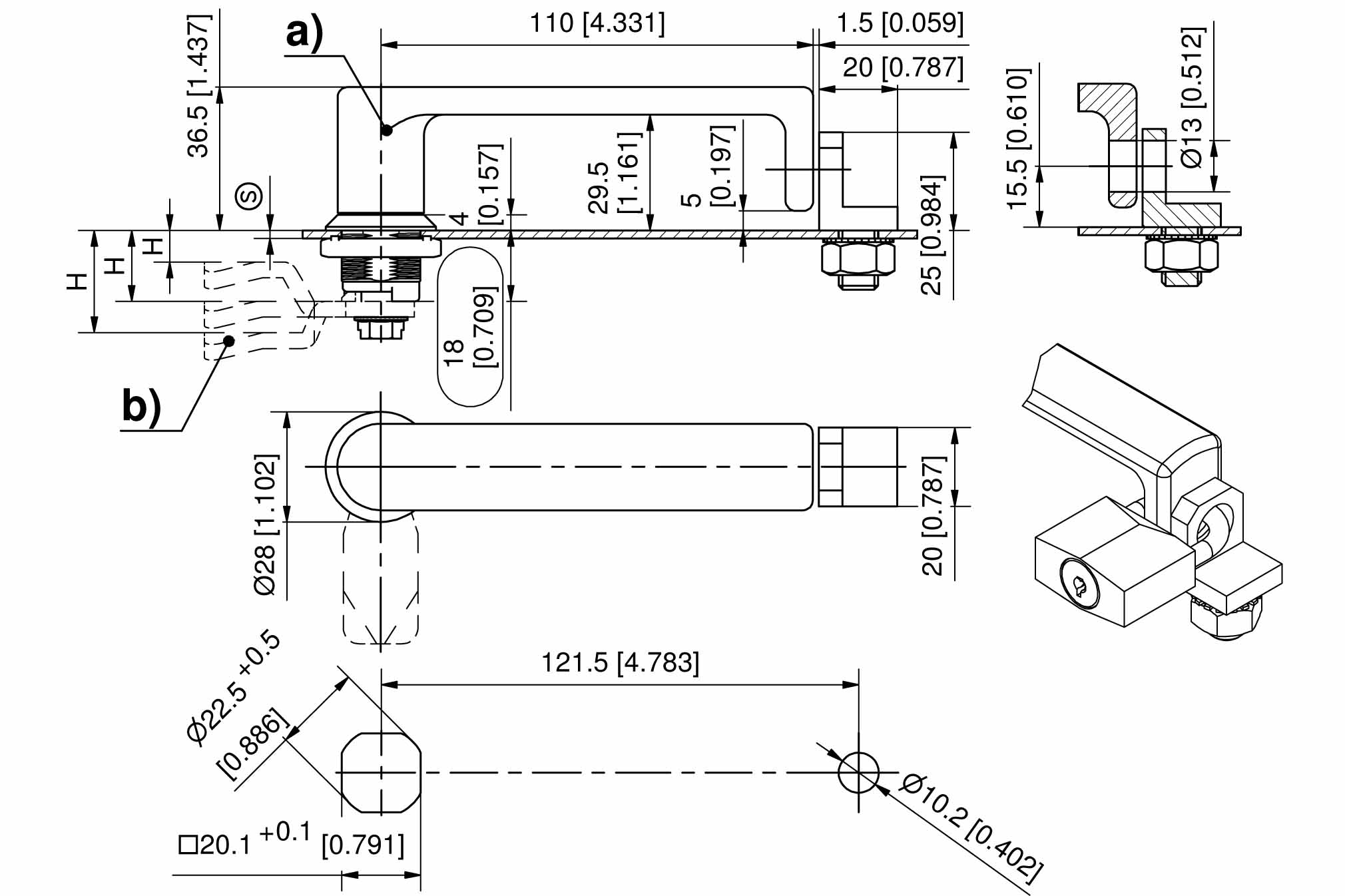

Quarter-Turn with L-Handle for Padlock Pr20.1 L18 Stainless Steel

ICON_CUTOUT_20_1
ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
7_104
E_7-104
7_104
E_7-104

Advantages

  • IP65 according to DIN EN 60529 with 2 o-rings.
  • RH / LH application.

Material

  • L-Handle, housing and hook: AISI 316
  • O-rings: NBR

Remarks

(S) Door-thickness max. 5mm

Please configure the quarter-turn with a cam.
For functional reasons, the cam must be assembled at 90° to the L-handle.
Please select version Product data sheet

Available versions

Quarter-Turn with L-handle for padlock


Product number
Housing length
Installation type
Delivery Unit
a)
200-9493.00-00000
18 mm
screw-on
1 pc.
