Safety Quarter-Turn Pr20.1 L18/L36 Stainless Steel

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
7_074_02
E_7-074_02
7_074_02
E_7-074_02

Advantages

  • Safety quarter-turn with round mandrel insert with notch.
  • Extremely low profile.
  • Vibration-proof according to DIN EN 61373.
  • Closed housing surface.
  • RH / LH application.
  • Internal Uses: door gear access panels, air-con units, lighting systems, passengers information systems, litter bins, seating, Telecom enclosures, cab desks and crew lockers.
  • External Uses: under-slung equipment, side skirts, body and panels, maintenance panels and air-con units.

Material

  • Housing, insert, escutcheon, head and nut: AISI 303
  • Serrated screw and conical spring: stainless steel
  • O-ring and fat external seal: NBR

Remarks

(S) Door-thickness see table

Please configure the quarter-turn with a cam.
Assembled with cam: on request.

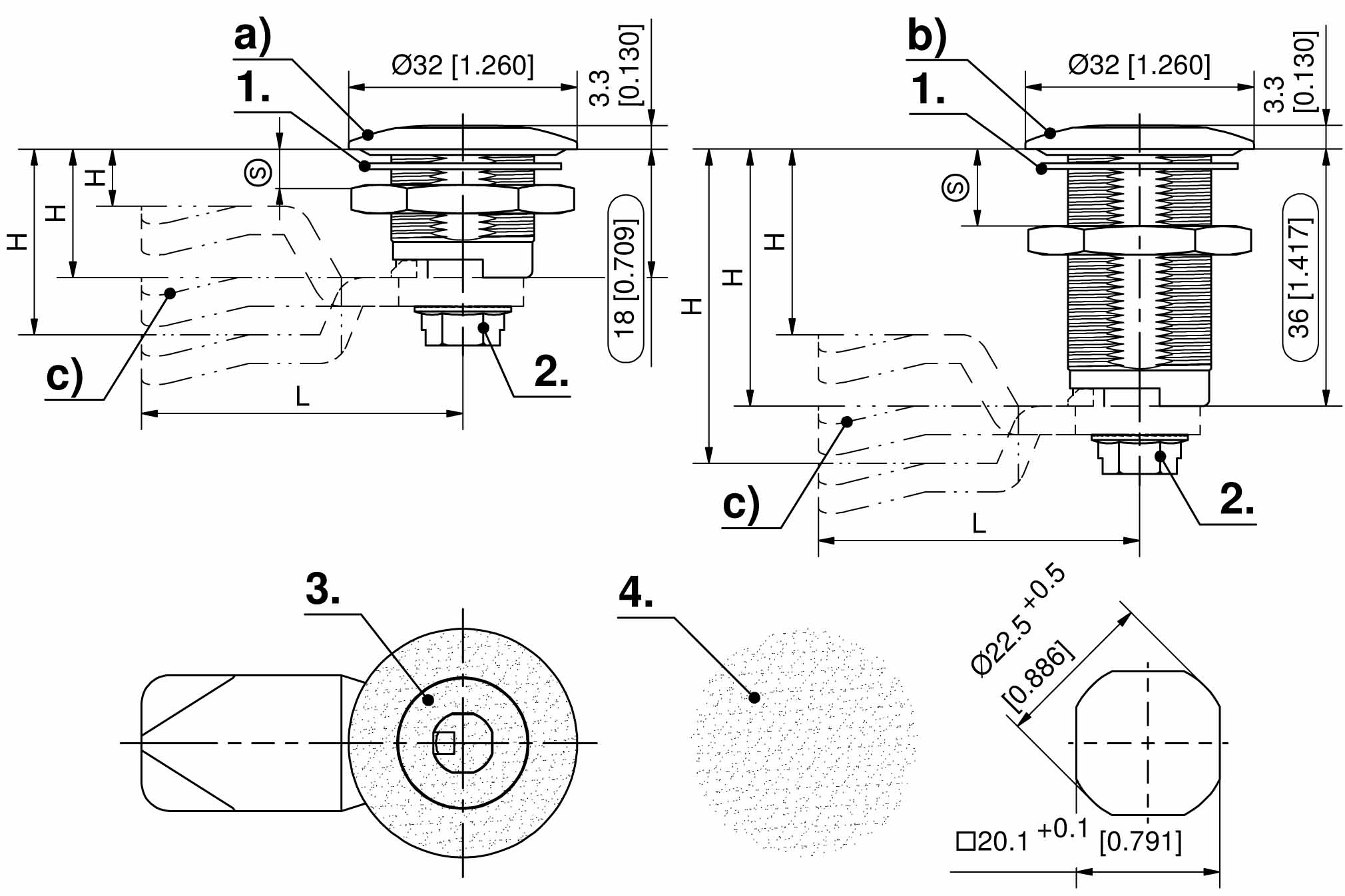

1. flat external seal
2. serrated screw
3. escutcheon
4. closed housing surface
Please select version Product data sheet

Available versions

Safety quarter-turn with insert


Product number
Housing length
Door-thickness (S)
Installation type
Delivery Unit
a)
255-9416.00-00000
18 mm
0 mm - 8 mm
screw-on
1 pc.
b)
255-9417.00-00000
36 mm
0 mm - 26 mm
screw-on
1 pc.
