Safety Quarter-Turn Pr20.1 L18/L30/L36 Stainless Steel

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
7_074_01
E_7-074_01
7_074_01
E_7-074_01

Advantages

  • Flat version.
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Assembled with cam 90° or aligned to the notch of the conical square insert (as shown), deliverable on request.

Material

  • Quarter-turn: AISI 316 or AISI 303
  • Nut: AISI 303
  • Serrated screw and conical spring: stainless steel
  • O-ring and flat external seal: NBR

Remarks

Serrated lock washer optional (not included)

Please configure the quarter-turn with a cam.

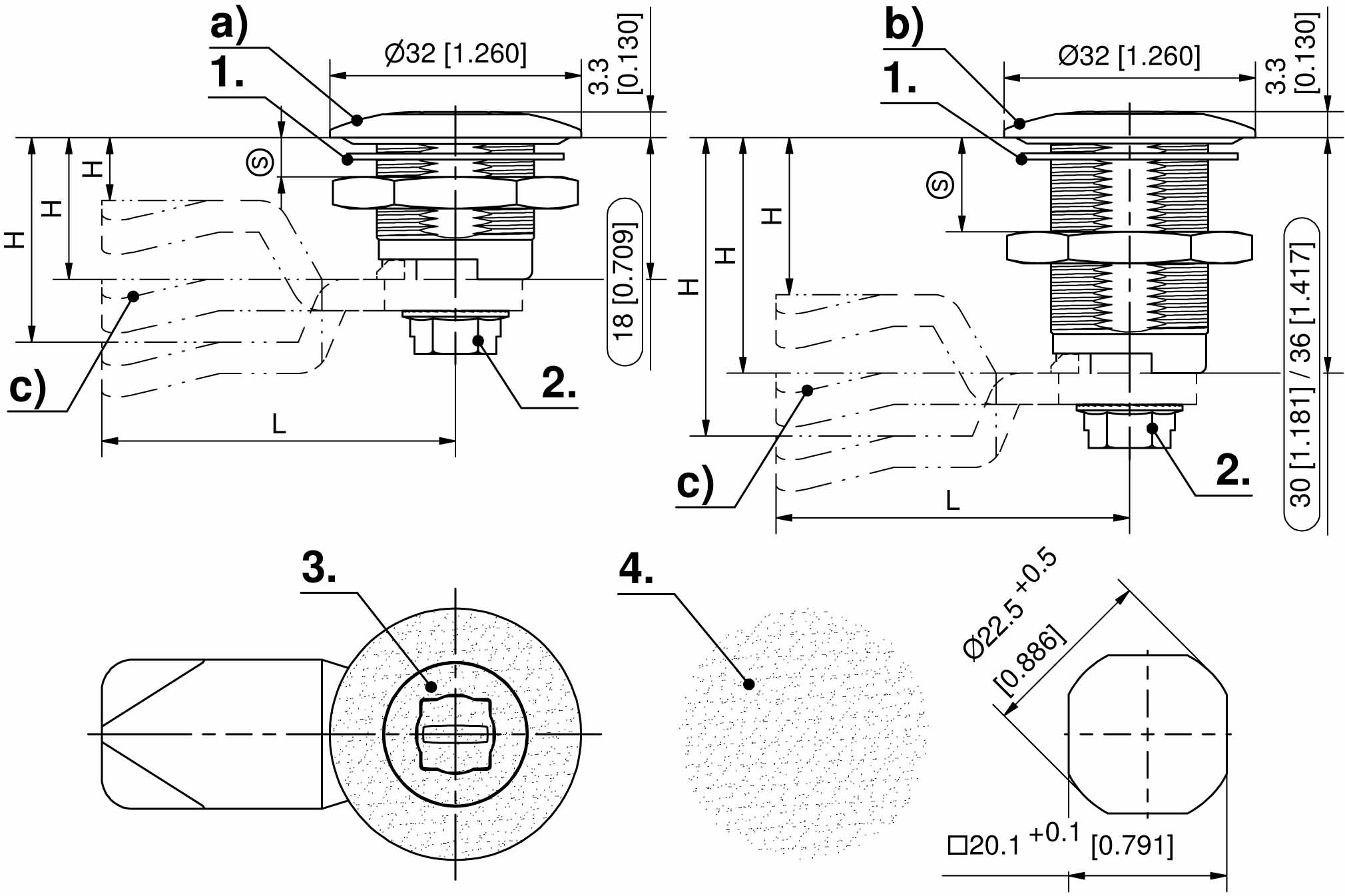

1. flat external seal
2. serrated screw
3. blocking
4. closed housing surface
Please select version Product data sheet

Available versions

Safety quarter-turn with conical square 9mm insert


Product number
Housing length
Door-thickness (S)
Material
Installation type
Delivery Unit
a)
255-9422.00-00000
18 mm
0 mm - 8 mm
AISI 316
screw-on
1 pc.
b)
255-9415.00-00000
30 mm
0 mm - 20 mm
AISI 303
screw-on
1 pc.
b1)
255-9426.00-00000
36 mm
0 mm - 26 mm
AISI 303
screw-on
1 pc.
