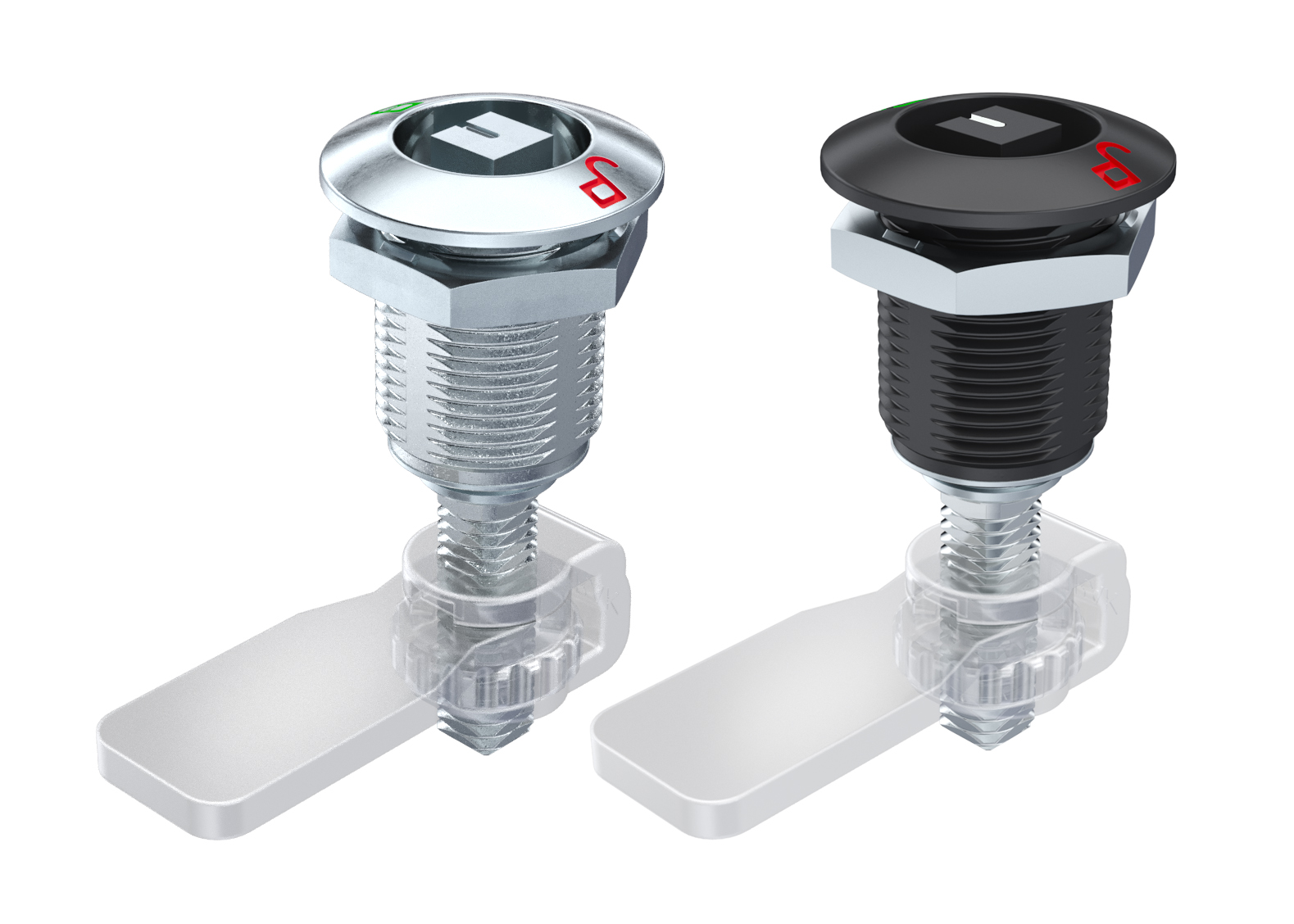

Compression Latch Pr20.1 L32 with H-Dimension Adjustment

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_DIRAK_FOAMED_SEAL
ICON_IP65_67
ICON_IP69K
ICON_MUTTER_15Nm
ICON_ROHS
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
1_079
E_1-079_1
E_1-079_2
1_079
E_1-079_1
E_1-079_2

Advantages

  • Compression 6mm.
  • Flat head shape.
  • The coloured marking on the casing top indicates the opened/closed position in form of a padlock.
  • Inserts with coloured marking.
  • Vibration-proof.
  • IP65/67 according to DIN EN 60529 and IP69K according to DIN 40050.
  • RH and LH version.
  • Grounding by single-sided grounding nut.
  • The H-dimension 17 - 73mm can be varied via the cranking of the cams.
  • The cam can be varied via H-dimension adjustment on the threaded square rod.

Material

  • Housing, insert: zinc die, chrome plated glossy or black matte e-coated
  • Threaded square rod, nut: steel, zinc plated
  • Grounding nut: zinc die, untreated
  • Catch: PA
  • Knurled wheel: zinc die

Remarks

(S) Door-thickness max. 22mm

Please configure the quarter-turn with insert and cam.

1. compression 6mm
2. foamed sealing PUR
d) catch with h-dimension adjustment

Variant where the cam can be variably adjusted with nuts, see website 1-079.01.

Selected version

Product number 248-9808.13-11201
Delivery Unit: 1 pc.
Installation type: screw-on
Surface: black
Insert: Conical square 9mm
