L-Wing-Handle for Padlock Pr20.1 L18

ICON_CUTOUT_20_1
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
DIRAK_IP_ERGAENZUNG
1_651
E_1-651
1_651
E_1-651

Advantages

  • For the standard cutout and additional hole for the padlock eyelet.
  • The 2-point fixing prevents tempering.
  • IP65 according to DIN EN 60529 by o-ring, flat external seal and washer (optional).
  • RH / LH application.
  • The eyelet for the padlock, also used as a stop, is asymmetric and can be turned for RH or LH doors (door closed).
  • In closed position the wing handle is always fully vertical.

Material

  • Housing, stop and handle: zinc die, black
  • Nut and hex screw: steel
  • Internal wave washer: steel, zinc plated

Remarks

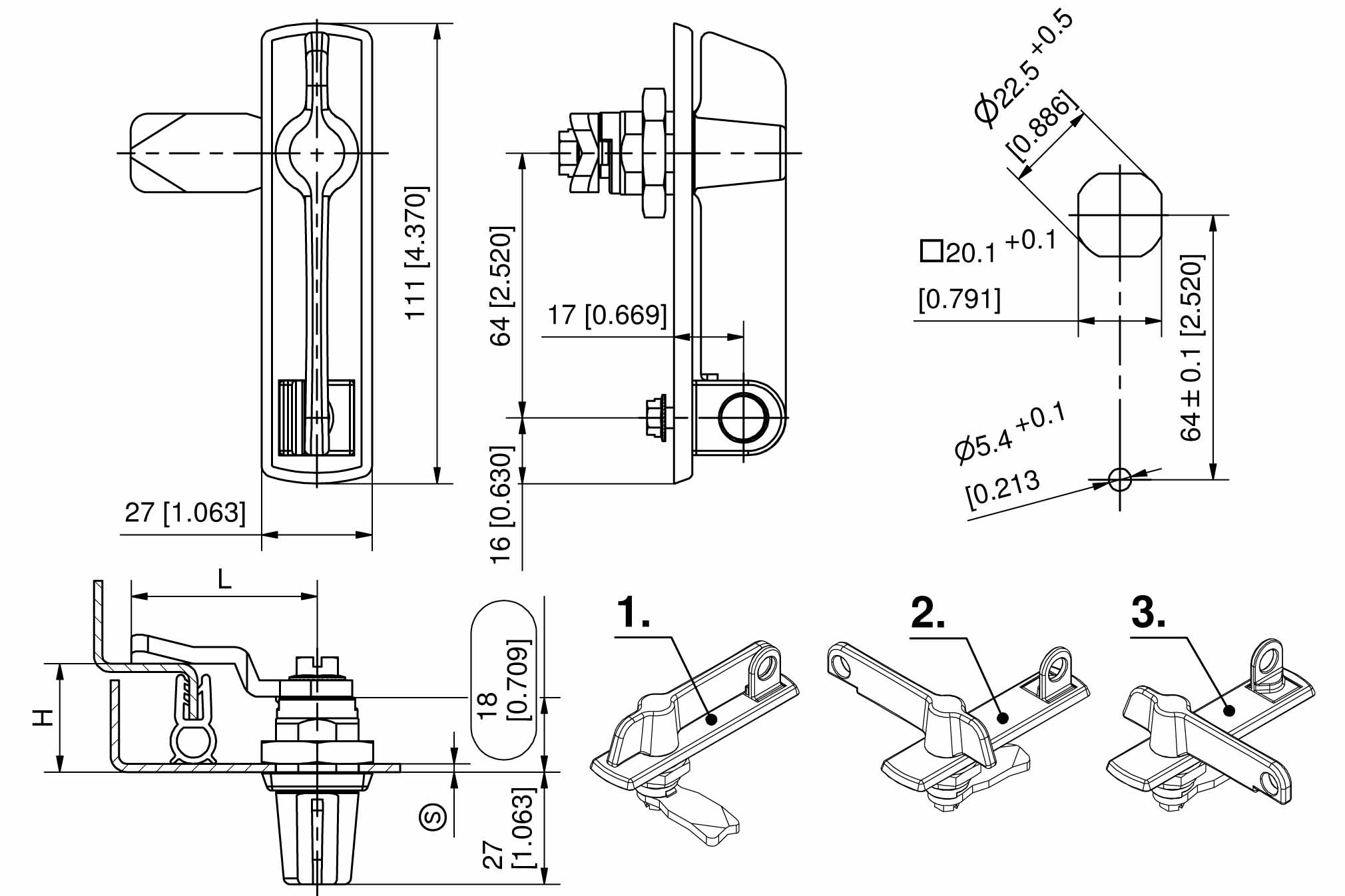

(S) Door-thickness max. 8mm

1. closed version
2. RH version
3. LH version

Please configure the quarter-turn with a cam.
Please select version Product data sheet

Available versions

L-wing handle

Product number
Housing length
Installation type
Delivery Unit
281-9101.00-00000
18 mm
screw-on
10 pcs.
