Quarter-Turn with Conical Square Insert Pr20.1 L18

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
1_211
E_1-211
1_211
E_1-211

Advantages

  • For cutout 20.1.
  • IP65 according to DIN EN 60529.
  • RH / LH application.

Material

Housing: steel, chrome plated or zinc die, chrome plated
Nut. insert: steel, zinc plated
O-ring and flat sealing: NBR/Perbunan

Remarks

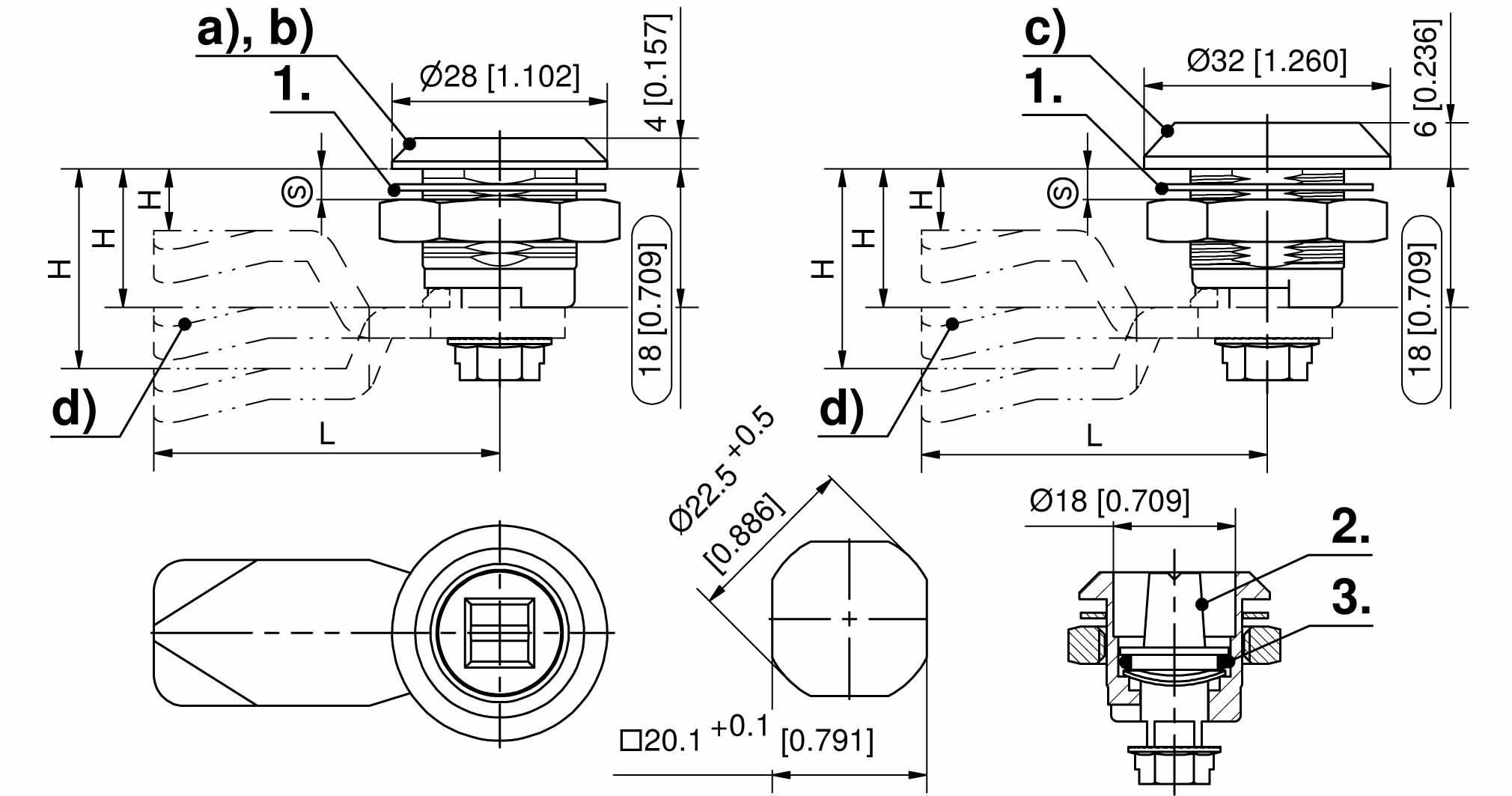

(S) Door-thickness max. 8mm

Pre-assembled with insert but without cam.

1. flat external seal
2. conical square insert
3. o-ring 12x2
Please select version Product data sheet
