NT Swinghandle RS PrC Stainless Steel

ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_EDELSTAHL
ICON_CUTOUT_PR_C
ICON_DIRAK_GEERDET
ICON_PZ_DIN_18252
7_066
E_7-066_1
E_7-066_3

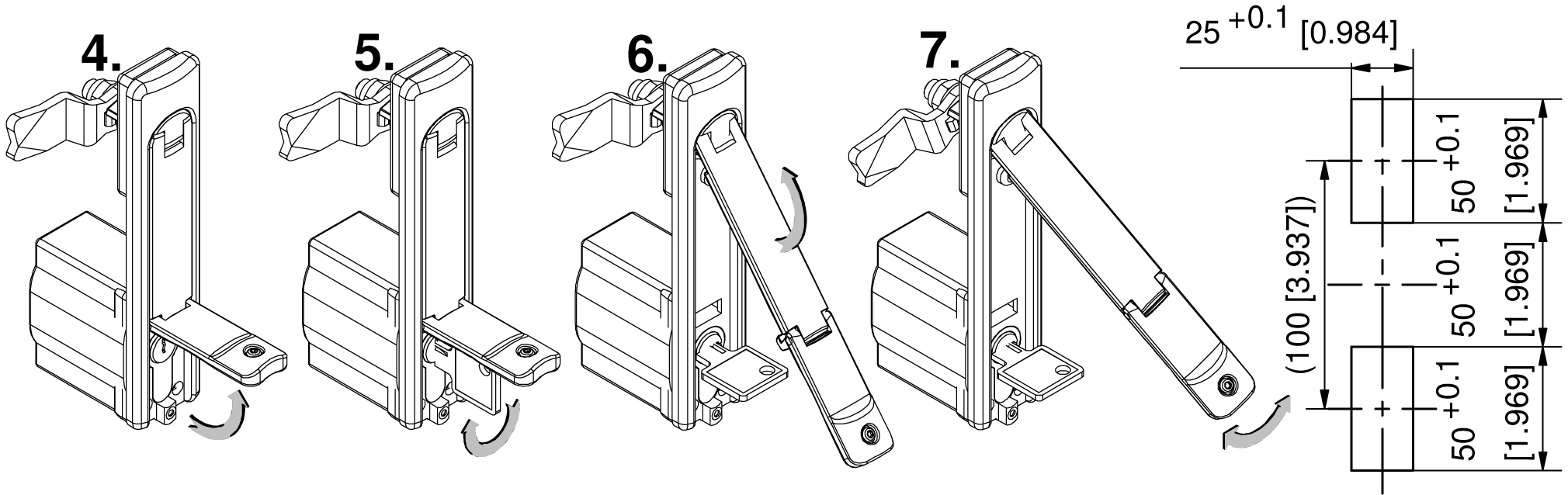

E_7-066_2
7_066
E_7-066_1
E_7-066_3
E_7-066_2

Advantages

  • Extremly narrow gap.
  • 135° Closing rotation.
  • The flush design prevents this swinghandle being used as climbing support.
  • Locking cylinder fitted in the dish and protected against being forced through.
  • Bolted internal cap is made of stainless steel.
  • Stroke 35 mm (1.378) by 3-point cam adapter 45°.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • (b) Cylinder cover screwable by M3x6, drive TX10.

Material

  • Swing handle, dish, cap, locking bolt and rotating disk : AISI 316
  • Cap sealing and o-ring: NBR
  • Washer: PTFE- Teflon
  • Spring: AISI 301
  • Locking bolt: stainless steel AISI 316
  • Screws, grooved pin, pin with axial knurl and nut: stainless steel

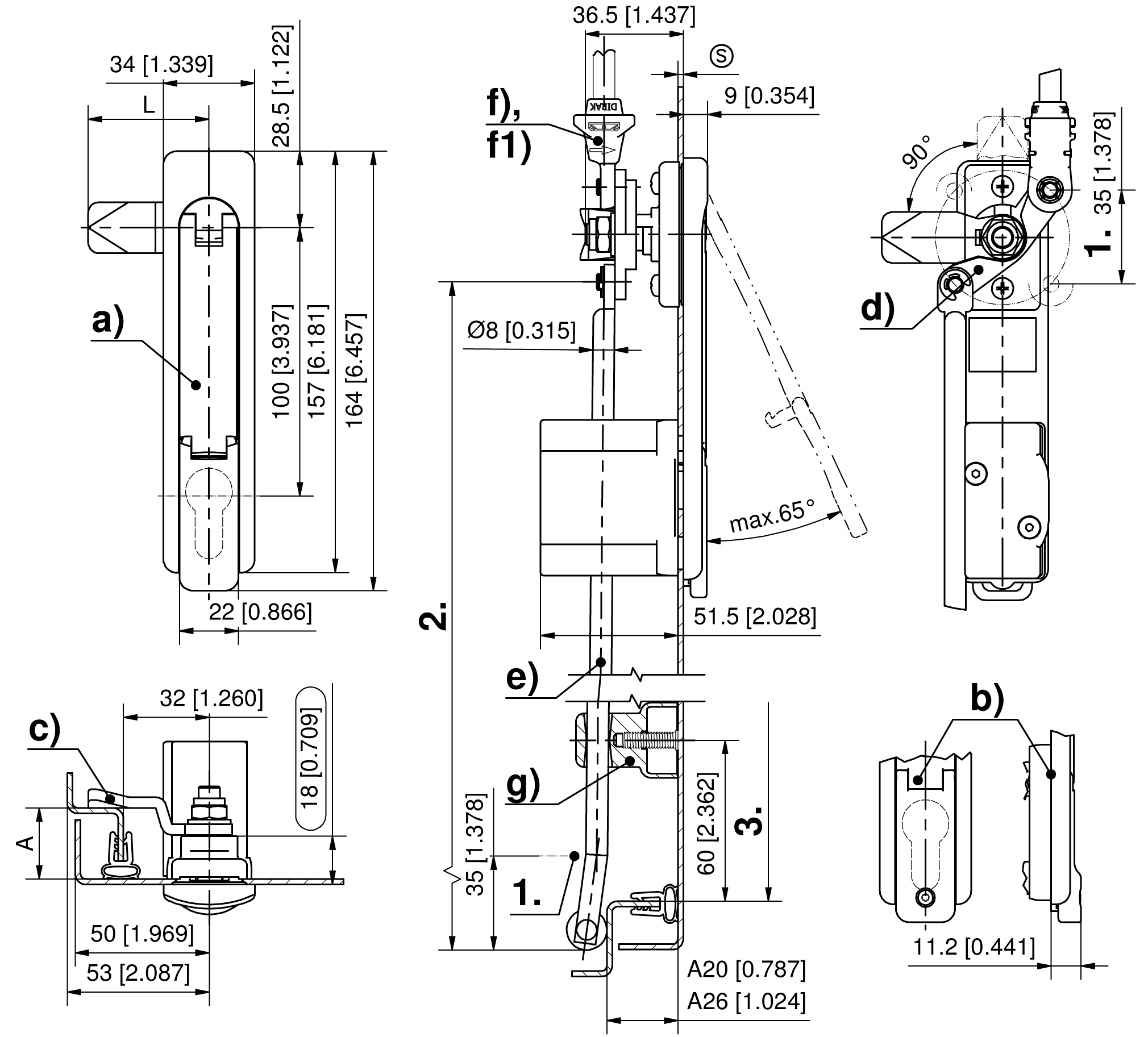

Remarks

(S) Door-thickness 1.5 - 2.5mm

1. stroke 35mm

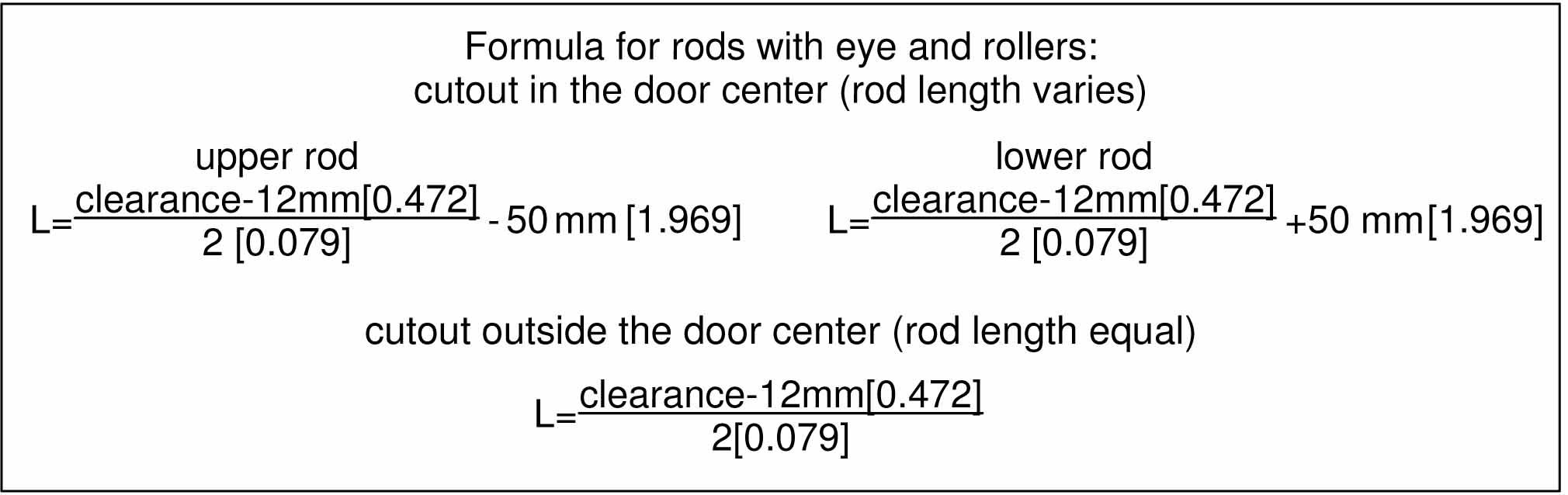

2. length L
3. clearance

Profile half cylinders and their assembly must be ordered separately.

Selected version

Product number 307-9305.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Version: cover screw down
CAD model
Remove selection Product data sheet

Related Products

Assembly options



Article no.
Name

207-0016.00-00000
Assembling of inserts / profile-cylinder
Details
Name:
Assembling of inserts / profile-cylinder
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

g)
200-3623.51-00000
Rod guide, hight 32mm
Details
A:
20 mm
L:
24 mm
Height H:
32 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
g)
200-3625.51-00000
Rod guide, hight 38mm
Details
A:
26 mm
L:
30 mm
Height H:
38 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
211-9003.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike
Details
Latching type:
keyed alike
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
211-9004.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different
Details
Latching type:
keyed different
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
1-103
Slide Shoe for Cams
Open overview in new tab
200-9622.00-00000
Slide shoe
Details
Delivery Unit:
10 pcs.
Open product in new tab
f)
1-181
Adapter for Round Rods Ø8mm PA
Open overview in new tab
f)
200-9621.00-00000
Adapter for Round Rods Ø8mm PA
Details
Rod diameter Ø:
8 mm
quick-fit:
Yes
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
f1)
1-181.01
Adapter for Round Rods Ø8mm / Ø10mm Zinc Die
Open overview in new tab
f1)
200-9601.00-00000
Adapter for Round Rods Ø8mm
Details
Rod diameter Ø:
8 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
f1)
200-9604.00-00000
Adapter for Round Rods Ø10mm
Details
Rod diameter Ø:
10 mm
Installation type:
screw-on
Delivery Unit:
50 pcs.
Open product in new tab
c)
7-105
Cams L35/45 Stainless Steel
Open overview in new tab
c)
200-0506.00-00000
Cam L45
Details
H-dimension Gl18:
6 mm
H-dimension Gl30:
18 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl50:
38 mm
H-dimension Gl60:
48 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0508.00-00000
Cam L45
Details
H-dimension Gl18:
8 mm
H-dimension Gl30:
20 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl50:
40 mm
H-dimension Gl60:
50 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0510.00-00000
Cam L45
Details
H-dimension Gl18:
10 mm
H-dimension Gl30:
22 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl50:
42 mm
H-dimension Gl60:
52 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0514.00-00000
Cam L45
Details
H-dimension Gl18:
14 mm
H-dimension Gl30:
26 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl50:
46 mm
H-dimension Gl60:
56 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0516.00-00000
Cam L45
Details
H-dimension Gl18:
16 mm
H-dimension Gl30:
28 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl50:
48 mm
H-dimension Gl60:
58 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0518.00-00000
Cam L45
Details
H-dimension Gl18:
18 mm
H-dimension Gl30:
30 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl50:
50 mm
H-dimension Gl60:
60 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0520.00-00000
Cam L45
Details
H-dimension Gl18:
20 mm
H-dimension Gl30:
32 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl50:
52 mm
H-dimension Gl60:
62 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0522.00-00000
Cam L45
Details
H-dimension Gl18:
22 mm
H-dimension Gl30:
34 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl50:
54 mm
H-dimension Gl60:
64 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0524.00-00000
Cam L45
Details
H-dimension Gl18:
24 mm
H-dimension Gl30:
36 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl50:
56 mm
H-dimension Gl60:
66 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0526.00-00000
Cam L45
Details
H-dimension Gl18:
26 mm
H-dimension Gl30:
38 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl50:
58 mm
H-dimension Gl60:
68 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0528.00-00000
Cam L45
Details
H-dimension Gl18:
28 mm
H-dimension Gl30:
40 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl50:
60 mm
H-dimension Gl60:
70 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0532.00-00000
Cam L45
Details
H-dimension Gl18:
32 mm
H-dimension Gl30:
44 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl50:
64 mm
H-dimension Gl60:
74 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0540.00-00000
Cam L45
Details
H-dimension Gl18:
40 mm
H-dimension Gl30:
52 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl50:
72 mm
H-dimension Gl60:
82 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0542.00-00000
Cam L45
Details
H-dimension Gl18:
42 mm
H-dimension Gl30:
54 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl50:
74 mm
H-dimension Gl60:
84 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-0550.00-00000
Cam L45
Details
H-dimension Gl18:
50 mm
H-dimension Gl30:
62 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl50:
82 mm
H-dimension Gl60:
92 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-4535.00-00018
Cam L35
Details
H-dimension Gl18:
18 mm
H-dimension Gl30:
30 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl50:
50 mm
H-dimension Gl60:
60 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-4535.00-00020
Cam L35
Details
H-dimension Gl18:
20 mm
H-dimension Gl30:
32 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl50:
52 mm
H-dimension Gl60:
62 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-4535.00-00022
Cam L35
Details
H-dimension Gl18:
22 mm
H-dimension Gl30:
34 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl50:
54 mm
H-dimension Gl60:
64 mm
Delivery Unit:
1 pc.
Open product in new tab
c)
200-9845.00-00022
3-point cam
Details
Version:
Bending A20
Delivery Unit:
1 pc.
Open product in new tab
c)
200-9845.00-00028
3-point cam
Details
Version:
Bending A26
Delivery Unit:
1 pc.
Open product in new tab
c)
200-9899.00-00000
2-point cam
Details
Delivery Unit:
1 pc.
Open product in new tab
e)
7-106
Round Rods Stainless Steel
Open overview in new tab
e)
201-9010.00-00000
Round rod 600mm
Details
Length:
600 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-9011.00-00000
Round rod 700mm
Details
Length:
700 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-9012.00-00000
Round rod 800mm
Details
Length:
800 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-9013.00-00000
Round rod 900mm
Details
Length:
900 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-9014.00-00000
Round rod 1000mm
Details
Length:
1000 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-9015.00-00000
Round rod 1100mm
Details
Length:
1100 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-9016.00-00000
Round rod 1200mm
Details
Length:
1200 mm
Delivery Unit:
1 pc.
Open product in new tab
e)
201-0111.04-Lxxmm
Round rod, variable length
Details
Version:
with eye and chamfered end
Delivery Unit:
on request
Open product in new tab
e)
201-0112.04-Lxxmm
Round rod, variable length
Details
Version:
with eye and flat end
Delivery Unit:
on request
Open product in new tab
e)
201-9026.00-Lxxmm
Round rod, variable length
Details
Version:
with eye and rollers
Delivery Unit:
on request
Open product in new tab
e)
201-9037.00-Lxxmm
Round rod, variable length
Details
Version:
with rollers, for adapter
Delivery Unit:
on request
Open product in new tab
d)
7-106.01
3-Point Cam Adapter 45° Stainless Steel
Open overview in new tab
d)
200-9598.00-00000
Adapter for 3-point cam
Details
Stop:
Yes
2-point locking:
Yes
3-point locking:
Yes
Delivery Unit:
1 pc.
Open product in new tab
d)
207-9594.00-00000
Adapter for 3-point cam
Details
Stop:
No
2-point locking:
Yes
3-point locking:
Yes
Delivery Unit:
1 pc.
Open product in new tab
MLA 1-103
MLA Door Contact
Open overview in new tab
200-9641.00-00000
MLA Door Contact
Details
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 307-9305.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Version: cover screw down

Selected additional products

[none]
Contact linkedin YouTube
This website uses cookies to ensure the best experience possible. More information...
