Bearing Plate RS base

ICON_DIRAK_BASE

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_FLACHSTANGE

ICON_CUTOUT_PR_C

Advantages

RH / LH application.
Pre-installation onto swinghandle base by clip-on.
Final fastening by screws (included).

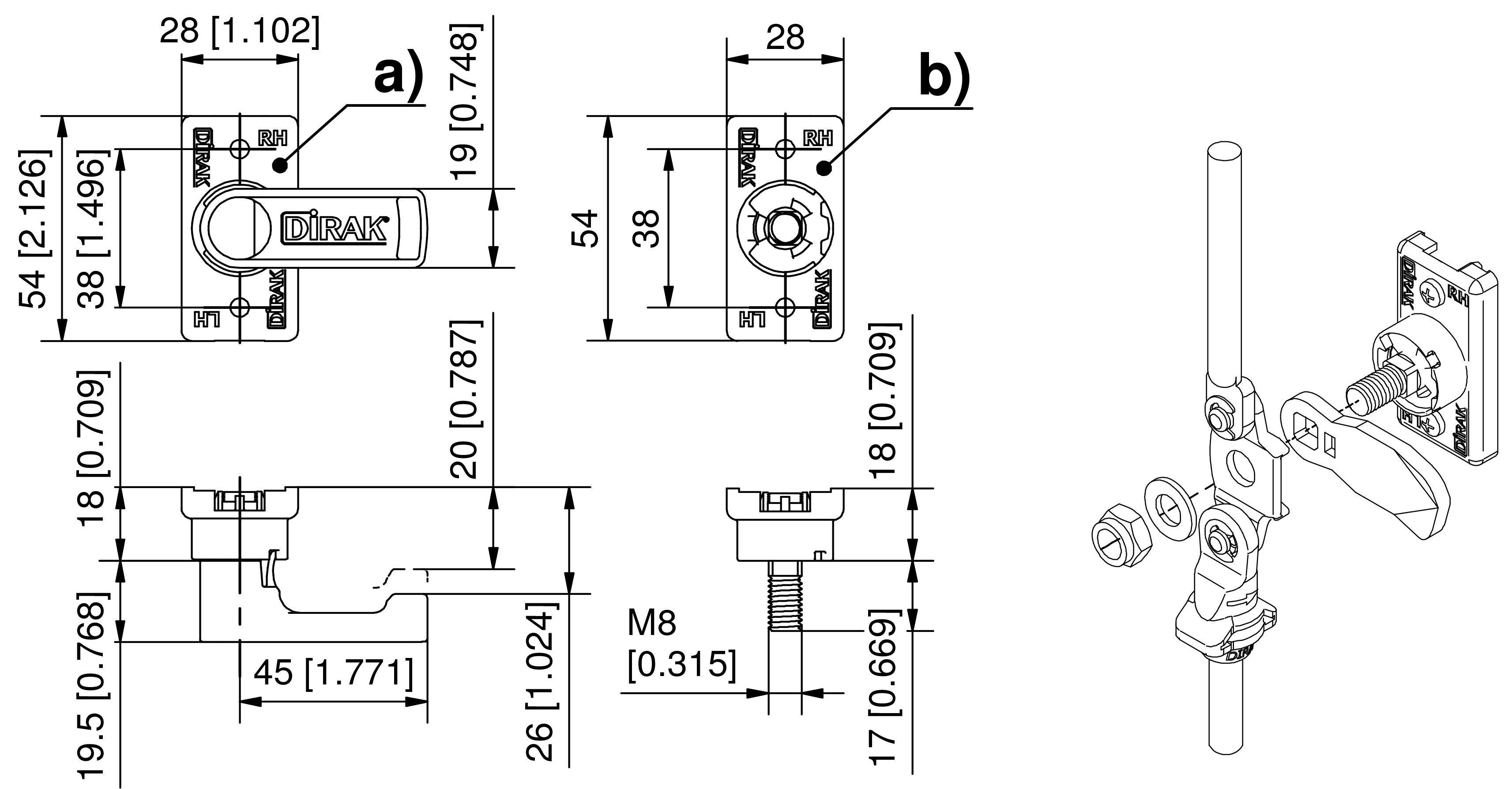

a) bearing plate for single-point latching system with PA cam (H20 / H26) for swinghandle base.
Assembly of the cam by bayonet system clicks in audible.
b) bearing plate with adapter for single- or multi-point locking system for standard cams and 3-point cam adapter.
Cams will be secured by self-securing nut M8 onto the square ( max. bolting torque 4Nm).

Material

Bearing plate and cam: PA, black
Adapter: zinc die, untreated

Remarks

Independent of panel thickness from 0.5 to 3mm.

Available versions

Bearing plate

Product number

Version

Delivery Unit

308-9007.00-00000

308-9008.00-00000

308-9006.00-00000
