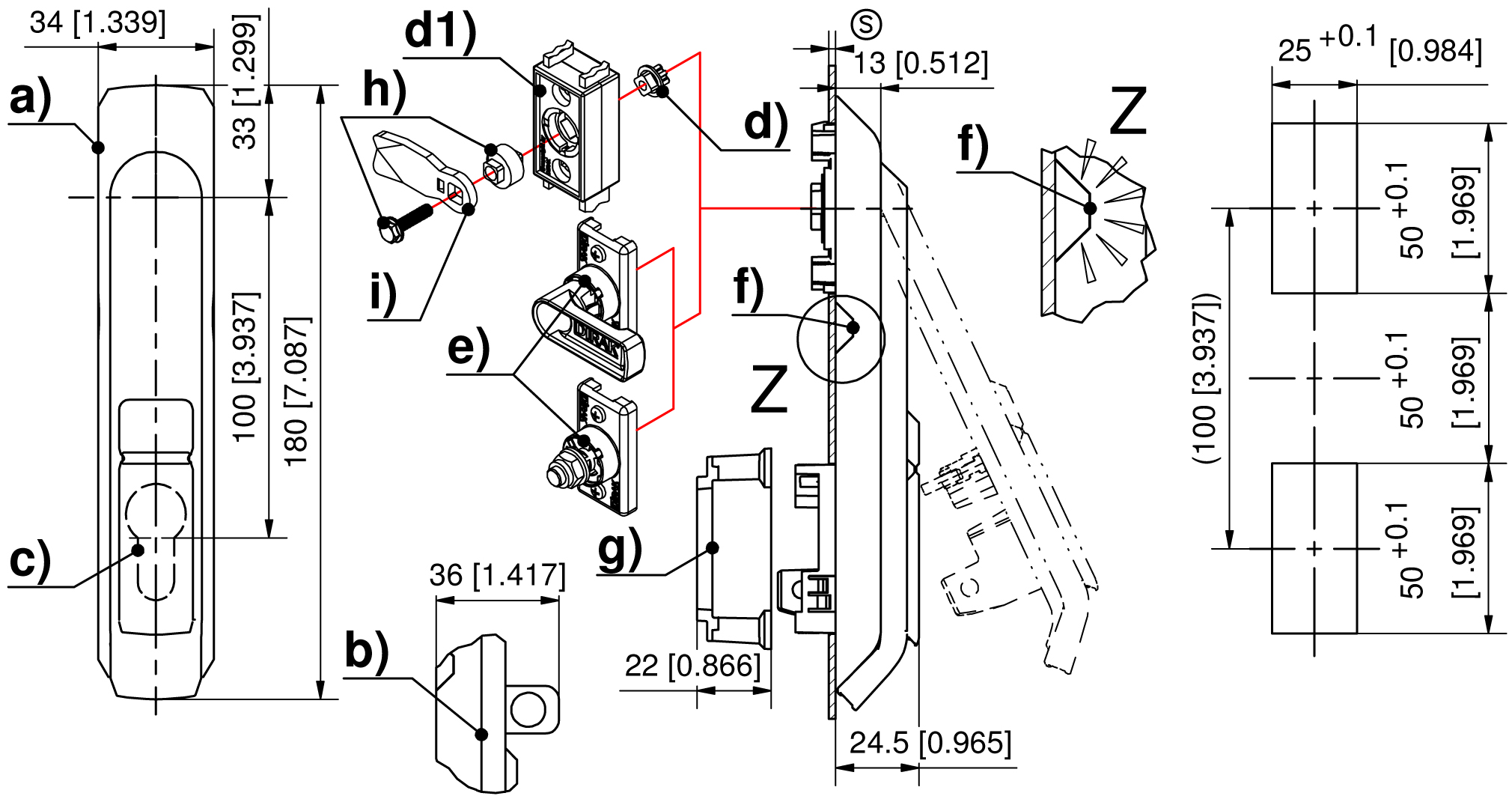

Swinghandle base PrC

ICON_DIRAK_BASE
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_UL
ICON_WERKZEUGLOS
ICON_RUNDSTANGE
ICON_FLACHSTANGE
ICON_CUTOUT_PR_C
ICON_IP65
ICON_FLACHSTANGE
ICON_PZ_DIN_18252
ICON_RUNDSTANGE
3_400
E_3-400
E_3-400_901_KAT
E_3-400_902_KAT
E_3-400_903_KAT
E_3-400_904_KAT
E_3-400_905_KAT
3_400
E_3-400
E_3-400_901_KAT
E_3-400_902_KAT
E_3-400_903_KAT
E_3-400_904_KAT
E_3-400_905_KAT

Advantages

  • Tool-less assembly.
  • Tool-less pre-installation, self-locking (clip-in) in sheet metal with thickness of 1.5 or 2.0mm.
  • Independent of panel thickness up to 3mm.
  • Closing with slam latch.
  • Handle with lifting spring.
  • For profile-cylinder with closing position 6 o'clock.
  • Tool-less replacement of the cylinder cover.
  • IP65 according to DIN EN 60529 by sealing kit (optional).
  • RH / LH application.

Material

  • Handle, Dish, cap and cylinder dustcover: PA, black
  • Padlock bolt: zinc die, zinc plated
  • Shaft: Grivory
  • Slam lock: POM
  • Spring: steel

Remarks

(S) Door-thickness 1.5 - 2.0mm

f) LED module retrofittable

Padlock version not in combination with LED-Module useable

Rod latch and cam adapter is not combinable with negativly cranked cams.

Profile half cylinders and their assembly must be ordered separately.
Please select version Product data sheet
