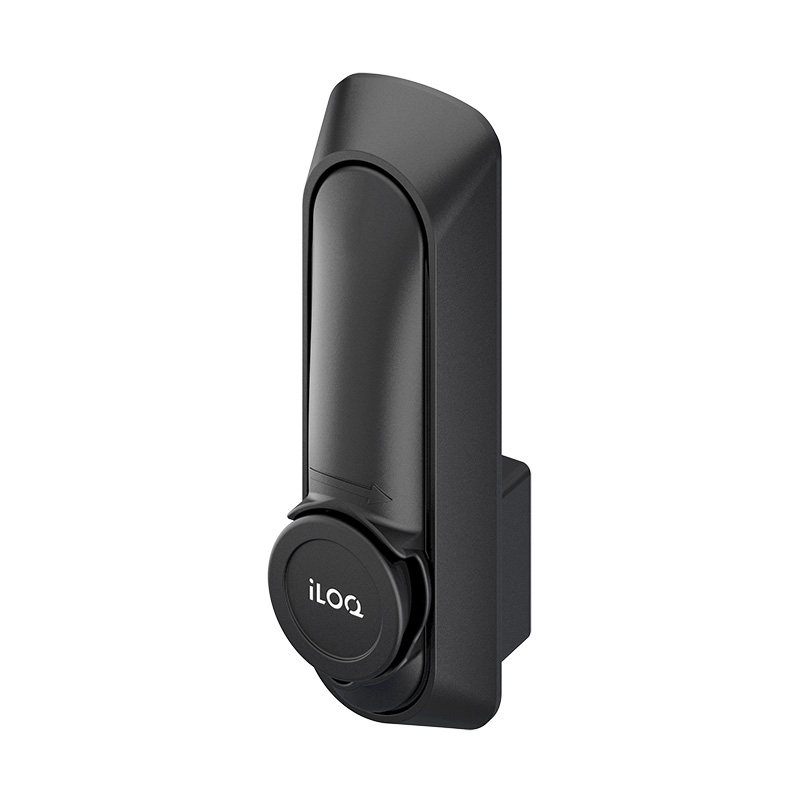

Swinghandle RS 105 for iLOQ Half Cylinder S50, RC2

ICON_IP65
ICON_ROHS
ICON_RC2
ICON_ILOQ_SCHWARZ
ICON_RUNDSTANGE
2-105
DE_2-105
2-105
DE_2-105

Advantages

  • Suitable for iLOQ S50 half cylinder (D50S.111.SD and D50S.511.SD).
  • Spring loaded liftable operating lever.
  • Protected against unauthorized access by a bolt.
  • Tested according to security class DIN EN 1630 RC2.
    Only in combination with profile cylinders according to DIN 18252.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Anti-folding device (protects the dish from scratches).

Material

  • Swinghandle, dish and cap: zinc die, black

Remarks

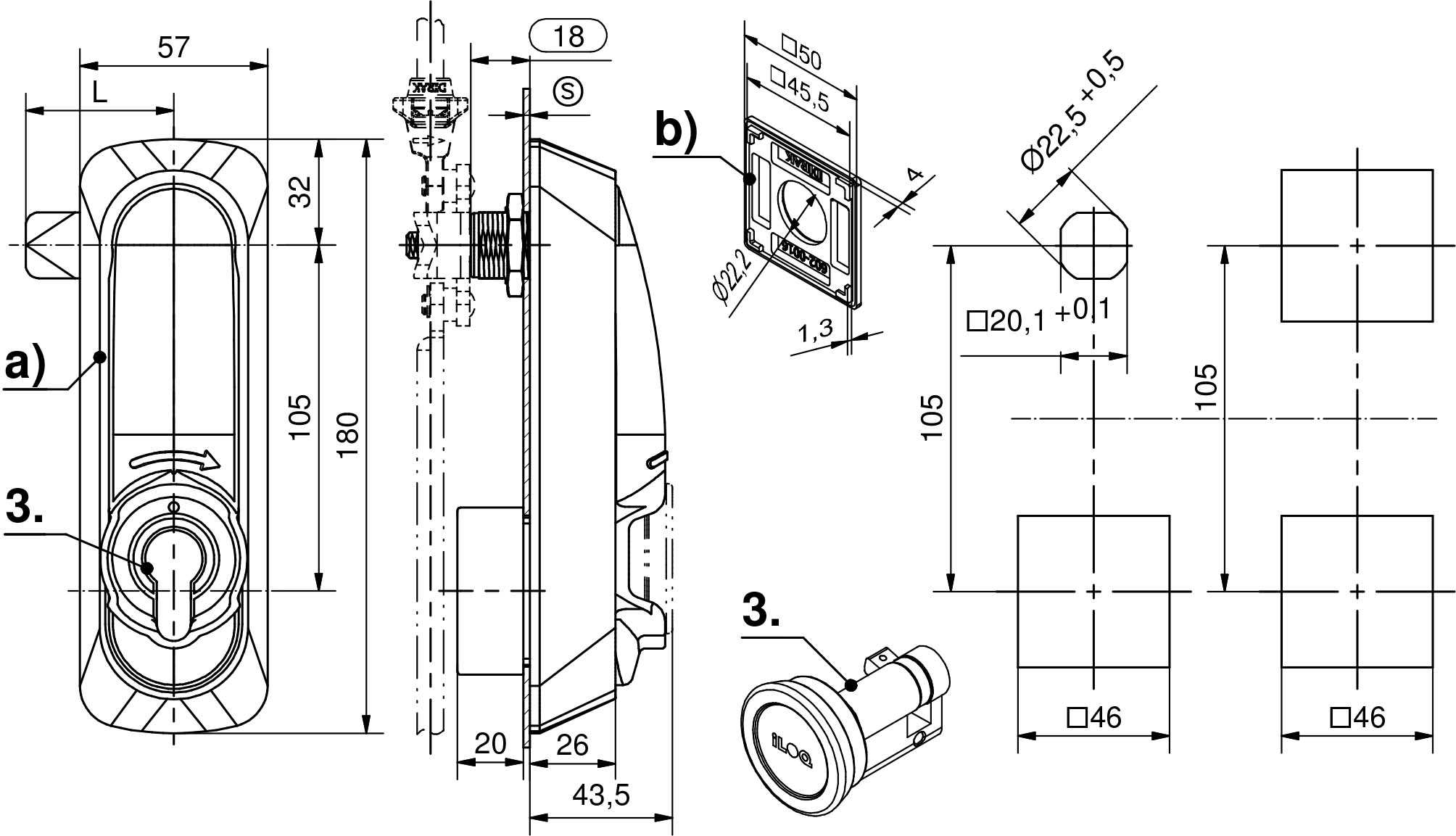

S) Door-thickness max. 3mm

1. stroke 18mm
2. clearance

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

3. cylinder iLOQ is not included in the scope of delivery. Available at www.iloq.com

Selected version

Product number 207-9141.00-09005
Delivery Unit: 1 pc.
Installation type: screw-on
Internal cover: □46
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

207-9595.00-00000
Adapter for 3-point cam without stop
Details
Stop:
No
2-point locking:
Yes
3-point locking:
Yes
4-point locking:
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
207-9596.00-00000
Adapter for 3-point cam without stop
Details
Stop:
No
2-point locking:
Yes
3-point locking:
Yes
4-point locking:
No
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
207-2803.00-00000
Gasket for adapter □46mm
Details
Name:
Gasket for adapter □46mm
Material:
inducon
Surface:
Delivery Unit:
1 pc.
Open product in new tab
b)
602-0016.35-00000
Square adapter
Details
Material:
zinc die
Surface:
zinc plated
Delivery Unit:
1 pc.
Open product in new tab
1-103
Slide Shoe for Cams
Open overview in new tab
200-9622.00-00000
Slide shoe
Details
Delivery Unit:
10 pcs.
Open product in new tab
1-190
Rod Guides RS
Open overview in new tab
200-3623.51-00000
Rod guide, hight 32mm
Details
A:
20 mm
L:
24 mm
Height H:
32 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3624.51-00000
Rod guide, hight 36mm
Details
A:
24 mm
L:
28 mm
Height H:
36 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3625.51-00000
Rod guide, hight 38mm
Details
A:
26 mm
L:
30 mm
Height H:
38 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3626.51-00000
Rod guide, hight 40mm
Details
A:
28 mm
L:
32 mm
Height H:
40 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
1-191
Height-adjustable Rod Guide RS
Open overview in new tab
200-9633.00-00000
Rod guide
Details
Height adjustable:
Yes
Adjustment range:
max. 8 mm
Installation type:
tool-less
Delivery Unit:
10 pcs.
Open product in new tab
1-192
Rod Guides RS
Open overview in new tab
200-9615.00-00000
Rod guide, height adjustable
Details
Height adjustable:
Yes
Adjustment range:
max. + 5 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3606.03-00000
Rod guide
Details
Height adjustable:
Adjustment range:
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
1-193
Rod Guide RS
Open overview in new tab
200-3616.54-00000
Rod guide, hight 35mm
Details
Height H:
35 mm
A = bending:
A24
L:
28 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
200-3617.54-00000
Rod guide, hight 37mm
Details
Height H:
37 mm
A = bending:
A26
L:
30 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
200-3618.54-00000
Rod guide, hight 39mm
Details
Height H:
39 mm
A = bending:
A28
L:
32 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
MLA 1-103
MLA Door Contact
Open overview in new tab
200-9641.00-00000
MLA Door Contact
Details
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 207-9141.00-09005
Delivery Unit: 1 pc.
Installation type: screw-on
Internal cover: □46

Selected additional products

[none]
