Cylinder Quarter-Turn Pr20.1 L18 Stainless Steel

ICON_CUTOUT_20_1

ICON_DIRAK_GEERDET

ICON_MUTTER_15Nm

ICON_TUERANSCHLAG_LR

Advantages

For cutout 20.1.
Grounding by grounding nut.
Version a)
RH / LH application.
For stability the cam is secured by a nut DIN 934.
Version b)
RH and LH version.
To insure it turns freely, the slam-cam is secured by a shoulder screw.

Material

Housing, grounding nut, adapter and hexagon nut: AISI 316
Spring washer: AISI 301
Cylinder barrel: stainless steel

Remarks

(S) Door-thickness max. 8mm

IP65 according to DIN EN 60529 only with dustcap, see product system 1-270.

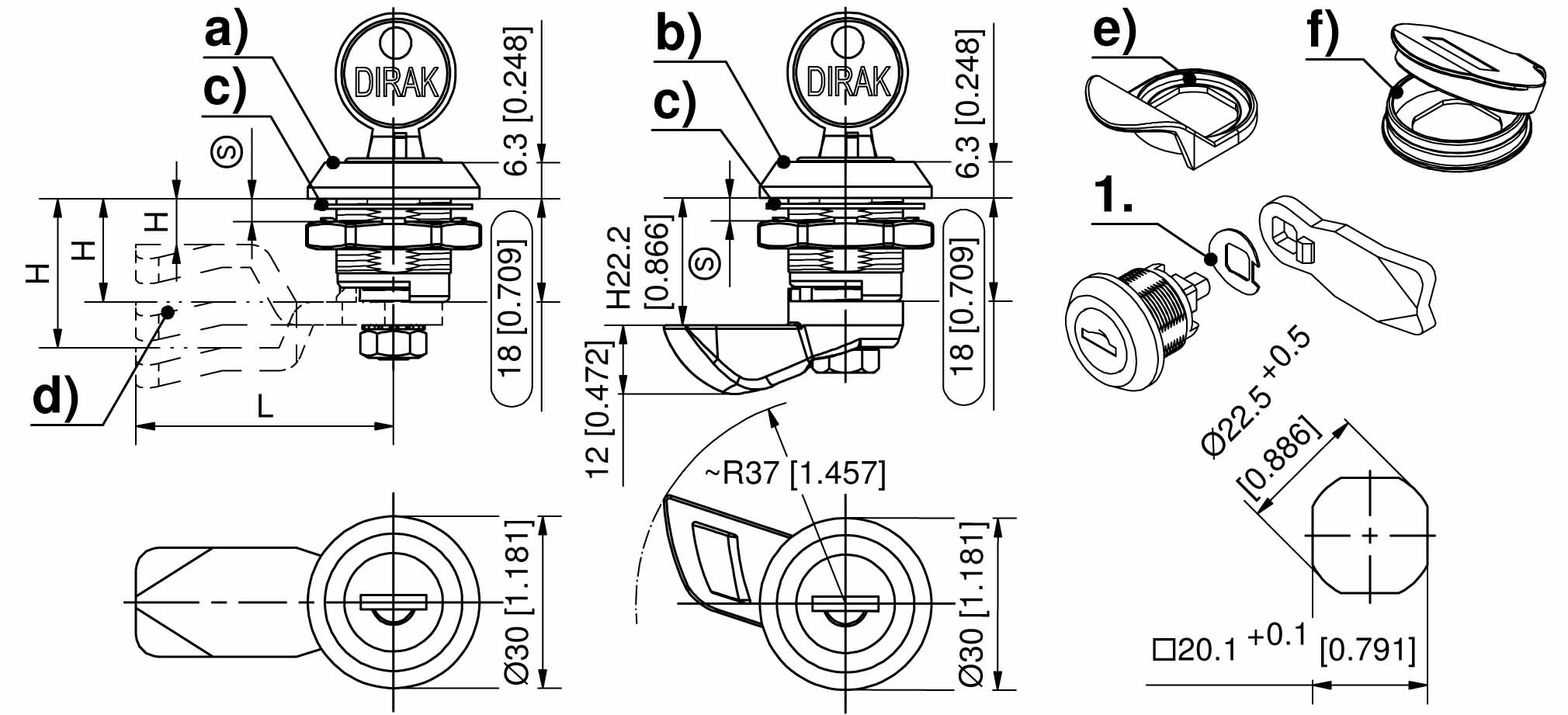

1. mounting position of the spring washer

Available versions

Cylinder quarter-turn

Product number

Latching type

Installation type

Delivery Unit

200-9232.00-00000

keyed alike DIRAK 1333

200-9233.00-00000

keyed different

Cylinder quarter-turn with slam cam

Product number

Latching type

Version

Installation type

Delivery Unit

200-9236.00-01333

keyed alike DIRAK 1333

200-9236.00-99999

keyed different

200-9237.00-01333

keyed alike DIRAK 1333

200-9237.00-99999

keyed different

Related Products

Assembly options

dirak_shop_montageoptionen_v1

200-0001.00-00000 Assembling cam without o-ring

Accessories

839-3771_00-00935

200-0901.00-00000 Flat external seal 20.1, Ø22.5mm

1-103 Slide Shoe for Cams

1-270 Dust Caps and Sealing Plug Pr20.1

1-270.01 Finger Pull for Quarter-Turn Pr20.1

1-350 Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS

7-105 Cams L35/45 Stainless Steel

MLA 1-103 MLA Door Contact
