[7-083]

Quarter-Turn Pr20.1 L18-50 Stainless Steel

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_MUTTER_15Nm
ICON_ROHS
ICON_EDELSTAHL
ICON_IP65
ICON_TUERANSCHLAG_LR
ICON_IP65_67
ICON_IP67
7_083
E_7-083
7_083
E_7-083

Advantages

  • Flat version.
  • Marked red / green (padlock) on the housing top.
  • Housing L18 is water and dust tight according to IP65 DIN EN 60529. It can reach IP67 DIN EN 60529 by additional o-ring (200-1002.00-00000).
  • Housings L30 to L50 can reach IP65/67 DIN EN 60529 by additional o-ring (839-3771.00-00935).
  • Grounding by single-sided grounding nut.
  • A pre-assembled quarter-turn can be installed through the cutout.

Material

  • Housing, adapter and grounding nut: AISI 316
  • Flat external seal: NBR

Remarks

Please configure the quarter-turn with insert and cam.
Adapter sets can consist of one or more separate extensions.

Rod latch 1-350 only for housing length 18mm

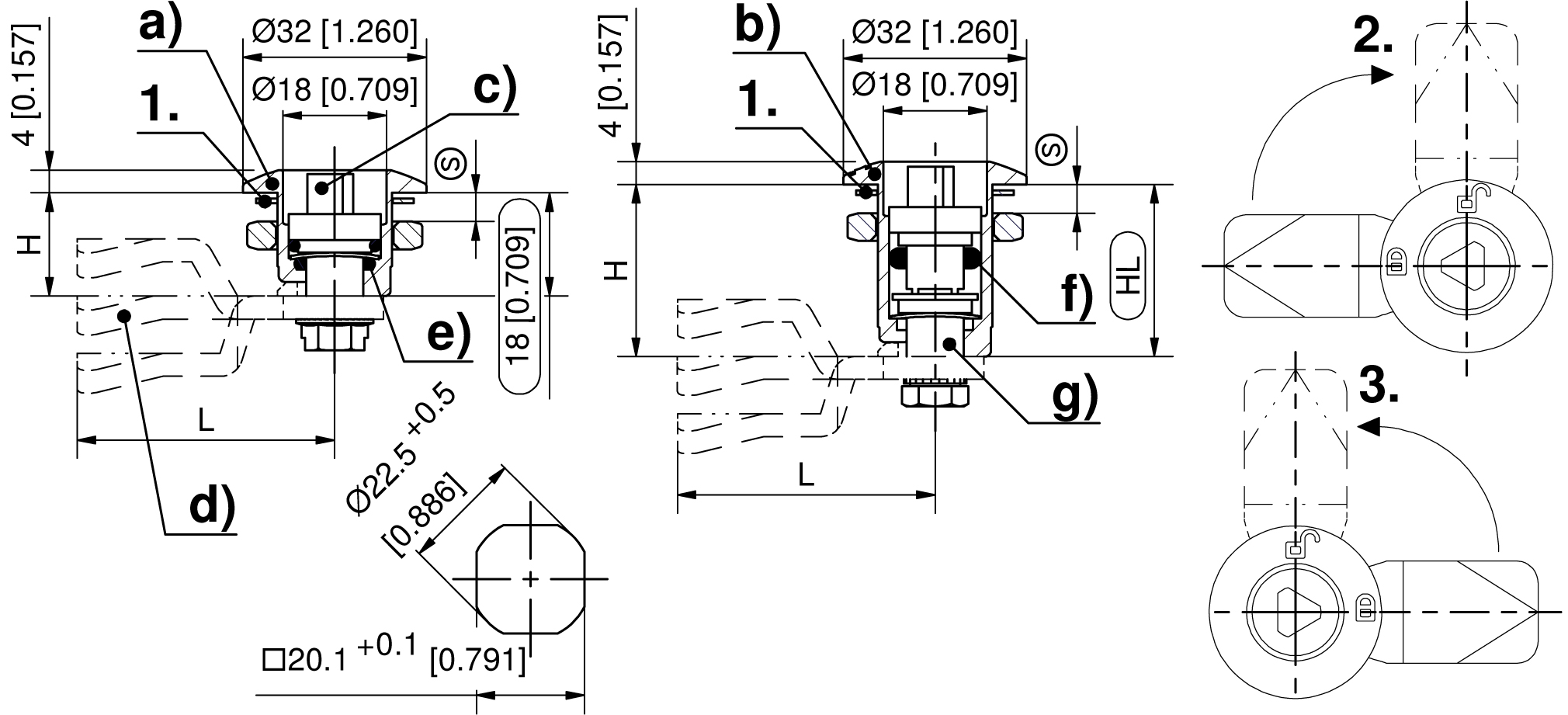

1. flat external seal
2. RH version
3. LH version
Please select version Product data sheet

Related Products

Skip product gallery

Accessories

100-9019.00-00000 Adapter set L14 for 7-080
100-9020.00-00000 Adapter set L21 for 7-080
100-9022.00-00000 Adapter set L33 for 7-080
839-3771_00-00935
200-1002.00-00000 O-ring 10 x 2.0mm
839-3771_00-00935
839-3771.00-00935 O-ring 9 x 3.5mm
1_103
1-103 Slide Shoe for Cams
1_350
1-350 Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS
6_100
6-100 Wrenches and Keys
6_101
6-101 Universal key
7_082
7-082 Insert Stainless Steel Pr20.1
7_105
7-105 Cams L35/45 Stainless Steel
MLA_1_103
MLA 1-103 MLA Door Contact
