[7-080.03]

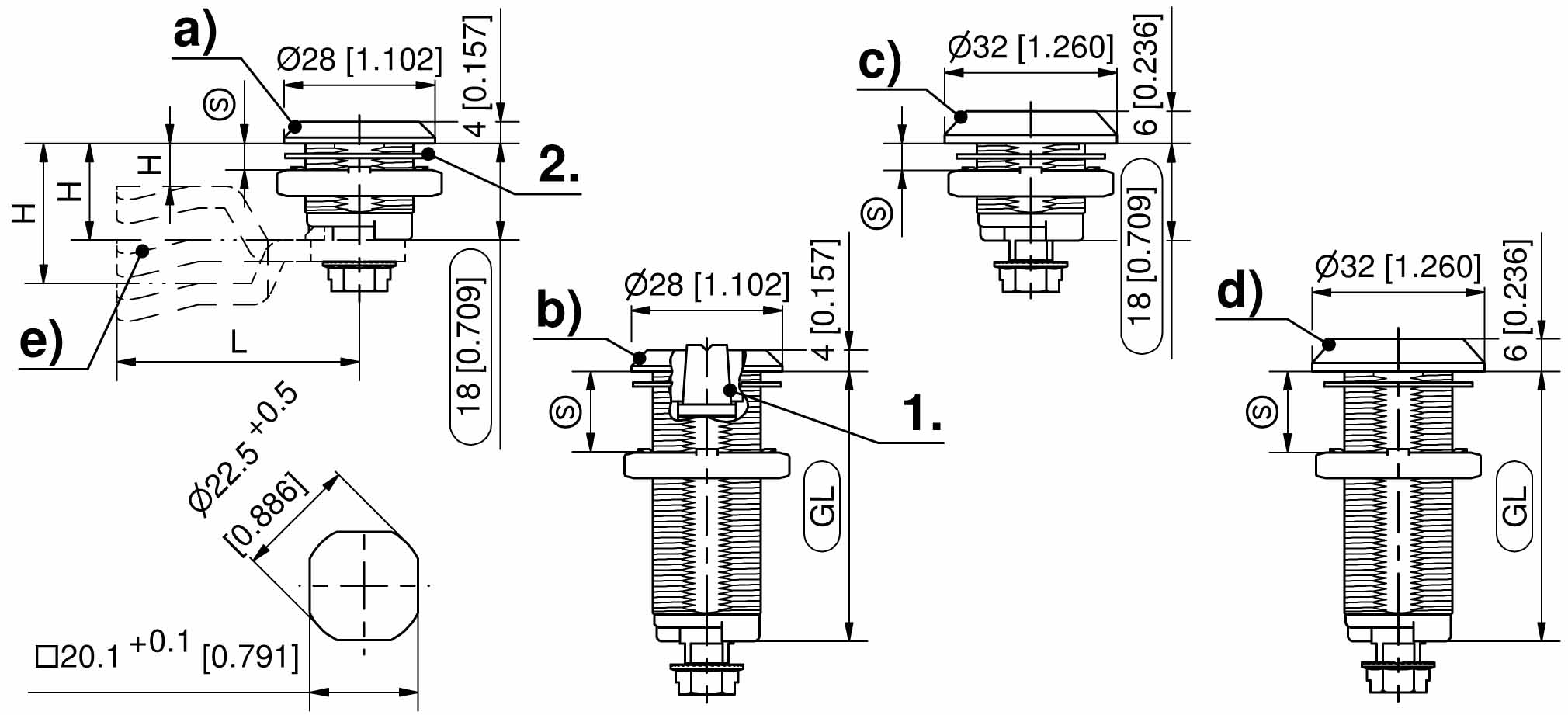

Quarter-Turn with Conical Square Insert Pr20.1 L18-L50 Stainless Steel
Available versions
Quarter-Turn with insert
Product number
Material
Head diameter
Housing length
Door-thickness (S)
Installation type
Delivery Unit
a)
200-9080.00-00018
AISI 316
Ø28
18 mm
0 mm - 8 mm
screw-on
1 pc.
b)
200-9080.00-00022
AISI 303
Ø28
22 mm
0 mm - 12 mm
screw-on
1 pc.
b)
200-9080.00-00030
AISI 303
Ø28
30 mm
0 mm - 20 mm
screw-on
1 pc.
b)
200-9080.00-00036
AISI 316
Ø28
36 mm
0 mm - 26 mm
screw-on
1 pc.
b)
200-9080.00-00040
AISI 316
Ø28
40 mm
0 mm - 30 mm
screw-on
1 pc.
b)
200-9080.00-00050
AISI 303
Ø28
50 mm
0 mm - 40 mm
screw-on
1 pc.
c)
100-9016.00-00018
AISI 303
Ø32
18 mm
0 mm - 8 mm
screw-on
1 pc.
d)
100-9016.00-00030
AISI 303
Ø32
30 mm
0 mm - 20 mm
screw-on
1 pc.
d)
100-9016.00-00036
AISI 303
Ø32
36 mm
0 mm - 26 mm
screw-on
1 pc.
d)
100-9016.00-00040
AISI 303
Ø32
40 mm
0 mm - 30 mm
screw-on
1 pc.
d)
100-9016.00-00050
AISI 303
Ø32
50 mm
0 mm - 40 mm
screw-on
1 pc.
