Safety Quarter-Turn Pr20.1 L18 Stainless Steel

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
7_074
E_7-074
7_074
E_7-074

Advantages

  • Flat version.
  • Fully closed external surface.
  • Vibration-proof also at high sealing pressure.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • A pre-assembled quarter-turn can be inserted through the cutout.

Material

  • Housing, insert, spring loaded link and nut: AISI 316L
  • O-ring and flat external seal: NBR Perbunan

Remarks

(S) Door-thickness max. 8mm

Attention: an assembled cam will have some axial play on the insert. This play is necessary to neutralize tipping of the insert at high compression forces. This tipping will squeeze the spring loaded link.

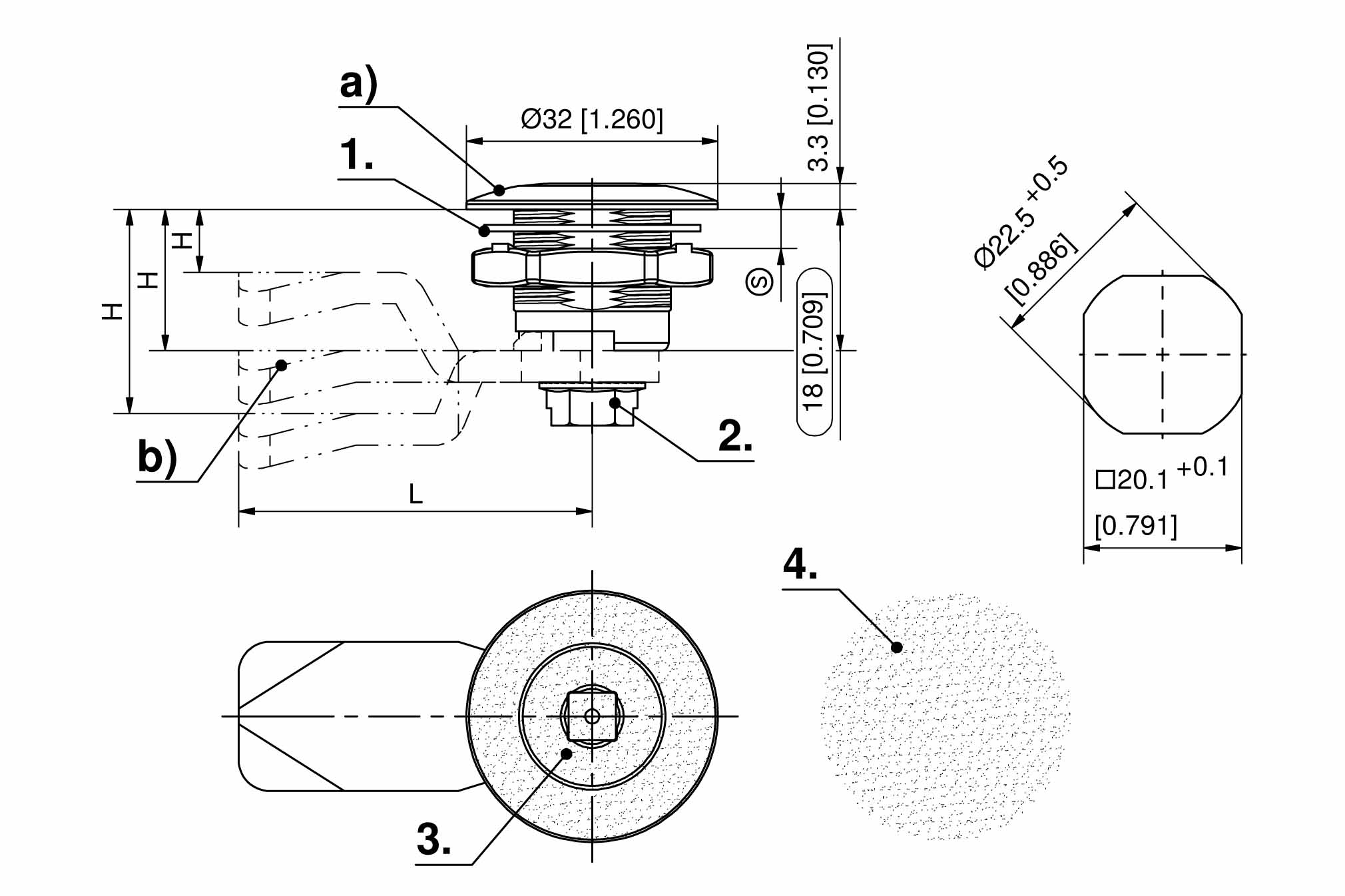

1. flat external seal
2. serrated screw
3. spring loaded link
4. closed surface

Completely assembled without cam.
Please select version Product data sheet

Available versions

Safety quarter-turn with insert


Product number
Insert
Installation type
Delivery Unit
a)
255-9427.00-00000
Square 6mm
screw-on
1 pc.
