[1-080]

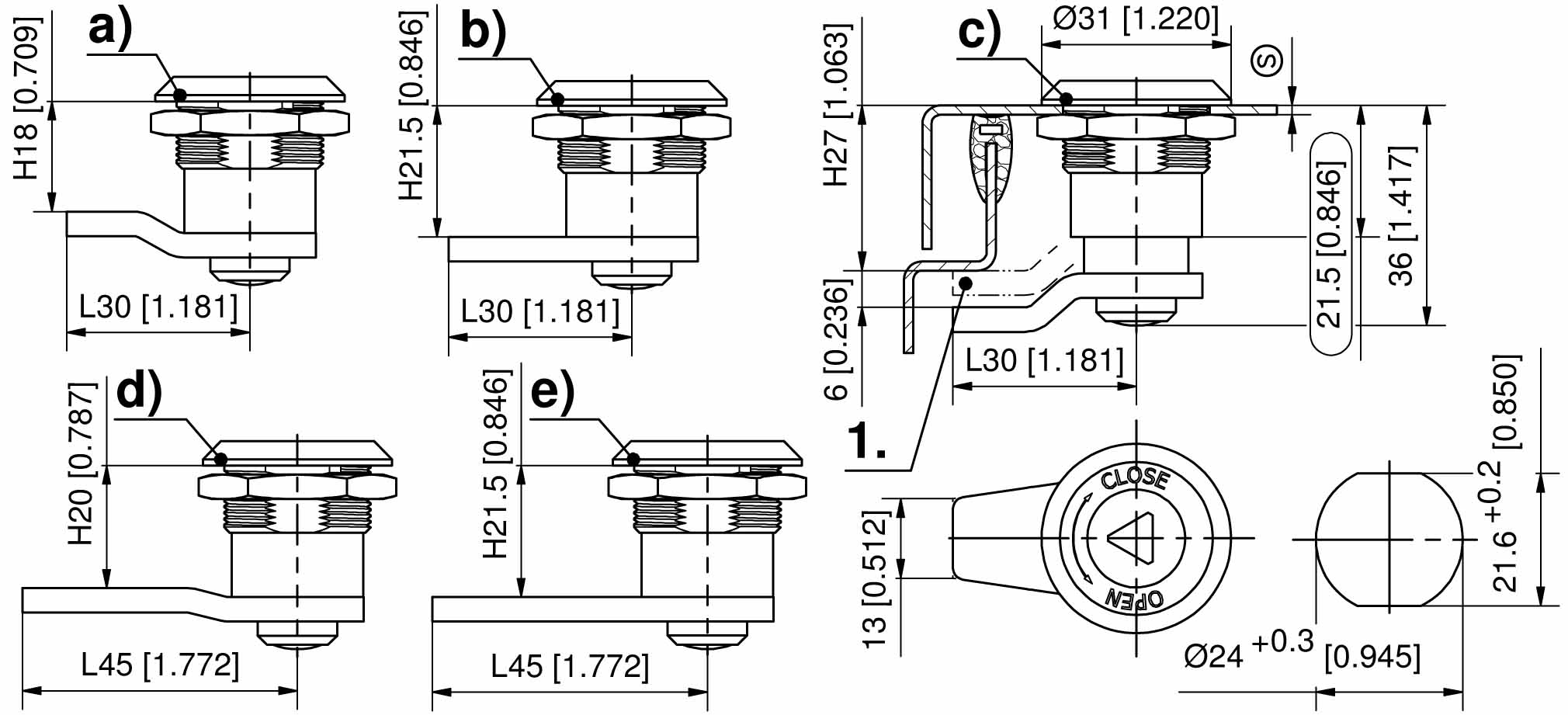

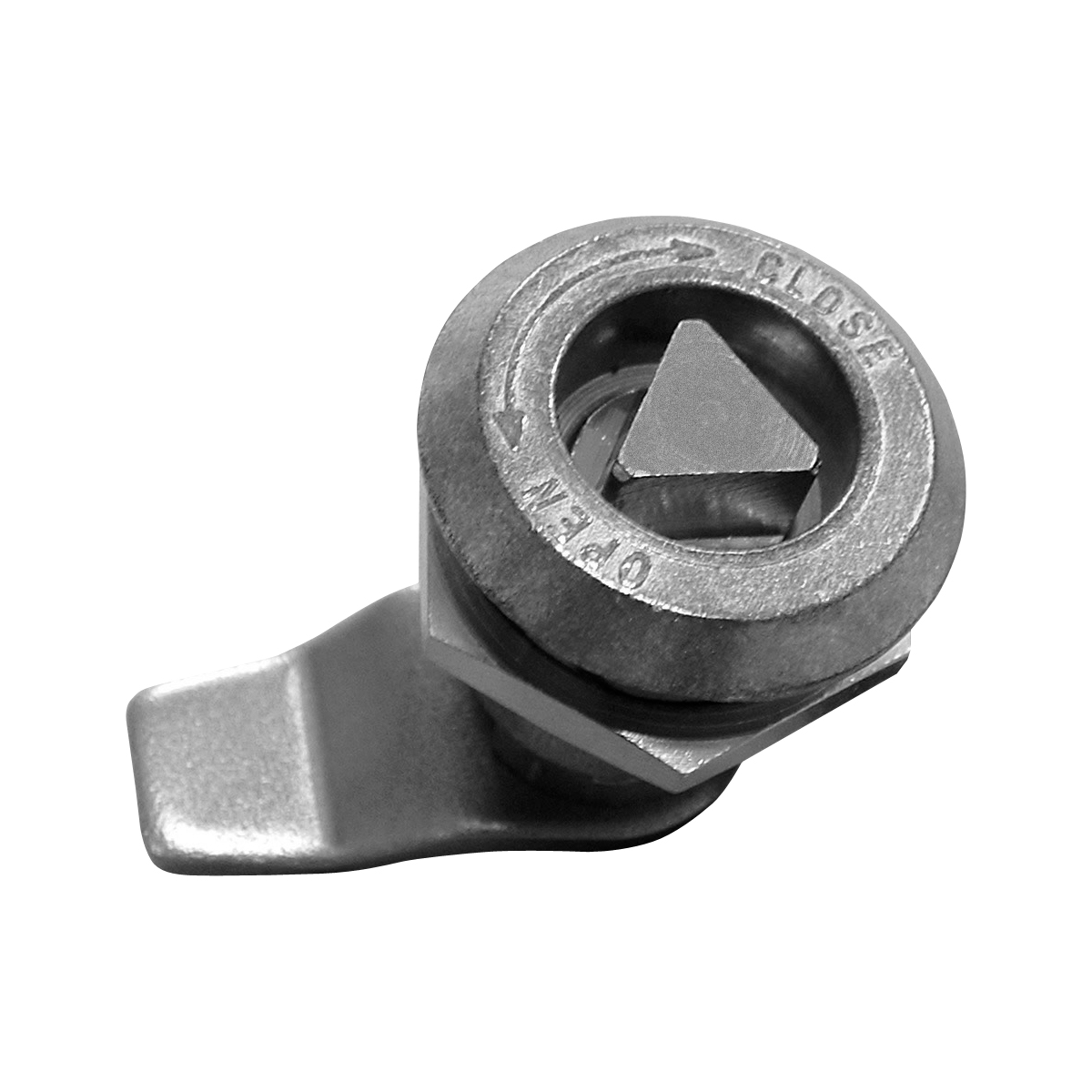

Clamping Quarter-Turn Pr21.6
Advantages
- For cutout 21.6.
- 6mm compression stroke.
- The closing process is always clockwise.
- By turning the insert 90° the cam is at first put into closed position.
- Continuing rotation to the right (5x) will pull the cam towards the door.
- Vibration-proof.
- RH / LH application.
Material
- Housing: zinc die, zinc plated
- Insert: brass, nickel plated
- Spring and cam: stainless steel
- Nut: steel, zinc plated
Remarks
(S) Door-thickness max. 6mmSelected version
Product number | 248-9002.35-00000 |
Installation type: | screw-on |
Delivery Unit: | 10 pcs. |
Insert: | Square 8mm |
H-dimension: | 18 mm |
Length of cam: | L 30 |
