Fire protection tested with E60 classification according to DIN EN 45545-3.
IP65 according to DIN EN 60529.
Properties of material AISI 316 Ti: The titanium increases the corrosion resistance particularly the intercrystalline corrosion at the grain boundaries.
Material
Dish handle and adapter plate: AISI 316Ti, cast
Flat external seal: Inducon
Remarks
(S) Door-thickness 2mm
For flush area mounting please order additionally: adapter plate and flat external seal.
Please configure the quarter-turn with insert and cam.

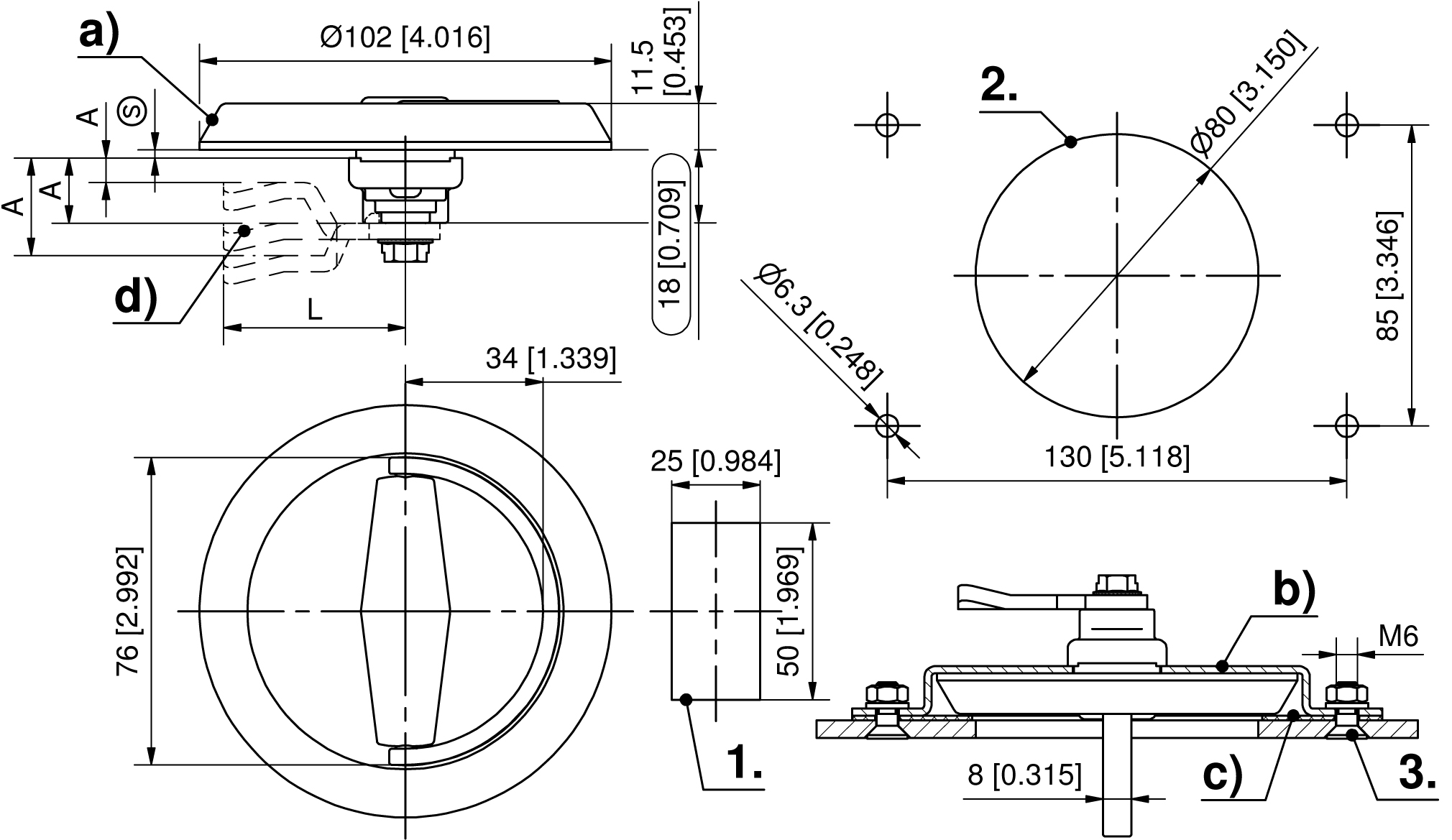

1. cutout dish handle surface mounted 2. cutout flush area 3. e.g. countersunk screw M6
