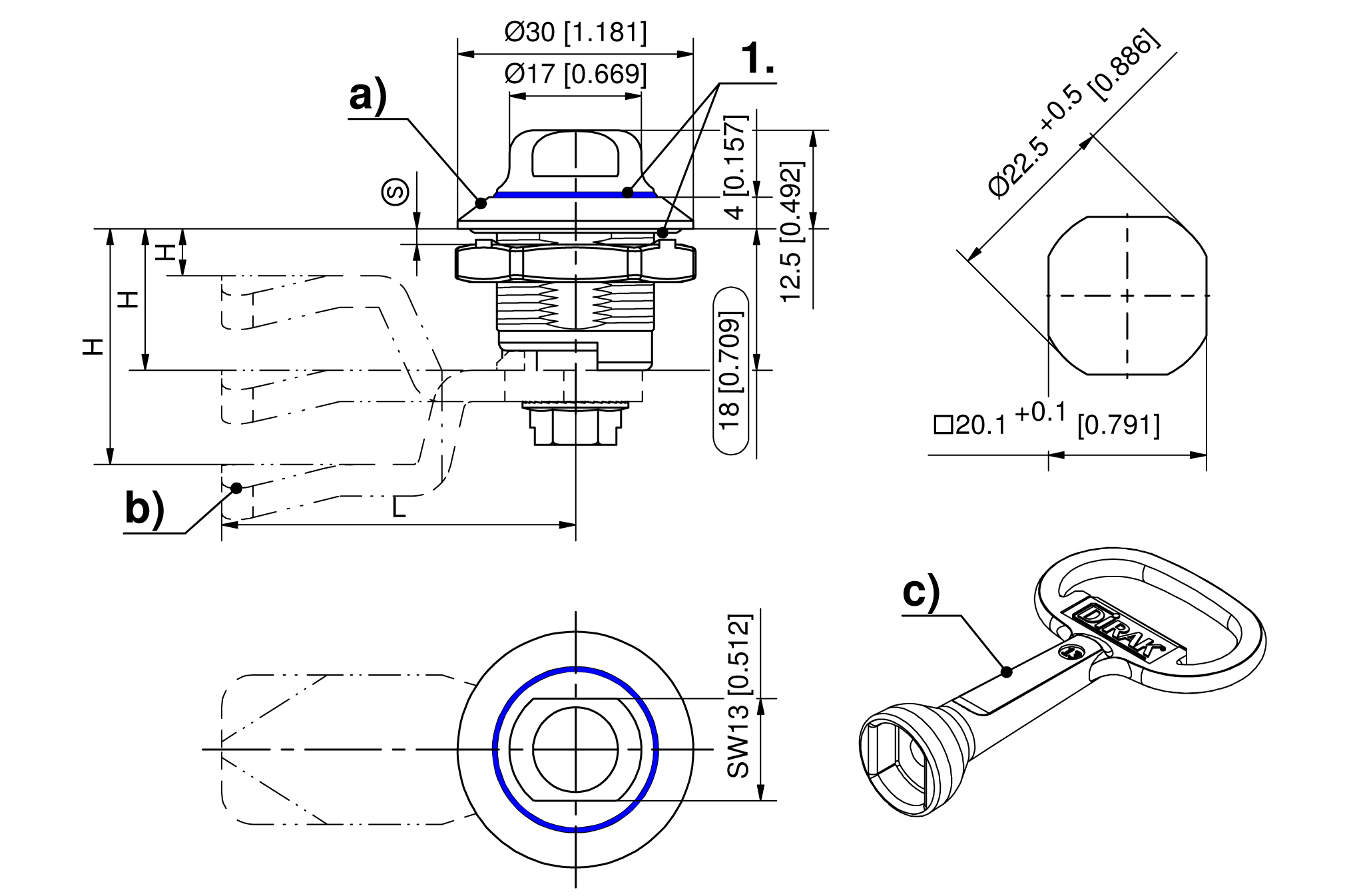

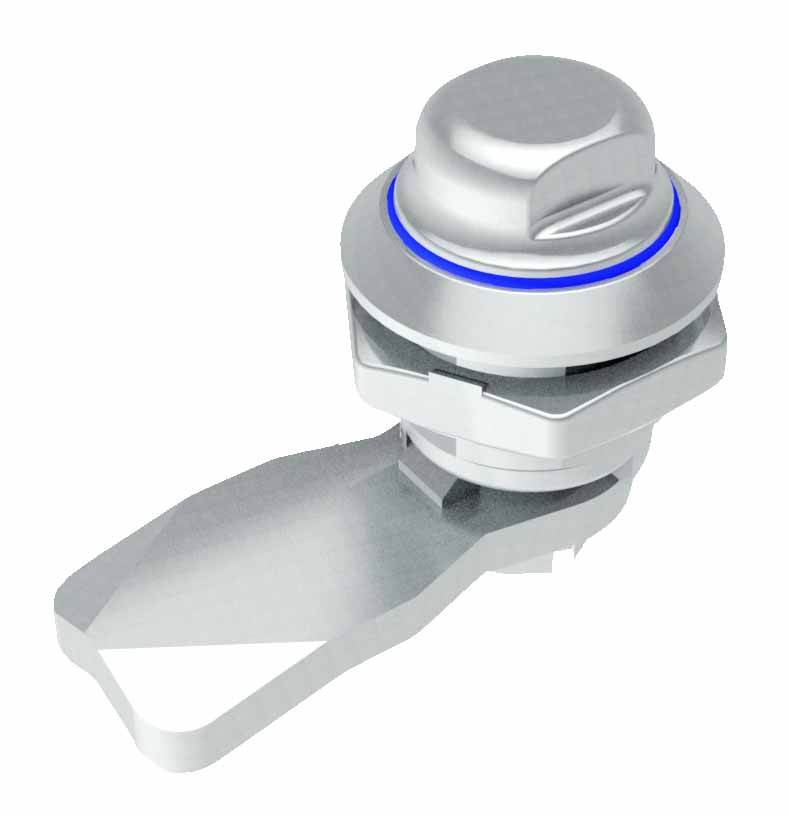

Quarter-Turn with Insert SW13 Pr20.1 L18 Stainless Steel

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_IP65_67
ICON_IP69K
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
7_081_01
E_7-081_01
7_081_01
E_7-081_01

Advantages

  • Meets hygiene requirements acc. to DIN EN ISO 14159 and DIN EN 1672-2.
  • Easy to clean.
  • O-rings (FDA conform) prevent dirt deposits and penetration of liquids.
  • IP65 / IP67 / 69K according to DIN EN 60529 / DIN 40050.
  • RH / LH application.
  • Grounding by grounding nut.

Material

  • Housing, grounding nut and insert: stainless steel AISI 316L
  • Cam and serrated screw: stainless steel AISI 304
  • O-rings: silicone, FDA conform, red or blue

Remarks

(S) Door-thickness max. 8mm

Please configure the quarter-turn with a cam.

1. o-rings

Selected version

Product number 100-9508.00-00001
Delivery Unit: 1 pc.
Installation type: screw-on
Version: blue o-ring
CAD model
Remove selection Product data sheet

Related Products

Assembly options



Article no.
Name

200-0001.00-00000
Assembling cam without o-ring
Details
Name:
Assembling cam without o-ring
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

c)
204-0140.39-05010
Wrench for SW13
Details
Insert:
SW13
Surface:
blue, powder-coated
Delivery Unit:
10 pcs.
Open product in new tab
1-103
Slide Shoe for Cams
Open overview in new tab
200-9622.00-00000
Slide shoe
Details
Delivery Unit:
10 pcs.
Open product in new tab
1-350
Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS
Open overview in new tab
200-9947.00-00000
Rod latch
Details
Rod fastening:
quick-fit
Installation type:
snap-fit
Delivery Unit:
1 pc.
Open product in new tab
b)
7-105
Cams L35/45 Stainless Steel
Open overview in new tab
b)
200-0506.00-00000
Cam L45
Details
H-dimension Gl18:
6 mm
H-dimension Gl30:
18 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl50:
38 mm
H-dimension Gl60:
48 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0508.00-00000
Cam L45
Details
H-dimension Gl18:
8 mm
H-dimension Gl30:
20 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl50:
40 mm
H-dimension Gl60:
50 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0510.00-00000
Cam L45
Details
H-dimension Gl18:
10 mm
H-dimension Gl30:
22 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl50:
42 mm
H-dimension Gl60:
52 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0514.00-00000
Cam L45
Details
H-dimension Gl18:
14 mm
H-dimension Gl30:
26 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl50:
46 mm
H-dimension Gl60:
56 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0516.00-00000
Cam L45
Details
H-dimension Gl18:
16 mm
H-dimension Gl30:
28 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl50:
48 mm
H-dimension Gl60:
58 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0518.00-00000
Cam L45
Details
H-dimension Gl18:
18 mm
H-dimension Gl30:
30 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl50:
50 mm
H-dimension Gl60:
60 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0520.00-00000
Cam L45
Details
H-dimension Gl18:
20 mm
H-dimension Gl30:
32 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl50:
52 mm
H-dimension Gl60:
62 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0522.00-00000
Cam L45
Details
H-dimension Gl18:
22 mm
H-dimension Gl30:
34 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl50:
54 mm
H-dimension Gl60:
64 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0524.00-00000
Cam L45
Details
H-dimension Gl18:
24 mm
H-dimension Gl30:
36 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl50:
56 mm
H-dimension Gl60:
66 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0526.00-00000
Cam L45
Details
H-dimension Gl18:
26 mm
H-dimension Gl30:
38 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl50:
58 mm
H-dimension Gl60:
68 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0528.00-00000
Cam L45
Details
H-dimension Gl18:
28 mm
H-dimension Gl30:
40 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl50:
60 mm
H-dimension Gl60:
70 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0532.00-00000
Cam L45
Details
H-dimension Gl18:
32 mm
H-dimension Gl30:
44 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl50:
64 mm
H-dimension Gl60:
74 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0540.00-00000
Cam L45
Details
H-dimension Gl18:
40 mm
H-dimension Gl30:
52 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl50:
72 mm
H-dimension Gl60:
82 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0542.00-00000
Cam L45
Details
H-dimension Gl18:
42 mm
H-dimension Gl30:
54 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl50:
74 mm
H-dimension Gl60:
84 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-0550.00-00000
Cam L45
Details
H-dimension Gl18:
50 mm
H-dimension Gl30:
62 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl50:
82 mm
H-dimension Gl60:
92 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-4535.00-00018
Cam L35
Details
H-dimension Gl18:
18 mm
H-dimension Gl30:
30 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl50:
50 mm
H-dimension Gl60:
60 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-4535.00-00020
Cam L35
Details
H-dimension Gl18:
20 mm
H-dimension Gl30:
32 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl50:
52 mm
H-dimension Gl60:
62 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-4535.00-00022
Cam L35
Details
H-dimension Gl18:
22 mm
H-dimension Gl30:
34 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl50:
54 mm
H-dimension Gl60:
64 mm
Delivery Unit:
1 pc.
Open product in new tab
b)
200-9845.00-00022
3-point cam
Details
Version:
Bending A20
Delivery Unit:
1 pc.
Open product in new tab
b)
200-9845.00-00028
3-point cam
Details
Version:
Bending A26
Delivery Unit:
1 pc.
Open product in new tab
b)
200-9899.00-00000
2-point cam
Details
Delivery Unit:
1 pc.
Open product in new tab
MLA 1-103
MLA Door Contact
Open overview in new tab
200-9641.00-00000
MLA Door Contact
Details
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 100-9508.00-00001
Delivery Unit: 1 pc.
Installation type: screw-on
Version: blue o-ring

Selected additional products

[none]
