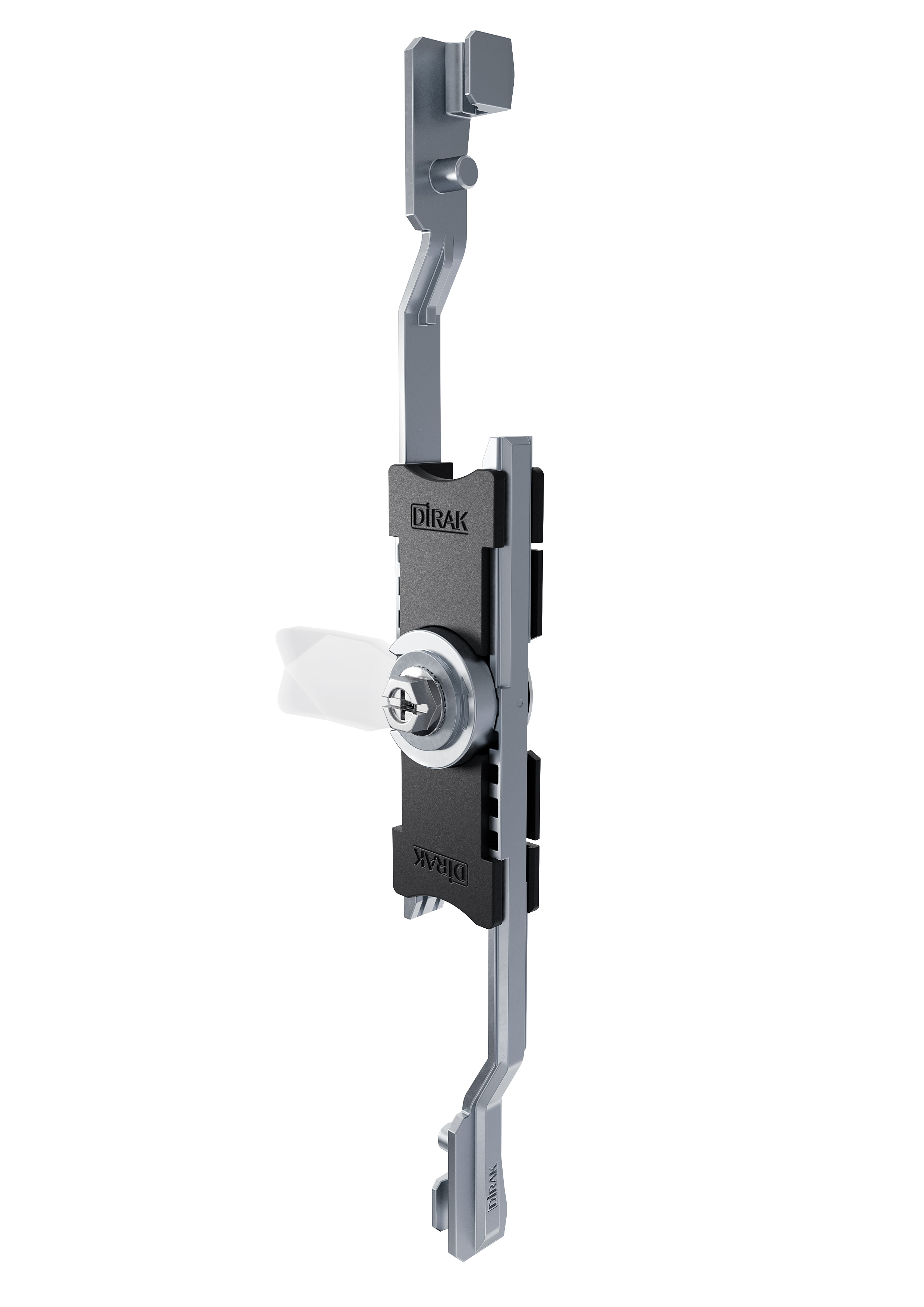

Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS

ICON_CUTOUT_20_1

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_FLACHSTANGE

Advantages

Applicable for quarter-turns with housing length 18mm.
Rod latch applicable for round or flat rods.
Dual rod holder.
Quick assembly of the rods.
Installation within the sealed area of enclosures.
RH / LH application.
At 90° operation - stroke 20mm.
At 120° operation - stroke 27.5mm (for housings without 90° stop or cams without stop, the end stop is fixed by the rack).

Material

Base plate: PA, black
Driving rods, pinon: zinc die, untreated
Washer: steel, zinc plated

Remarks

Mountable only with cam.
Use of negatively bended cams not possible.

Grounding of the quarter-turn with grounding nut possible.

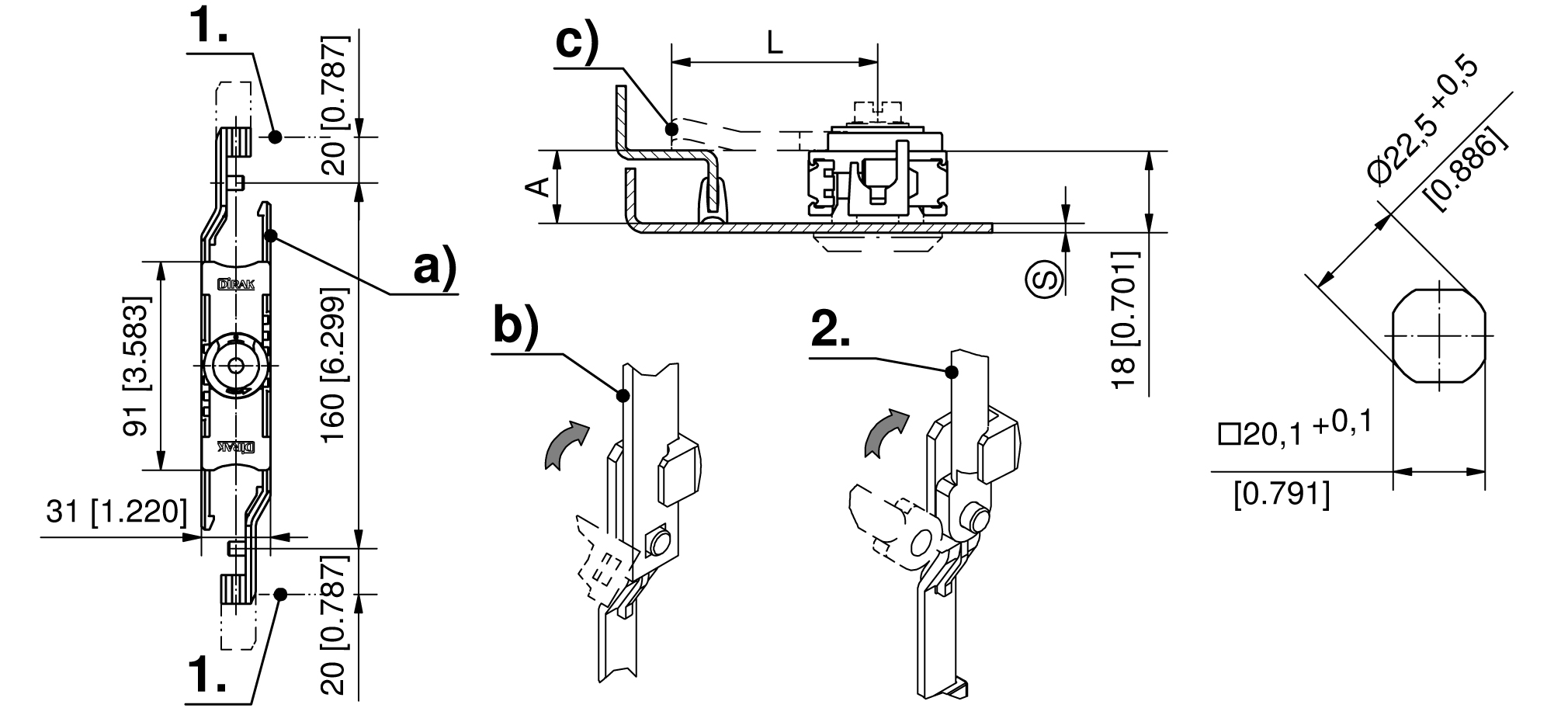

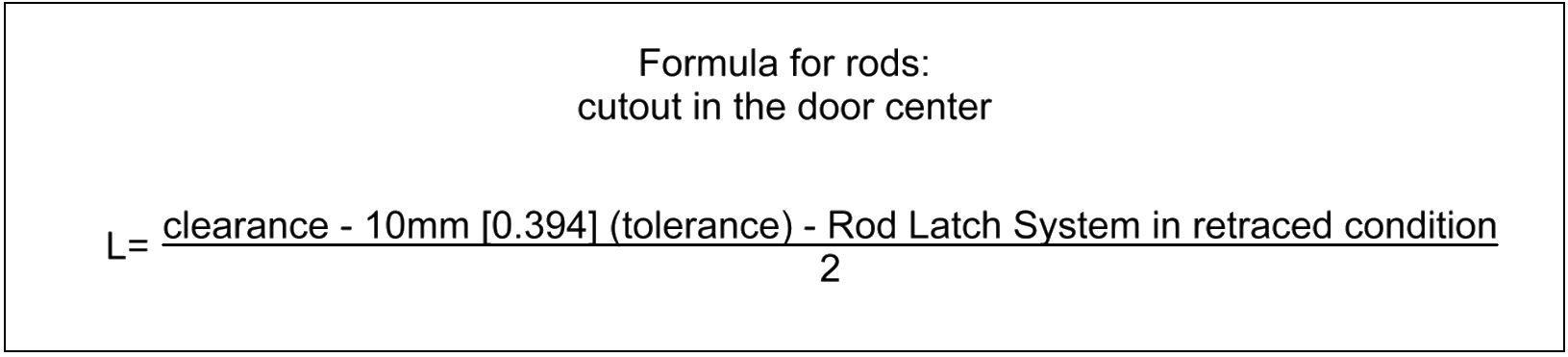

1. stroke
2. round rod 201-9006.00-Lxxmm not usable.

(S) Door thickness = 1.5 – 2.5 mm

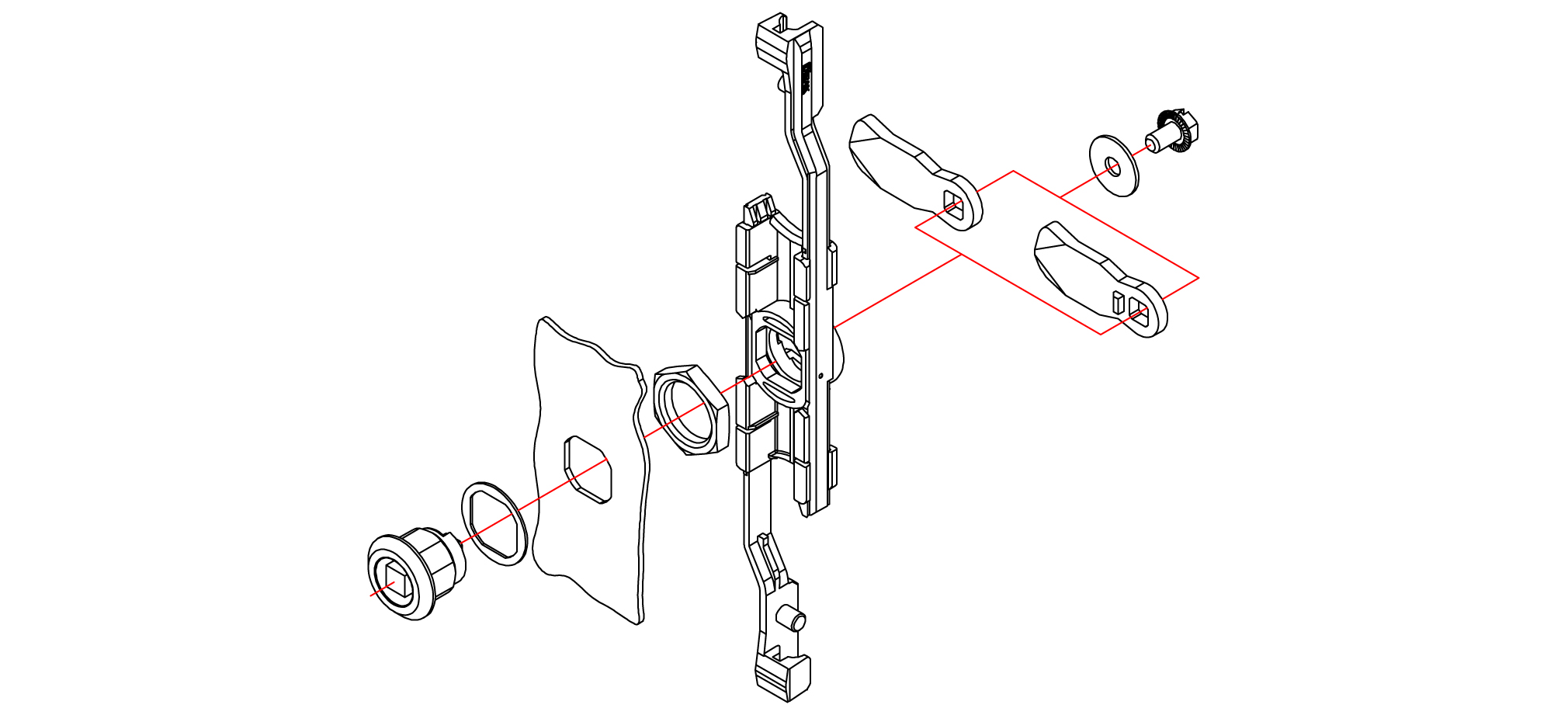

a) Rod latch for quarter-turns
b) Flat rod 14×3 mm
c) Cam with and without stop

Available versions

Rod latch for quarter-turns L18

Product number

Rod fastening

Installation type

Delivery Unit

200-9947.00-00000
