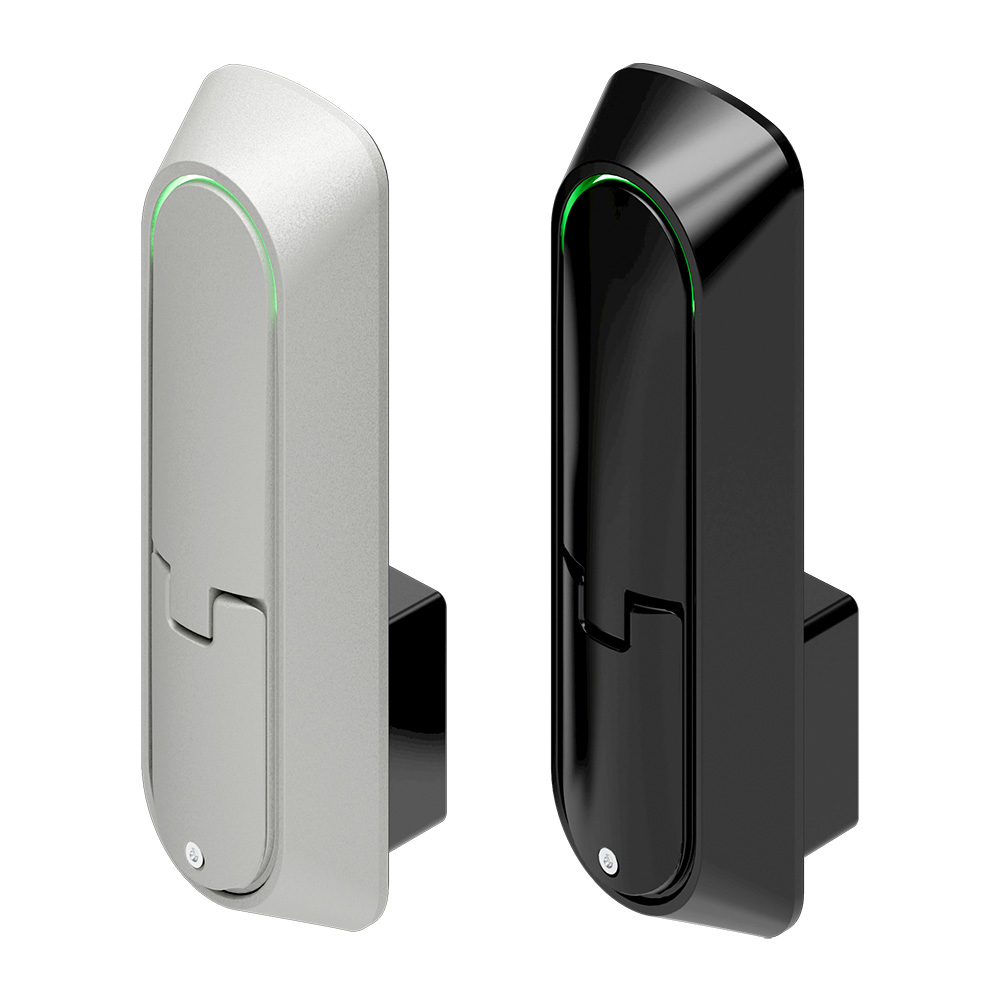

[MLE1102 LED]

Swinghandle mechatronic with LED, RS 105 for PHZ, RC2

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_MECHATRONICS_SCHWARZ

ICON_PZ_DIN_18252

Advantages

Electronic unlocking by applying voltage.
Opening readiness is visualized by LED.
Handle status can be evaluated.
Tested according to security class RC2 DIN EN 1630. Only in combination with profile half cylinders according to DIN 18252.

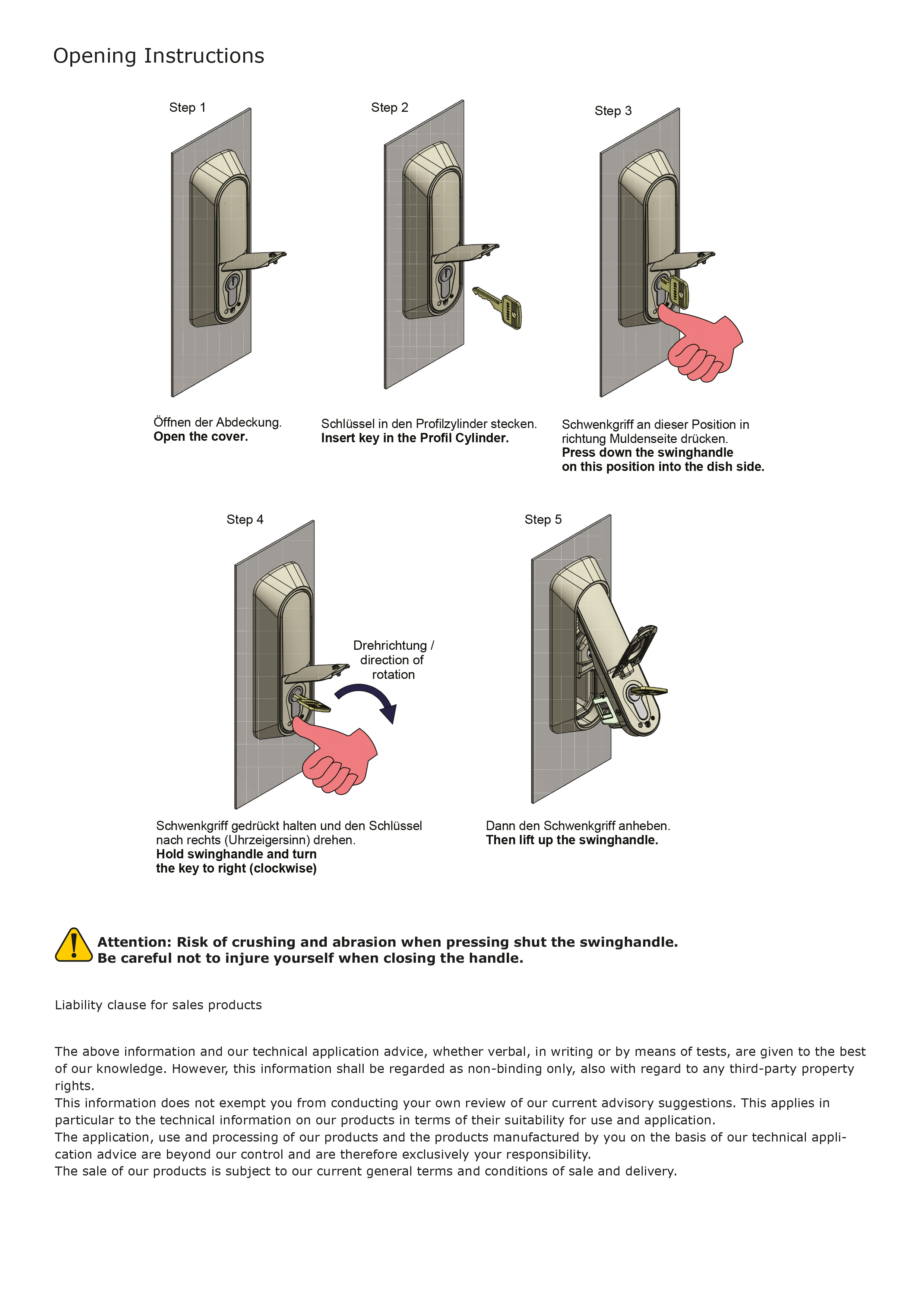

Mechanical emergency opening by key cylinder 30/10mm or 35/10mm.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.
Cylinder cover magnetically secured.
RH / LH application.

Material

Handle, dish, cover and cap: zinc die, RAL 7038 or RAL 9005

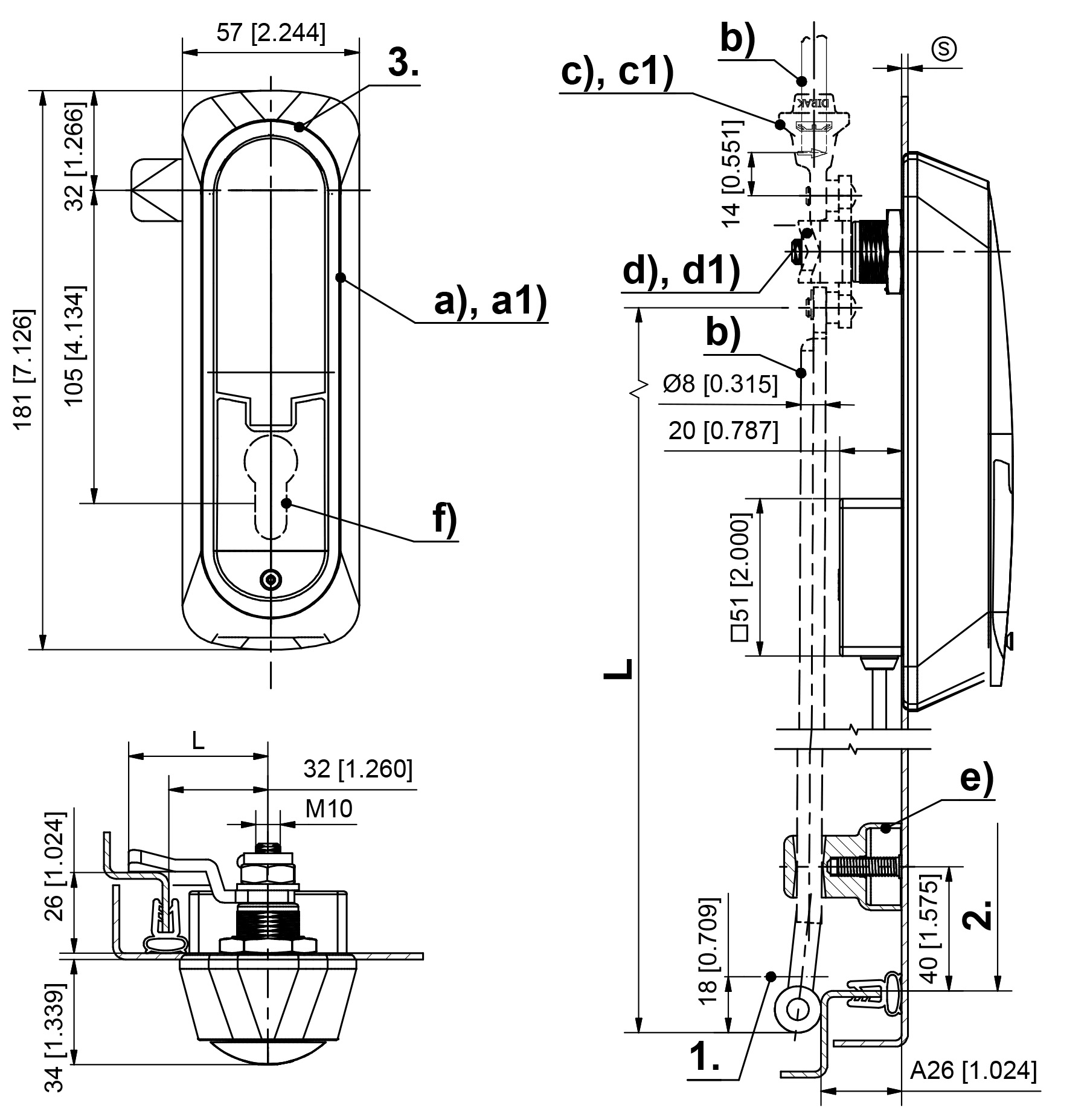

Remarks

(S) Door-thickness max. 3mm

1. stroke 18mm
2. clearance

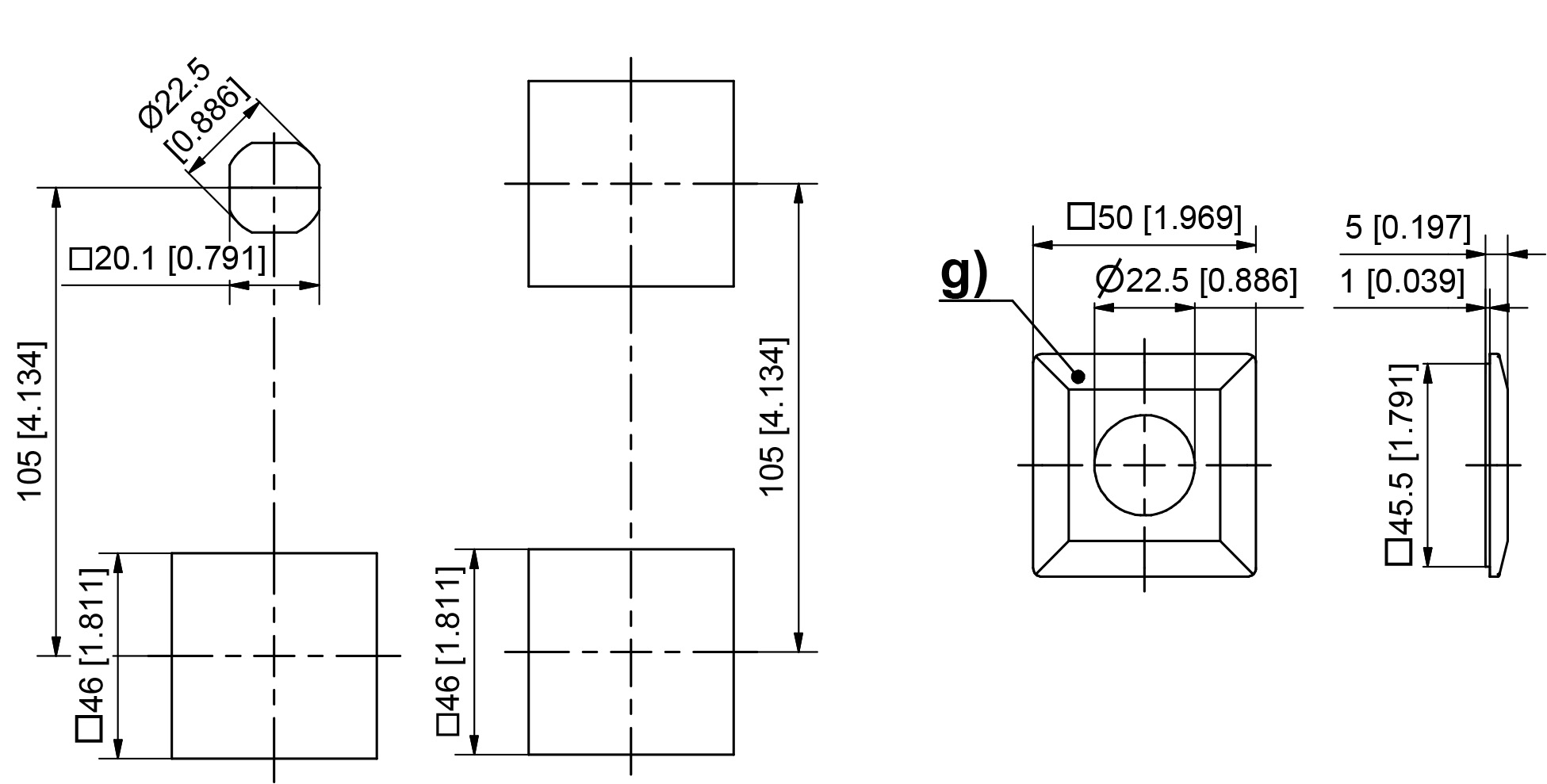

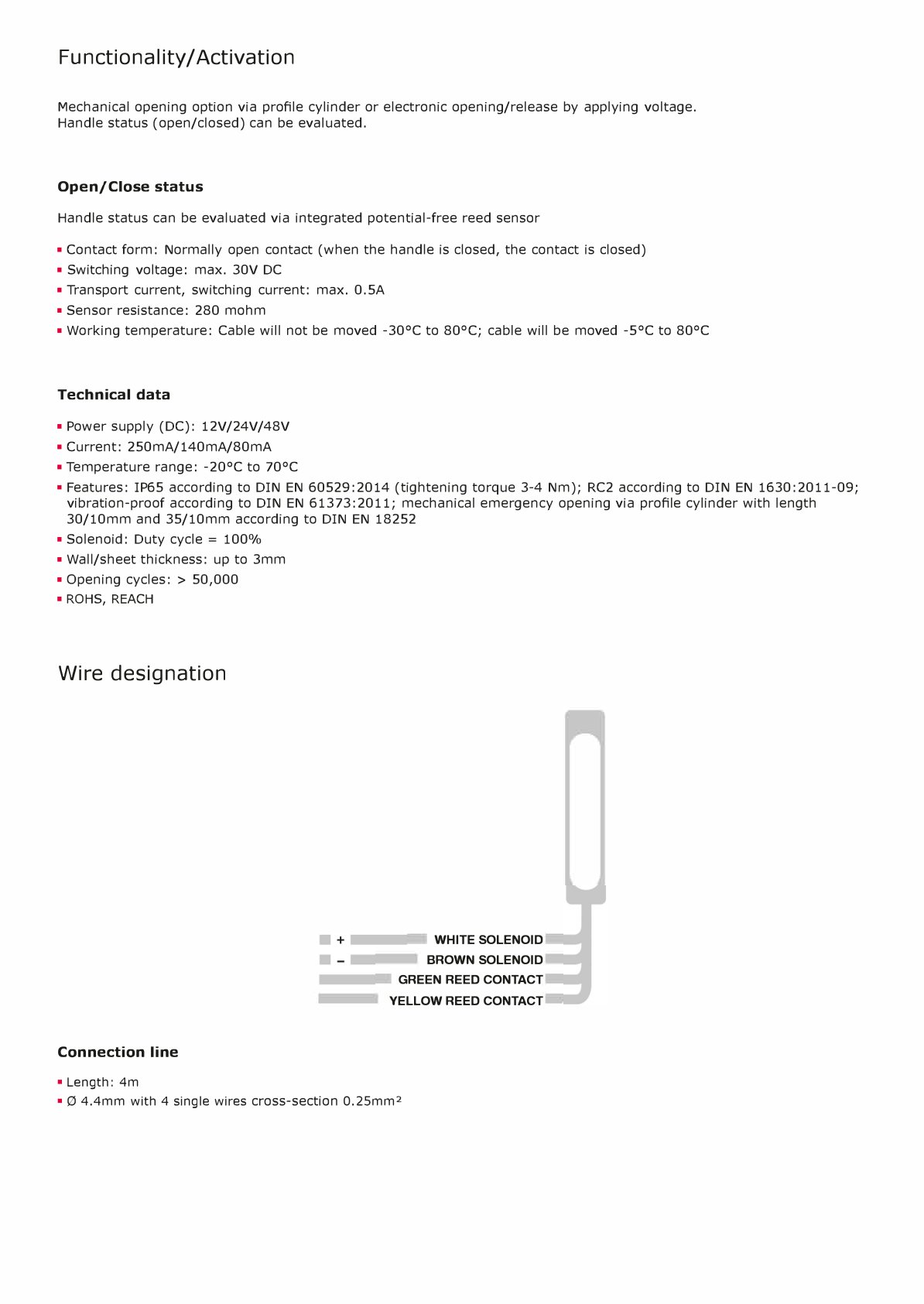

Further technical details please see data sheet

Profile half cylinders and their assembly must be ordered separately.

Attention:
Please note that these produkts are not available in North America. But please contact DIRAK Inc. to discuss alternatives.

Available versions

Swinghandle MLE1102 LED

Product number

Surface

Voltage

LED

Installation type

Delivery Unit

602-9003.00-GR012

602-9003.00-GR024

602-9003.00-GR048

602-9004.00-GR012

602-9004.00-GR024

602-9004.00-GR048
