[4-709]

Torque Hinge Pr01 270°

Advantages

Hinge with constant torque throughout its full range of motion.
For nested doors.
Hinge visible.
RH / LH application.
270° Opening angle.

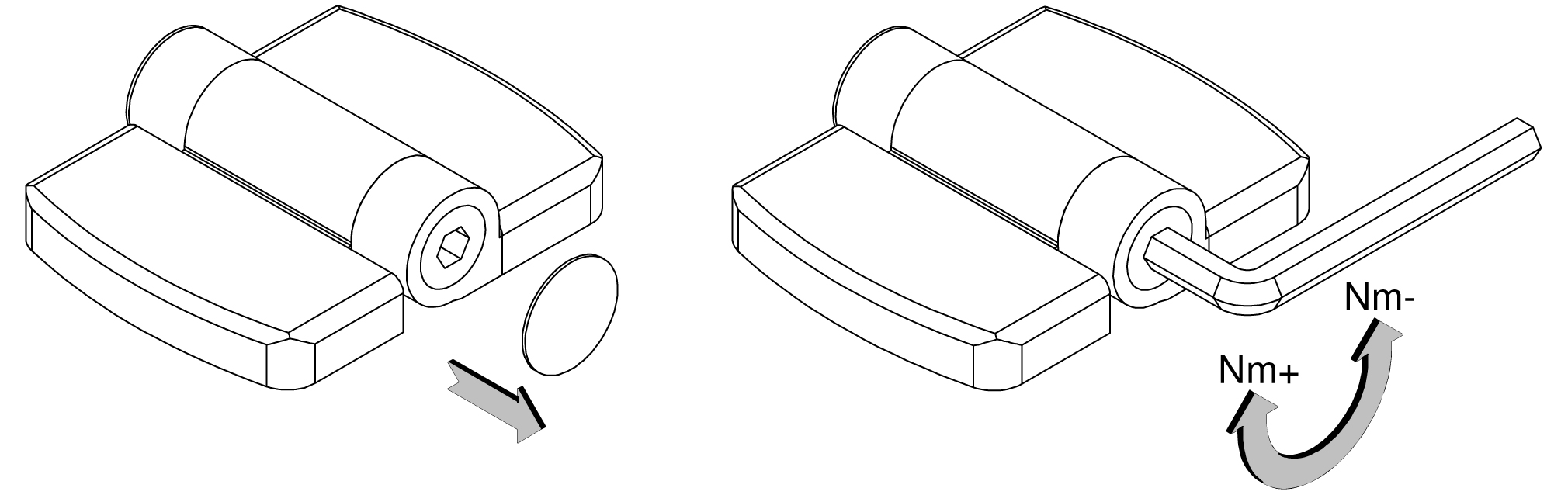

Continuously adjustable torque 0-5Nm. The adjustment of the torque is made with a hexagon socket key size 4 in the hinge shaft.
The doors may be moved into any position and remain at exactly that position.
Free from any detent.
Also usable as coverstays for light duty application.
