[4-350.01]

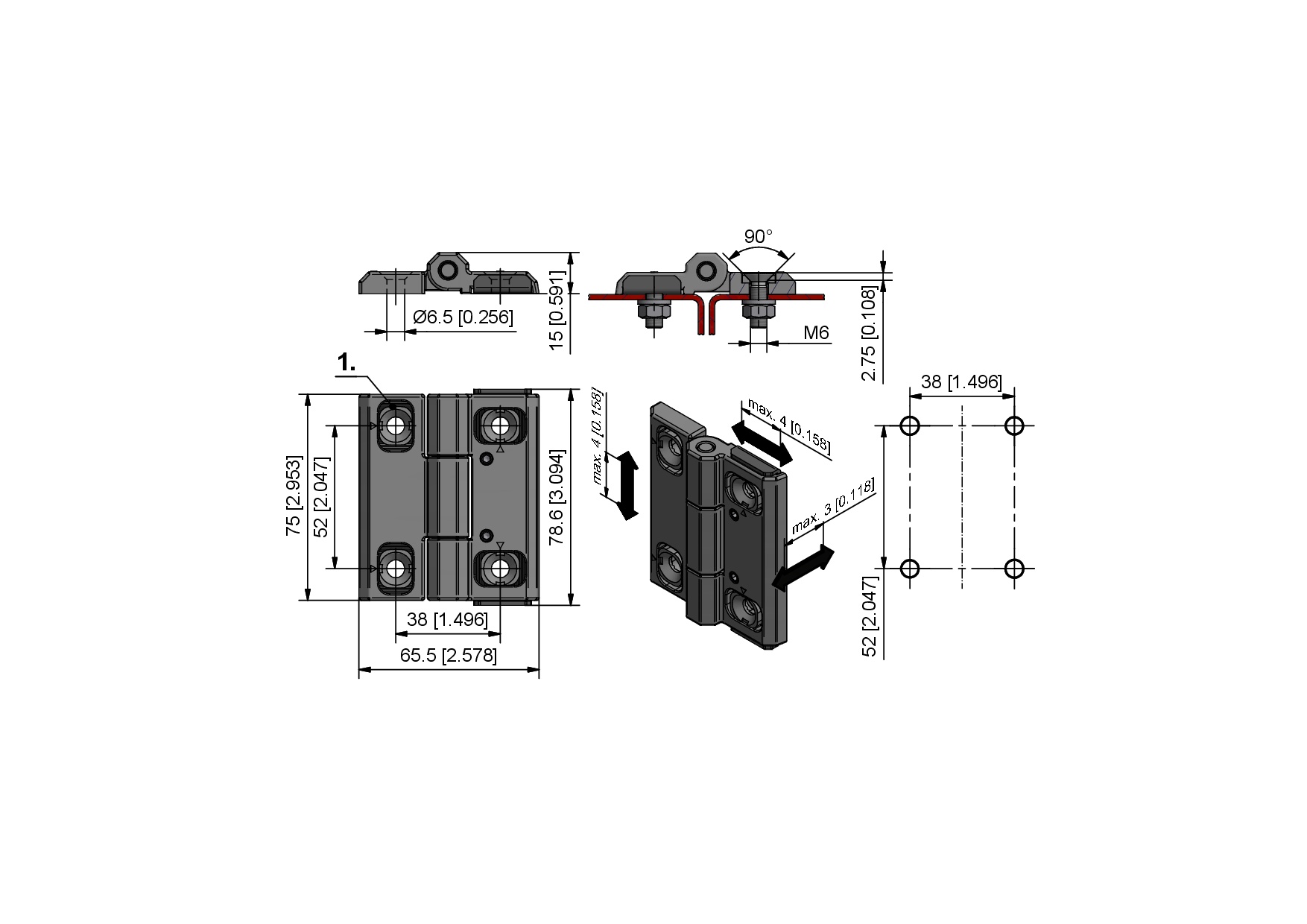

3D Hinge adjustable Pr01 180°

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_180_GRAD

Advantages

  • Adjustable in: heigth ±2mm / width ±2mm / depth 3mm.
  • For nested doors.
  • Hinge visible.
  • 180° Opening angle.
  • RH / LH application.

Material

  • Hinge: zinc die, black or chrome plated
  • Pin: AISI
  • Base plate: steel, zinc plated
  • Bushings: zinc die, black or chrome plated
  • Washer: brass

Remarks

Selected version

Product number 218-9619.00-00000
Surface: chrome plated
Version: 3D
Delivery Unit: 10 pcs.
Installation type: screw-on
Product data sheet

Available versions

3D Hinge

Product number
Version
Surface
Installation type
Delivery Unit
218-9618.00-00000
3D
black
screw-on
10 pcs.
218-9619.00-00000
3D
chrome plated
screw-on
10 pcs.
