Carrier base

ICON_DIRAK_BASE
ICON_ROHS
ICON_PZ_DIN_18252
ICON_WERKZEUGLOS
ICON_CUTOUT_PR_C
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_FLACHSTANGE
3_410
E_3-410
3_410
E_3-410

Advantages

  • Carrier for swinghandle base.
  • With insert or key cylinder.
  • Cam moves clockwise from 11 to 12 o'clock.
  • Tool-less installation - simply snap into the swinghandle base cutout.

Material

  • Carrier, insert, cam: PA, black
  • Key cylinder: zinc die, untreated

Remarks

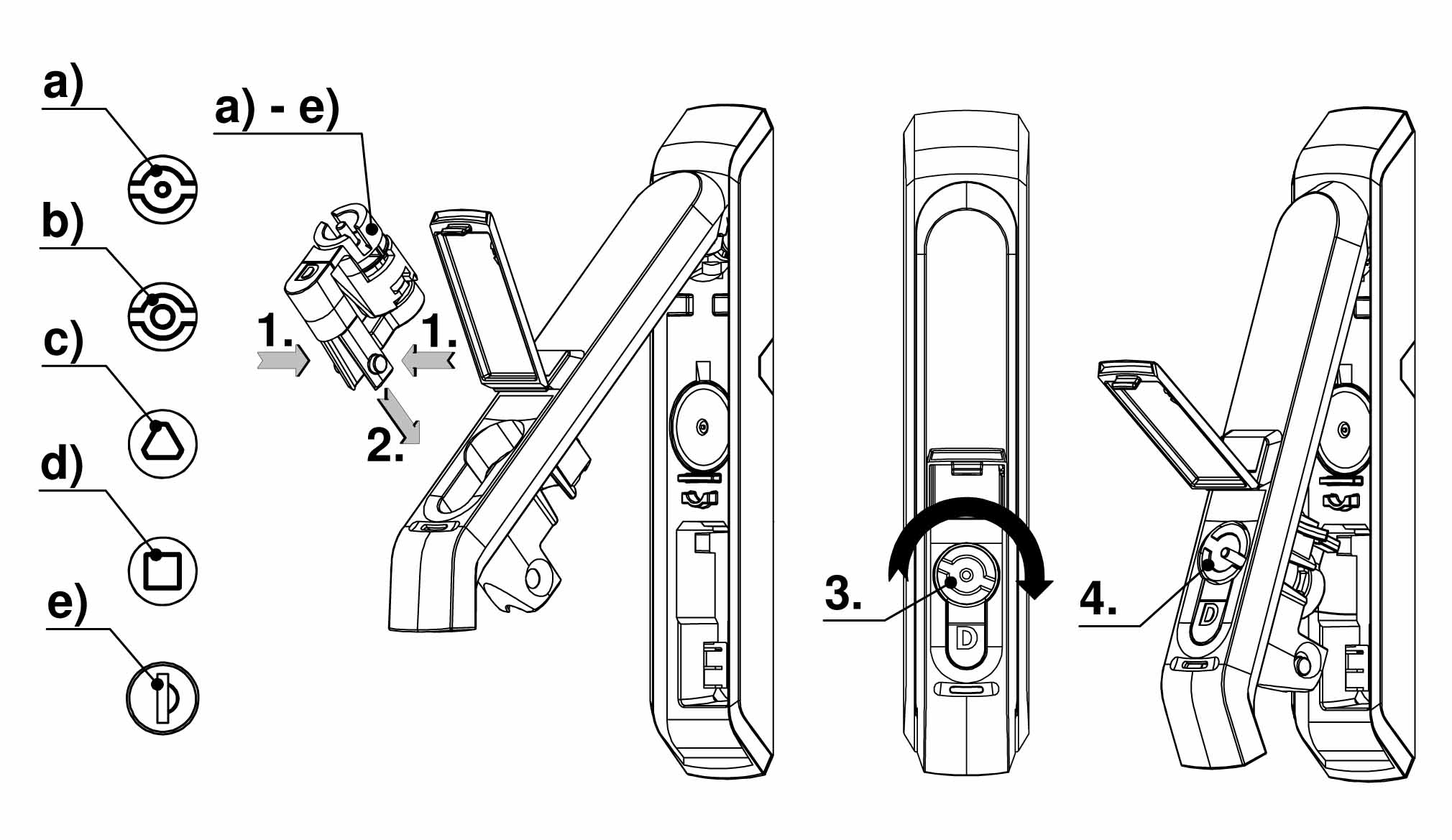

1. press the clamp together
2. push the carrier into the cutout until it audible clicks into place.
3. turn the insert clockwise up to the stop. Then the final position of the cam is reached.
4. to open the swinghandle the insert has to be turned clockwise by 15° only. The slam lock of the swinghandle always aligns the insert straight.
