[3-400E]

Swinghandle base with LED Module PrC

Advantages

LED module visualises the locking position and regular red flashing indicates open position.
Tool-less assembly.
Tool-less pre-installation, self-locking (clip-in) in sheet metal with thickness of 1.5 or 2.0mm.
Independent of panel thickness up to 3mm.
Closing with slam latch.
Handle with lifting spring.
For profile-cylinder with closing position 6 o'clock.
Tool-less replacement of the cylinder cover.

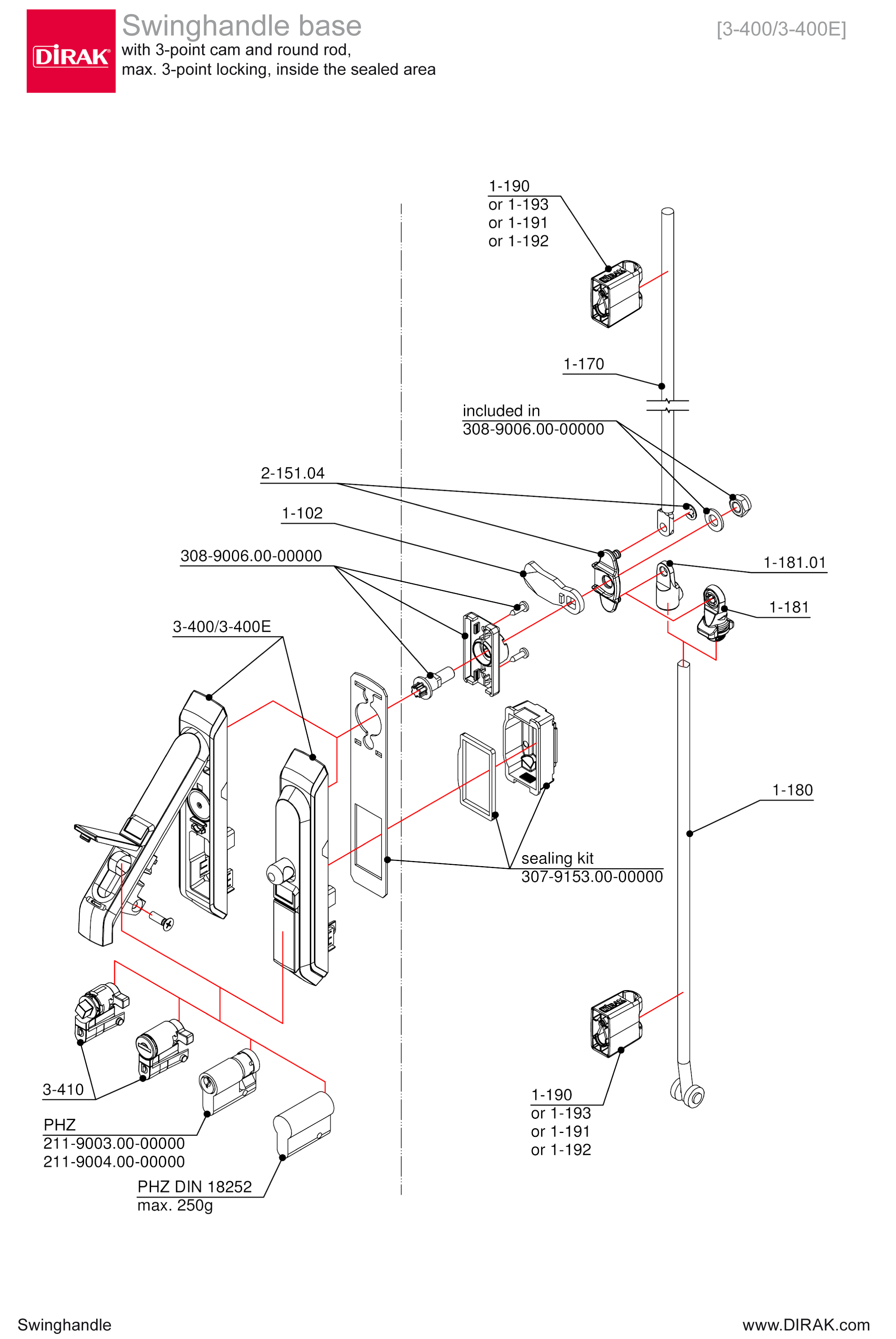

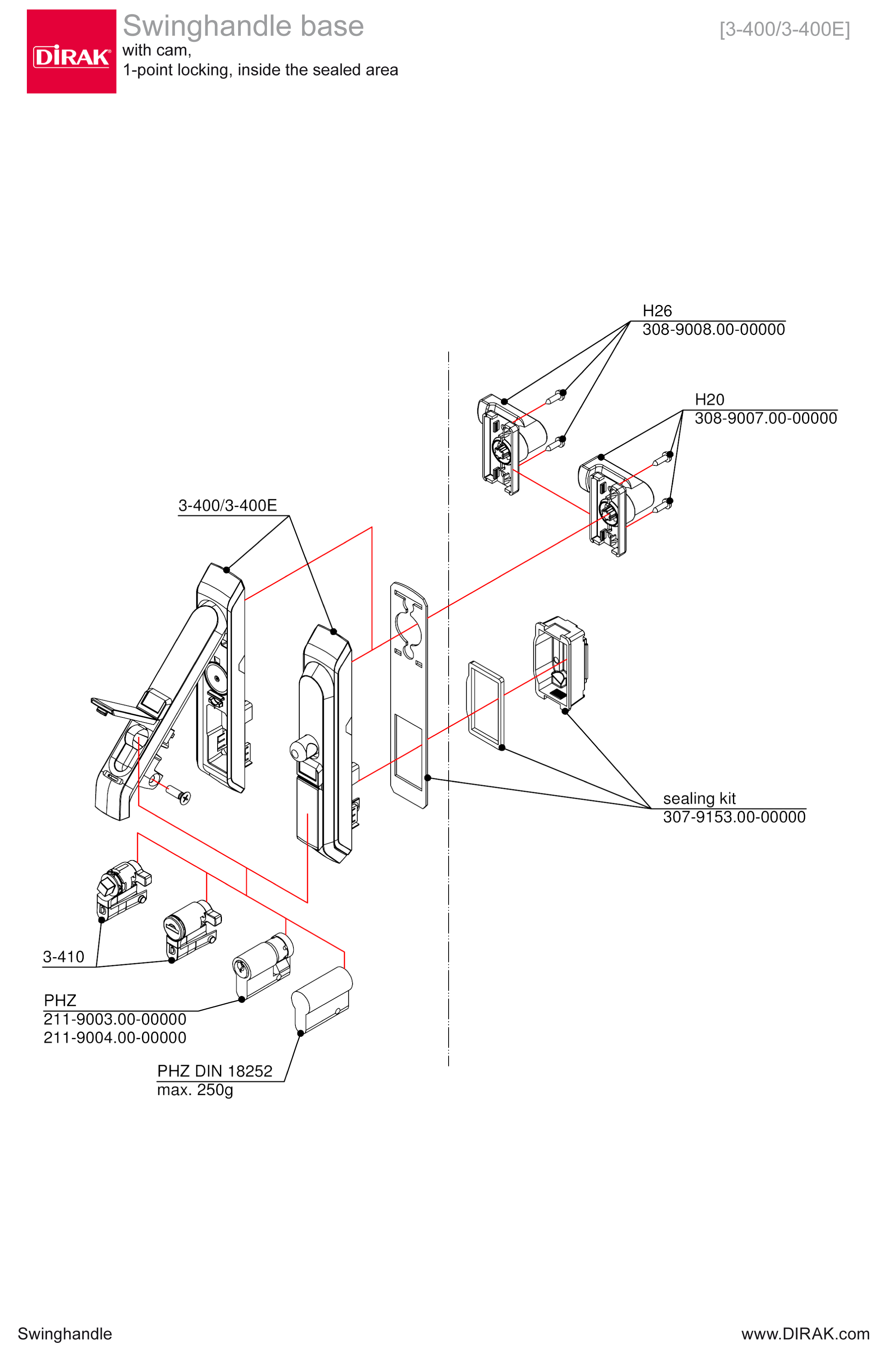

IP65 according to DIN EN 60529 by sealing kit (optional).
RH / LH application.

Material

Handle, dish, cap: PA, black
Cylinder dustcover: PA, black 7043
Shaft: Grivory
Slam lock: POM
LED carrier plate: PMMA
Spring: steel

Remarks

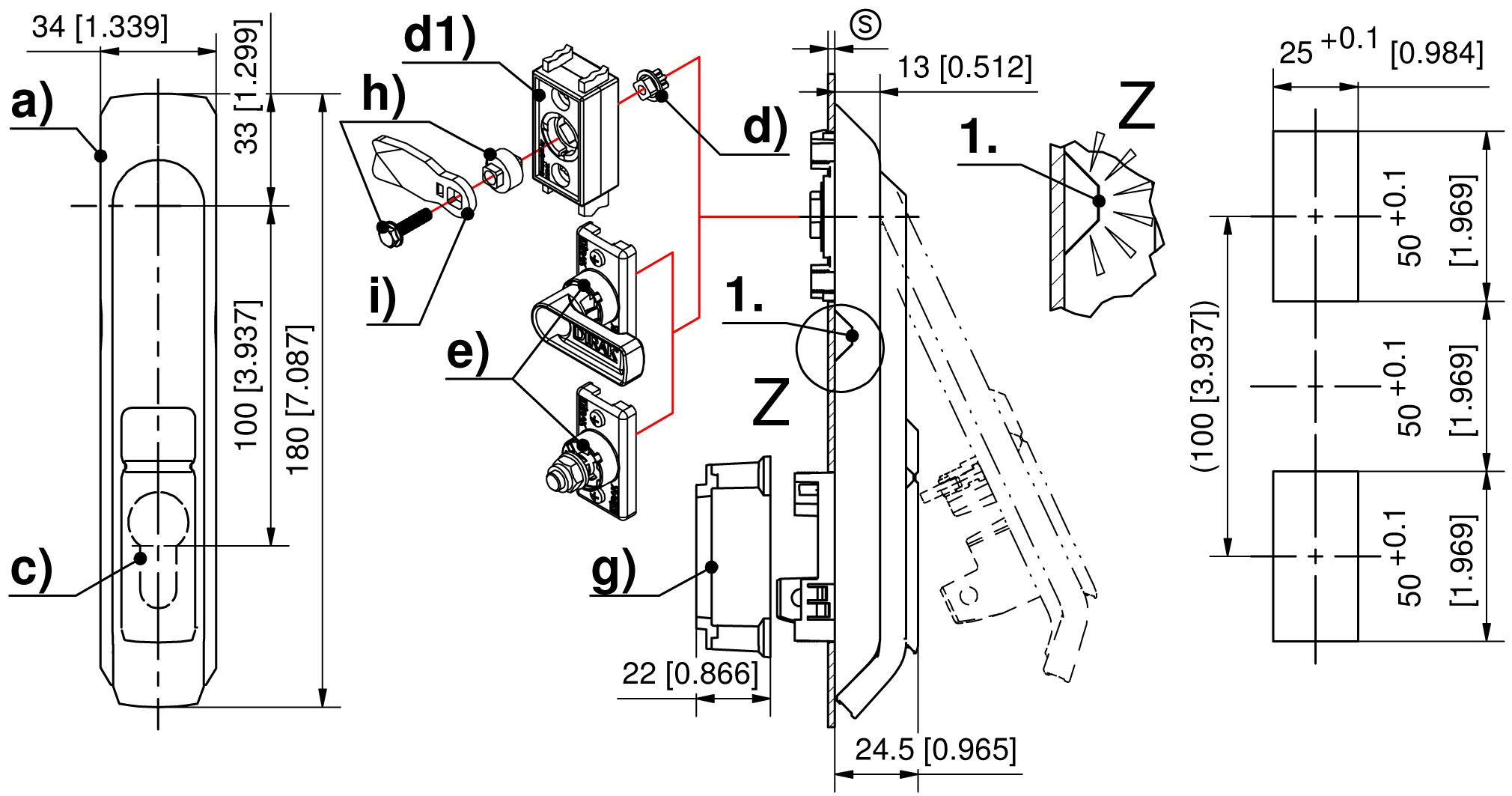

(S) Door-thickness 1.5 - 2.0mm

1. flashing LED module

Battery CR2032 3V not included

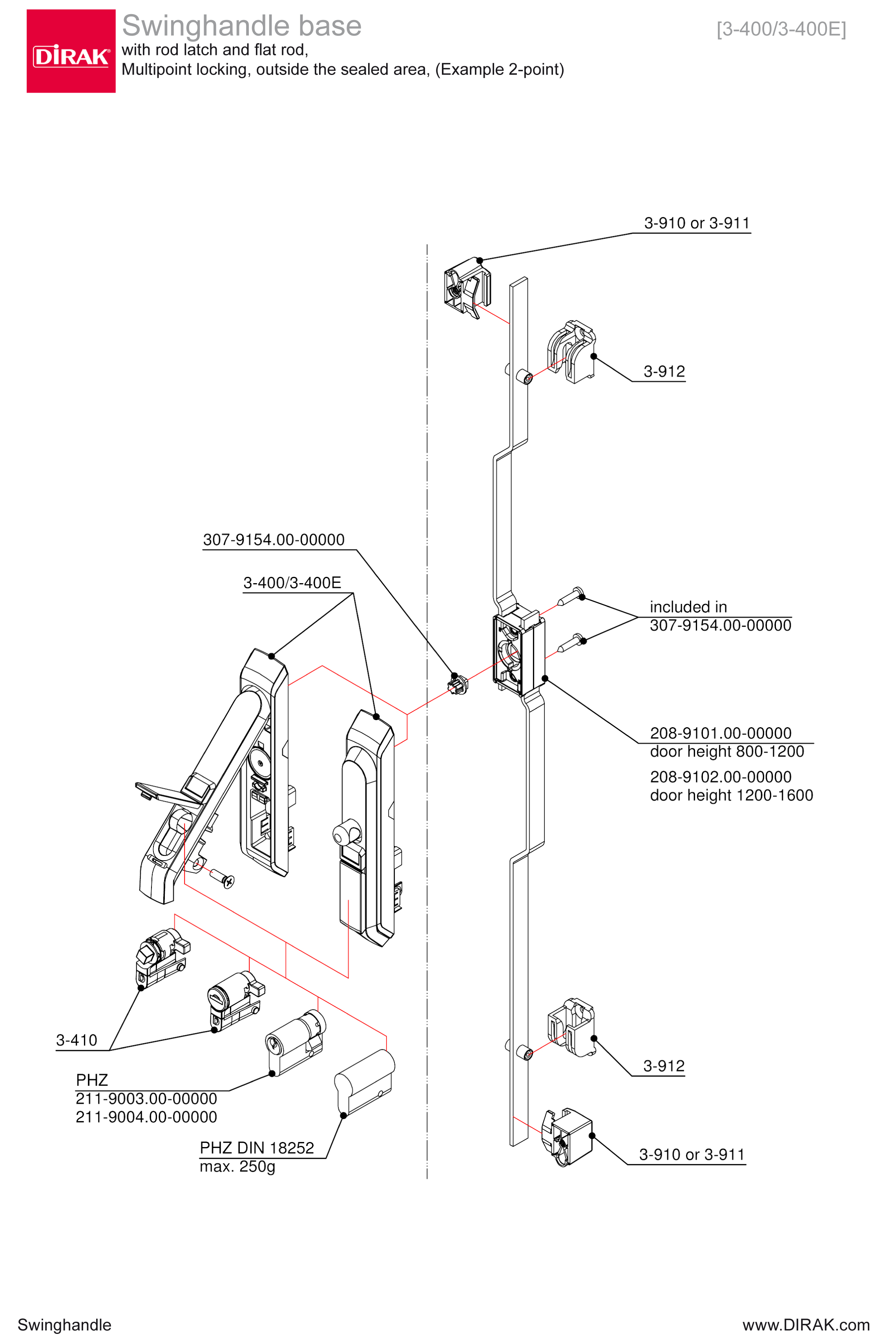

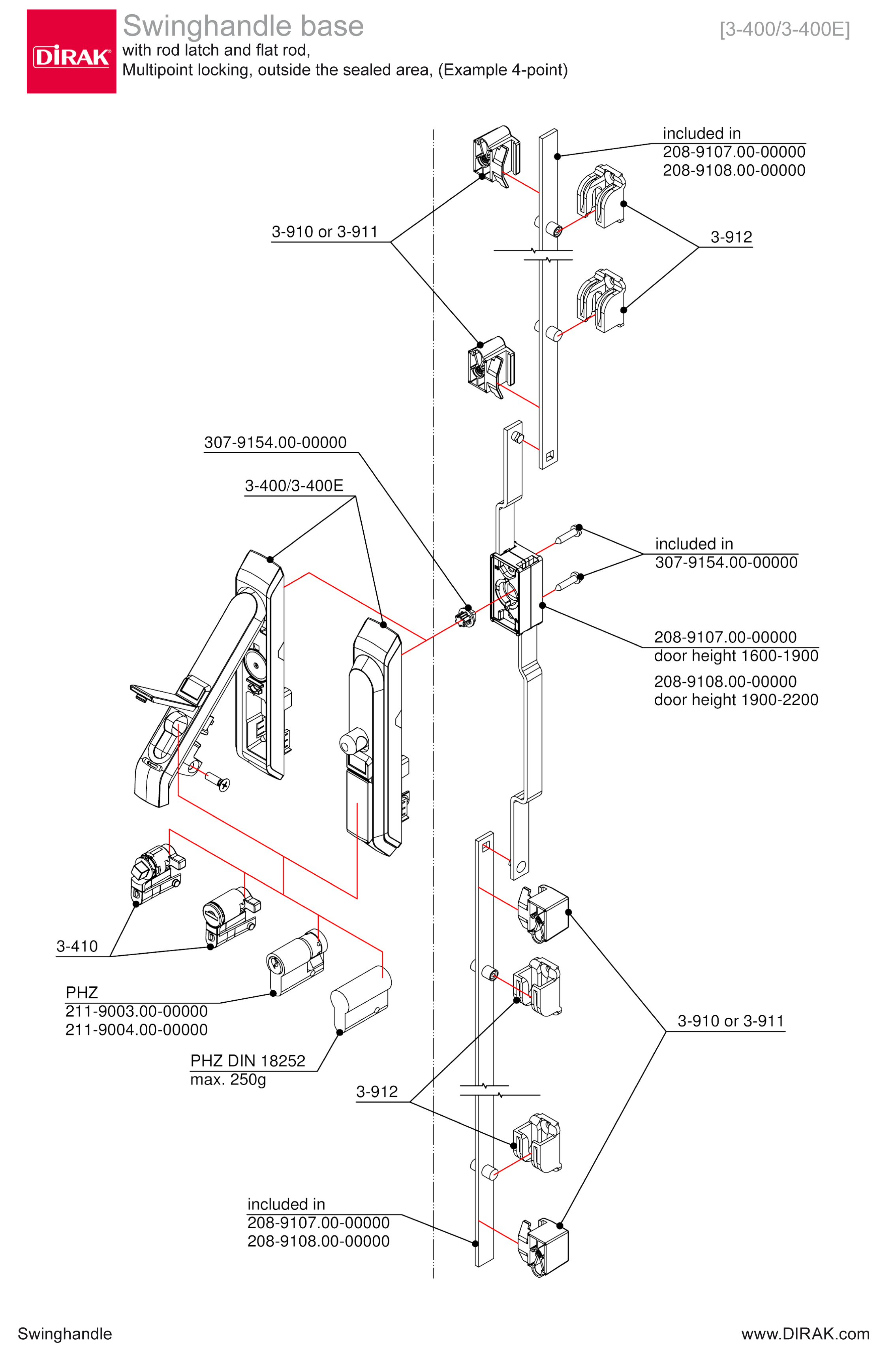

Rod latch and cam adapter is not combinable with negativly cranked cams.

Profile half cylinders and their assembly must be ordered separately.
