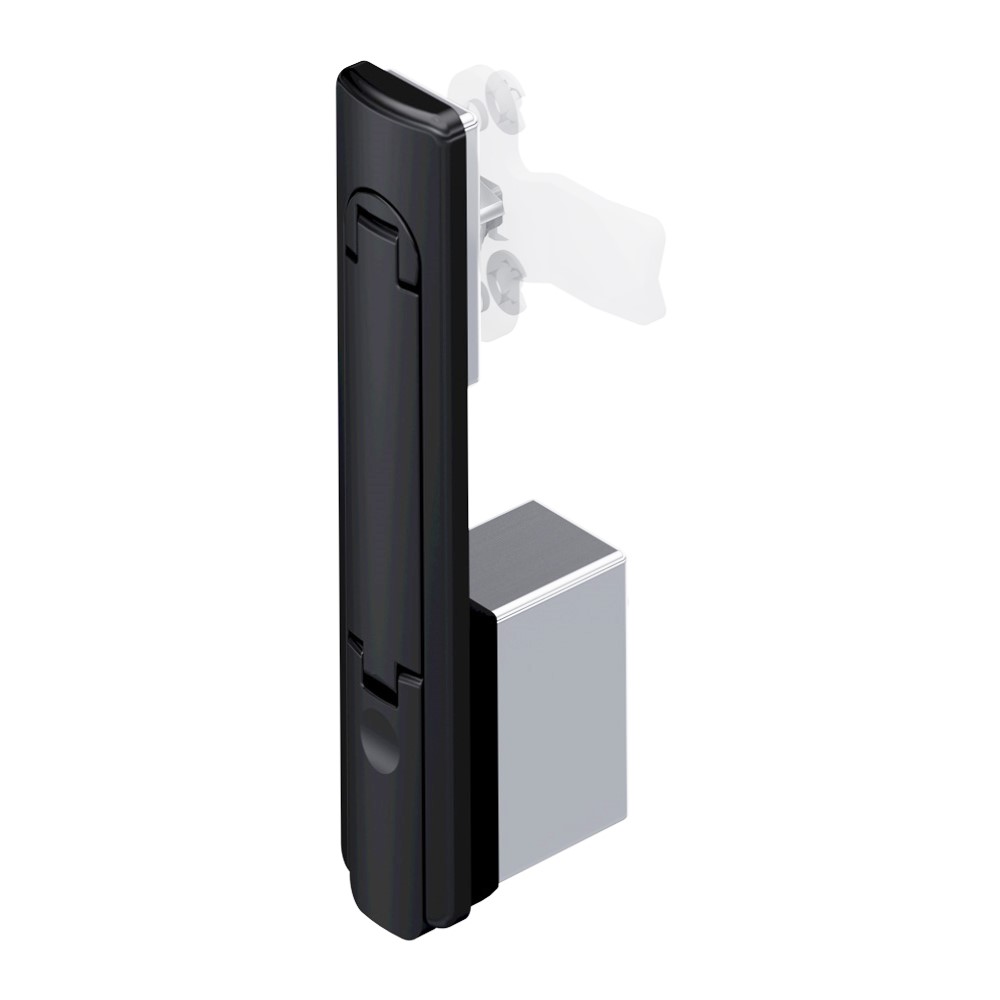

NT Swinghandle RS PrC

ICON_TUERANSCHLAG_LR

ICON_PZ_DIN_18252

ICON_RUNDSTANGE

ICON_CUTOUT_PR_C

ICON_DIRAK_GEERDET

Advantages

Extremely narrow gap.
Handle spring-loaded, remains in the opening position.
The flush design prevents this swinghandle being used as climbing support.
IP65 according to DIN EN 60529.
RH / LH application.
Permanent magnet keeps the cylinder cover closed.
Grounding by grounding clip (optional).

Material

Handle, lifting hook: AISI 304
Dish, cap, carrier: zinc die
Cap sealing and o-ring: NBR

Remarks

(S) Door-thickness 1.5 - 2.5mm

Countersunk screws M5x16, for fastening the cylinder is included in the scope of delivery.
Interchangeable inserts for other locking devices on request.
Profile half cylinders and their assembly must be ordered separately.

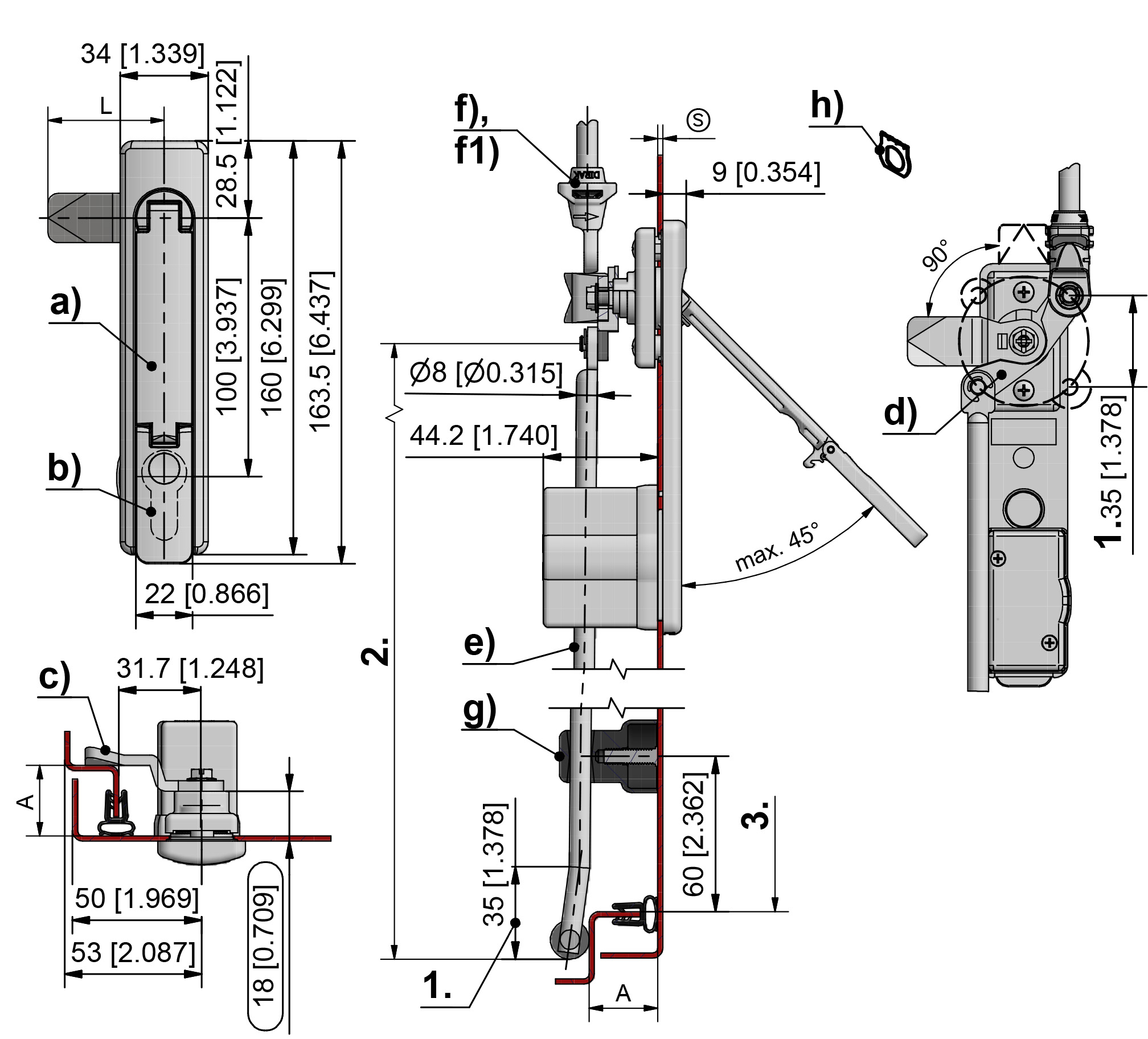

1. stroke 35mm
2. length L
3. clearance

Available versions

Swinghandle for profile cylinder

Product number

Latching type

Surface

Delivery Unit

307-9357.02-00000

Related Products

Assembly options

dirak_shop_montageoptionen_v1

207-0016.00-00000 Assembling of inserts / profile-cylinder

Accessories

b)

211-9003.00-00000 DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike

b)

211-9004.00-00000 DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different

c)

1-102 Cams L35/45 Steel

d)

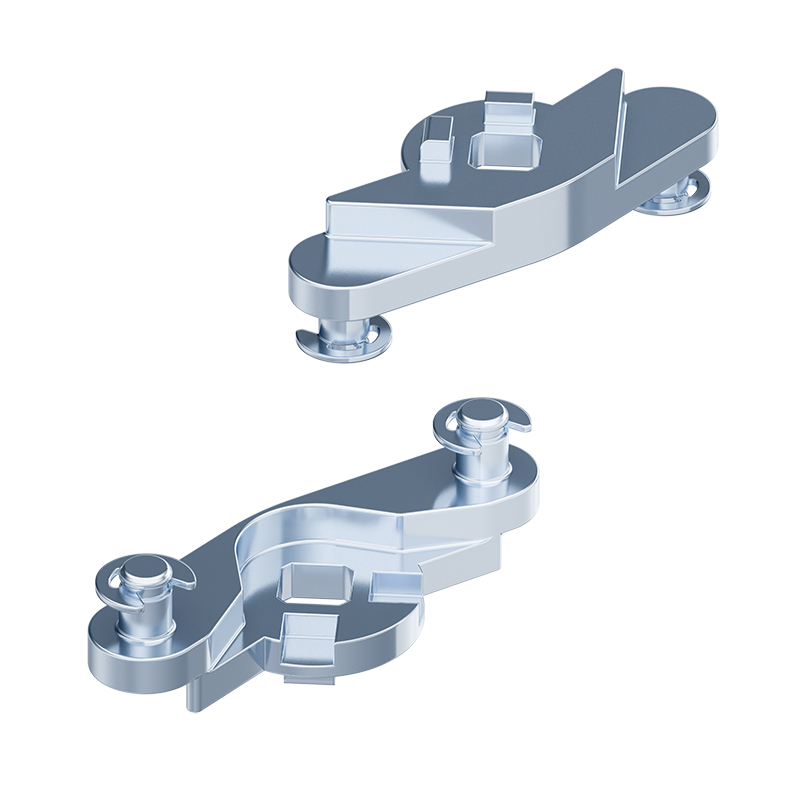

2-151.03 3-Point Cam Adapter 45° zinc die

e)

1-170 Round Rods with Eye

e)

1-180 Round Rods for Adapter

f)

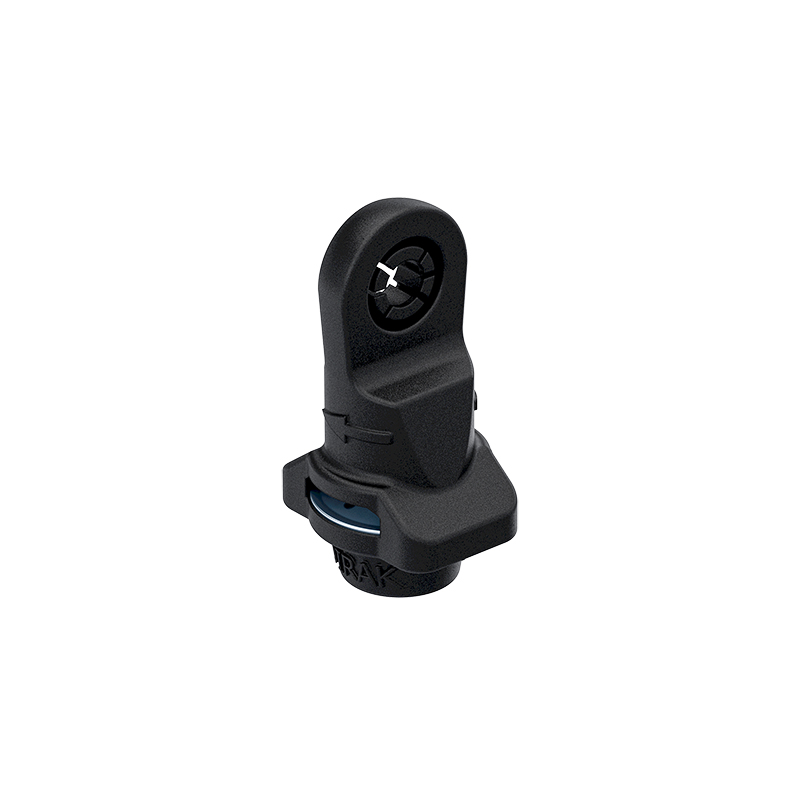

1-181 Adapter for Round Rods Ø8mm PA

f1)

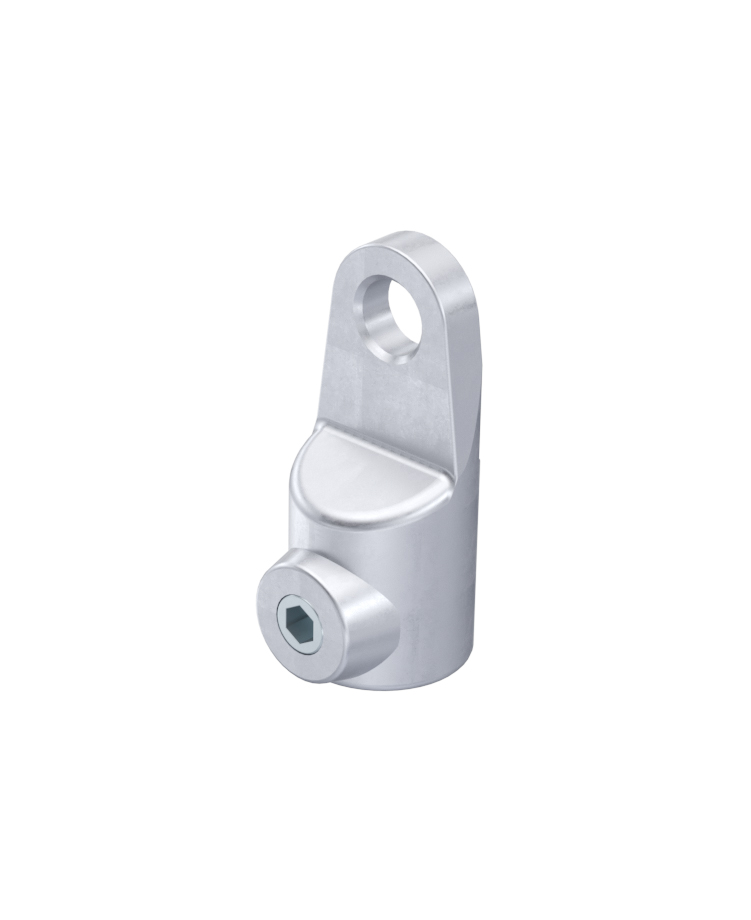

1-181.01 Adapter for Round Rods Ø8mm / Ø10mm Zinc Die

g)

200-3623.51-00000 Rod guide, hight 32mm

g)

200-3625.51-00000 Rod guide, hight 38mm

h)

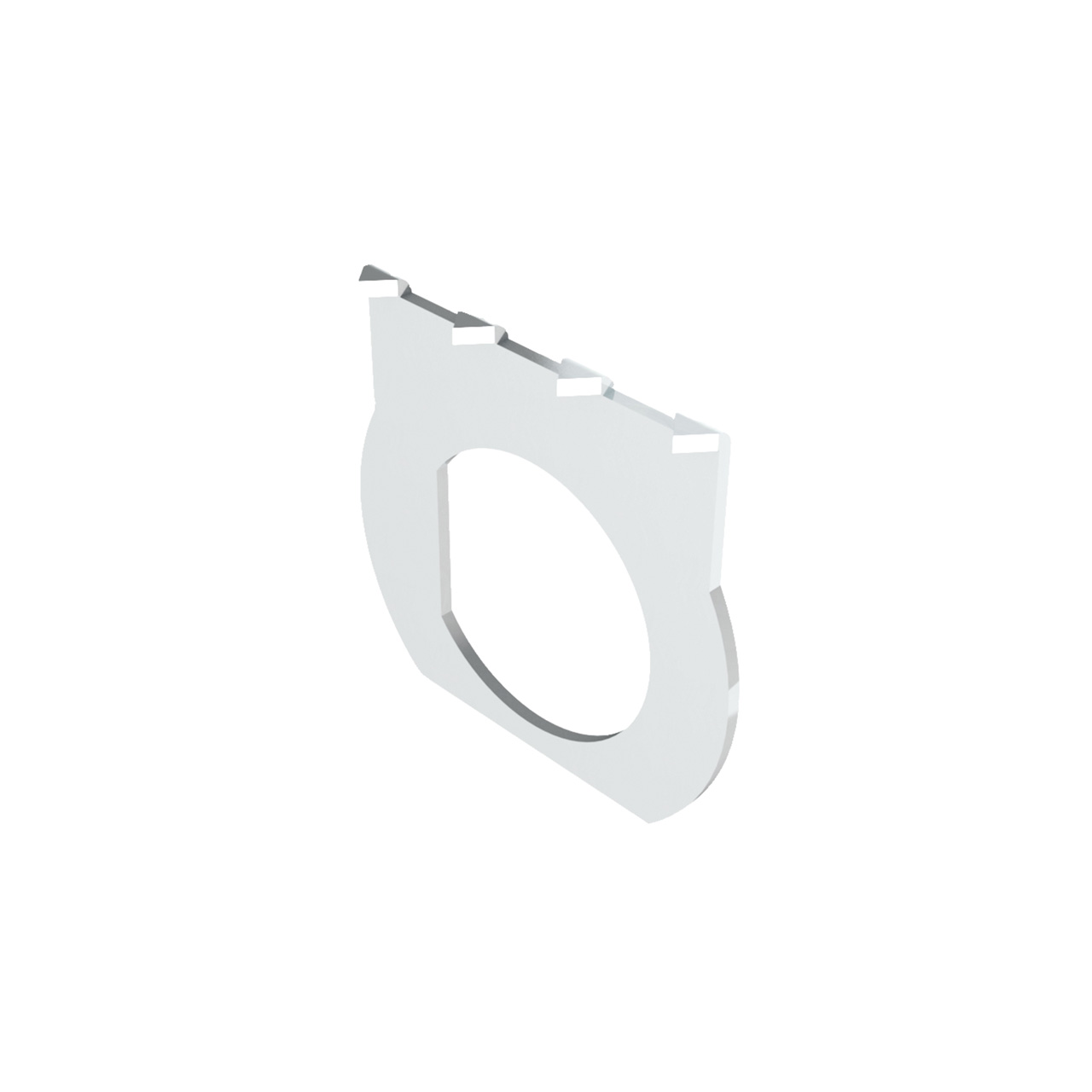

3-011 Grounding Clip Stainless Steel
