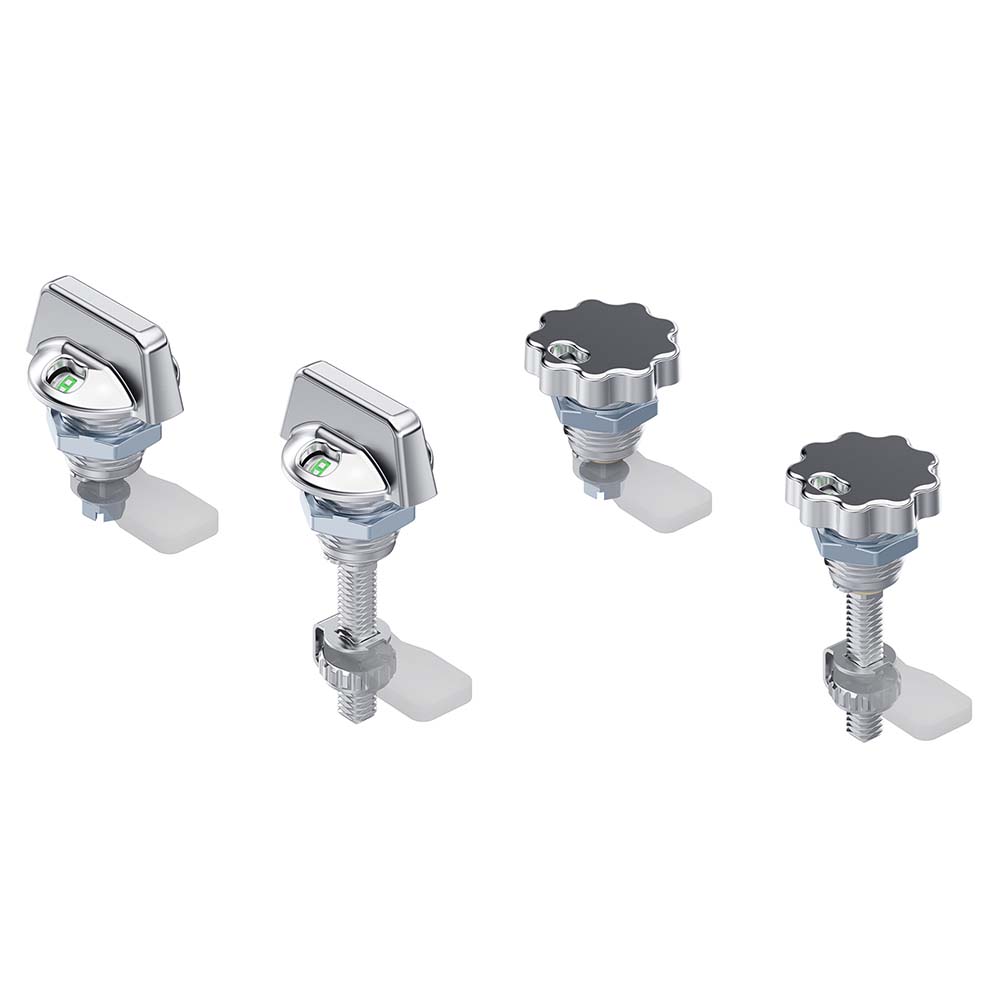

Compression Latch Pr20.1 with Wing Knob or Round Knob Stainless Steel

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_IP65_67
ICON_ROHS
ICON_DIN_61373
ICON_EDELSTAHL
ICON_TUERANSCHLAG_LR
7-089
E_7-089
7-089
E_7-089

Advantages

  • Compression 6mm.
  • Marking on the housing head open/closed in the form of a padlock, is differentiated by color.
  • Insert with viewing window.
  • Vibration-proof.
  • IP65/67 according to DIN EN 60529.
  • RH and LH version.
  • Grounding by single-sided grounding nut.
  • The H-dimension can be varied via the cranking of the cams.
  • The cam can be varied via
    H-dimension adjustment on the threaded square rod.

Material

  • Housing, insert, knurled wheel, threaded square rod and grounding nut: AISI 316
  • Catch: AISI 301

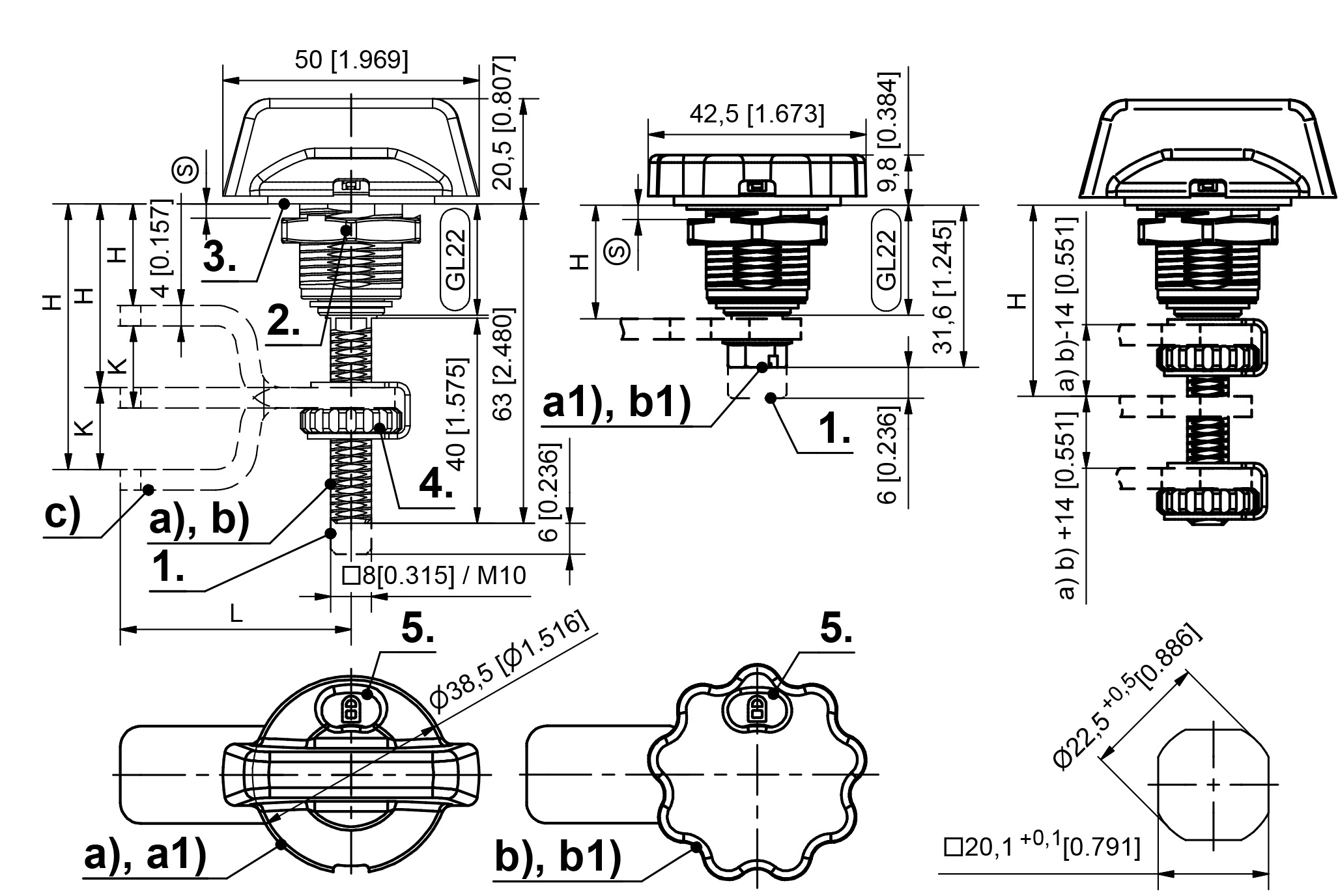

Remarks

(S) Door-thickness max. 12mm for GL22

1. compression 6mm
2. single-sided grounding nut
3. flat external seal
4. catch with knurled wheel
5. viewing window
Please select version Product data sheet

Related Products

Assembly options

dirak_shop_montageoptionen_v1
200-0006.00-00000 Assembling cam 90° to wing knob without o-ring
dirak_shop_montageoptionen_v1
200-0020.00-00000 Assembling cam, LH door
dirak_shop_montageoptionen_v1
200-0021.00-00000 Assembling cam, RH door

Accessories

c
7_105_01

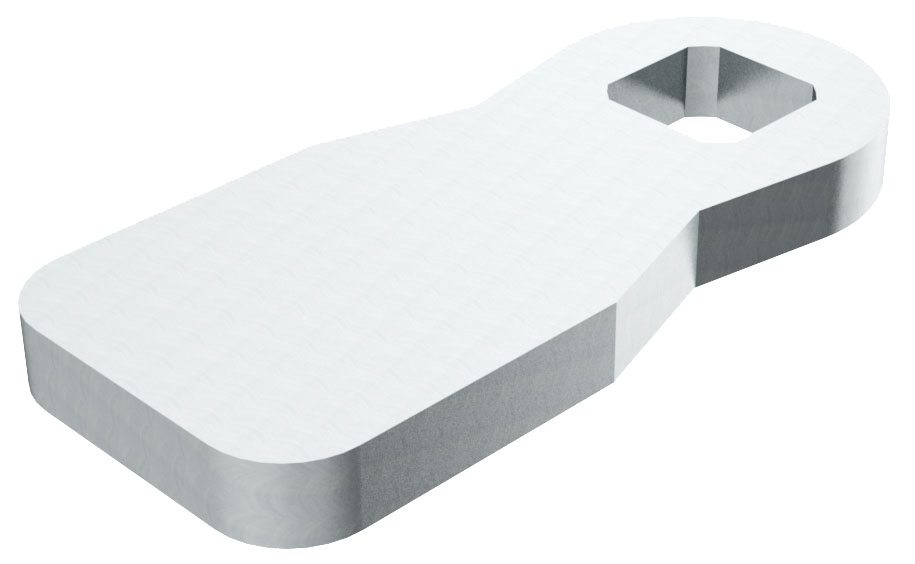

7-105.01 Cams L35/45 Stainless Steel
