[7-078]

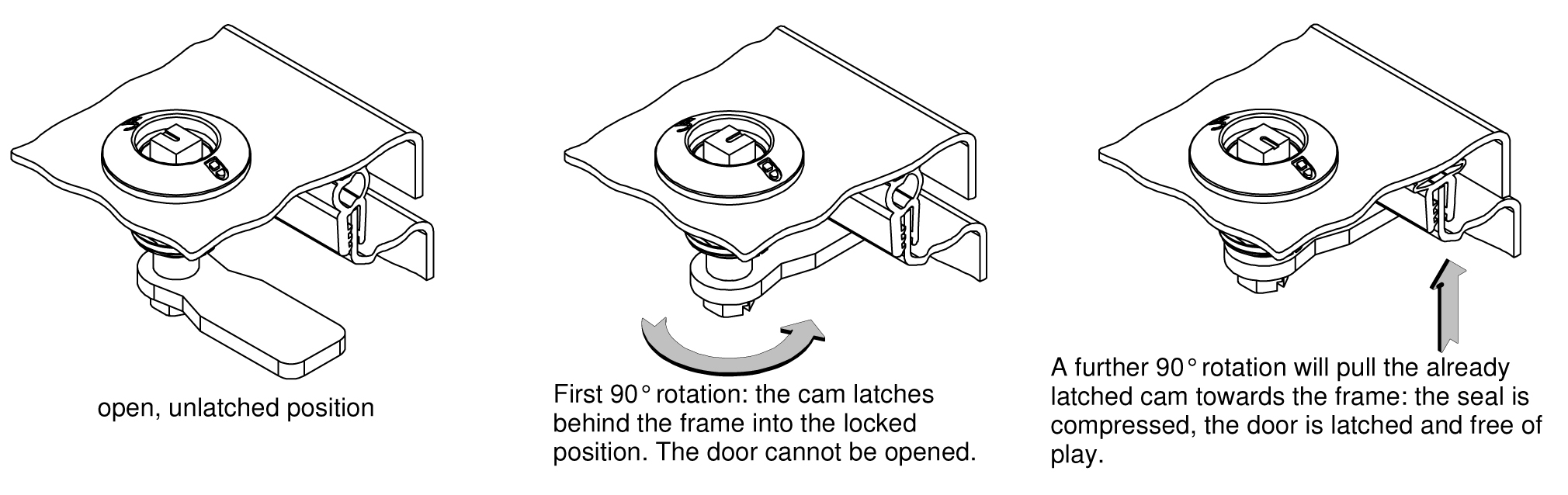

Compression Latch Pr20.1 L22/32 Stainless Steel
Available versions
Compression Latch with insert, version RH, closing left
Product number
Insert
Housing length
Door-thickness (S)
Installation type
Delivery Unit
a)
248-9043.00-03008
Square 8mm
22 mm
0 mm - 12 mm
screw-on
1 pc.
a)
248-9043.00-06008
Triangular 8mm
22 mm
0 mm - 12 mm
screw-on
1 pc.
a)
248-9043.00-09003
Double bit 3mm pin
22 mm
0 mm - 12 mm
screw-on
1 pc.
a)
248-9043.00-07007
Conical square 9mm
22 mm
0 mm - 12 mm
screw-on
1 pc.
b)
248-9100.00-00000
Square 6mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9101.00-00000
Square 7mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9102.00-00000
Square 8mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9103.00-00000
Double bit 3mm pin
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9104.00-00000
Double bit 5mm pin
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9105.00-00000
Triangular 6.5mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9106.00-00000
Triangular 7mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9107.00-00000
Triangular 8mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9108.00-00000
Conical square 9mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9109.00-00000
Hex. SW 11
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9110.00-00000
konischer Dreikant spitz, 7mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
Compression Latch with insert, version LH, closing right
Product number
Insert
Housing length
Door-thickness (S)
Installation type
Delivery Unit
a)
248-9042.00-03008
Square 8mm
22 mm
0 mm - 12 mm
screw-on
1 pc.
a)
248-9042.00-06008
Triangular 8mm
22 mm
0 mm - 12 mm
screw-on
1 pc.
a)
248-9042.00-09003
Double bit 3mm pin
22 mm
0 mm - 12 mm
screw-on
1 pc.
a)
248-9042.00-07007
Conical square 9mm
22 mm
0 mm - 12 mm
screw-on
1 pc.
b)
248-9150.00-00000
Square 6mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9151.00-00000
Square 7mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9152.00-00000
Square 8mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9153.00-00000
Double bit 3mm pin
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9154.00-00000
Double bit 5mm pin
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9155.00-00000
Triangular 6.5mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9156.00-00000
Triangular 7mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9157.00-00000
Triangular 8mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9158.00-00000
Conical square 9mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9159.00-00000
Hex. SW 11
32 mm
0 mm - 22 mm
screw-on
1 pc.
b)
248-9160.00-00000
konischer Dreikant spitz, 7mm
32 mm
0 mm - 22 mm
screw-on
1 pc.
