[7-067]

Compression Latch Pr19.1 L22/32 Stainless Steel

Advantages

Flat head shape.
The coloured marking on the casing top indicates the opened/closed position in form of a padlock.
Vibration-proof according to DIN EN 61373.
IP65/67 according to DIN EN 60529.
RH and LH version.
Grounding by single-sided grounding nut.

Material

Housing, insert, axle and grounding nut: AISI 316
Serrated screw: AISI 304
O-ring, flat external seal: NBR, schwarz

Remarks

Please configure the quarter-turn with a cam.

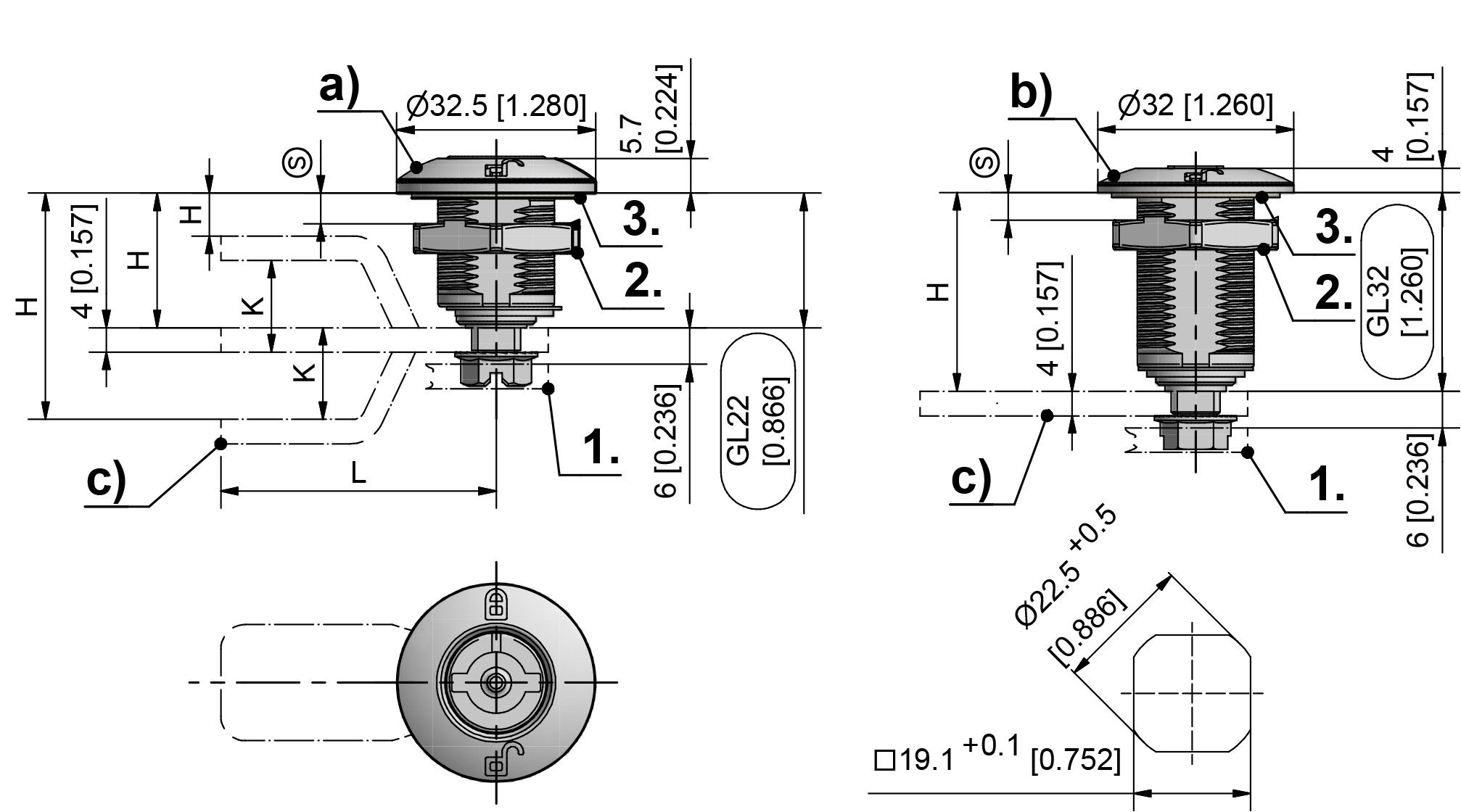

1. compression 6mm
2. single-sided griunding nut
3. flat external seal

Available versions

Compression Latch with insert, version RH, closing left

Product number

Insert

Housing length

Door-thickness (S)

Installation type

Delivery Unit

Compression Latch with insert, version LH, closing right

Product number

Insert

Housing length

Door-thickness (S)

Installation type

Delivery Unit

Related Products

Accessories

6-100 Wrenches and Keys

6-101 Universal key

7-105.01 Cams L35/45 Stainless Steel

Assembly options

200-0020.00-00000 Assembling cam, LH door

200-0021.00-00000 Assembling cam, RH door
