[1-056]

Quarter-Turn with Wing Knob Pr14.1 L13.5

ICON_MUTTER_5Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_CUTOUT_14_1
ICON_DIRAK_GEERDET
1_056
E_1-056
1_056
E_1-056

Advantages

  • For cutout 14.1, housing length 13.5, with cylinder.
  • RH / LH application.
  • Grounding by grounding nut.
  • A pre-assembled quarter-turn can be installed in the cutout.
  • All locks supplied with two keys.

Material

  • Wing knob and housing: zinc die, black or chrome plated

Remarks

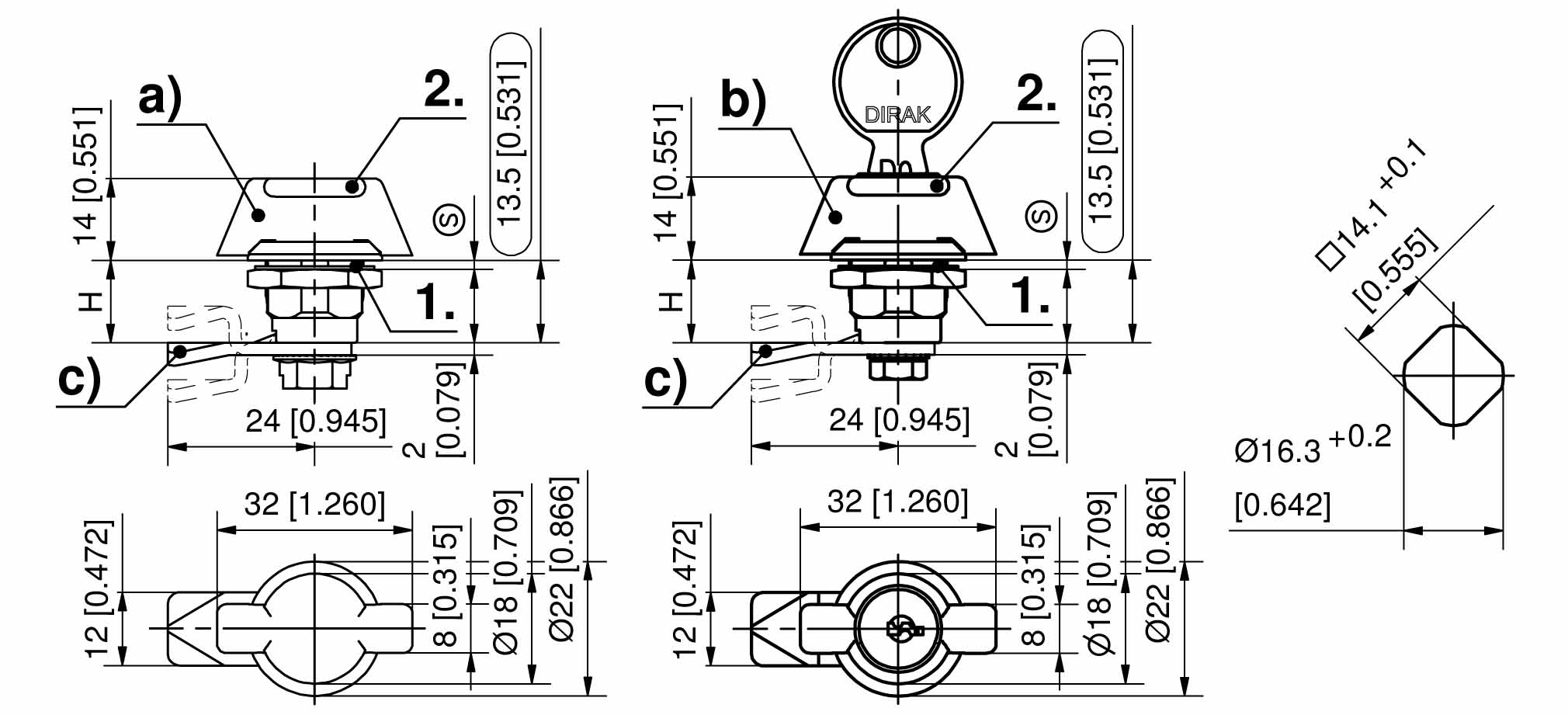

(S) Door-thickness max. 2.5mm

Please configure the quarter-turn with insert and cam.

1. flat external seal
2. grab-collar

Selected version

Product number 220-9301.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Grounding type: -
Surface: chrome plated
Latching type: -
CAD model
Remove selection Product data sheet

Related Products

Assembly options



Article no.
Name

220-0001.00-00000
Assembling cam without o-ring
Details
Name:
Assembling cam without o-ring
Delivery Unit:
1 pc.
Open product in new tab
220-0002.00-00000
Assembling cam with o-ring
Details
Name:
Assembling cam with o-ring
Delivery Unit:
1 pc.
Open product in new tab
220-0006.00-00000
Assembling cam 90° to wing knob without o-ring
Details
Name:
Assembling cam 90° to wing knob without o-ring
Delivery Unit:
1 pc.
Open product in new tab
220-0007.00-00000
Assembling cam 90° to wing with o-ring
Details
Name:
Assembling cam 90° to wing with o-ring
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

c
1-058
Cams for Quarter-Turn Pr14.1
Open overview in new tab
c
220-0501.00-00000
Cam, H-dimension 13.5mm
Details
Stop:
Yes
H-dimension:
13,5 mm
Length:
24 mm
Delivery Unit:
10 pcs.
Open product in new tab
c
220-0502.00-00000
Cam, H-dimension 19.5mm
Details
Stop:
Yes
H-dimension:
19,5 mm
Length:
24 mm
Delivery Unit:
10 pcs.
Open product in new tab
c
220-0503.00-00000
Cam, H-dimension 7.5mm
Details
Stop:
Yes
H-dimension:
7,5 mm
Length:
24 mm
Delivery Unit:
10 pcs.
Open product in new tab
c
220-10LL.00-Hxxmm
Cam, variable
Details
Stop:
Yes
H-dimension:
Length:
Delivery Unit:
on request
Open product in new tab
c
220-20LL.00-Hxxmm
Cam, variable
Details
Stop:
No
H-dimension:
Length:
Delivery Unit:
on request
Open product in new tab

Product Configuration

Selected version

Product number 220-9301.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Grounding type: -
Surface: chrome plated
Latching type: -
