[7-076.01]

Quarter-Turn with Slam Cam Pr20.1 Stainless Steel

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_MUTTER_15Nm
ICON_ROHS
ICON_EDELSTAHL
ICON_TUERANSCHLAG_LR
7_076_01
E_7-076_01_1
E_7-076_01_2
7_076_01
E_7-076_01_1
E_7-076_01_2

Advantages

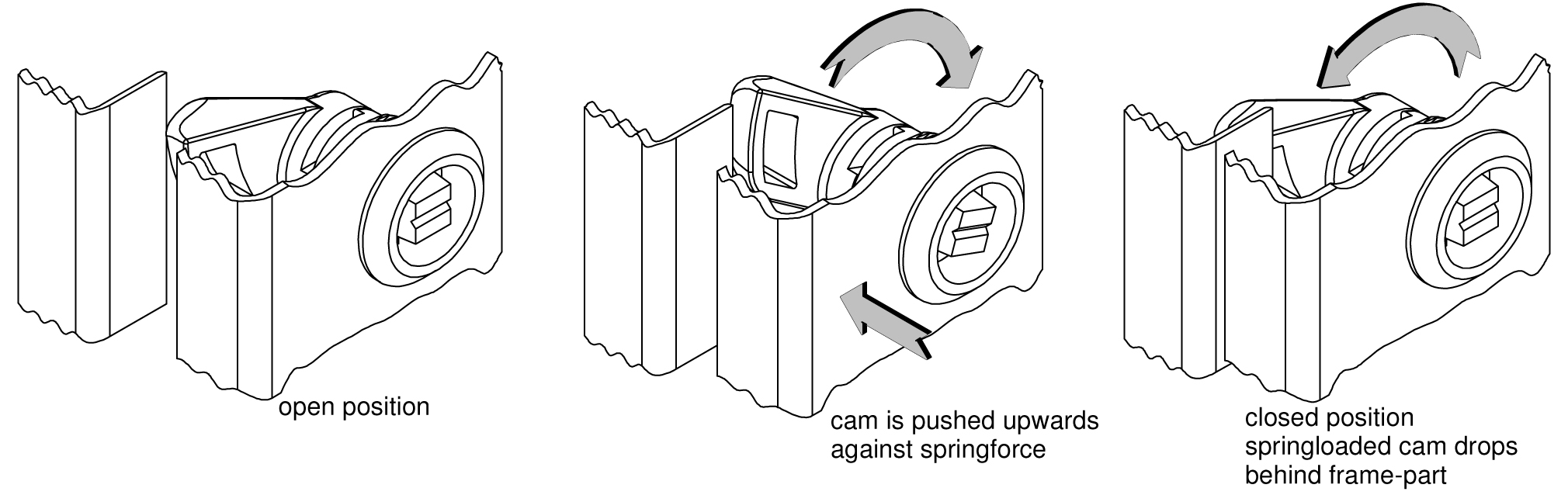

  • For slam-to-close doors.
  • Latching without key or tool.
  • RH and LH version.
  • Grounding by grounding nut.
  • The slam cam constists of a cam, a spring and a M6x10 hex. screw with underhead serrations and self securing powder dot.

Material

  • Housing and insert: AISI 303
  • Slam cam and grounding nut: AISI 316
  • Spring and serrated screw: stainless steel
  • Flat external seal: NBR/Perbunan

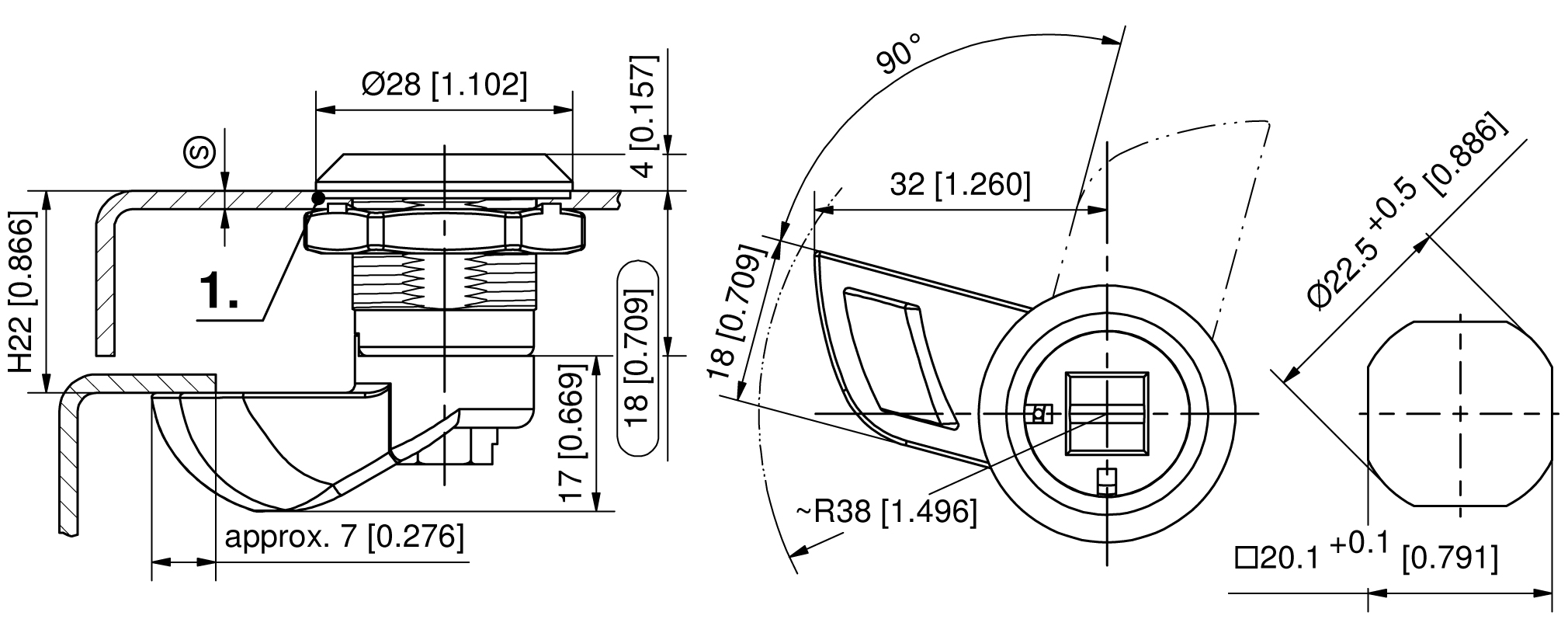

Remarks

(S) Door-thickness max. 6mm

1. flat external seal

Selected version

Product number 200-8289.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Insert: Conical square 9mm
H-dimension: 22 mm
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

6-105
Keys for the Railway Sector
Open overview in new tab
204-0702.80-00000
Railway key
Details
Name:
Railway key
Insert:
Universal
Delivery Unit:
1 pc.
Open product in new tab
701-7049.80-00000
Wrench
Details
Name:
Wrench
Insert:
Conical square 9mm
Delivery Unit:
1 pc.
Open product in new tab
204-0126.00-00000
Wrenches and Keys
Details
Name:
Wrenches and Keys
Insert:
Socket square 7.6mm
Delivery Unit:
10 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 200-8289.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Insert: Conical square 9mm
H-dimension: 22 mm
