[1-120 m.tec.]

m.tec. Quarter-Turn Pr20.1

Advantages

Low profile design.
High locking security.
Tamper-proof.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.

Material

Quarter-Turn: zinc die, powder coating, black
Cam: steel, zinc plated or AISI 304
Key: PA, black

Remarks

Door-thickness 1-8mm

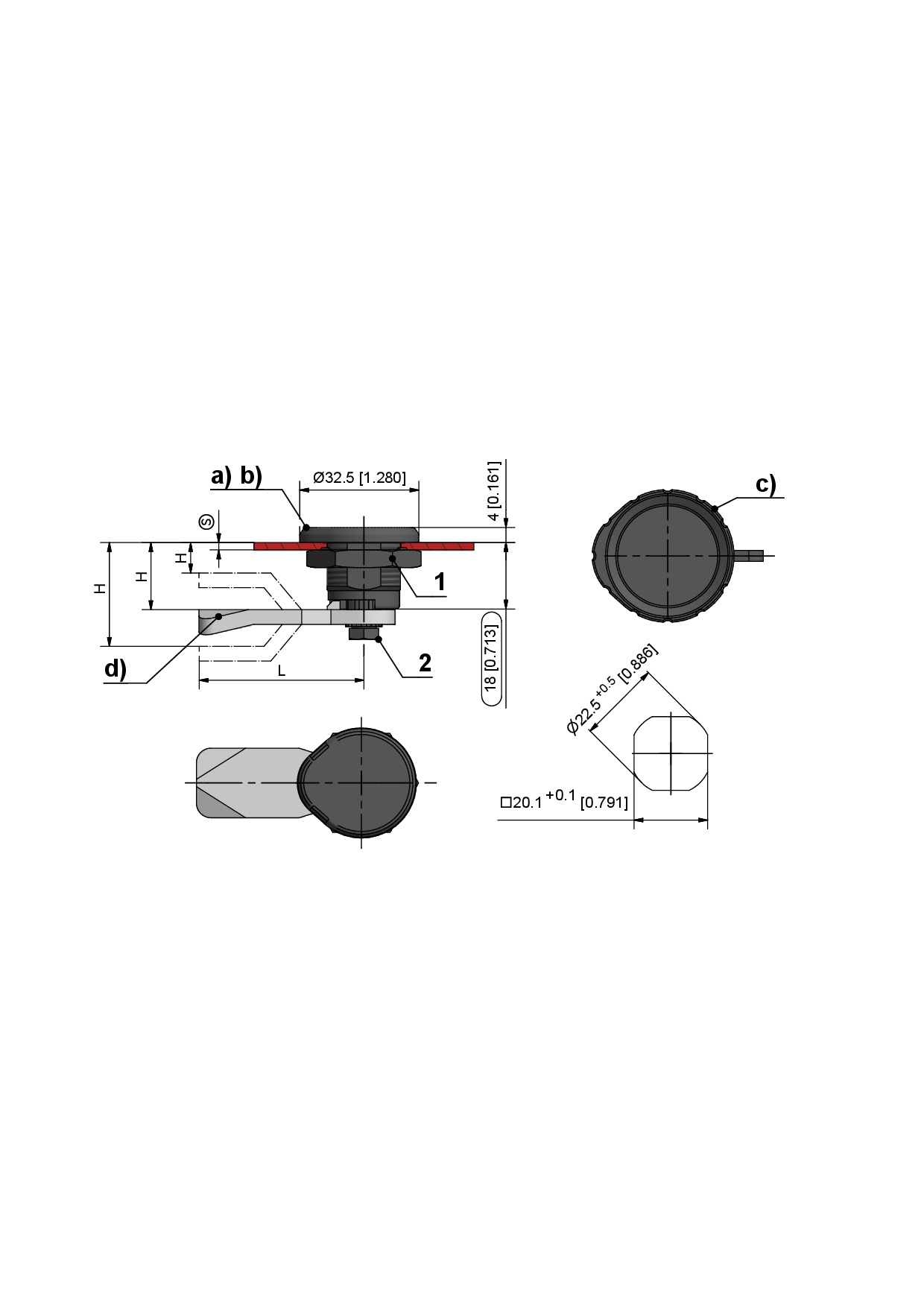

a) keyed different incl. 1 key
b) keyed alike without key, please order key c) separately
Further keys on request.

Please configure the quarter-turn with a cam. (PS 1-102).
The quarter-turn can only be delivered with cam assembled.
The quarter-turn can be screwed into the cutout with the pre-assembled cam.
Attention: xx= H-dimension, see product system 1-102
H-dimension of the cam not less than 10mm!

1.) tightening torque 8Nm
2.) do not disassamble the quarter-turn
