Compression Latch Pr20.1 L22

ICON_CUTOUT_20_1
ICON_DIRAK_FOAMED_SEAL
ICON_IP65_67
ICON_MUTTER_15Nm
ICON_ROHS
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
ICON_DIRAK_GEERDET

Advantages

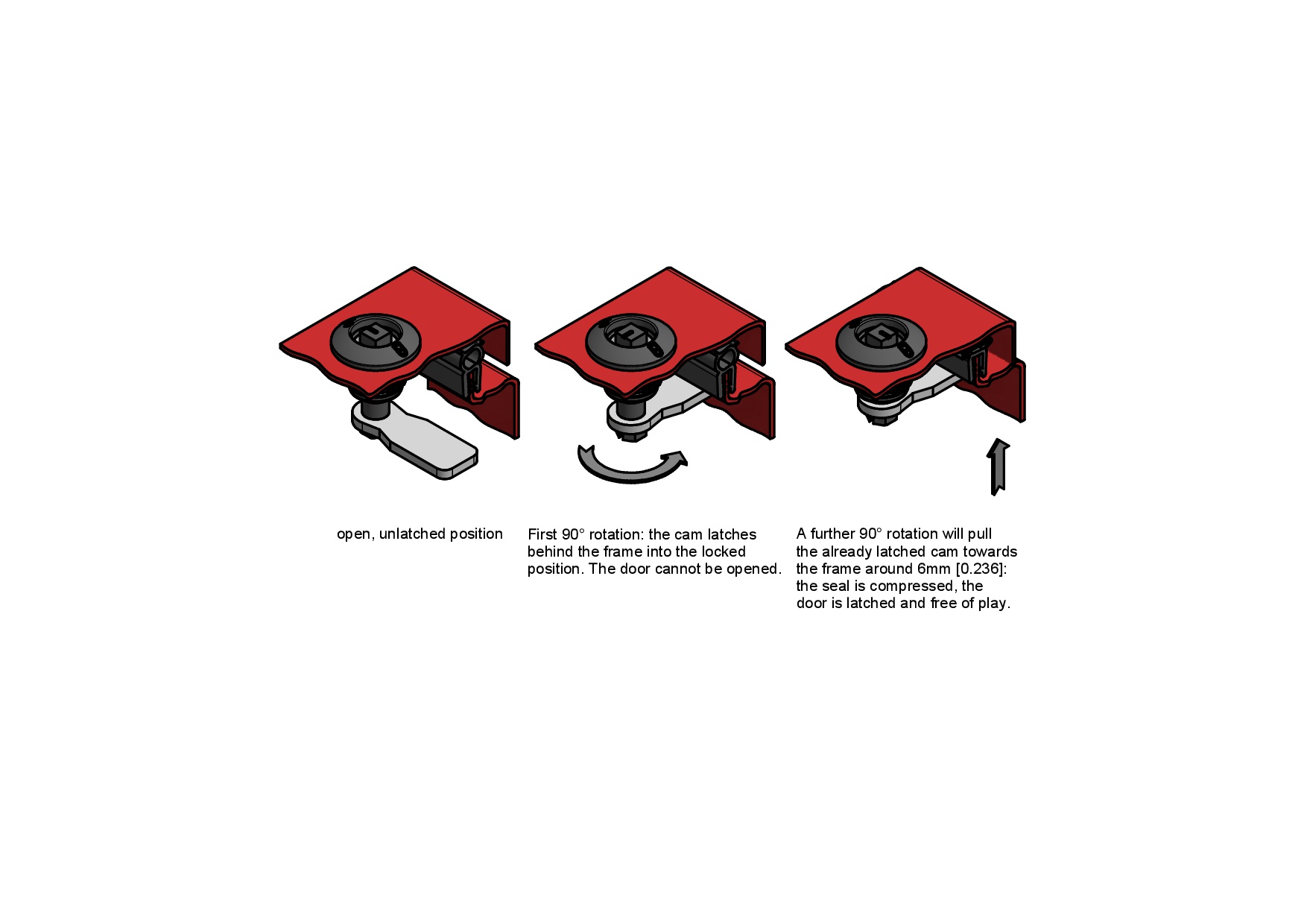

  • Compression 6mm.
  • Flat head shape.
  • The coloured marking on the casing top indicates the opened/closed position in form of a padlock.
  • Inserts with coloured marking.
  • Vibration-proof according to DIN EN 61373.
  • IP65/67 according to DIN EN 60529.
  • Grounding by single-sided grounding nut.
  • RH version. Other variants available on request.
  • The H-dimension can be varied via the cranking of the cams.

Material

  • Housing, insert: zinc die, black matt powder-coated
  • Axis, nut: steel, zinc plated
  • Grounding nut: zinc die, untreated

Remarks

(S) Door-thickness max. 12mm

Please configure the quarter-turn with a cam.
Negatively bent cams can not be installed pre-assembled.

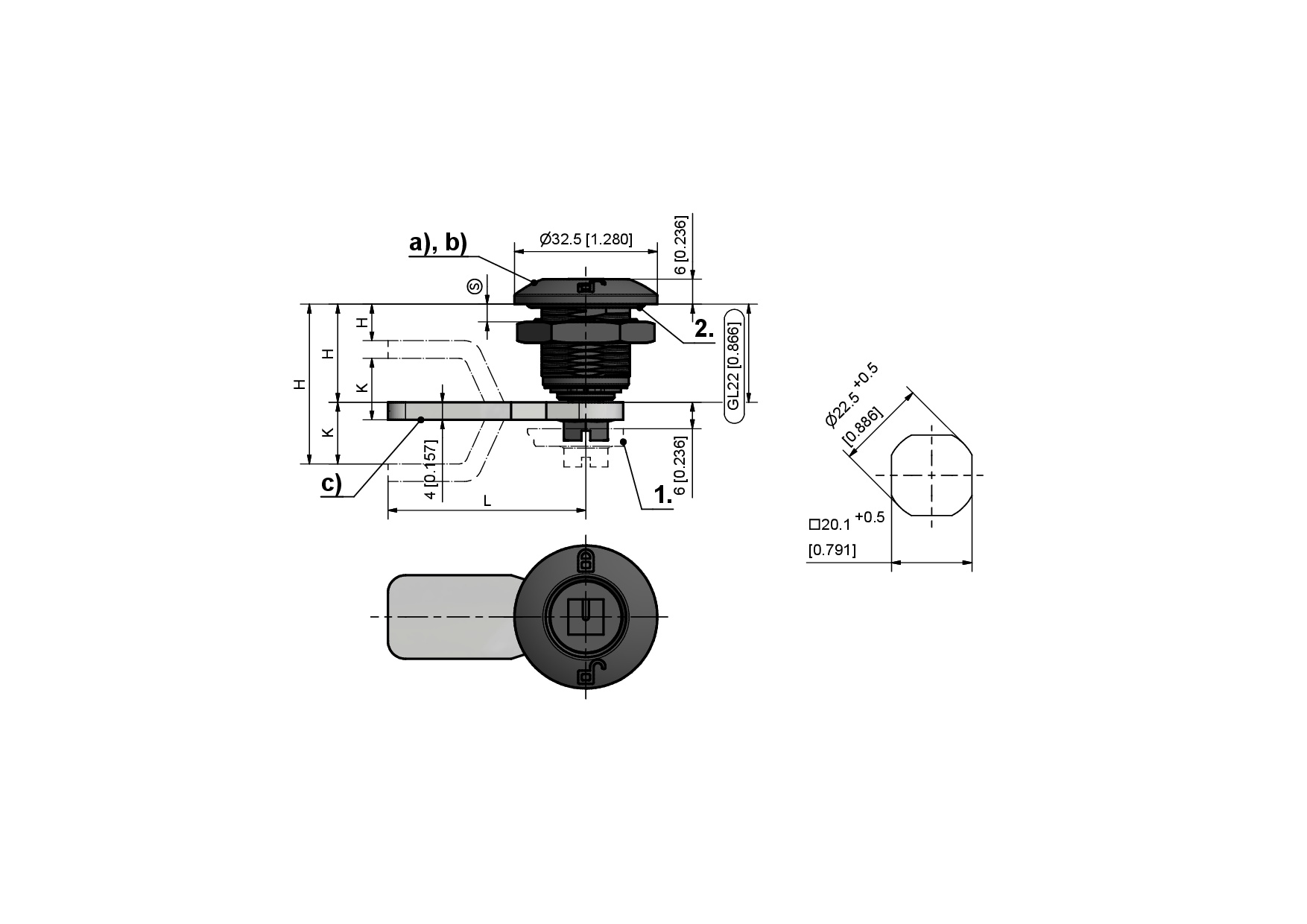

1. compression 6mm
2. foamed sealing PUR
Please select version Product data sheet

Available versions

Compression Latch Pr20.1 L22


Product number
Insert
Installation type
a)
148-9802.04-01201 RH
Square 8mm
screw-on

Related Products

Accessories

1_102_01
100-0545.15-00018 Cam, bent 18mm
1_270
200-4103.00-00000 Dust cap
1_275
200-4601.00-00000 Anti-rotation device, zinc die zinc plated
1_275
200-4601.02-00000 Anti-rotation device, zinc die black
6_100
204-0501.00-00000 Wrench, square 6mm
1_101
200-9127.00-00000 square 6mm, zinc die, black

Assembly options

dirak_shop_montageoptionen_v1
200-0021.00-00000 Assembling cam, RH door
