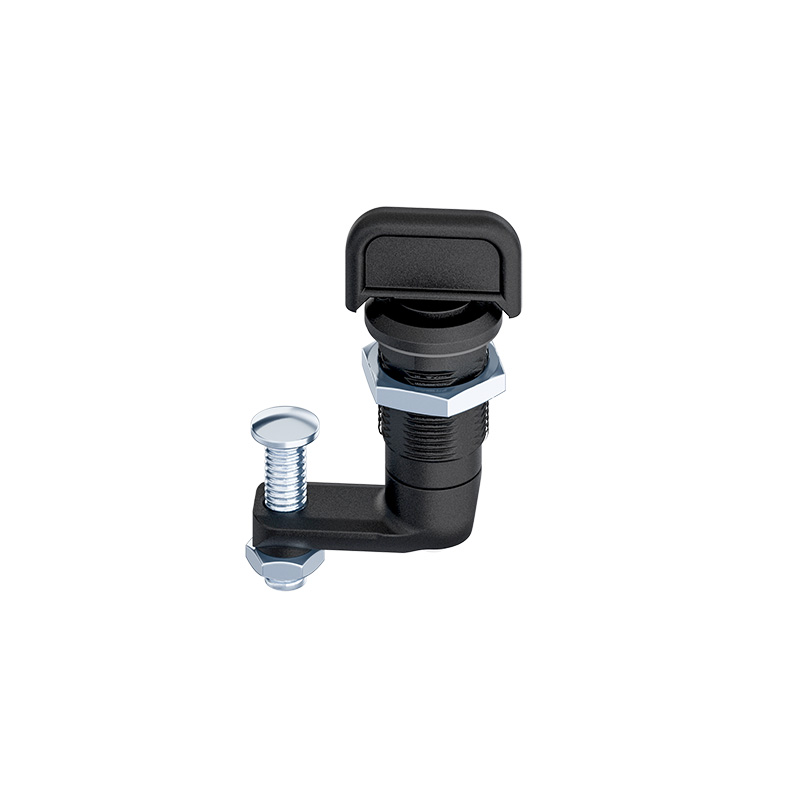

Compression Latch Pr14.1

ICON_MUTTER_5Nm

ICON_TUERANSCHLAG_LR

ICON_CUTOUT_14_1

Advantages

4.5mm compression.
The closing process is always clockwise.
By turning the insert 90° the cam is first put into closed position, by turning an additional 90°, the cam will be pulled towards the frame.
The H-dimension can be easily adjusted by the adjusting screw.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.
RH / LH application.
A pre-assembled quarter-turn can be fitted through the cutout.

Material

Housing, insert shaft and cam: zinc die, black
T-handle: PA, black
Adjusting screw and nut: steel, zinc plated

Remarks

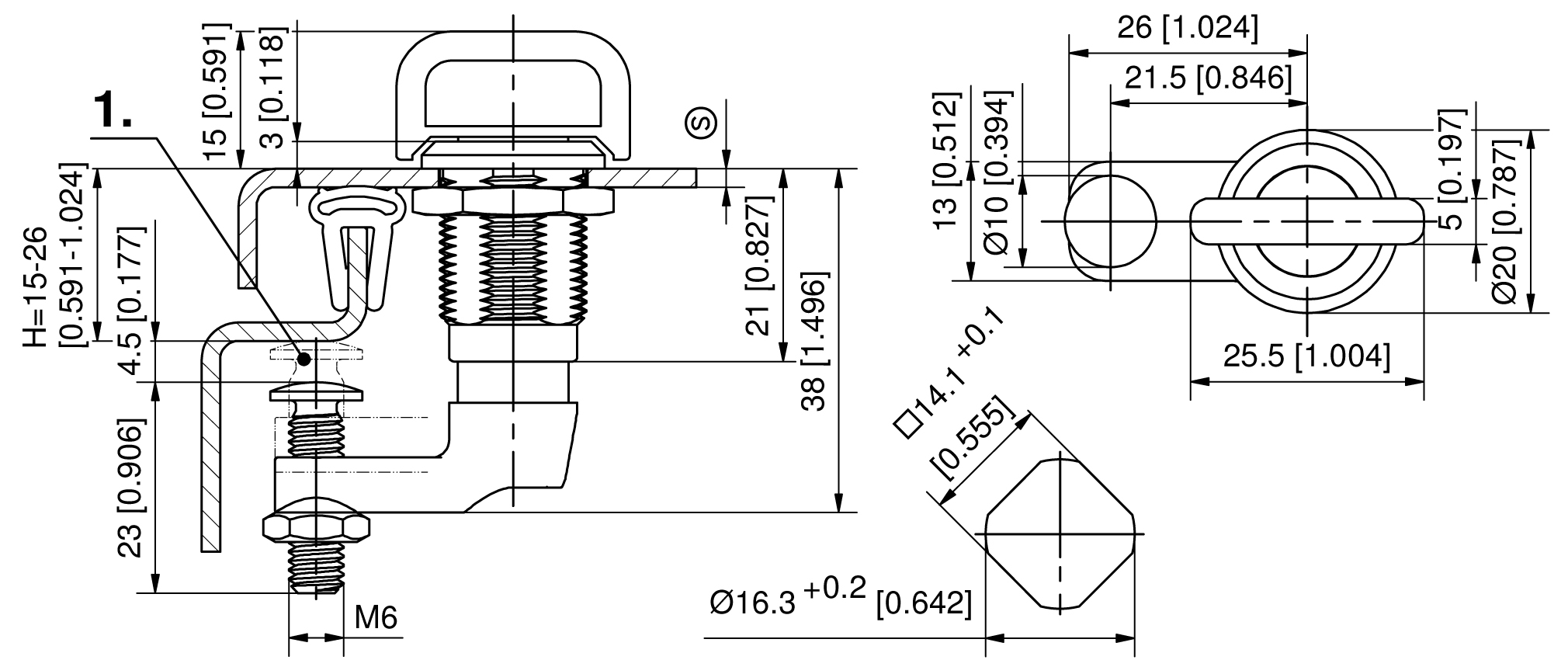

(S) Door-thickness max. 12mm

1. adjusting screw

Available versions

Compression Latch

Product number

Insert

variable H-dimension

Construction depth

Installation type

Delivery Unit

220-9313.00-00000

220-9317.00-00000

220-9318.00-00000
