Swinghandle FS PrC

ICON_DIRAK_FOAMED_SEAL
ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_FLACHSTANGE
ICON_DIRAK_GEERDET
3_149
E_3-149
3_149
E_3-149

Advantages

  • Low profile design.
  • Key cylinder DIRAK 1333 with stainless steel dust-shutter and 2 keys.
  • Captive seal.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Grounding by grounding clip (optional).

Material

  • Swinghandle: zinc die, black
  • Dish, cam: PA6, black
  • O-ring: NBR Perbunan, black

Remarks

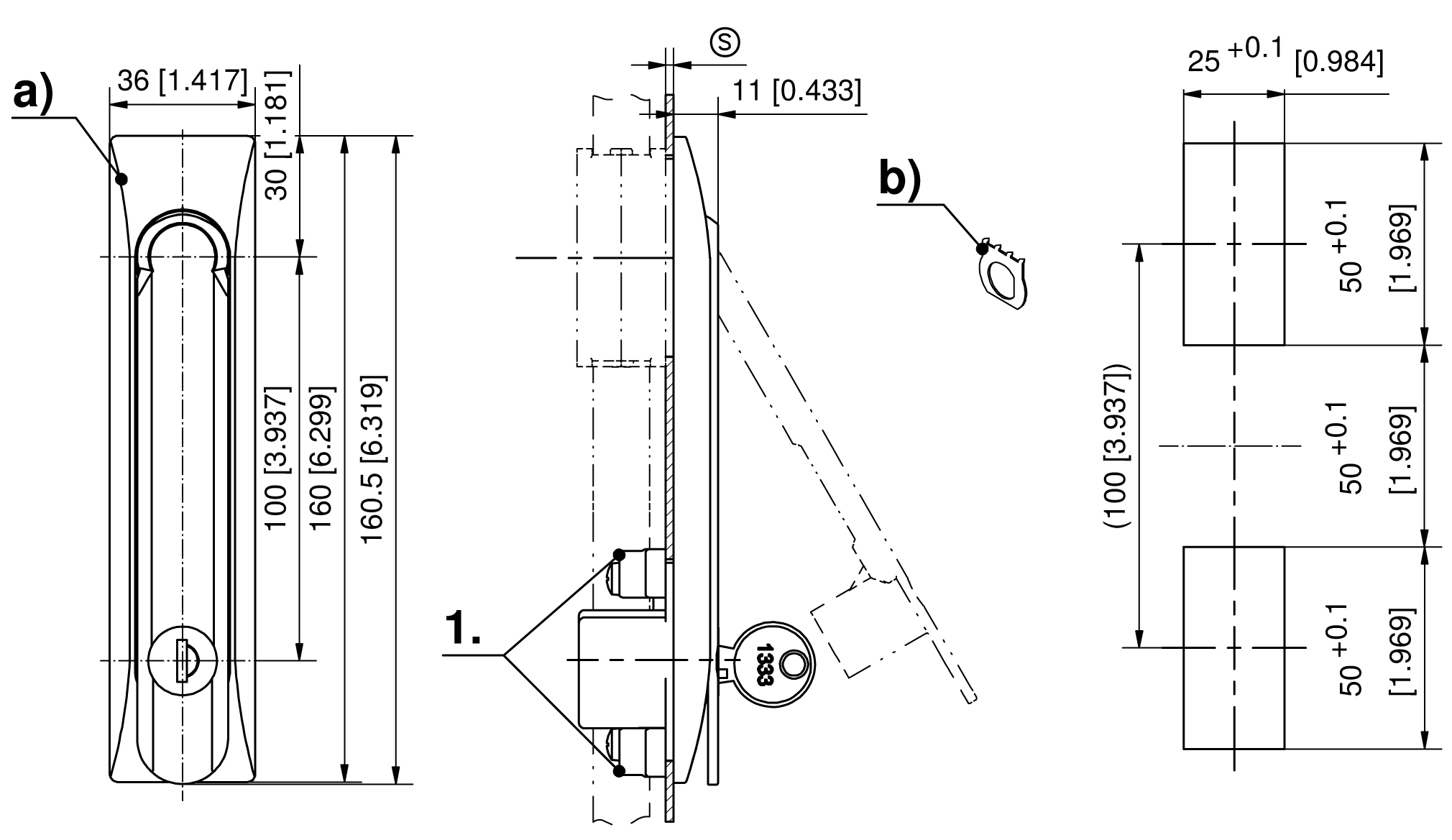

(S) Door-thickness max.2mm

1. fastening bracket

Selected version

Product number 352-2165.00-00004
Delivery Unit: 1 pc.
Installation type: screw-on
Latching type: keyed alike DIRAK 1333
CAD model
Remove selection Product data sheet

Related Products

Function extension



Article no.
Name

b)
3-011
Grounding Clip Stainless Steel
Open overview in new tab
b)
208-1206.93-00000
Grounding Clip Stainless Steel
Details
Delivery Unit:
1 pc.
Open product in new tab
3-130
Rod Latch FS PrC
Open overview in new tab
208-9002.00-00000
Rod latch zinc die, c-clip
Details
Material:
zinc die
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9052.00-00000
Rod latch PA, c-clip
Details
Material:
PA
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9003.00-00000
Rod latch zinc die, quick-fit
Details
Material:
zinc die
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9053.00-00000
Rod latch PA, quick-fit
Details
Material:
PA
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
3-132.02
Rod Latch RS PrC
Open overview in new tab
208-9015.00-00000
Rod latch
Details
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
3-165
Rod Latch FS PrC and Angle Pieces with Rollers
Open overview in new tab
208-9715.00-Lxxmm
Rod latch for right-angle terminal
Details
Version:
for inserts and swinghandles
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
on request
Open product in new tab
208-9902.00-00020
Right-angle terminal A20
Details
Name:
Right-angle terminal A20
Delivery Unit:
1 pc.
Open product in new tab
208-9902.00-00026
Right-angle terminal A26
Details
Name:
Right-angle terminal A26
Delivery Unit:
1 pc.
Open product in new tab
3-170
Rod Latch for Multi-Point Locking FS PrC
Open overview in new tab
208-9101.00-00000
Rod latch, 1-part
Details
Name:
Rod latch, 1-part
Door height Th:
800 mm - 1200 mm
Locking points:
2
Dual rollers A:
300
Dual rollers B:
-
Total dimension extended:
750
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9102.00-00000
Rod latch, 1-part
Details
Name:
Rod latch, 1-part
Door height Th:
1200 mm - 1600 mm
Locking points:
2
Dual rollers A:
450
Dual rollers B:
-
Total dimension extended:
1050
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9107.00-00000
Rod latch, 3-parts
Details
Name:
Rod latch, 3-parts
Door height Th:
1600 mm - 1900 mm
Locking points:
4
Dual rollers A:
275
Dual rollers B:
700
Total dimension extended:
1550
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9108.00-00000
Rod latch, 3-parts
Details
Name:
Rod latch, 3-parts
Door height Th:
1900 mm - 2200 mm
Locking points:
4
Dual rollers A:
275
Dual rollers B:
850
Total dimension extended:
1850
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 352-2165.00-00004
Delivery Unit: 1 pc.
Installation type: screw-on
Latching type: keyed alike DIRAK 1333

Selected additional products

[none]
