NT Swinghandle FS PrC Stainless Steel for PHZ

ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_PZ_DIN_18252
ICON_FLACHSTANGE
ICON_EDELSTAHL
ICON_CUTOUT_PR_C
ICON_DIN_EN_45545_3_E60_SCHWARZ
7_061
E_7-061_1
E_7-061_2
7_061
E_7-061_1
E_7-061_2

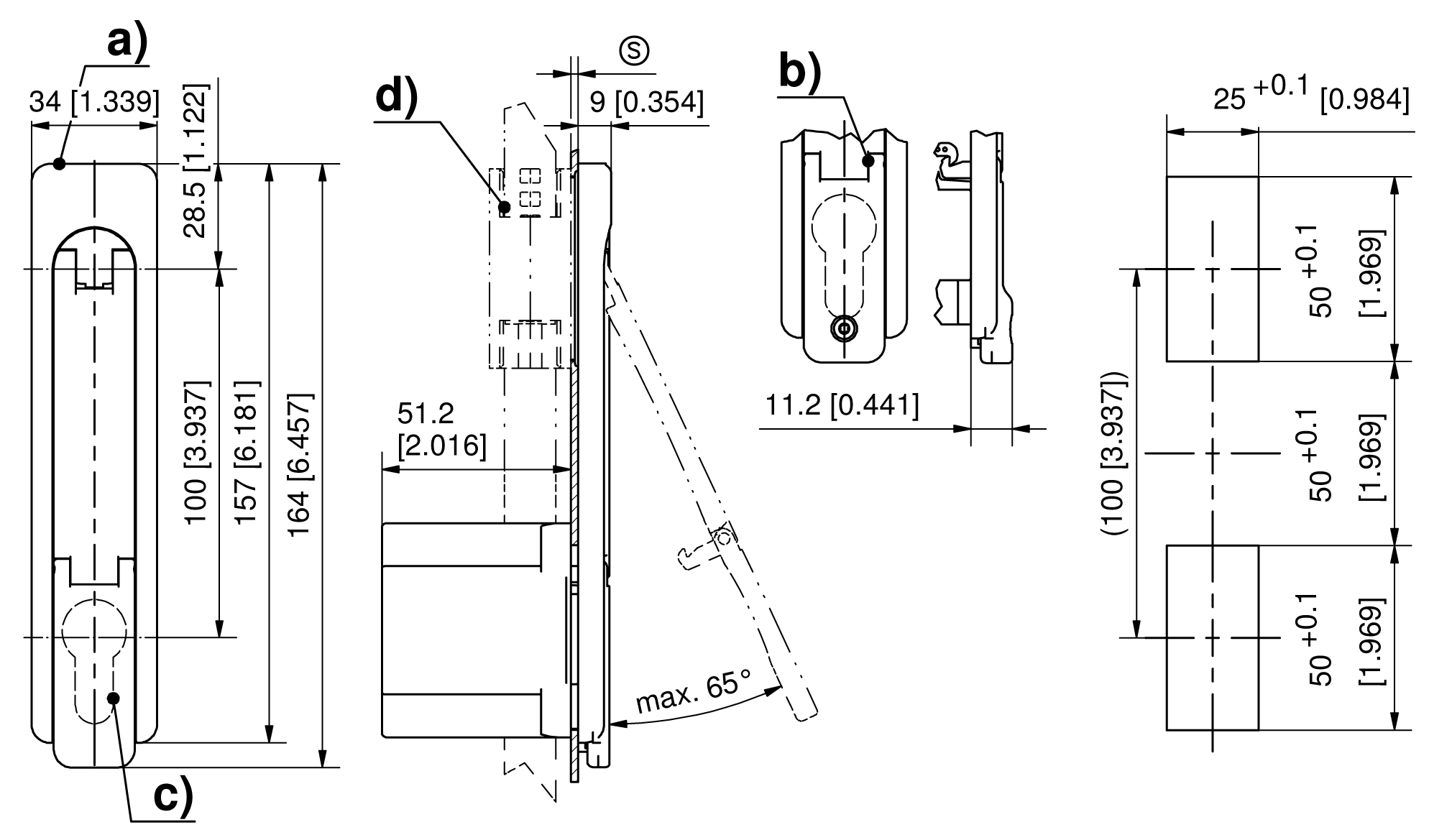

Advantages

  • Low profile swinghandle for profile-cylinder  application with rod latch see product system 7-040.
  • Protected against vandalism by extremly tight tolerances.
  • The flush design prevents this swinghandle being used as climbing support.
  • Locking cylinder fitted in the dish and protected against being forced through.
  • Bolted internal cap is made of stainless steel.
  • Fire protection tested with E60 classification according to DIN EN 45545-3.
  • IP65 according to DIN EN 60529.
  • RH / LH application.

Material

  • Dish, handle, cover, cap, rotating disk and locking bolt : AISI 316
  • Spring, pins and screws: stainless steel
  • Cap sealing: NBR
  • O-ring: NBR
  • Washer: PTFE- Teflon

Remarks

Door-thickness 1.5 - 2.5mm

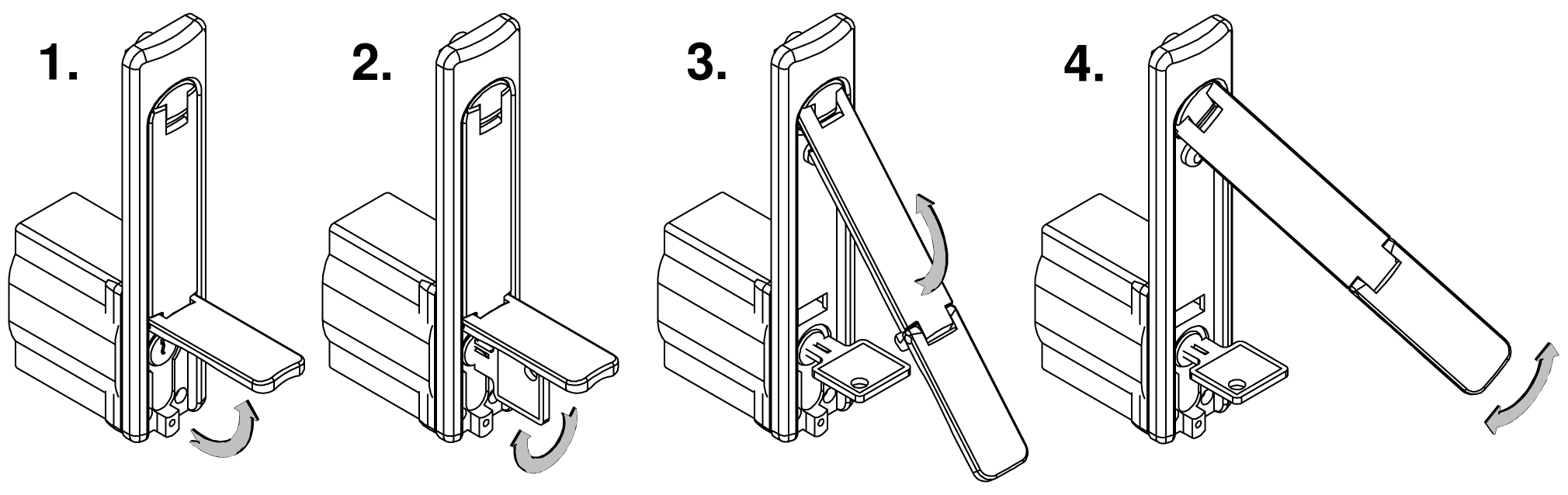

1. open cover
2. turn key
3. the swinghandle springs open
4. turn handle

Optional cylinder cover screwable by M3x6, drive TX10.

Profile half cylinders and their assembly must be ordered separately.

Selected version

Product number 307-9306.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Version: cover screw down
Cylinder cover: Yes
CAD model
Remove selection Product data sheet

Related Products

Assembly options



Article no.
Name

207-0016.00-00000
Assembling of inserts / profile-cylinder
Details
Name:
Assembling of inserts / profile-cylinder
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

c)
211-9003.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike
Details
Latching type:
keyed alike
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9004.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different
Details
Latching type:
keyed different
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
d)
7-040
Rod Latch FS PrC Stainless Steel
Open overview in new tab
d)
208-9024.00-00000
Rod latch
Details
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 307-9306.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Version: cover screw down
Cylinder cover: Yes

Selected additional products

[none]
