[3-136]

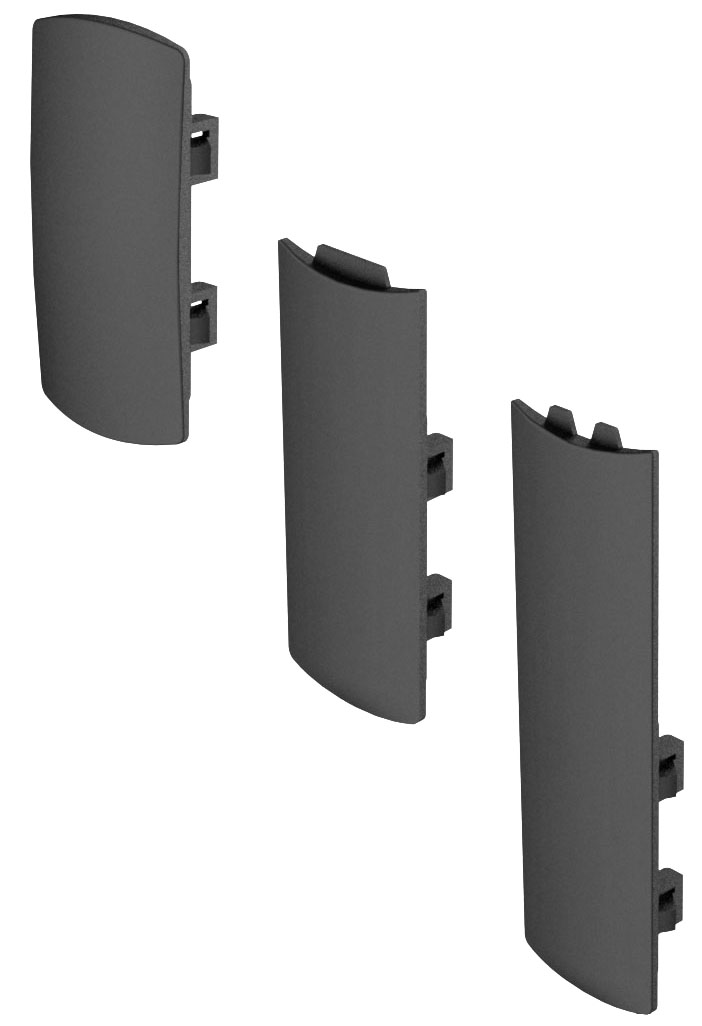

Cutout-Cover PrA / PrB / PrC

ICON_ROHS
ICON_WERKZEUGLOS
ICON_IP54
ICON_CUTOUT_PR_C
ICON_CUTOUT_PR_B
ICON_CUTOUT_PR_A
3_136SL
E_3-136
3_136SL
E_3-136

Advantages

  • Tool-less installation.
  • Cutout-cover c) PrA for doors / double doors with same cutout.
  • Extensions a) and b) for cutout PrB and PrC.
  • For sheet thicknesses from 1.5 to 3mm.
  • IP54 according to DIN EN 60529 (optional).

Material

  • Cutout-cover and escutcheon: PA, black

Remarks

Door-thickness 1.5 - 2.5mm

1. o-ring
2. e.g.: 1-100DST
             1-099
             3-135
3. example of application for double doors with equal cutouts
Please select version Product data sheet

Related Products

Accessories

839-3771_00-00935
208-1804.00-00000 O-ring 40 x 2.0mm
