NT Swinghandle FS PrC

ICON_TUERANSCHLAG_LR

ICON_PZ_DIN_18252

ICON_FLACHSTANGE

ICON_CUTOUT_PR_C

ICON_DIRAK_GEERDET

Advantages

Extremely narrow gap.
Handle spring-loaded, remains in the opening position.
The flush design prevents this swinghandle being used as climbing support.
IP65 according to DIN EN 60529.
RH / LH application.
Permanent magnet keeps the cylinder cover closed.
Grounding by grounding clip (optional).

Material

Handle, lifting hook: AISI 304
Dish, cap, carrier: zinc die
Cap sealing and o-ring: NBR

Remarks

(S) Door-thickness 1.5 - 2.5mm

Countersunk screws M5x16, for fastening the cylinder is included in the scope of delivery.
Interchangeable inserts for other locking devices on request.
Profile half cylinders and their assembly must be ordered separately.

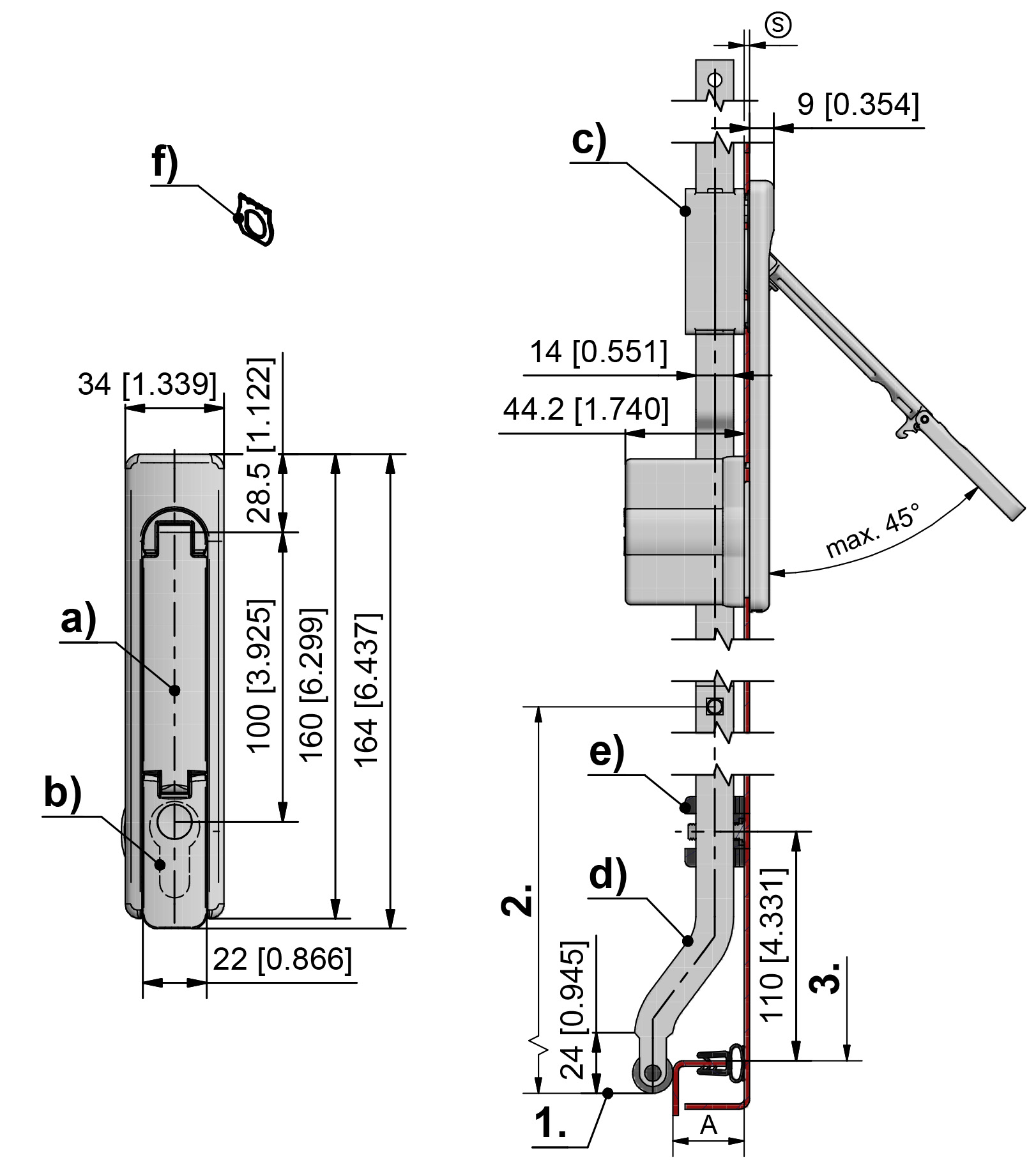

1. stroke 24mm
2. length L
3. clearance

Available versions

Swinghandle for profile cylinder

Product number

Latching type

Surface

Delivery Unit

307-9359.02-00000
