Escutcheon for Rod Latch PrA

ICON_IP65
ICON_ROHS
ICON_FLACHSTANGE
ICON_CUTOUT_PR_A
ICON_DIRAK_GEERDET
3_135
E_3-135
3_135
E_3-135

Advantages

  • Compatible with the rod latch system for cutout A, B and C.
  • By using the extension pieces the escutcheon PrA can also be used for cutouts PrB and PrC.
  • Polyamide - insert version, zinc die cast - insert and padlock version.
  • IP65 according to DIN EN 60529 (in combination with extensions IP54).
  • Grounding by grounding clip (optional).
  • The escutcheon is secured into the cutout with the rod latch.

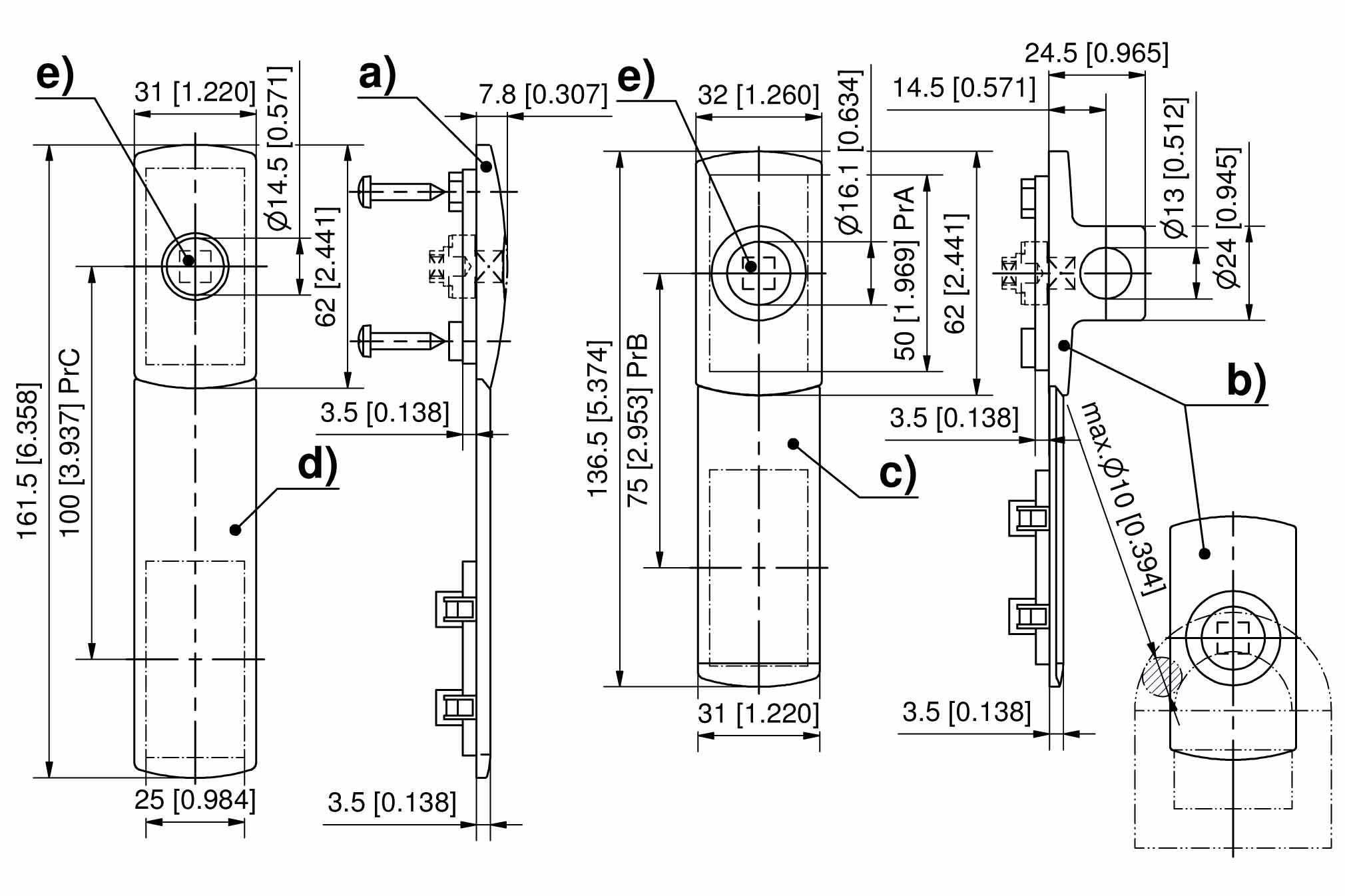

Material

a)
  • Escutcheon: PA, black
b)
  • Escutcheon for padlock: zinc die, black

Remarks

Door-thickness 1.5 - 2.5mm

b) Maximum diameter of the shackle - Ø10 mm.

Selected version

Product number 208-9312.00-00000
Delivery Unit: 1 pc.
Material: zinc die
Fastening type: screw-on
Name: Escutcheon for padlock
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

c)
208-0523.03-00000
Extension for cutout B
Details
Name:
Extension for cutout B
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
d)
208-0522.03-00000
Extension for cutout C
Details
Name:
Extension for cutout C
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
e)
3-101
Escutcheons
Open overview in new tab
e)
208-9301.00-00000
Escutcheon for triangular, square and Daimler Benz
Details
Name:
Escutcheon for triangular, square and Daimler Benz
Cutout:
PrA
Installation type:
screwed
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9302.00-00000
Escutcheon for Double bit
Details
Name:
Escutcheon for Double bit
Cutout:
PrA
Installation type:
screwed
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9501.00-00000
Escutcheon for triangular, square and Daimler Benz
Details
Name:
Escutcheon for triangular, square and Daimler Benz
Cutout:
PrC
Installation type:
screwed with hook
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9502.00-00000
Escutcheon for Double bit
Details
Name:
Escutcheon for Double bit
Cutout:
PrC
Installation type:
screwed with hook
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9503.00-00000
Escutcheon, FIAT Type
Details
Name:
Escutcheon, FIAT Type
Cutout:
PrC
Installation type:
screwed with hook
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9201.00-00000
Insert Square 6mm
Details
Insert:
Square 6mm
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9202.00-00000
Insert square 7mm
Details
Insert:
Square 7mm
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9203.00-00000
Insert square 8mm
Details
Insert:
Square 8mm
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9204.00-00000
Insert triangular 7mm
Details
Insert:
Triangular 7mm
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9205.00-00000
Insert triangular 8mm
Details
Insert:
Triangular 8mm
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9217.00-00000
Insert triangular 6.5mm CNOMO
Details
Insert:
Triangular 6.5mm CNOMO
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9210.00-00000
Insert double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9207.00-00000
Insert double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9206.00-00000
Insert Double bit 3mm with seinless steel pin
Details
Insert:
Double bit 3mm with stainless steel core
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9212.00-00000
Insert socket square 6mm
Details
Insert:
Square socket 6mm
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9208.00-00000
Insert Daimler Benz pin
Details
Insert:
Daimler Benz type
Delivery Unit:
1 pc.
Open product in new tab
e)
208-9209.00-00000
Insert FIAT
Details
Insert:
FIAT type
Delivery Unit:
1 pc.
Open product in new tab
209-4003.00-00000
O-ring
Details
Application:
for escutcheon
Dimension:
38 x 2
Material:
NBR
Delivery Unit:
10 pcs.
Open product in new tab
3-100
Rod Latch RS/FS PrA
Open overview in new tab
208-9001.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9008.00-00000
Rod latch 180°, zinc die
Details
Pivoting range:
180°
Version:
for inserts
Stroke:
31,4 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9013.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts, without rod
Stroke:
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9014.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts, with one rod
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9051.00-00000
Rod latch 135°, PA
Details
Pivoting range:
135°
Version:
for inserts
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9058.00-00000
Rod latch 180°, PA
Details
Pivoting range:
180°
Version:
for inserts
Stroke:
31,4 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9063.00-00000
Rod latch
Details
Pivoting range:
135°
Version:
for inserts, without rod
Stroke:
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9064.00-00000
Rod latch 135°, PA
Details
Pivoting range:
135°
Version:
for inserts, with one rod
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
3-011
Grounding Clip Stainless Steel
Open overview in new tab
208-1206.93-00000
Grounding Clip Stainless Steel
Details
Delivery Unit:
1 pc.
Open product in new tab

Function extension



Article no.
Name

3-011
Grounding Clip Stainless Steel
Open overview in new tab
208-1206.93-00000
Grounding Clip Stainless Steel
Details
Delivery Unit:
1 pc.
Open product in new tab
209-4003.00-00000
O-ring
Details
Application:
for escutcheon
Dimension:
38 x 2
Material:
NBR
Delivery Unit:
10 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 208-9312.00-00000
Delivery Unit: 1 pc.
Material: zinc die
Fastening type: screw-on
Name: Escutcheon for padlock
